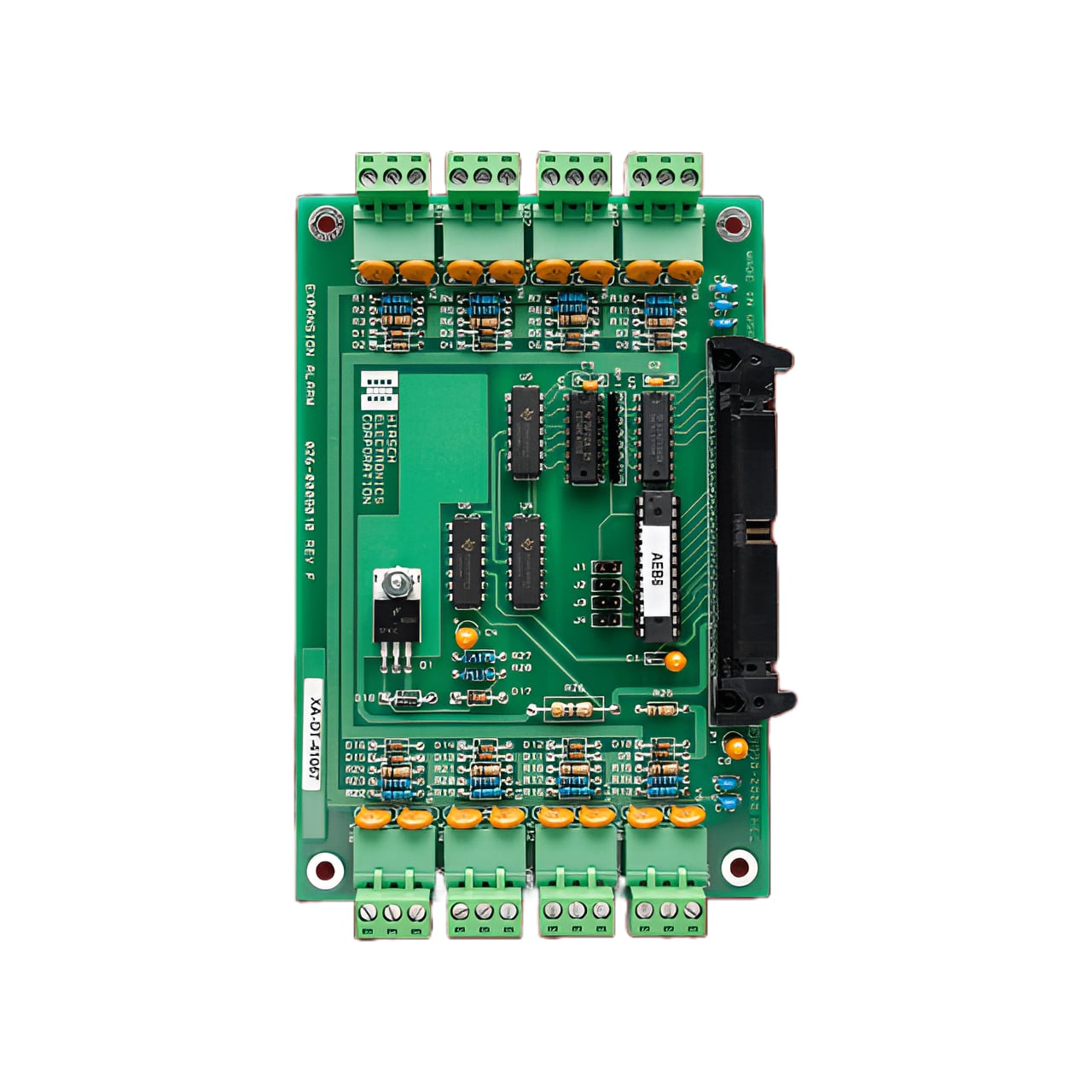

Used for a variety of security monitoring, this device provides an additional 8 line module inputs per board.
Product Description:
The Alarm Expansion line module inputs are used for a variety of security monitoring functions in an access control application. The AEB8 has four (4) address jumpers, and a range of eight (8) addresses. This addressing scheme enables up to four (4) AEB8s to reside on one controller.
Product Features:
- Up to 32 expansion inputs (intrusion detection, fire doors, windows)
- Add up to 4 AEB8 per controller
- Less than two (2) second response time with contact, tamper, motion, and line supervision
- Use with any Hirsch end-of-line module (MELM 1, 2, or 3)
- Attach to interior motion detectors, perimeter doors and windows
- Request to exit
- Tamper inputs
Technical Specification:
| COMMUNICATIONS | |
| Wiring from Controller | EBIC5 |
| Supervision | ± 2% with MELM 3 |
| PHYSICAL | |
| Alarm | Physical tamper on panel enclosure |
| Dimensions | 6.85 x 4.05 x .52 in (17.4 x 10.3 x 1.32 cm) |
| Shipping Weight | 1 lb (0.45 kg) |
| Operating Temperature Range | 32° to 140°F (0° to 60°C) |
| Relative Humidity | 0 to 90%, non-condensing |
| Listings and Approvals | • UL-294, UL-1076• CE |
