This device has a dual detection technology ensuring accurate intruder detection while minimizing false alarms.
Product Description:

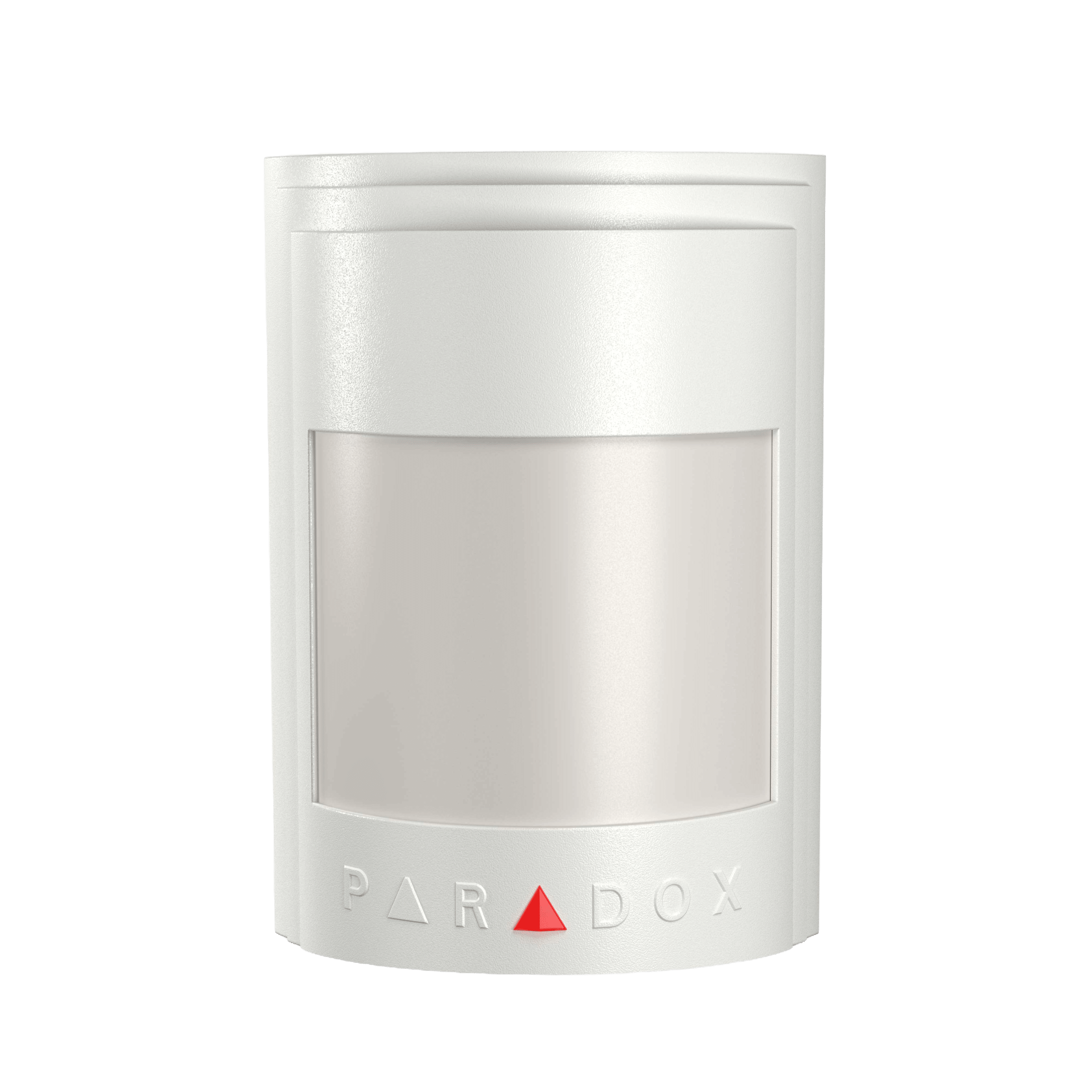

Paradox DM50 is a Dual Element Passive Infrared Motion Detector module compatible with Paradox Digiplex EVO panels. It connects to the EVO combus, and features digital auto pulse signal processing and Digital Shield algorithm software to improve reliability and reduce false alarms.
Product Features:
- Patented Digital Motion Detection (no analogue circuitry)
- Digital Auto Pulse Signal Processing
- Digital Shield algorithm software
- Metal shield maximizes protection from EMI and RFI signals
- 12m (40ft) X 12m (40ft) range with 110° viewing angle
Technical Specification:
| Infrared Sensor type | Dual element |
| Sensor geometry | Rectangular |
| Detection speed | 0.2m to 3.5 m/s (0.6 ft to 11.5 ft/s) |
| Operating temperature | -20°C to +50°C(-4°F to +122°F) |
| Voltage input | 9-16 Vdc. |
| Current Consumption | 16 mA (typical); 30 mA (maximum) |
| RFI/EMI rejection | 10 V/m |
| Lens | 2nd Generation Fresnel lens* |
| Coverage – 110° viewing angle | 12m x 12m (40 ft x 40 ft) |
| Installation height | 2s to 2.7m (7 ft to 9 ft) |
| Alarm indication | Red LED, constant light for 5 sec. |
| Movement signal indication | Red LED, 0.25 sec. |
| Non-movement signal indication | Green LED, 0.25 sec. (lights when RFI / EMI rejected) |
| Alarm output/ Tamper switch | Via Combus |
