A compact liquid detection device, scanning for possible presence of explosive precursors and exclusive liquids.
Description:

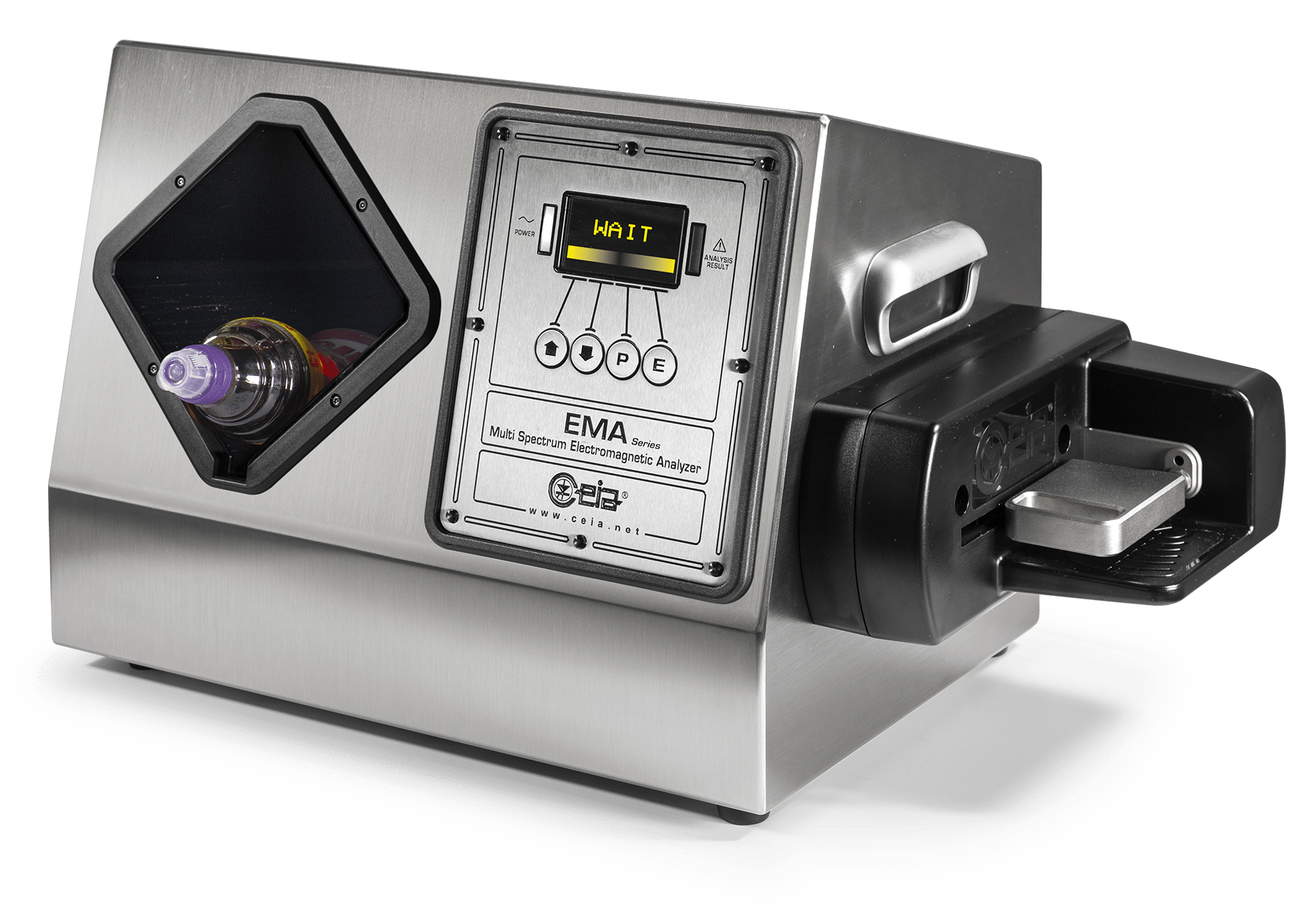

The EMA is a compact device designed for the analysis of liquid containers and their contents with the goal of detecting the possible presence of explosive precursors and explosive liquids. The content of the bottles is analyzed without the need to open the container as the detection uses simultaneous multiple sensing technologies. The housing of the analyser, which is extremely robust, durable and easy to clean, is made of AISI 304 Stainless Steel and anti-friction plastic.
Product Features:
- Accurate automatic inspection of sealed and unsealed LAGs (Liquids, Aerosols and Gels) in ~ 5 sec. (Type B) and ~ 4 sec. (Type A*)
- Compact size and ergonomic design
- Very low combined Nuisance Alarm Rate: < 0.4%
- No-ionizing source or part in movements
- Certified to screen liquids in clear, colored and opaque plastic and glass, metal and metallized containers
- No maintenance required
Technical Specifications:
| Key features | Integrated Type B and Type A Standard 3 certified SystemAutomatic inspection of any type of containersInspection time in ~ 5 seconds (type B) and ~ 4 seconds (type A)Multiple simultaneous sensing technologiesMinimum installation spaceMinimum operator training requiredAll solid stateNo mechanical parts in movementsNo-ionizing or laser sourcesNo maintenance required |
| Multiple sensing technology | Wideband Radio Frequency (R.F.)Infrared (IR)Magnetic InductiveGravimetric |
| Inspection Characteristics | Commercial Bottles of any shape and materials including plastic, glass, metal with capacity ranging from 100 ml to 2000 mlType A sample cups volume: 10 mlInitial Start-up time: 15 sec. maxAnalysis type: automaticAnalysis time: 5 sec. typical (type B) and 4 sec. typical (type A) |
| Detectable substances | Explosive precursors and explosive liquids |
| Alarm Signaling | Light Color Display Message MeaningGreen Ok Allowed liquid Yellow Not allowed product Alarm of medium intensityRed Not allowed product Alarm of high intensity |
| Acoustic alarmThreat classification availableOperator interface | Easy to read high-contrast graphic displayHigh durability stainless steel function keysProgrammability of all the parameters protected by passwords |
| Function and calibration control | Automatic calibration, continuously runningManual verification of calibration, performed by the operator through Pass/No-Pass reference test pieces (according to the operational procedures) |
| Communication capability | RS-232 serial interfaceEthernet network interface |
| Remote control and Ethernet Networking Functions | Available through the CEIA NetID Management softwareProgrammingStatistical Data CollectionMaintenanceFirmware upgrade |
| Degree of protection | IP 20 (IEC 60529) |
| Weight | 17 kg (type B only)17.5 kg (type B and type A) |
| Main Electronics Features | High integration SMT32-bit flash-based microcontrollers32-bit DSPLow power and high reliabilityVery low power inspection field, confined in the analysis compartment, completely safe for both the operator and the liquidNo ionizing radiation or radioactive sourcesNo laser sources |
| Main Mechanical Features | Constructed entirely in AISI304 Stainless SteelAnti-fingerprint surface treatmentRugged and DurableCompact and Aesthetically pleasing |
| Installation and Maintenance | Automatic adjustment to environmental conditionsNo initial or periodic calibrations requiredFirmware upgradeable via RS232 or Ethernet interfaceNo periodical maintenance or consumables requiredBuilt-in automatic calibration and self-diagnosis system |
| Certification and conformity | Standard 3 Certified according to ECAC performance requirements for Type B Liquid Explosive Detection SystemsStandard 3 Certified according to ECAC performance requirements for Type A Liquid Explosive Detection SystemsConforms to the currently applicable International Standards for Electrical Safety and EMC |
| Power Supply | 115/230V~ ±15%, 50/60 Hz ±10%, 15W |
| Environmental conditions | Operating temperature: 0°C to +40°CStorage temperature: -10°C to +60°COperating Relative humidity: 0 to 95% (without condensation)Storage Relative humidity: 0-98%, without condensation |
| NATO Stock Number | 6665-1518052356665-151805236 |
