A high-security keypad that features a patented scrambling function. It can also be used for contactless and contact smart card.
Product Description:

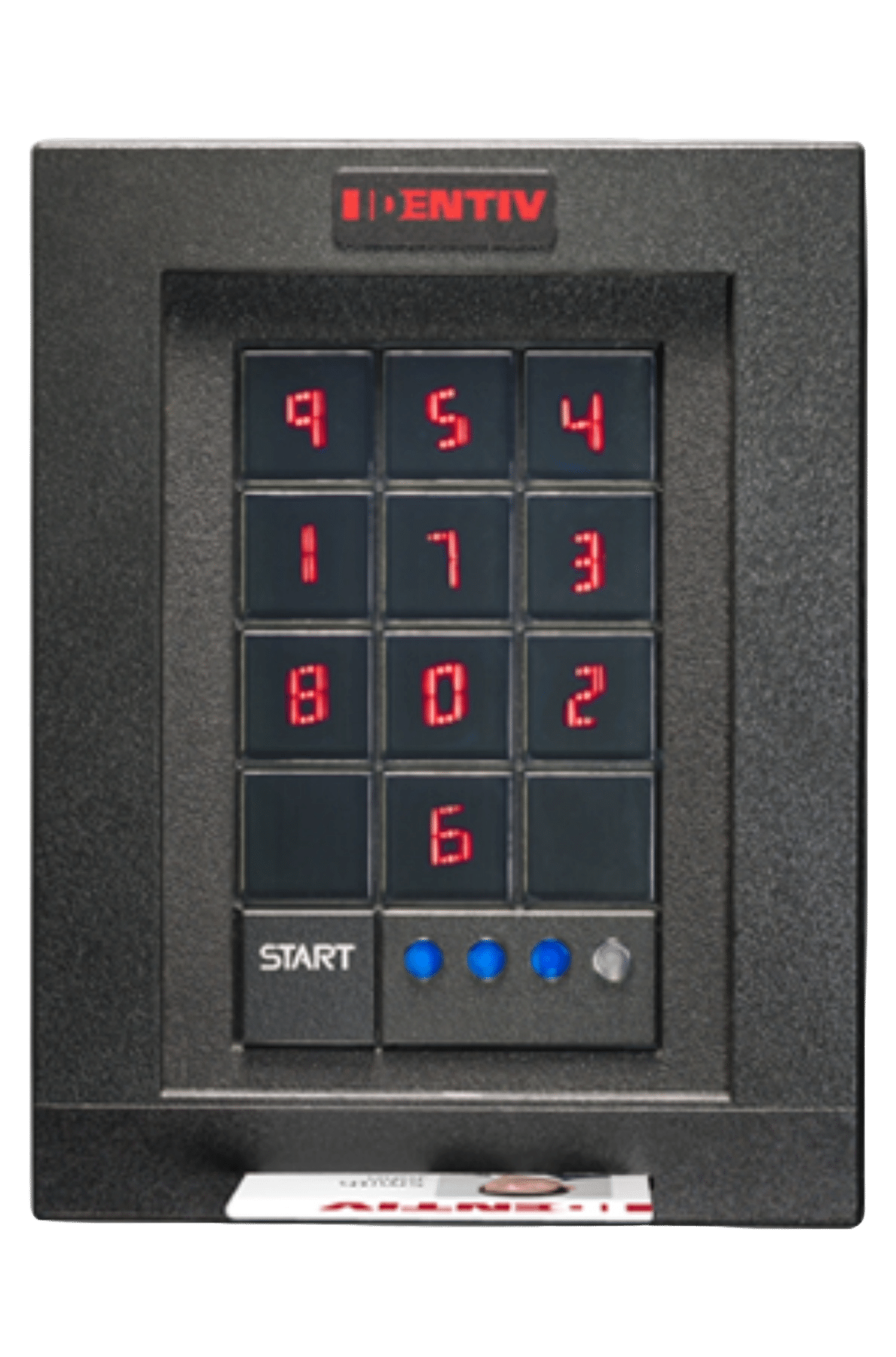

Hirsch TS ScramblePad SC provides high-security keypad functionality, a contactless interface, and a contact reader for two-factor authentication. The ScramblePad design is specified in many of the world’s most secure locations due to its high-security scramble feature that randomly orders the digits each time the “START” button is pressed or a card requiring a PIN is presented.
The random scrambling prevents the acquisition of a user code via pattern recognition and also prevents keypad wear leaving a tell-tale impression of the numbers used in a valid PIN. This feature is further enhanced by the use of viewing restrictors narrowing the field of vision; only the person directly facing the ScramblePad can see the presented digits.
Product Features:
- Industry’s most versatile, highly secure intelligent door reader endpoint
- Extends the ScramblePad family with a contact smart card reader for FICAM two-factor authentication for high-security Zones
- Supports PIV, PIV-I, CIV, CAC, PLAID, legacy credentials (DESFire, MIFARE, UID) and proximity , reading both contactless and contact interfaces
- Versatile platform transitions seamlessly and simultaneously for certified validation systems
- Wiegand, RS-485/OSDP, Ethernet (PoE)
- Download firmware and feature updates and changes over RS-485/OSDP link
Technical Specification:
| TS ScramblePad SC Wiegand | TS ScramblePad SC RS-485/OSDP | TS ScramblePad SCFICAM | TS ScramblePad SC FICAM-Strict | |
| Part Numbers | 8336ABT0000 | 8336ABTR000 | 8336ABTF000 | 8336ABTFF00 |
| Description | ScramblePad with TSReader(Commercial and Government) | ScramblePad with TSReader(Commercial and Government) | ScramblePad with TS Reader (with FICAM Systems) | ScramblePad with TS Reader (FICAM Systems – Strict) |
| Carrier Frequencies | 125 kHz/13.56 MHz | 13.56MHz | ||
| Reader Output | Wiegand | RS-485 (2 Wire) | ||
| CurrentConsumption (@ 12 V) | 270 mA typical 300 mA PeakPoE @48V 68 mA typical 82 mA Peak | |||
| Power Supply | 12 VDC or PoE (802.3af) | |||
| Product Weight | 445 g (15.69 oz) | |||
| Dimensions | Face: 5.75 (H) x 4.37 (W) in (14.6 x 11.1 cm) Body: 5.0 (H) x 3.5 (W) x 2.75 (D) in (12.7 cm x 8.89 cm x 7.0 cm) | |||
| Color | Black | |||
| Operating Temperature | 0° to 49° C (32° to 120° F) | |||
| Storage Temperature | -35 to 85° C (-31 to 185° F) | |||
| High FrequencyCompatibility | PIV, PIV-I, CAC, MIFARE, DESFire, PLAID, ISO15693, ISO14443A | PIV, PIV-1, CAC, CAK & PAK | ||
| Low FrequencyCompatibility | HID Prox, Indala, Casi Rusco, AWID, Farpointe, and others | None | ||
| Operating Humidity | 5% to 95% relative humidity (non-condensing) | |||
| Connection | Structure Cabling (RJ45) for Ethernet and Terminal Strip for Wiegand and RS485RGB LED, Ethernet link activity LED, Buzzer | |||
| Certifications | FCC, UL, CE, IC, RCM, RoHS2, REACH | |||
| FICAM Certifications | No | Upgradable | Yes | |
| Warranty | Two (2) years | |||
| Mounting Boxes | Dimensions and mounting points are identical to other ScramblePads, enabling compatibility with a range of mounting boxes. The contact smart card reader occupies the volume below the reader. It fits in a standard MB2 or MB2/UMK as long as that volume is not obstructed. Other boxes may require an extender or an alternate faceplate | |||
