A feature-rich hardwired keypad with an LCD display, offering advanced control and monitoring capabilities for 32 zones in your Paradox security system.
Description:

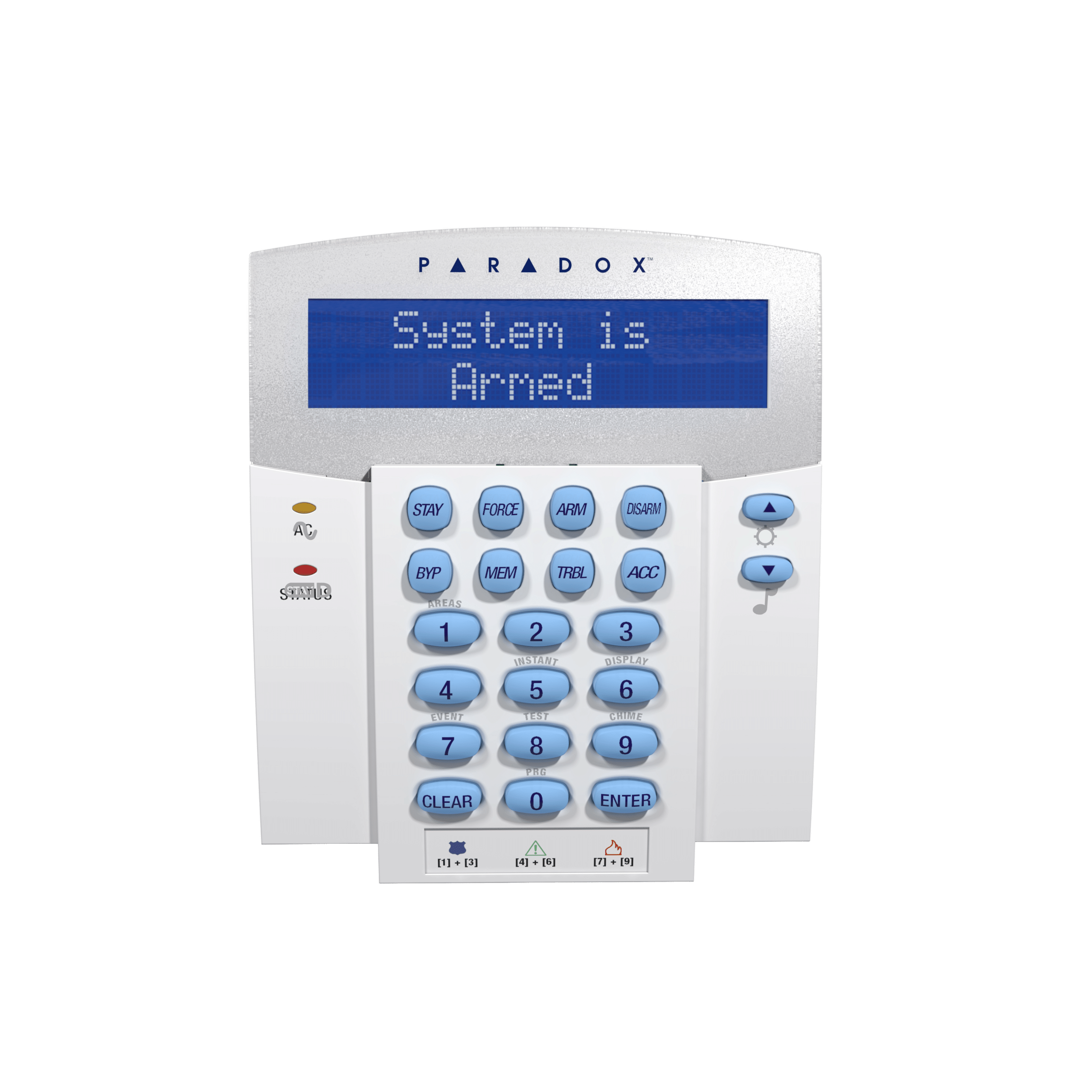

The K32LX Paradox is a hardwired Blue LCD keypad with built-in wireless transceiver for Paradox Spectra SP alarm panels. The K32LX simplifies the installation of a wireless system by eliminating the need for a separate transceiver (RTX3) or receiver (RX1). This approach reduces system costs and makes installation easier. Considering that keypads are typically installed near entry doors, the K32LX also ensures optimal RF performance range for remote controls.
Product Features:
- Built-in transceiver (433 or 868 MHz)
- 32-character, blue LCD with programmable labels
- StayD with status LED
- Real-time zone alarm display
- In-field firmware upgradable via 307USB and WinLoad
- 1 keypad zone input
- 1 PGM output (follows arm status)
- 8 one-touch action buttons
- 3 keypad-activated panic alarms
- Adjustable backlight, contrast, and scroll speed
- Independently set chime zones
- Connects to 4-wire expansion bus
- 1 K32LX per SP system
- Supports K32RF and K37 keypads
- Compatible with SP5500/SP6000/SP7000 version 4.72 and higher
- Compatible with SP4000/SP65 version 4.90 and higher (1 way communication only)
