Hirsch Mx-1 Controller: High-Security Access Control
An access control with PoE (Power over Ethernet) to manage a single fully supervised door. Product Description: The modular design and scalable architecture enables an installation to start small and expand as needed, from a single controller system to a larger, multi-site enterprise environment. The controller is designed for use with the Hirsch Velocity security management system, uTrust TS Readers and secure keypads, or wireless door locks. Product Features: Technical Specification: COMMUNICATIONS Serial Interface Ports Controller to controller:• RS-485 multi-drop protocol (X*NET2, X*NET3)• Up to 4,000 ft (1,200 m) with 22 gauge, 2 pair, stranded, twisted, and shielded OSDP Protocol Controller to reader:• Buzzer, LED, and optional secure OSDP• Single port for entry and exit readers• Up to 4,000 ft (1,200 m) with 18 gauge, 2 pair, stranded, twisted, and shielded Wiegand Protocol Onboard Wiegand:• Industry standard Wiegand• Reader ports: 2 (1 entry port and 1 exit port)• Maximum wiring run: 500 ft (150 m) with 18 gauge, 2 pair, stranded, twisted, overall shield FIRMWARE Command and Control Module (CCMx) • Flash upgradeable• Time zones: 150• Door groups: 128• Control zones: 256• Holiday schedules: 4 (366 days x 2 years)• Daylight savings time adjustment SNIB3 • Flash upgradeable with signed and encrypted firmware• FIPS AES 256 encryption• TLS 1.2 Encryption (Requires Velocity 3.7 SP2 or later)• 10/100/1000 Ethernet (TCP/IPv4 or v6) MEMORY Buffers Standard: 1,500 events and 1,500 alarms Credentials Up to 500,000 Memory ProtectionBattery 10 days for code, setups, clock, and buffers PHYSICAL Security Cover opening tamper switch Enclosure Flame retardant plastic enclosure with exposed connectors and diagnostic LEDs Dimensions 1.25 x 8.0 x 8.0 in (3.18 x 20.32 x 20.32 cm) Weight 1.5 lbs (0.69 kg) OperatingTemperature Range 32° to 140°F (0° to 60°C) Relative Humidity 0 to 90%, non-condensing ELECTRICAL OSDP Keypad/ReaderPower (1 Terminal) 750mA at 12V (up to 2 readers) WiegandKeypad/Reader (2Terminals) 750mA at 12V Power Supply PoE+ 802.3at Type 2 or UL-listed 2.0 A switching power supply at 110 – 240VAC and 50/60 Hz providing 24V – 28VDC power Door Relay • Dry 2A at 30V• Wet 750mA at 24V Auxiliary Relay • Dry 1A at 30V• Wet 750mA at 24V Listings and Approvals • UL 294: Access Control Systems Units• UL 1076: Proprietary Burglar Alarm Systems• CE and UKCA
Hirsch Mx Controller: High-Security Access Control
An access control available in 4 and 8-door models. It is designed for use with the Identiv Connected Physical Access Manager (ICPAM). Product Description: Identiv’s Hirsch Mx Controller is available in four (4) and eight (8) door models with each door fully supervised. The modular design and the scalable architecture of the controller enables an installation to start small and expand as needed, from a single controller system to a larger, multi-site enterprise. Mx Controllers are the core of Identiv’s physical access control solutions. These controllers are designed for use with the Identiv Connected Physical Access Manager (ICPAM) solution and uTrust TS Readers. A range of models and expansion options in the Mx product line provide a variety of access control, high-security alarm monitoring, and relay control outputs. Product Features: Technical Specification: Serial Interface Ports Controller to controller:RS-485 multi-drop protocol (X*NET2/X*NET3)Optically isolated portUp to 4,000 ft (1,200 m) with 22 gauge, 2 pair, stranded, twisted, and shieldedController to server:10/100 Ethernet (TCP/IP)Encrypted communication MATCH Protocol 24V DC nominal Reader Support MATCH2:MATCH protocolKeypad/reader ports: 8 with 16 device addresses (8 entry and 8 exit)Maximum wiring run: 750 ft (230 m) with 22 gauge or 1,800 ft (550 m) with 18 gauge, 2 pair, stranded, twisted, overall shield Onboard Wiegand:Industry standard WiegandKeypad/reader port: 8 using Mx device address 1 – 8Maximum wiring run: 500 ft (150 m) with 18 gauge, 2 pair, stranded, twisted, overall shield Command and Control Module (CCMx) • Removable and upgradeable• CCM updates all microprocessors (including onboard MATCH)• Time zones: 150• Door groups: 128• Control zones: 256• Holiday schedules: 4 (366 days x 2 years)• Daylight savings time adjustment Public Private Key Processor and SecureDigital Key Vault Global platform compatible and secure storage of key material Buffers • Standard: 1,500 events and 1,500 alarms• MEB/CB128 (reduces users by 20%) or MEB/BE: 20,000 events and 2,000 alarms• If buffer is full, oldest information is discarded first Users • Standard: 2000 – 4000 (Access Policy Dependent (1))• Memory Expansion Board MEB/CB64: Up to 68,000• Memory Expansion Board MEB/CB128: Up to 132,000 Memory Protection Battery 30 days for code, setups, clock, and buffers Security • Enclosure door tamper switch• Key lock Enclosure NEMA type with conduit knockouts and removable door Dimensions 18 x 15.25 x 5.5 in (457 x 387 x 140 mm) Weight 30 lbs (13.6 kg) Expansion Boards 6 x 4.25 x 0.75 in (152 x 108 x 19 mm) and 1.0 lb (0.45 kg) Operating Temperature Range 32° to 140°F (0° to 60°C) Relative Humidity 0 to 90%, non-condensing Keypad/Reader Power (8 Terminals) • 1.0 Amp at 24VDC each, fused and resettable• 2.9 Amp at 24VDC each• Powers MATCH2 Wiegand Keypad/Reader (8 Terminals) • 500 mA at 12VDC each, fused and resettable• 2.0 Amp at 12VDc total• Powers standard readers Power Supply • Switching• 110 – 240 VAC, 50/60, fused Standby Batteries 7 AH included Door Relays 5 Amp, form C Alarm Relays 2 Amp, form C Listings and Approvals • UL 294: Access Control Systems Units• UL 1076: Proprietary Burglar Alarm Systems

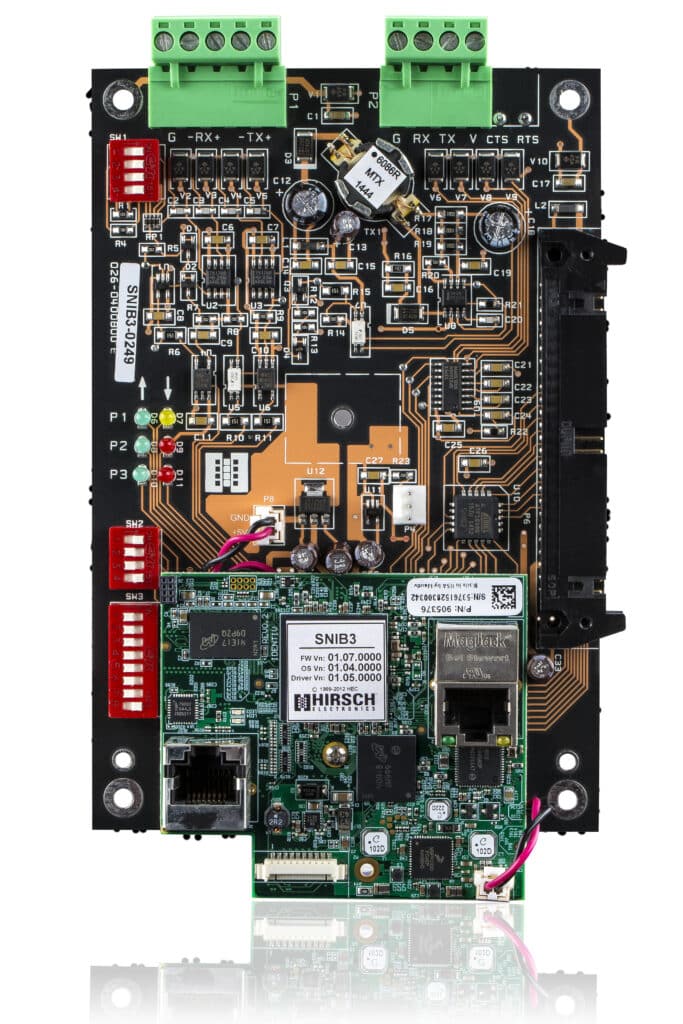

SNIB3 Secure Network Interface Board
A leading edge communication device that provides TCP/IP version 6, Gigabit Ethernet, and AES 256 bit encryption. Product Description: The SNIB3 is a leading edge communication device that provides IPv4 or IPv6, Gigabit Ethernet, and FIPS 140-2 certified cryptography, including AES 256 bit encryption. If you already have controllers from Identiv, the SNIB3 is a drop-in replacement for the SNIB2 and SNIB communications boards, allowing for easy upgrades. Product Features: Technical Specification: Encrypted CommunicationOptions • TLS v1.2 (FIPS 140-2)• AES 256 (FIPS 140-2)• AES 128 (FIPS 197) Communication Options • 10/100/1000 Base-T Ethernet• IPv4 addressing• IPV6 addressing FICAM • GSA APL Approved• Card Auth, PIV Auth, and PIV Auth + Biometric reader support Globalization/ Gateway • SNIB3 master with downstream SNIB3 and SNIB2- All SNIB3s are required for TLS v1.2• Anti-passback• Occupancy counting• Limit/Day Usage• Absentee tracking• If/Then Programming Communications • Serial Interface ports:RS-485: Multi-drop up to 16 controllers maximum (without NET*MUX4)RS-485 XNET2/3 baud rate: 9600, 38.4K, 57.6K, 115.2KRS-485: 4000 ft (1220 m) to the last controller on a cable run with 22 gauge, two-pair, stranded, twisted overall shield • Ethernet Ports:TCP/IP 10/100BASE-T (SNIB2)TCP/IP 10/100/1000BASE-T (SNIB3)

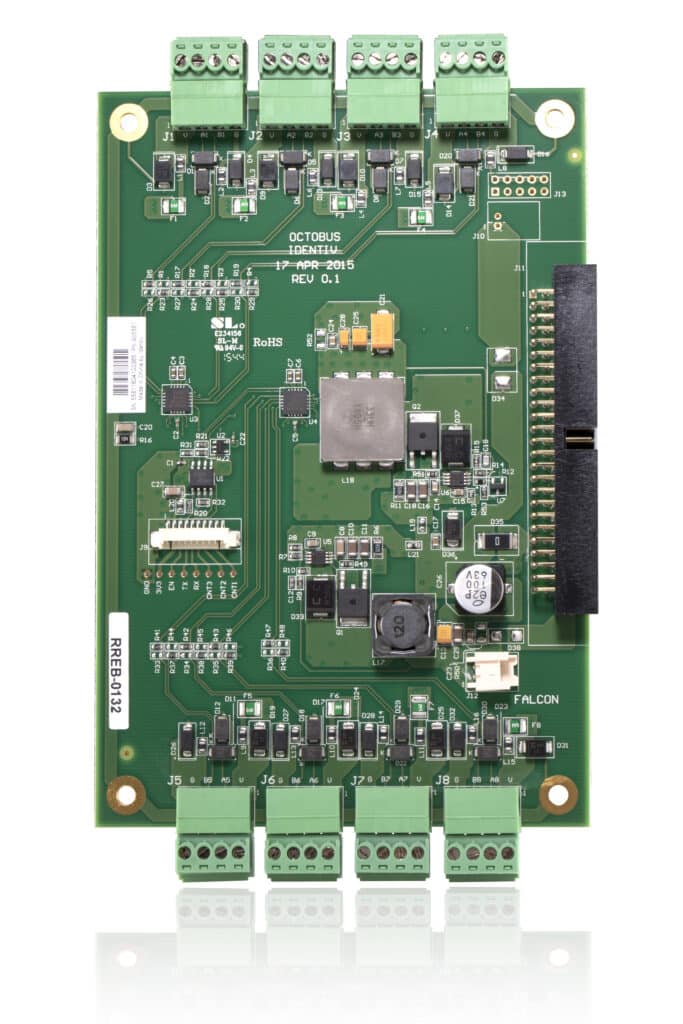

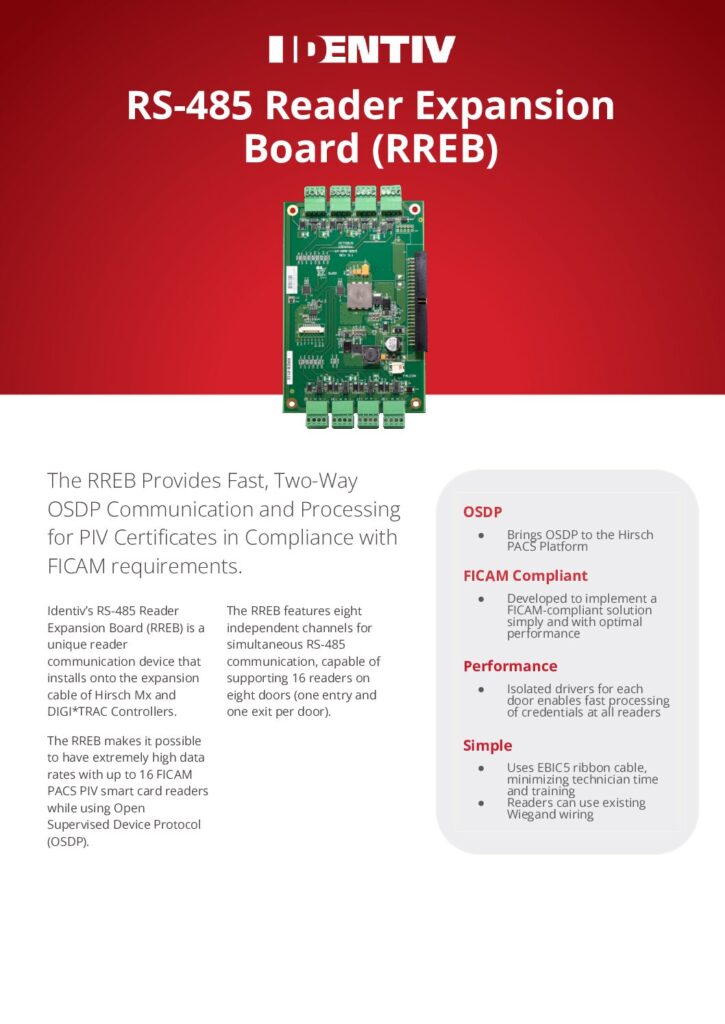

RS-485 Relay Expansion Board
Provides fast, two-way OSDP communication and processing for PIV Certificates. Product Description: Identiv’s RS-485 Reader Expansion Board (RREB) is a unique reader communication device that installs onto the expansion cable of Hirsch Mx and DIGI*TRAC Controllers. The RREB makes it possible to have extremely high data rates with up to 16 FICAM PACS PIV smart card readers while using Open Supervised Device Protocol (OSDP). Product Features: Technical Specification: COMMUNICATIONS Wiring from Controller EBIC5 Supervision RREB is a passive communications board; reader tamper and communication supervision is handled by SNIB3 Wiring to Reader Two pair, stranded, twisted, overall shield 18 AWG Communication Protocol Half-duplex RS-485 plus power ELECTRICAL Operating Power 900mA at 28VDC Reader Power • Eight terminals, two readers maximum per terminal• 500mA at 12VDC each PHYSICAL Alarm Physical tamper on panel enclosure Dimensions 6.85 x 4.05 x .52 in (17.4 x 10.3 x 1.32 cm) Shipping Weight 1 lb (0.45 kg) Operating Temperature Range 32° to 140°F (0° to 60°C) Relative Humidity 0 to 90%, non-condensing Listings and Approvals • UL-ALVY (294), Access Control Systems Units• CUL-UEHX7, Signal Appliances• CE
REB8 Relay Expansion Board with 8 Dry Relay Outputs
Expands the control relay capacity of M-Series Controllers with 8 additional dry relay outputs. Product Description: Identiv’s Relay Expansion Board (REB8) expands the control relay capacity of M-Series Controllers. REB8 provides eight (8) additional two (2) AMP form C dry relay outputs, rated for 24VDC. These relays are socketed and removable. Unlike the large heavy-duty door relays used to switch electric locks or strike power at ten (10) AMP loads, the expansion relays are normally used for signal level switching or pilot duty. Such switches, when closed, provide an input to a low-voltage sensing circuit. However, the switch can also be used to activate the coils of a remote heavy-duty relay. Product Features: Technical Specification: COMMUNICATIONS Wiring from Controller One (1) pair twisted shielded PHYSICAL Alarm Physical tamper on panel enclosure Dimensions 6.85 x 4.05 x .52 in (17.4 x 10.3 x 1.32 cm) Shipping Weight 1 lb (0.45 kg) Operating Temperature Range 32° to 140°F (0° to 60°C) Relative Humidity 0 to 90%, non-condensing Listings and Approvals CE

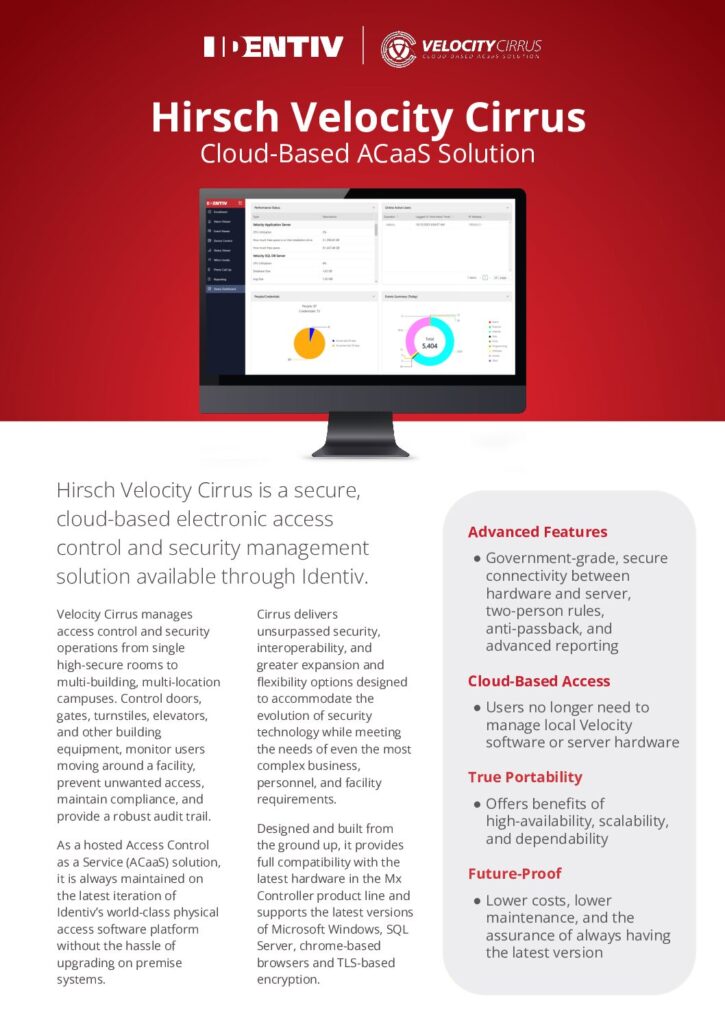

Cirrus Cloud Access Control
A secure, cloud-based electronic access control and security management solution. Product Description: Velocity Cirrus manages access control and security operations from single high-secure rooms to multi-building, multi-location campuses. Control doors, gates, turnstiles, elevators, and other building equipment, monitor users moving around a facility, prevent unwanted access, maintain compliance, and provide a robust audit trail. As a hosted Access Control as a Service (ACaaS) solution, it is always maintained on the latest iteration of Identiv’s world-class physical access software platform without the hassle of upgrading on premise systems. Product Features: Technical Specification: Feature Description Government-grade secureconnectivity from server topanels Building on Hirsch’s robust history of protecting the most secure government facilities, Velocity Cirrus provides secure connectivity between cloud servers and onsite equipment Device Control and StatusViewer • Credentials: Up to 500,000 per controller when using a SNIB3• Control zones: 256 per controller• Door groups: 128 per controller• Holiday schedules: 4 (366 days x 2 years) per controller• Expansion input and/or output boards available per controller• Status viewer can be configured to monitor status of system components Alarm viewer Monitor and acknowledge active system alarms, such as Forced Entry, DOTL (door open too long), and more Event viewer View system events as they occur with as much granularity as desired Enrollment manager Comprehensive enrollment tool for managing individuals, groups, credentials, enrollment, access, and printing Advanced reporting Choose from over 90 system reports that allow administrators to customize multiple parameters to extract information from the system’s usage and history Customizable threat levels Manage system defined threat levels and and threat authority levels to determine how credentials and door groups are affected to accommodate a wide range of situations Who’s inside Protect against credentials being passed back from the secure side of a door to allow unauthorized access, while offering flexible control to accommodate a variety of business policies Photo call-up Select up to 10 doors to monitor with photo call-up on access granted or denied events and have portraits displayed from Cirrus as the access events occur Industry-leading readercompatibility Velocity Cirrus and the Hirsch platform accommodates an incredible range of reader industry-standard hardware, including MATCH2, Wiegand and OSDP readers, biometric readers, and the ability to accommodate a variety of credential formats
uTrust UHF Credentials
An ultra high frequency smart card designed for long distance reading. Product Description: uTrust UHF Credentials provide multiple options for durable,interoperable radio frequency identification (RFID) cards. Ultra high frequency (UHF) technology (operating in the 860 – 960 MHz frequency range) delivers outstanding performance for long-distance, multiple, reliable readings of credentials, including cards and tags. Leveraging the short wavelength of UHF technology, they are the ideal solution for reading people or items from a significant distance, more than 18 – 21 feet. Product Features: Technical Specification: ISO PVC UHF LF Card ISO PVC UHF DESFire EV2 2K Card RFID Interface • Broadband support for contactless frequency range around the world (860 – 960 MHz)• Programmable with different PACS formats (ie., 26, 35, 37 bits, etc.) UHF Chip and Memory • Alien H3 (other chips may also be used)• 800 bits of memory, 96 EPC bits extensible to 480 bits, 512 user bits, 64-bit unique TID (unalterable serial number)• 32-bit access and 32-bit kill passwords• User memory can be block perma-locked or read-password protected in 64 bit blocks Credential Form Factorand Dimensions • ISO Card (ID1 Format) and ISO7810 format• 3.37 x 2.125 x 0.030 in (85.6 x 54 x 0.84 mm)• Thickness 30 mm +/- 3 mml Weight 0.15 oz (4.3 g) Read Range(with UHF Reader 2 Watts) 18 – 21 ft (6 – 7 meters) Slot Punch Not supported Operating Temperatures -50° to 160° F (-45° to 70° C) Material PVC with quality surface for use with most card printers on the market Options • Magnetic stripe three tracks (HICO123)• Black, pre-printing CMYK, or Pantone colors• Special encoding available on demand for compatibility with UHF readers LF/HF Specifics LF 125 KHz with capabilities identical to uTrust Proximity Credentials • HF 13.56 MHz with NXP DESFire EV2 2K (non-programmed by default)• Configuration with uTrust TS Card encoding on DESFire (available by request) Part Number 99-017-UHF-LF 99-090-UHF-HF-DFEV2-2K Supported UHF Readers • Wiegand interface (i.e., NEDAP uPASS Access Reader, IDTek RF900, FEIG ID LRU500i-BD-FCC UHF Compact Reader with integrated antenna, and TRES Reader Family 9v00) • Other brands (i.e., TRES Reader Family 900) • ASReader for iOS and Android mobile devices (i.e., ASR-0230D (FCC/US) 902.75~927.25 MHz) or desktop readers (i.e., ASR-P30U) • Thinkify (i.e., TR-265 USB Desktop RFID Reader) Lifetime Warranty For material defects and workmanship under normal wear and tear

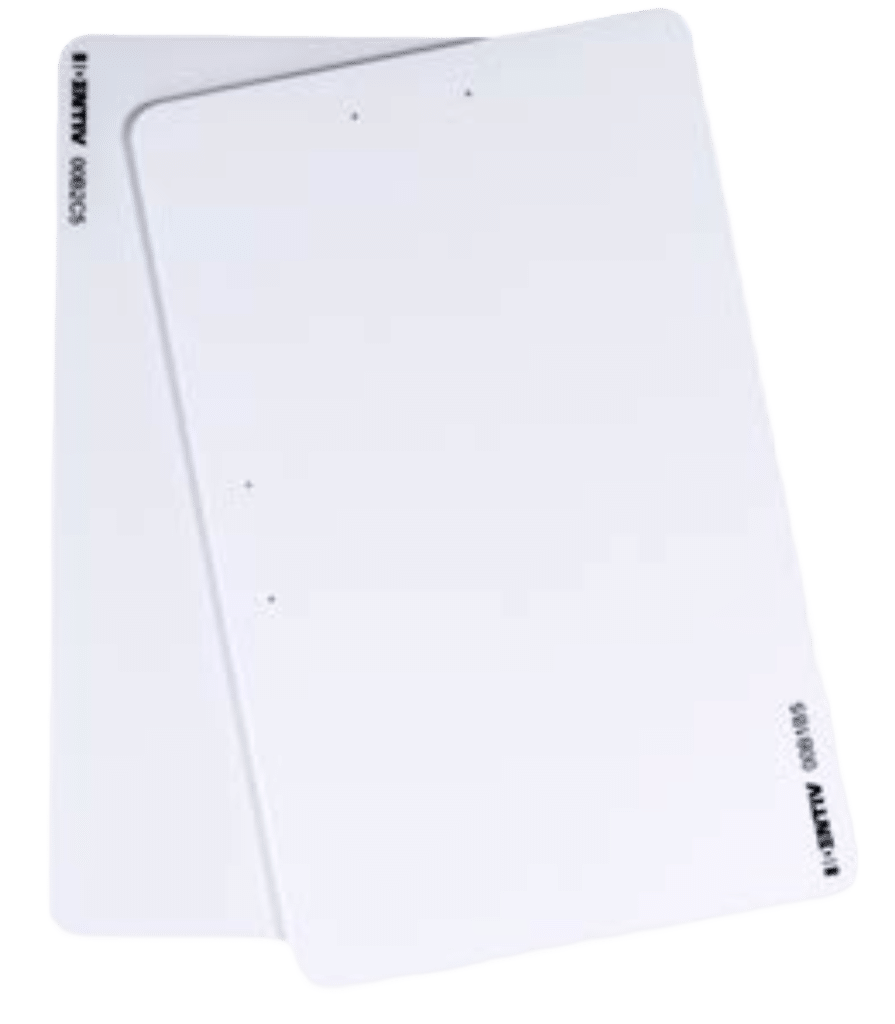

uTrust TS Cards
A high-frequency smart card designed for contactless access to offices and similar properties. Product Description: Identiv’s uTrust TS Cards are modern, secure credentials for physical access control, based on NXP® ‘s MIFARE DESFire high-frequency (HF) 13.56 MHz technology, and are compatible with 125 kHz LF proximity card systems. Standards-based card technology (MIFARE DESFire EV1 or EV2), combined with a published encoding profile, enables easy integration into third-party products (e.g., other OEM reader products, printers, etc.). uTrust TS Cards may be used with the uTrust TS Universal Enroller, an integrated enrollment reader that simplifies the daily process of enrolling new cards. uTrust TS Cards come with a limited lifetime warranty against material defects and workmanship. Product Features: Technical Specification: uTrust TS Standard 256BISO Card uTrust TS Standard 2K/4K/8KISO Card uTrust TS Migration 256BPlus Prox ISO Card uTrust TS Migration 2K/4K/8K Plus Prox ISO Card SupportedApplication Physical Access Control RFID Interface 13.56 MHz only (HF, ISO/IEC 14443A) 13.56 MHz (HF, ISO/IEC 14443A) and 125 KHz (LF) Chip Technology NXP MIFARE DESFire EV1 256B or EV2 2K/4Kor 8K Bytes NXP MIFARE DESFire EV1 256B or EV2 2K/4Kor 8K Bytes and Atmel T5577 CryptographicAlgorithms AES-128 with key diversification and CMAC protection for card commands Cryptographic KeyManagement Identiv Key Set (NextUp Secure) or customer-specified keys (NextUp VIP)* Card FormatEncoding Managed formats to ensure that uniqueness of numbers is guaranteed.See uTrust TS Card Ordering Guide for details. Security Certification Common Criteria EAL4+ for DESFire EV1 and EAL5+ for DESFire EV2 CredentialForm Factor ISO Card (ID1 format), ISO/IEC 7810 Dimensions 3.37 x 2.125 x 0.033 in (85.6 x 54 x 0.84 mm) Weight 0.212 oz (6 g) 0.15 oz (4.3 g) Read Range** Up to 1.5 in (38 mm) using the HF interface Up to 2.5 in (63.5 mm) using the LF interface Slot Punch Vertical or horizontal slot punch marks (punching of the cards can be done by Identiv at extra charge) OperatingTemperature -49 ̊ to 158 ̊ F (-45 ̊ to 70 ̊ C) Material Durable using composite with a mix of PVC (60%) and PET (40%) IdentivPart Numbers 5020-SDXXX(XXX is variable based on card configurationordered, refer to the TS Card Ordering Guide formore information) 5020-MDXXX(XXX is variable based on card configurationordered, refer to the TS Card Ordering Guide for more information) Compatible Readers • Identiv’s uTrust Readers (Advanced, Migration,and ScramblePad)• uTrust TS Universal Card Enroller• All ISO 14443 UID readers • Identiv’s uTrust Readers(Advanced, Migration, and ScramblePad)• uTrust TS Universal Card Enroller• All ISO 14443 UID readers• All HID proximity compatible 125kHz LF readers
uTrust HF Key Fob
An easy-to-bring physical access commonly used for gym facilities. Product Description: Packed with the same technology as Identiv’s proximity and high-frequency (HF) card credentials, uTrust HF Keyfobs match the security of traditional access control cards but with the convenience of a keyfob. No more lost or forgotten cards and the compact size does not add bulk or weight. uTrust HF Keyfobs are manufactured with high-strength, durable plastics for long-term performance in the harshest environments. The versatility and long-life contribute to a cost-effective access or identification solution. These keyfobs are the ideal complement to traditional key cards. Product Features: Technical Specification: DESFire EV2 4K DESFire EV3 4K Product Part Number 3642-BLUE 3842-BLUE IC NXP MIFARE DESFire EV2 NXP MIFARE DESFire EV3 User Memory 4 kB 4 kB Frequency 13.56 MHz 13.56 MHz ISO/IEC specification 14443A 14443A Read Range Up to 2 in (50.8 mm) Up to 2 in (50.8 mm) Dimensions 1.77 x 1.18 x 0.09 in (45 x 30 x 2.2 mm) 1.77 x 1.18 x 0.09 in (45 x 30 x 2.2 mm) Weight 0.12 oz (3.5 g) 0.12 oz (3.5 g) Material Polyamide 6 Polyamide 6 Operating Temperature -25°C ~ 85°C (-13°F ~ 185°F) -25°C ~ 85°C (-13°F ~ 185°F)

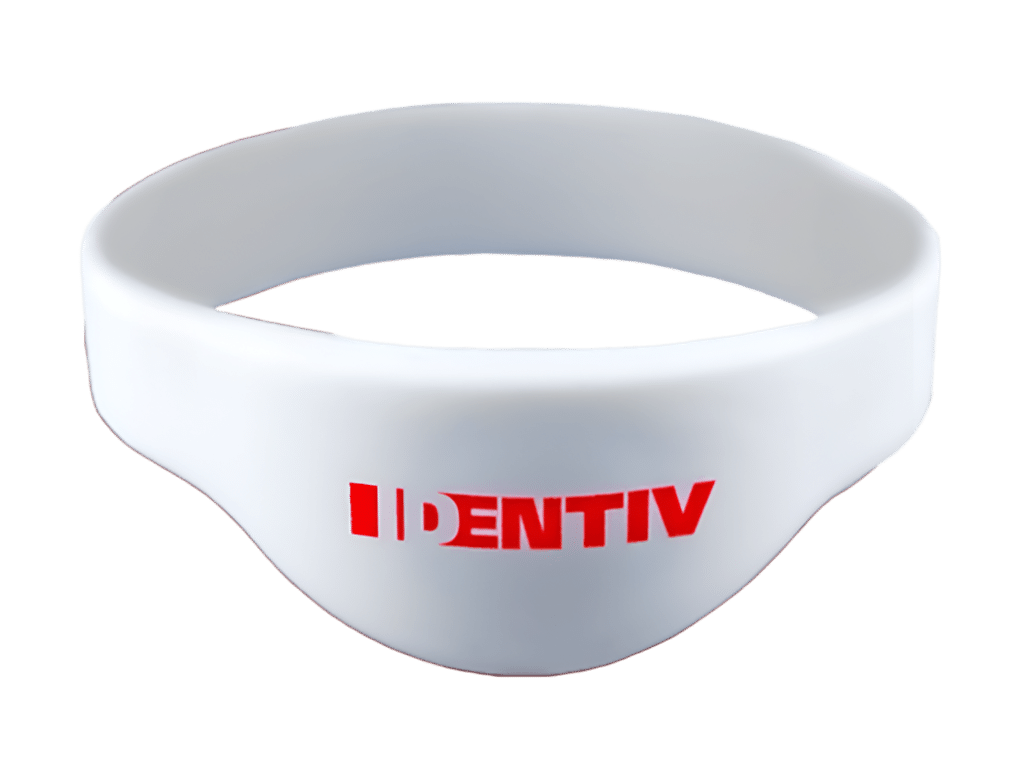

uTrust Wristband Proximity Central
Allows for seamless access and management of amusement parks, gyms, and other active facilities. Product Description: Identiv’s 125 kHz Wristband Proximity Credential is the perfect access control solution for active environments. The wristband allows for convenient access to facilities, attractions, and services for temporary or long-term use. This credential delivers a seamless experience for managing access in amusement and water parks, summer camps, sport (i.e., student athletics) and fitness centers, and healthcare environments. As it is waterproof, this wristband is the ideal companion product for Identiv credentials, enabling support for additional use cases in many deployments, including physical access control. Product Features: Technical Specification: Operating Frequency 125 KHz Dimensions • Standard inner diameter: 70 mm (2.76 in), 60 mm (2.36 in), and 55 mm (2.17 in)• Semi circle top head size: 25mm height (0.98 in) and 50mm long (1.97 in)• Custom: Other sizes available on demand Weight 14 – 15 g (0.49 – 0.52 oz) Typical Read Range Up to 61 mm (2.4 in) Transaction Time <100 ms Programming All standard PACS formats, including Identiv proprietary formats;By default, programmed number shows on the back of the wristband Slot Punch None Operating Temperature -30° to 220°C (-22° to 428°F) Housing Material Silicon rubber (similar to the material of medical gloves) Part Numbers • 4096: White, 70mm (2.76 in), no logo• 4096-BLACK-001: Black, 70mm (2.76 in), no logo• 4097: White, 60 mm (2.36 in), no logo• 4097-BLACK-001: Black, 60 mm (2.36 in), no logo• 4098: White, 55mm (2.17 in), no logo• 4098-BLACK-001: Black, 55 mm (2.17 in), no logoPlease contact your Identiv representative for more options Color Options • Standard: White and black• Custom (Special Order): Yellow, orange, green, red, or blue Minimum Order Quantity • Standard: 100 units (each size)• Custom: 1,000 Water Resistance Internal Protection Rating: IP68, 2 m (6.6 ft) for 24 hours Options • Screen printing (with logo or text) on top semi-circle head of wristband and/or on the band itself• Laser engraving (available on demand)• Alternative RFID chips Note: Maximum logo size on semi-circle area is about 20mm height (0.79 in) x 30mm long (1.18 in). Accreditation FDA (Food and Drug Administration) and ROHs
