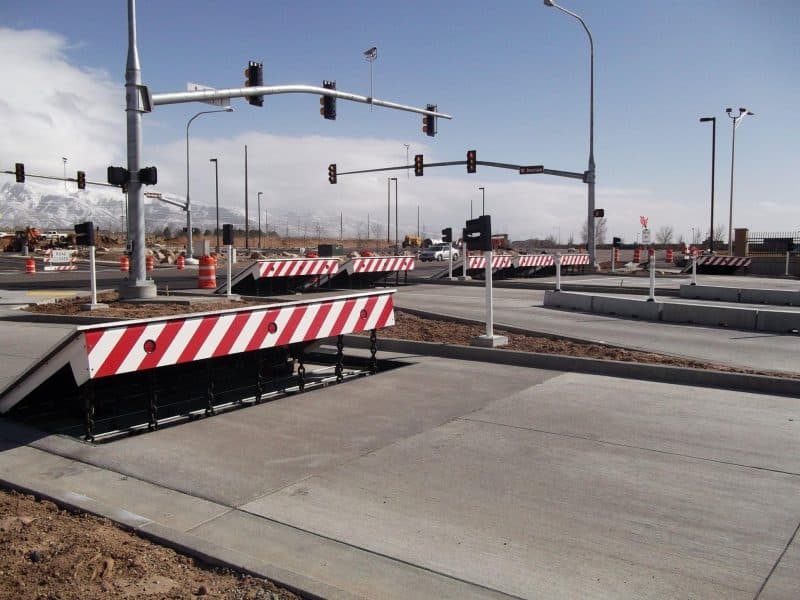

DSC 501 Wedge Barricade
A high-security barricade suitable for high water table locations and areas with corrosive soils. Description:This high security barricade was designed for the U.S. Navy and has also been selected for use at U.S. Embassies. Set in a foundation only 18 inches (46 cm) deep, the Delta DSC501 is able to survive and operate after a 1.2 million foot pound impact. Upon extracting the truck after its crash test, the barricade was fully functional and performed a resounding 27,000 cycles with no wear! With its shallow foundation and aesthetic design, it is a major breakthrough in high duty, anti-terrorist barricades. It obviates the concerns of interference with buried pipes, power lines and fiber optic communication lines. The shallow foundation also reduces installation complexity, time, materials and corresponding costs. The DSC501 is suitable for high water table locations and areas with corrosive soils. Front face warning lights warn drivers that the barricade is in the “up” position. There is also an open area on the front for signage. Diagonal yellow and white stripes are standard and optional colors and graphics are available. The open channel construction even lets you specify hot dip galvanizing. Technical Specifications: Crash Rating K12/L3 FoundationDepth 18” NormalOperating Speed 3-5 Seconds EmergencyOperating Speed 1.5 Seconds Height 39.4” Widths 9’ – 16’ Configurations Hydraulic

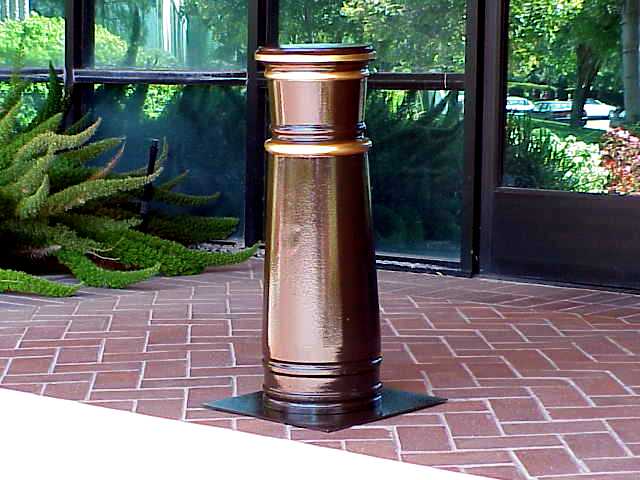

DSC 800 High Security Bollard
Suitable for high-security areas, this bollard can help control vehicles while also having a design to fit its environment. Description:The DSC800 crash rated bollards can be a hydraulic, pneumatic, manual operation or fixed post bollard. Its height is 30 inches and its diameter is 6.63 inches. Applications include lower threat or low speed areas for Federal applications, residential, universities, walkways, cargo depots and rental car agencies. Retractable bollard speed of operation can be adjusted from 3 to 10 seconds. These high security bollards can look utilitarian or elegant, as the application requires. They can be used with or without a decorative aluminum casting. The castings can be powder-coated and available in a variety of styles. The architect can design a location specific version to match the architecture of the facility including emblems or logos. Decorative bollards protect pedestrian walkways from errant vehicles while enhancing the aesthetics of the area. Technical Specifications: Crash Rating K4/L3 FoundationDepth 48” NormalOperating Speed 3-5 Seconds Operating Speed 2.0 Seconds Height 30” Widths Unlimited Configurations Hydraulic, Pneumatic, Manual, Fixed
DSC 720 High Security Bollard
Designed for high-security properties, this bollard can stop and destroy much larger vehicles at high velocities. Description:The DSC720 is Delta’s highest crash rated bollard tested with a 15,000 lb vehicle at 50 mph and achieving K-12 bollards crash rating. This high security bollard will stop and destroy much larger vehicles than those tested at very high velocities. Applications include Federal and DOD facilities, embassies and high profile, high-risk clients. The DSC720 high security barricade bollards are 35 inches (89 CM) tall and 15.1 inches wide without the casting. The DSC720 series is available as a painted steel tube or supplied with a brushed stainless steel sleeve or decorative aluminum castings using Delta’s standard or custom design for a specific project. The DSC720 bollards are available with Hydraulic Power (HPU), Delta’s All Weather Pneumatic, Electromechanical,Manual and as Fixed Posts all with matching sleeves or covers. Consult Delta’s sales department for application recommendations. Technical Specifications: Crash Rating K12/L3 FoundationDepth 68” NormalOperating Speed 3-5 Seconds Operating Speed 2.0 Seconds Height 36” Widths Unlimited Configurations Hydraulic, Pneumatic, Manual, Fixed

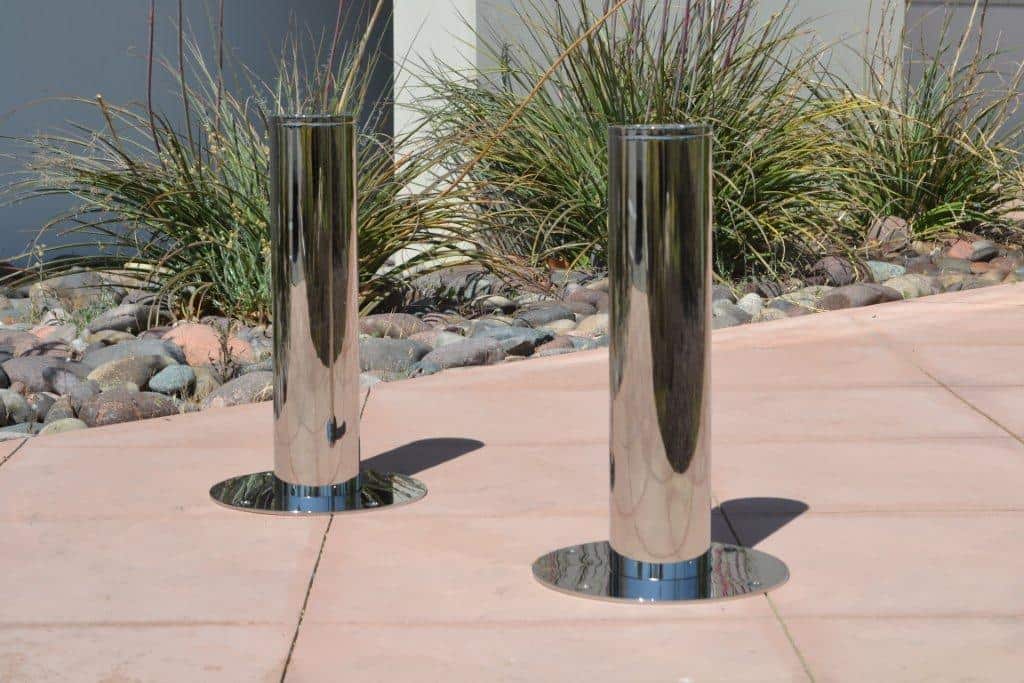

DSC 305 Medium Security Chrome Bollard
Made with steel, these bollards are designed to control entry and exit of vehicles in restricted areas. Description:The Model DSC305-PE Bollard System (“DSC305”) is designed to provide positive control of automobiles and trucks into and out of restricted areas. Precision steel bollards raised and lowered by a quiet pneumatic source are used as a primary bulwark against unauthorized or wayward vehicles and can stop aggravated or accidental vehicle attacks. The DSC305 was designed for medium threat security applications and is engineered to stop and destroy light duty trucks and high speed passenger cars. The DSC305 can be a standalone traffic controller for a single lane traffic-way, or it can be arrayed to control multiple lanes of bi-directional traffic. Technical Specifications: Crash Rating K1 Engineered FoundationDepth 45” NormalOperating Speed 3-5 Seconds Operating Speed 2.0 Seconds Height 24” Widths Unlimited Configurations Hydraulic, Pneumatic, Manual, Fixed

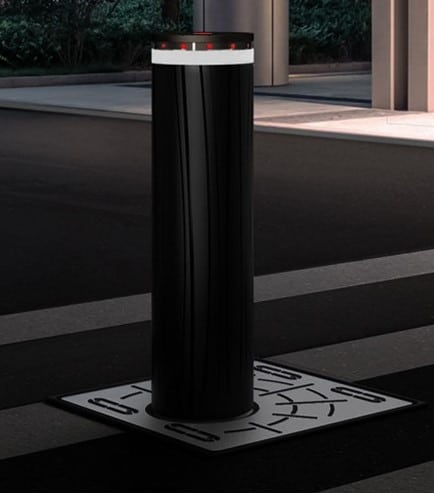

JS80 High Security Steel Bollards
Made of high-strength steel certified to stop cars and trucks. Description:JS bollards are provided with protective covers mDure® which, unlike other bollards on the market, allows the bollard to be reconditioned avoiding high disassembly and reassembly costs. Innovative use of Rilsan® anticorrosive polyamide resin which guarantees protection from corrosion/deterioration, weather and chemical agents. Product Features: Technical Specifications: Diameter 275mm Height 1,000mm Oil type Biodegradable Protective cover mDure® + Aisi 316L protective sleeve Ambient operating temperature -15°C / +80°C Ambient operating temp. with heater -40°C / +80°C

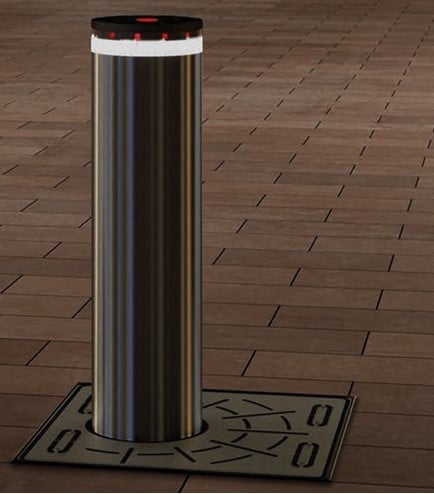

JS48 High Security Bollards
Made of high-strength steel certified to stop cars and trucks. Description:JS bollards are provided with protective covers mDure® which, unlike other bollards on the market, allows the bollard to be reconditioned avoiding high disassembly and reassembly costs. Innovative use of Rilsan® anticorrosive polyamide resin which guarantees protection from corrosion/deterioration, weather and chemical agents. Product Features: Technical Specifications: Diameter 275mm Height 1,000mm Oil type Biodegradable Protective cover mDure® and Aisi 316 satin-finish Ambient operating temperature -15°C / +80°C Ambient operating temp. with heater -40°C / +80°C

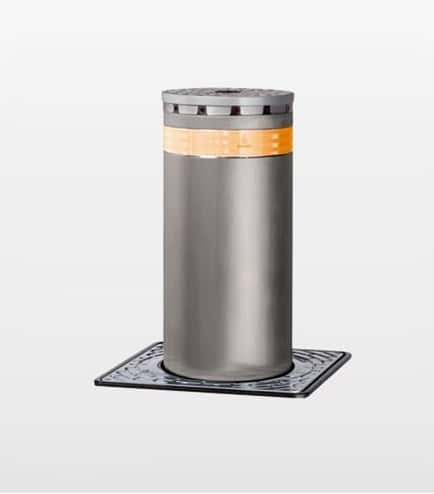

J275 Automatic Bollards
Designed to help regulate vehicular access to commercial, industrial, and urban restricted areas Description:The Automatic retractable traffic bollard J275 HA V2 is recommended for all areas when many daily transits are expected, i.e. commercial, industrial and urban restricted access areas. Product Features: “Gentle stop” function to guarantee a soft impact while arriving on the low limit Technical Specifications: J275 HA V2 H600 J275 HA V2 H800 J275 HA V2 H600INOX J275 HA V2 H800INOX Type of operator Hydraulic Actuator Cylinder height from ground 600 mm 800 mm 600 mm 800 mm Cylinder diameter 275 mm Cylinder material Steel S235JR EN 10219 (7mm thick) Satin-finished AISI 316L (6mm thick) Cylinder treatment Cataphoresis and polyesterpowder paint, dark greymetallised RAL 7021 Satin finish Rising time ~5 s (*) ~7 s (*) ~5 s (*) ~7 s (*) Descent time ~3.5 s (*) ~4.5 s (*) ~3.5 s (*) ~4.5 s (*) Emergency descent device YES (excludable) Emergency descent time ~1.2 s (*) ~1.5 s (*) ~1.2 s (*) ~1.5 s (*) Rising obstacle detection device YES Release device YES Power supply voltage 220-240V ~ 50/60Hz Max. power 575 W (*) Hydraulic pump unit protection class IP67 Type of use Intensive use (Traffic) Impact resistance 38,000 J 67,000 J Break in resistance 128,000 J 207,000 J Pit weight 55 Kg 65 Kg 55 Kg 65 Kg Traffic bollard weight 112 Kg 130 Kg 112 Kg 130 Kg Operating ambient temperature -15 °C / +55 °C Operating ambient temperature with heater -25 °C / +55 °C Slow lowering YES

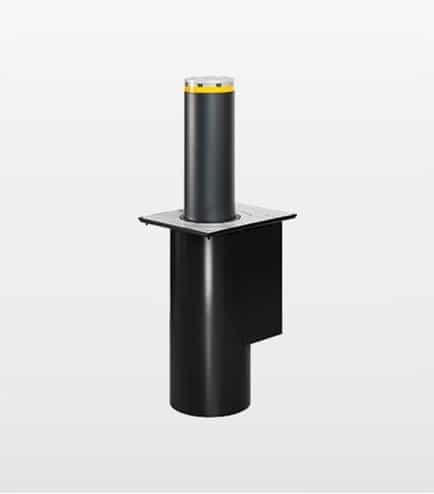

J200 Automatic Traffic Bollards
A series of bollards designed to help regulate vehicle access to residential areas Description:The Automatic retractable traffic bollard FAAC J200 HA is particularly suitable to regulate vehicle traffic in residential areas, ensuring an intelligent control, while maintaining the aesthetic appearance. Product Features: Technical Specifications: J200 HA H600 J200 HA H600 INOX Type of operator Hydraulic operator Cylinder height from ground 600 mm Cylinder diameter 200 mm Cylinder material Steel S235JRG2 EN 10277(6 mm thick) Satin-finished AISI 316L(6 mm thick) Cylinder treatment Cataphoresis and polyesterpowder paint, dark greymetallised RAL 7021 Satin finish Rising time ~5 s (*) Descent time ~7 s (*) Emergency descent device YES (optional) Emergency descent time ~7 s (*) Rising obstacle detection device YES (optional) Release device YES Power supply voltage 220-240V ~ 50/60Hz Max. power 230 W (*) Hydraulic pump unit protection class IP67 Type of use Use in residential areas Total weight 90 Kg Operating ambient temperature -15 °C / +55 °C Operating ambient temperature with heater -25 °C / +55 °C

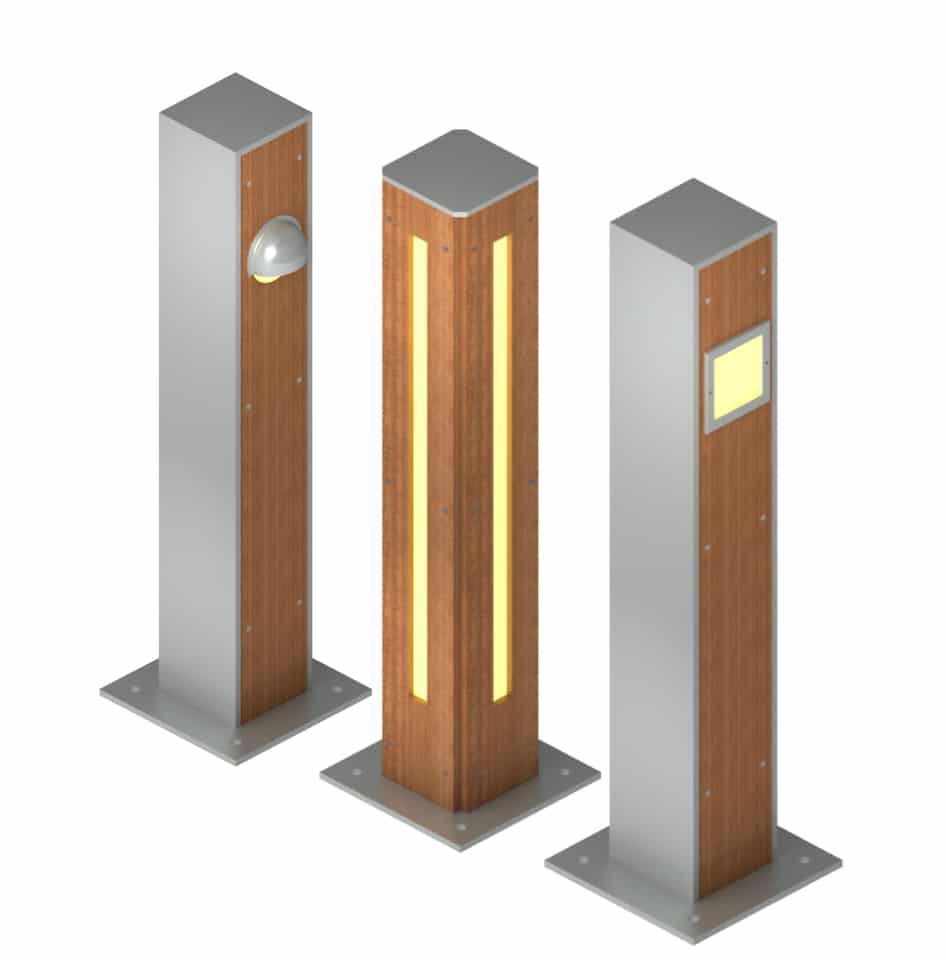

SecuraPost Slimline Lighting Bollard: Urban Square Light
A sleek bollard designed to seamlessly blend with the surrounding while still providing light at night. Description:Leda’s Lighting Bollards range was developed to complement models in the existing range of Architectural Bollards to provide specifiers a continuity of design that can be adopted throughout a project. Most Leda lighting bollards can be either cast in (fixed in situ) or bolted down (fixed baseplate). Conduits containing mains power cables should be laid when forming up the concrete slab or footing, with provision for cables to be left protruding an additional one meter to allow efficient length for later connection and future maintenance. Product Features: Technical Specifications: Urban Light Material: Mild steel – 150 UC mild steel Stainless steel – 10mm plate Hardwood – Range of options available Finish: Hot dipped galvanized / linished (Level 4)

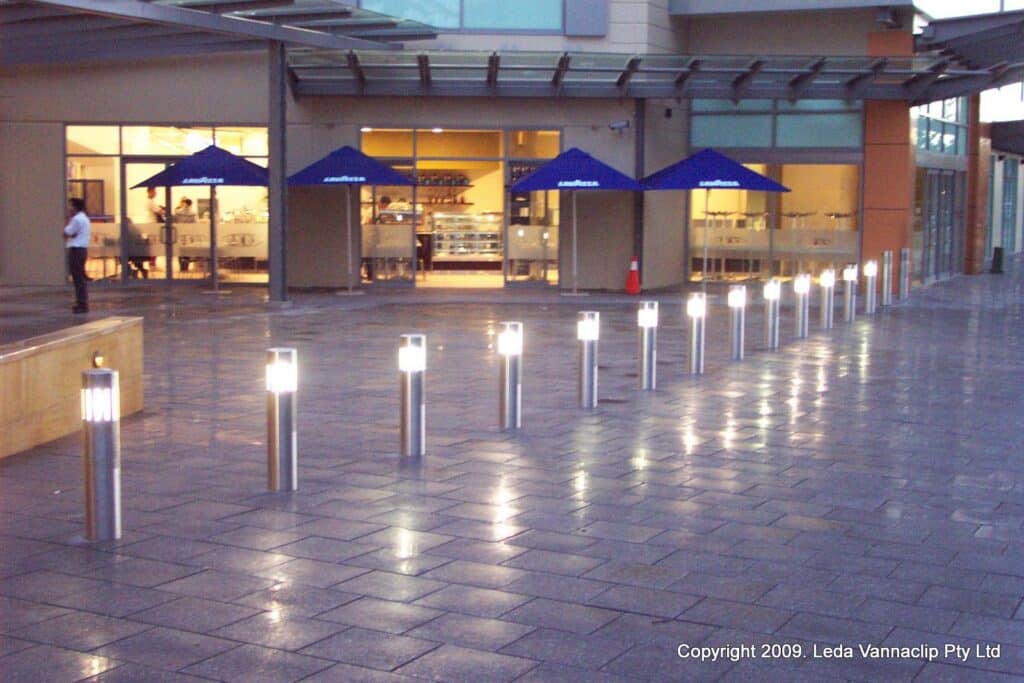

SecuraPost Slimline Lighting Bollards
Sleek and modern bollards made with stainless steel and have a lighting function at night. Description:Leda’s Lighting Bollards range was developed to complement models in the existing range of Architectural Bollards to provide specifiers a continuity of design that can be adopted throughout a project. Most Leda lighting bollards can be either cast in (fixed in situ) or bolted down (fixed baseplate). Conduits containing mains power cables should be laid when forming up the concrete slab or footing, with provision for cables to be left protruding an additional one meter to allow efficient length for later connection and future maintenance. Product Features: Technical Specifications: Slimline 150 Material / Aluminium: 150NB (165.1mm) x 3.00mm aluminum pipe Finish: Electrostatically powder coated in a range of colors Stainless Steel: 150NB (168.3mm) x 3.4 / 7.11mm Grade 304 SS pipe Linished or electro-polished Steel: 150NB (165.1mm) x 5.40mm galvanized mild steel pipe Electrostatically powder coated in a range of colors Slimline 80 Material: Aluminium 80NB (88.9mm) x 3.25mm aluminum pipeFinish: Electrostatically powder coated in a range of colors Stainless Steel 80NB (88.9mm) x 3.05mm Grade 304 SS pipe Linished or electro-polished
