SecuraPost Ambassador Aluminum Bollard
Made with corrosion-resistant aluminum, these high-security bollards are ideal for traffic control. Description:Leda’s Securapost aluminum bollards are suitable for casting into both traditional and modern shapes. Aluminum provides an excellent surface for electrostatic powder coated finishes. Aluminum is a strong, corrosion-resistant, lightweight material that is ideally suited for coating with electrostatically applied powder coated finishes. Product Features: Technical Specifications: Ambassador Material: 150NB (165.1) x 5.0mm medium duty aluminum pipe Finish: Electrostatically powder coated in a range of colors Parisian Material: 80NB (88.9) x 3.25mm medium duty aluminum pipe 100 x 100mm aluminum RHS Finish: Electrostatically powder coated in a range of colors Commodore Material: 80NB (88.9) x 3.25mm medium duty aluminum pipeFinish: Electrostatically powder coated in a range of colors Victorian Material: Outer – 192mm cast aluminum Inner – 65NB (76.1) x 3.6mm medium duty galvanized pipeFinish: Electrostatically powder coated in selected heritage colors Aegis Material: 150NB (165.1) x 5.0mm medium duty aluminum pipeFinish: 2 pack wet spray in a range of colors

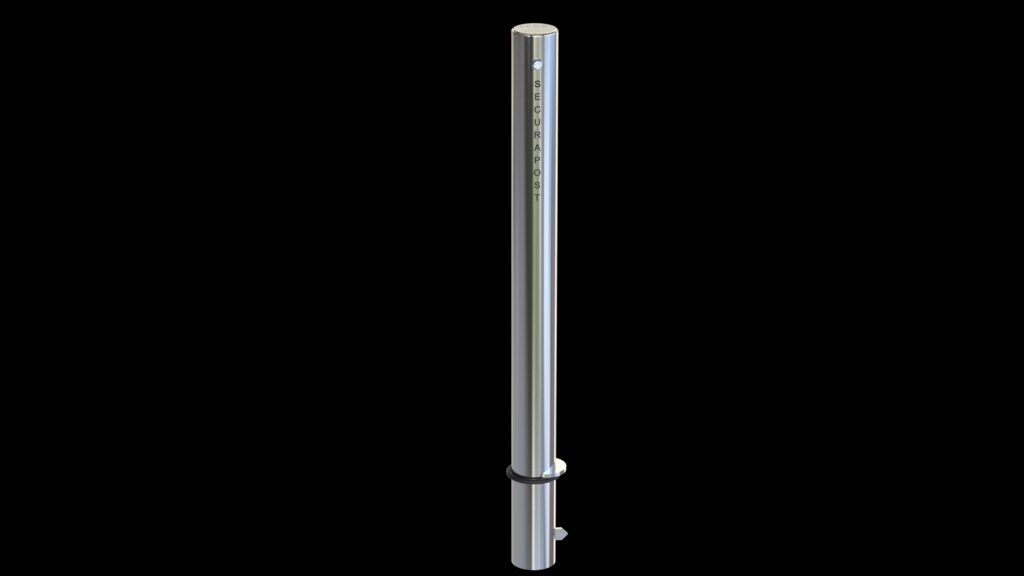

SecuraPost Slimline Bollard
An aesthetically attractive removable bollard made with stainless steel. Description:Leda stainless steel bollards are normally manufactured from Grade 304 material. Grade 316 is available if specified, and is recommended for installations within 2 kilometers of the coast. Discoloration or ‘tea staining’ of stainless steel is often seen around coastal locations and can get progressively worse closer to the ocean, in higher temperatures or with exposure to wind. For these aggressive environmental conditions, Leda recommends electropolishing(pickling) as an alternative treatment and finish. Product Features: – Fixed Baseplate– Locking & Removable– Lighting (refer Lighting bollards)– Retractable (refer Retractable section). Technical Specifications: Oval Slimline Material: Grade 316 stainless steel / galvanized pipeFinish: Linished or electro-polished Slimline 80NB Material: 80NB (88.9) x 3.05 / 5.49 / 7.62mm Grade 304 stainless steel pipeFinish: Linished or electro-polished Slimline 80/100NB Material: 80NB (88.9) / 100NB (114.3) x 3.05mm Grade 304 s/steel pipeFinish: Linished or electro-polished Slimline 125NB Material: 125NB (141.3) x 3.40mm Grade 304 s/steel pipeFinish: Linished or electro-polished Slimline 150NB Material: 50NB (168.3) x 3.40 / 7.11 / 10.97mm Grade 304 stainless steel pipeFinish: Linished or electro-polished Slimline 200NB Material: 200NB (219.0) x 3.76 / 8.18 / 12.70mm Grade 304 stainless steel pipeFinish: Linished or electro-polished Slimline 300NB Material: 300NB (323.4) x 4.57 / 9.53 / 12.70mm Grade 304 stainless steel pipeFinish: Linished or electro-polished
SecuraPost Sentinel Bollard
A removable and lockable bollard designed to protect factories, warehouses, and shopfronts from ram-raid style attacks. Description:Securapost Sentinel locking and removable bollard provides roller door security for factories and warehouses. It’s also a great way to protect shop fronts including glass and doors from ram raid style attacks. The bollards are used extensively for vehicle protection (against theft) panel beaters, auto workshops, driveways and to prevent unauthorized parking on public or private property. Product Features: Technical Specifications: Sentinel 80N Material: 80NB (88.9) x 3.0mm medium duty galvanized pipe 80NB (88.9) x 5.9mm extra heavy duty galvanized pipeFinish: Electrostatically powder coated in black or industrial yellow. Optional range of colors available on request. Sentinel 150NB Material: 150NB (165.1) x 5.4mm HD galvanized or 11.0mm structural pipe Finish: Electrostatically powder coated in black or industrial yellow. Optional range of colors available on request. Sentinel XP Material: 80NB (88.9) x 10.4mm extra heavy duty galvanized pipeFinish: Electrostatically powder coated in black or industrial yellow. Optional range of colors available on request.
Terminal-MS, -MH -ML
A supplementary with Magnetic barriers, these terminals provide tickets for vehicles entering or exiting the vicinity. Description:MS, MH and ML Terminals are the optimum functional and de- sign supplements for all Magnetic barriers. They offer a universal platform for customer-specific equipment – for intercom systems and video monitoring or for complex access and exit control systems. The Terminals are made of aluminum and stainless steel, and are thus designed for long service lives. The front con- sists of a front cover that can be slid out on telescope rails and a slot-in door which can only be opened with a single key. Product Features: Technical Specifications: Terminal-MS Terminal-MH Terminal-ML Application Cars Cars Cars and Trucks Housing Dimension (W x H x D) 296 x 1202 x 266 mm 296 x 1202 x 266 mm 296 x 2202 x 266 mm Installation Space (W x H) 209 x 337mm 209 x 487 mm 209 x 337 mm (2x) Weight 15 kg 15 kg 27 kg Front Cover Design Slide out on telescopic rails Slide out on telescopic rails Slide out on telescopic rails Housing Design Powder-coated aluminum Powder-coated aluminum Powder-coated aluminum Base Design Stainless Steel Stainless Steel Stainless Steel Enclosure Rating IP 54 IP 54 IP 54
Toll Barrier
Designed for toll areas, these gate barriers are fast and efficient. Description:Rapid, reliable, and economical processing of road users is essential when collecting toll charges at bridges, tunnels and on roads. Toll barriers from Magnetic have been specially designed for this situation. The innovative MHTM drive at the heart of the barriers is characterized by its speed, lack of maintenance and energy efficiency, and thus keeps long-term costs down. The Toll barriers can be adapted to meet individual requirements: there are five models with opening times of from 0.3 to 1.3 s, which can be equipped with a variety of control devices, flanges and barrier booms. Product Features: Technical Specifications: Toll Toll Pro Toll Pro 2 Toll HighSpeed Toll HighSpeed 2 Barrier width max. 3.0 m max. 3.0 m max. 3.0 m max. 3.0 m max. 3.2 m(with 2 barriers) Opening/ closing time 1.3 s 0.9 s 0.7 s 0.6 s 0.3 s Power consumption max. 55 W max. 95 W max. 225 W max. 320 W max. 450 W Drive technology MHTM Voltage 85 – 264 VAC, 50/60 Hz Duty cycle 100 % Housing dimensions (W x D x H) 315 x 360 x 1115 mm Enclosure rating IP 54 Temperature range −30 to +55 °C Weight approx. 42 kg approx. 42 kg approx. 43 kg approx. 44 kg approx. 44 kg MCBF 10 Mil

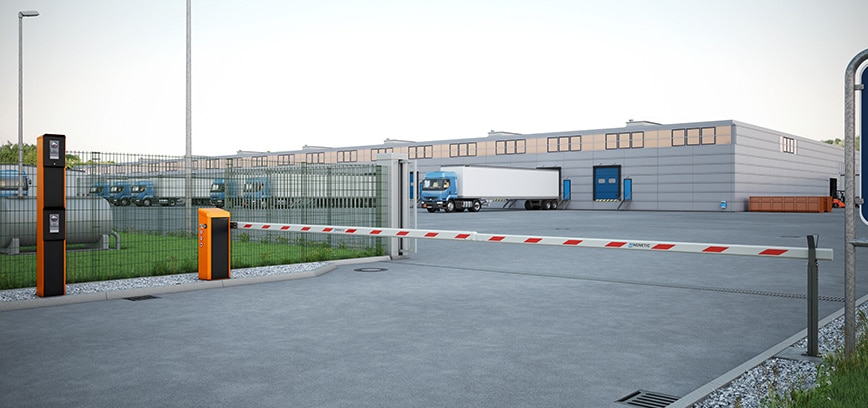

Access XL2/ XXL Barriers for Wide Lanes
A high-security parking control with optional boom skirts designed for car parks. Description:With its barrier width of up to 10 m and the optional security grating or security grating with climb-over prevention, the Access XXL is the ideal solution for extra-wide or multi-lane entrances to freight forwarders, company grounds and port facilities. The control system of the Access XXL offers a wide range of functions and numerous expansion potentials through the use of plug-in modules. There are five slots for, e.g. an Ethernet interface, a radio module or a counting module for determining the number of parking spaces still available. All inputs and outputs can be individually configured by the user. Users can choose from numerous input and output functions. The opening and closing times can each be selected from three levels independently of one another. Product Features: Technical Specifications: Access XL2 Access XXL Barrier width Max. 8.5 m Max. 10.0 m Opening/ closing time 6.0 s 8.0 s Power consumption Max. 17 W Max. 30 W Drive technology MHTM Voltage 85 – 264 VAC, 50/60 Hz Duty cycle 100 % Housing dimensions (W x D x H) 435 x 360 x 1164 mm Enclosure rating IP 54 Temperature range −30 to +55 °C Weight 105kg 112kg
Access Pro-L/ Pro-H
A high-security parking control with optional boom skirts designed for car parks. Description:At the entrances of companies, building sites, port facilities and other secured areas – the Access Pro-H from Magnetic is the ideal solution in all cases where traffic control is necessary and pedestrian access must also be reliably prevented. A boom skirt and climb-over prevention effectively stop intruders climbing over or crawling under the barrier. With their low impact forces, these barriers are also approved for locations where the movement of people can be expected (when the stipulated safety equipment is installed). Product Features: Technical Specifications: Access Pro-L Access Pro-H Barrier width Max. 6.0w m Opening/ closing time 4.0 s Power consumption Max. 25W Drive technology MHTM Voltage 85–264 VAC, 50/60 Hz Duty cycle 100% Housing dimensions (W x D x H) 315 x 360 x 915 mm 315 x 360 x 1115 mm Enclosure rating IP54 Temperature range −30 to +55° C Weight 40 kg 44kg
Access Pro/ Pro-M
An economical access control with an l-shaped boom suitable for car parks or company grounds. Description:These access barriers from Magnetic are cost-optimized solutions for access control at car parks, company grounds, residential buildings and similar sites. When the stipulated safety equipment is installed, these barriers with their low impact forces are approved for use wherever the movement of persons cannot be ruled out for structural reasons.* At the heart of the Access series is the innovative MHTMTM drive that is distinguished by its energy efficiency, lack of maintenance and long service life – the Access series is designed for 10 million opening and closing cycles. Product Features: Technical Specifications: Access Pro AccessPro-M Barrier width max. 3.5 m Opening/ closing time 1.3 s Power consumption Max. 95W Max. 25W Drive technology MHTM Voltage 85–264 VAC, 50/60 Hz Duty cycle 100% Housing dimensions (W x D x H) 315 x 360 x 915 mm 315 x 360 x 1115 mm Enclosure rating IP54 Temperature range −30 to +55° C Weight 40 kg 44kg

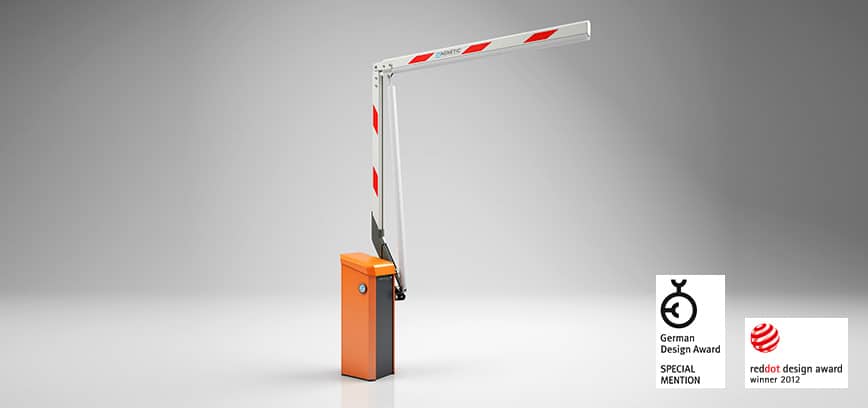

Magnetic Parking/ Parking-M
Designed for heavily frequented parking facilities, this parking barrier has an optional folding boom. Description:In a multi-storey car park or an underground garage, Parking barriers from Magnetic are the ideal solution for professional parking applications. Thanks to their configuration and security settings, Parking Barriers are designed for use in heavily frequented facilities in which the movement of persons can be ruled out. Rapid opening times and the detection of tailgating vehicles ensure reliable processing for users, while low energy consumption, low-maintenance components and simple servicing keeps running costs down permanently. Product Features: Technical Specifications: Parking Parking-M Barrier width max. 3.5 m Opening/ closing time 1.8 s Power consumption 35 W Drive technology MHTM Voltage 85–264 VAC, 50/60 Hz Duty cycle 100% Housing dimensions (W x D x H) 315 x 360 x 915 mm 315 x 360 x 1115 mm Enclosure rating IP54 Temperature range −30 to +55° C Weight 40 kg 44kg
MPS Wing Gate
Swing door in timeless design for use in high-quality environments with low to medium visitor frequencies. Description:The visible elements of the MPS are reduced to a minimum. Because the control system and drive are fully integrated, users only see the movable stainless steel cylinder and the barrier element. As a result, the MPS is the ideal choice for sophisticated settings with low to medium visitor frequencies – for museums, exhibition rooms and modern offices. Despite its minimalist design, the MPS offers extremely flexible use. Its wide opening angle of 300°and bidirectional operation enable the implementation of access and exit control with a single barrier. The combination of two MPS units also allows a wider passage to be set up for wheelchair users and the transport of materials. The sensitive impact detection of the innovative MHTM™ drive always ensures maximum personal safety. The opening and closing speeds can be adapted to the particular intended purpose. The barrier itself can consist of stainless steel tubing, a safety glass wing or customer-specific materials. Product Features: Technical Specifications: Passage Width max. 1800 mm with barrier tubes, max. 926 mm with glass wing Opening/closing time 1.5–4 s, depending on dimensions of barrier element Opening angle Adjustable from 0 to 300* Drive technology MHTM Voltage 110-240 VAC, 50/60 Hz Power consumption max. 45 W Duty cycle 100% Housing material Stainless steel 1.4301/SS304 Housing height 1000 mm Housing diameter 159 mm Enclosure rating IP44 Temperature range -25 to +45 °C (with activated static heating system)
