MPP Turnstiles
This passageway is ideal for division and management of large number of people such as public pools or sports stadiums. Description:At swimming pools, sports stadiums or public toilets – MPP turnstiles are the ideal choice wherever large numbers of people must be reliably individualized and managed. The robust housings and stainless steel barrier arms not only withstand improper use, but are also suitable for outdoor applications (option). MPP turnstiles offer versatile operation: a large number of people can easily be managed with one of the many applications available while bi-directional operation permits a single turnstile to act as both entrance and exit. And MPP turnstiles are ideally equipped for emergencies: The barrier allows free passage if there Product Features: Technical Specifications: MPP 122 MPP 222 MPP 112 MPP 212 Application Indoor Outdoor Indoor Outdoor Housing variant Long Short Passage width 515 mm 515 mm Drive technology MHTM MHTM Voltage 110 – 240 VAC, 50/60 Hz 110 – 240 VAC, 50/60 Hz Power consumption Max. 65 W Max. 65 W Duty cycle 100 % 100 % Housing dimensions (L x W x H) 1300 x 260 x 1035 mm 400 x 300 x 1035 mm Enclosure rating IP32 IP44 IP32 IP44 Weight Approx. 60 kg Approx. 40 kg Temperature range −25 to +50 °C −25 to +50 °C Warranty 3 years* 3 years*

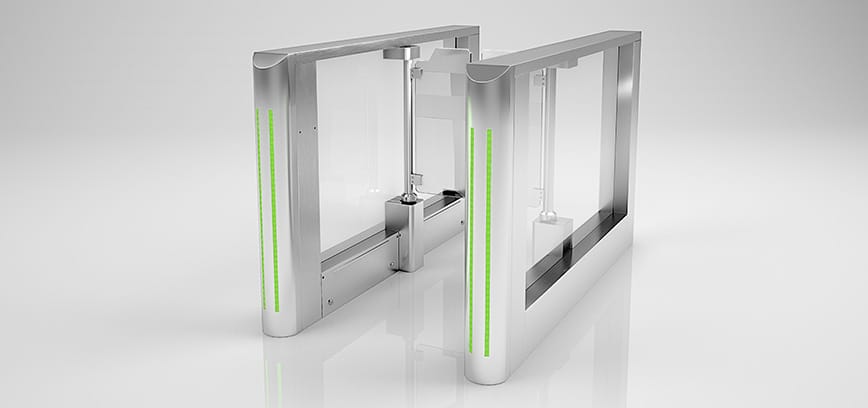

MPW Swing Gates
Allows rapid separation of visitors, designed with enlarged widths to allow transport of people and materials. Description:For access control, steering visitors, and passage into secured areas – MPW swing gates are the ideal solution for the rapid separation and control of persons. Variants with enlarged passage widths also make the MPW suitable for wheelchairs, prams, and the transport of materials. Passage fundamentally takes place without contact. Photoelectric switches in the housings reliably detect users and open the gates before they come into contact with them. The barriers close automatically after passage. Product Features: Technical Specifications: MPR 112 (Standard) MPR 112 (Wide Lane) Passage width 520 mm 990 mm Opening/closing time with PU foam 0.6 s 1.0 s Drive technology MHTM Voltage 110 – 240 VAC, 50/60 Hz Power consumption Maximum 120W Duty cycle 100 % Housing dimensions (L x W x H) 1750 x 150 x 1045 mm Housing Material Stainless steel 304/316 Enclosure rating IP32 Temperature range 0 to +45° C Warranty 3 years*

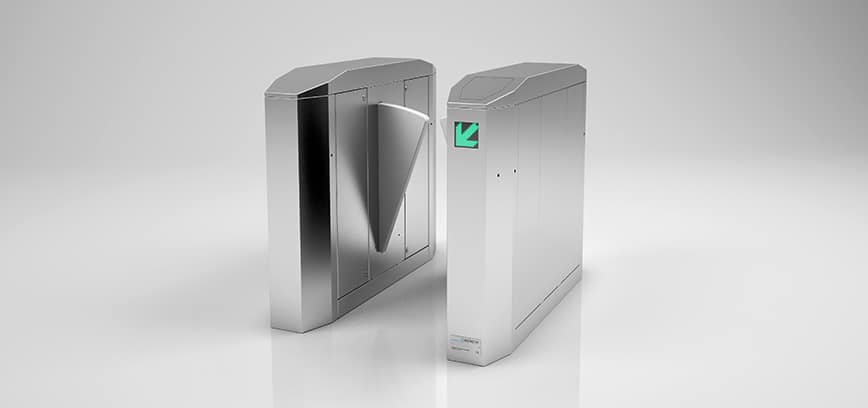

MPR Retractable Gates
Designed for multiple entries and rapid separation of visitors in low-to-medium security areas. Description:For access control, steering visitors, and passage into secured areas – MPR retractable gates are the ideal solution for the rapid separation of persons when low-to-medium security is required. Variants with enlarged passage widths also make the MPR suitable for wheelchairs, prams, and the transport of materials. The variety of modules allows rapid adaptation to spatial conditions, user numbers and many other requirements. Passage takes place without contact. Photoelectric switches detect users and open the wings before they come into contact with them. The barriers close automatically after passage. Product Features: Technical Specifications: MPR 112 (Standard) MPR 112 (Wide Lane) Passage width 520 mm 960 – 990 mm Opening/closing time with PU foam 0.3 s 0.6 s Opening/closing time with acrylic glass 0.35 s – Drive technology MHTM Voltage 110 – 240 VAC, 50/60 Hz Power consumption Maximum 35 W Maximum 117 W Duty cycle 100 % Housing dimensions (L x W x H) 1300 x 250 x 1035 mm 1300 x 280 x 1035 mm Enclosure rating IP32 Temperature range 0 to +45° C Warranty 3 years*

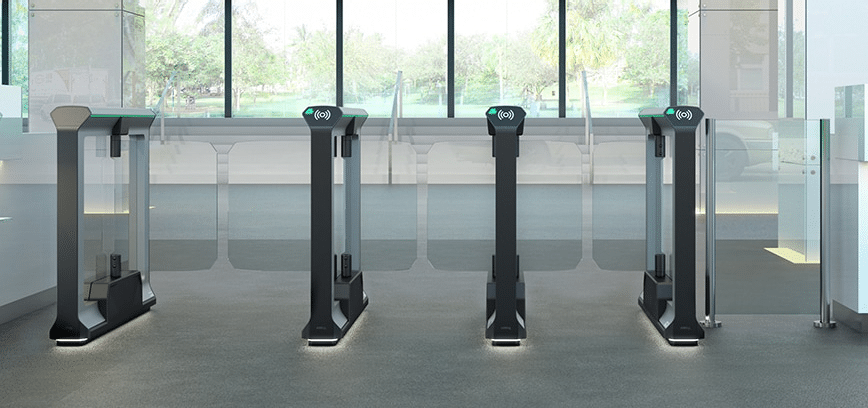

MWing Pedestrian Passageway with Wing Gates
A high-security yet elegant pedestrian passageway that allows non-contact passage. Description:High visitor numbers, wheelchair-friendly access, escape routes during emergencies – a single gate is often insufficient to meet all the requirements. But here, too, the extremely slender design and uniform stylistic language of FlowMotion® gates prove advantageous because they allow the particularly simple implementation of space-saving multiple applications. Several gates can be arranged in rows to enable the rapid and reliable control of large numbers of visitors. With mWing, mSlide and mFlap we offer left, central and right modules with adapted barrier elements; a housing is available for mTripod without barrier elements for the end of a row. Product Features: Technical Specifications: Application Indoor and outdoor Passage Width Standard: 600 mmWide Lane: 900 mm(more on request) Height of Barrier Elements Standard: 888 mm High: 1800 mm (more on request) Opening/closing time 0.6 –1 s, depending on barrier element dimensions Flow rating (number of persons per min.) approx. 40 Drive technology MHTM Control System MGC Voltage 100–240 V AC,50/60 Hz Power consumption Maximum 45 W Duty cycle 100% Housing material mDure Housing dimensions (L x W x B) 1300 x 1050 x 180 mm Enclosure rating IP54 Weight About 120kg per module Temperature range -30 to 55 C
VESDA-E VES: VES-A00-P & VES-A10-P
An aspirating smoke detector that enables a single zone to be divided into four separate sectors, allowing for precise location of the smoke source. It provides four individually configurable alarm levels (Alert, Action, Fire 1, and Fire 2) for each sector, ensuring optimal protection across various applications. How it Works The VES draws air from all sectors in use. If the smoke level reaches the Adaptive Scan Threshold, the VES quickly scans each sector to identify which sector is carrying smoke. The first sector to reach the Alert level is designated as the First Alarm Sector (FAS) and this sector is signaled to the user. If two or more sectors reach the Alert level then, the sector with the highest smoke concentration is designated as the First Alarm Sector (FAS). Once Fast Scan is completed and the FAS identified, the VES continues to closely monitor all four sectors to track fire growth and maintain full protection of the area. Product Features: Technical Specification: Supply Voltage 18-30 VDC (24 V Nominal) Power Consumption @ 24VDC VES-A00-P VES-A10-P Aspirator Setting 1 5 10 1 5 10 Power (Quiescent) 7.5 W 9.8 W 15.4 W 8.2 W 10.0 W 15.8 W Power (In Alarm) 8.4 W 10.8 W 15.8 W 10.4 W 11.6 W 16.6 W Dimensions (WHD) 350 mm x 225 mm x 135 mm (13.8 in x 8.9 in x 5.3 in) Weight 4.7 kg (10.4 lbs) 4.8 kg (10.6 lb) Operating Conditions Ambient: 0°C to 38°C (32°F to 100°F)Tested to (EN54-20): -10°C to 55°C (14°F to 131°F)Sampled Air: -20°C to 60°C (-4°F to 140°F) *Humidity: 5% to 95% RH, non-condensing Area Coverage 2,000 m2(21,520 sq. ft) Min. airflow per pipe 20 l/m Pipe Length (Linear) 280 m (919 ft)** Pipe Length (Branched) 560 m (1,837 ft)** Pipe lengths depending on number of pipes in use 2 Pipes 3 Pipes 4 pipes 100 m (328 ft) 80 m (262 ft) 70 m (230 ft) No. of holes (A/B/C) 40/80/100** Computer design tool ASPIRE Pipe Inlet: External diameter 25 mm or 1.05 in (3/4 in IPS) Exhaust:External diameter 25 mm or 1.05 in (3/4 in IPS) via adaptor Relays 12 programmable relays (latching or non-latching states)Contacts rated 2 A @ 30 VDC (Resistive) IP rating IP40 Cable access 4 x 26 mm (1.02 in) cable entries Cable termination Screw Terminal blocks 0.2–2.5 sq mm (24–14 AWG) Measurement Range 0.000 to 32% obs/m (0.0000 to 10% obs/ft) Sensitivity Range 0.005 to 20% obs/m (0.0016% to 6.25% obs/ft) Threshold setting range Alert: 0.005% to 2.0% obs/m (0.0016% to 0.625% obs/ft)Action: 0.005% to 2.0% obs/m (0.0016% to 0.625% obs/ft)Fire1: 0.010% to 2.0% obs/m (0.0031% to 0.625% obs/ft)Fire2: 0.020% to 20.0% obs/m (0.0063% to 6.25% obs/ft) Software features Event log: Up to 20,000 eventsSmoke level and alarm threshold levels, user actions, alarms andfaults with time and date stampAutoLearn: Detector learns Alarm Thresholds and Flow Faultthresholds by monitoring the environment.

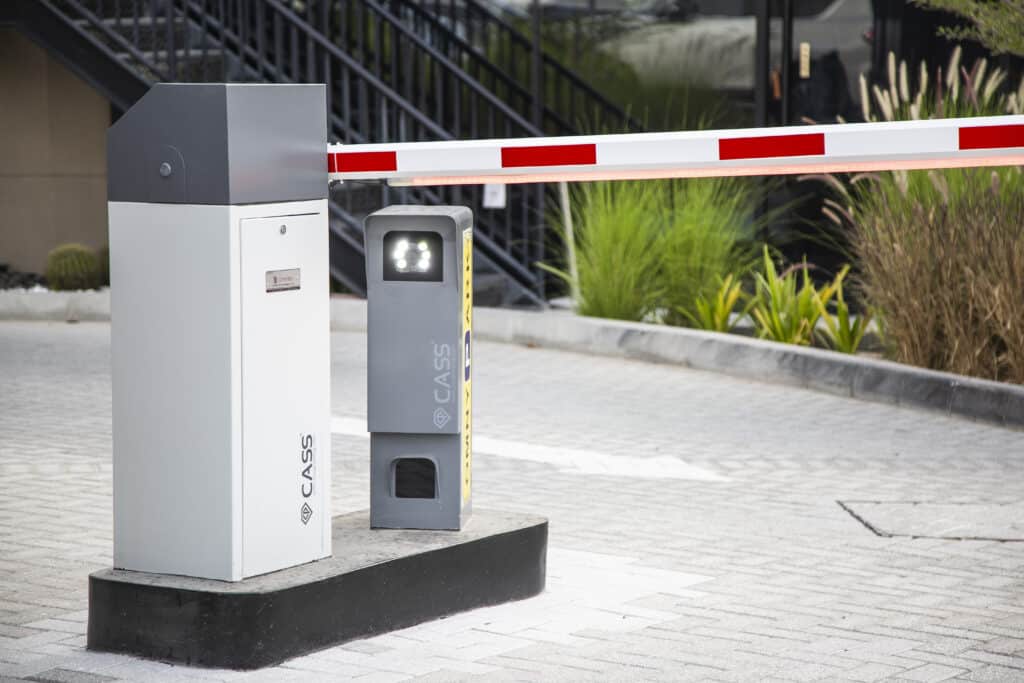

CP-020X Gate Barrier
A gate barrier that can help deny entry or exit of unauthorized vehicles within your property. Description: Securing access is one of the most important concerns for any commercial or residential properties around the world. By installing gate barriers, one can improve the privacy and security of their property by authorizing or denying access. CASS boom Barriers help control the parking access & traffic circulation in order to help regulate the vehicle movements to various kinds of parking lots & buildings. CASS barriers are designed with high performance mechanisms to meet the industrial, commercial and residential performance requirements. All our Barriers are designed with the required safety features for its efficient performance to secure the working areas, public facilities and all parking lots. We manufacture a wide range of barriers which can be used in various applications such as – toll gates, border check posts, airports, shopping malls, hospitals, convention & conference centers, amusement parks & Leisure destinations, Train / Metro station Parking lots, Hotels, high-rise Towers, multi-level car parks (MLCP), residential & commercial building parking etc. Product Features:
CP-555 Gen 2 Entry Station/ Ticket Dispenser and CP-655 Gen 2 Exit Station/ Token Acceptor
A chipcoin-based parking management system that helps control traffic within your property. Description: One of the best ways to solve parking related issues and to improve motorists’ experience is the new generation chipcoin based parking management system. It is extremely required in metropolitan areas to allot parking spaces to the visitors. Most of the existing parking areas offer restricted spaces to park and limited or no facilities at all to control vehicle movement. CASS has developed an advanced chip coin based parking management system (PMS) that is the primary demand in almost all urban cities to manage and identify vehicles in parking facilities. It is one of the prior needs of every vehicle owner to park their vehicle in a safe and secure parking area. To resolve the problem of parking security CASS’s new generation coin based parking system allows you to identify and authorize the vehicle at both entry and exit points. Product Features:
CP-505 Gen 2 Entry Station/ Ticket Dispenser and CP-605 Gen 2 Exit Station/ Ticket Scanner
A parking management system that prints/releases and scans tickets for efficient entry and exit. Description: CASS Parking offers a completely new series of parking management system products that helps to regulate the parking facilities much efficiently with its state-of-the-art technology products. Our PMS system enhances the customer experience which is user-friendly. CASS PMS equipment is designed with highly durable material which is both sleek and elegant that helps blend all types of architecture. These systems come with an advanced thermal printing technology, alphanumeric display and intelligent controller that helps provide a fast and smooth operation for entries and exits for both occasional users and permit holders. Product Features:

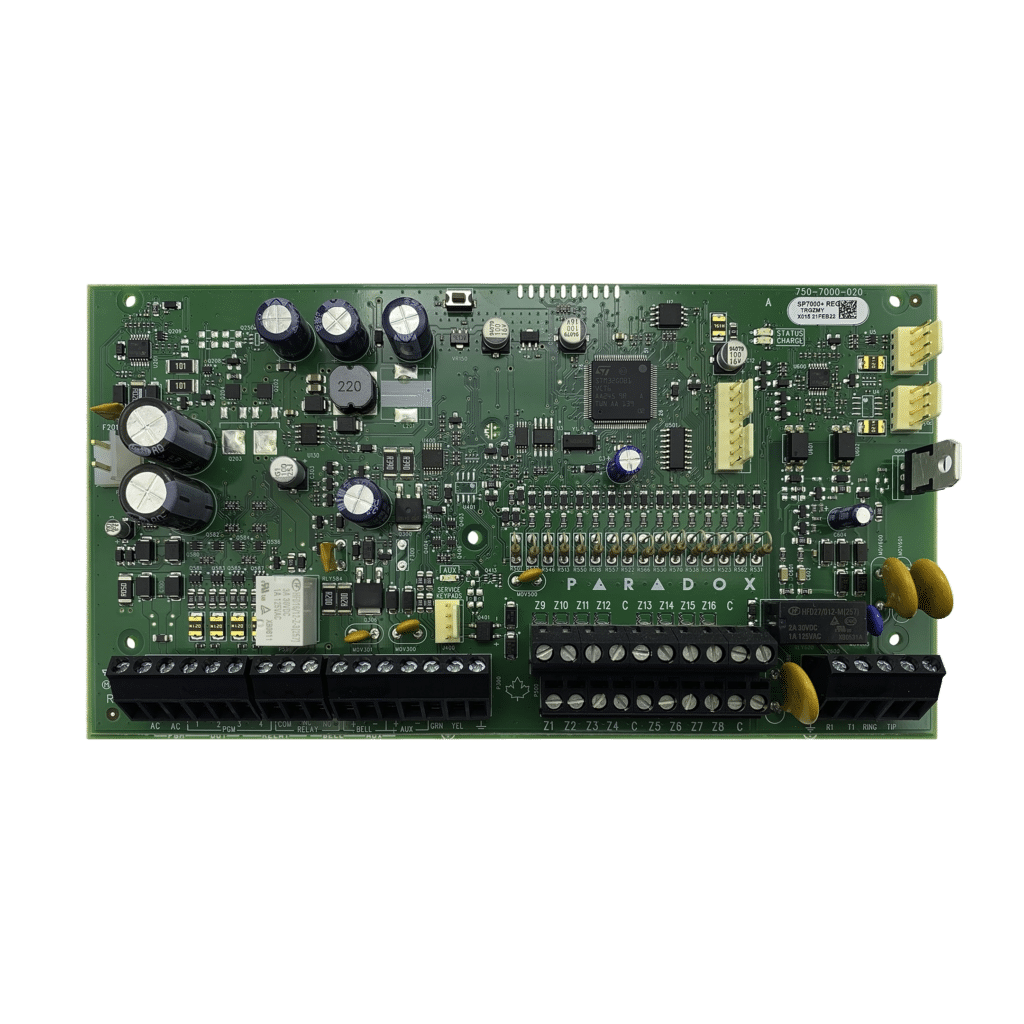

SP7000 Controller | 16 to 32-Zone Control Panel
Delivers advanced security features and flexible expandability for comprehensive protection of residential and commercial properties. Product Description: Paradox Spectra SP7000 is a flexible security alarm control panel with 16 hardwired on-board zones, 4 on-board PGM programmable outputs, and 1 alarm relay output. SP7000 is the base for an extremely flexible and expandable security system ideal for both home and business. The system can be expanded to include support for wireless devices and remote controls (wireless receiver sold separately), as well as remote control through your Android or iOS smartphone with the iParadox app or Insite GOLD app (requires IP150 or PCS260 sold separately). Product Features:
SP6000 Controller | 8 to 32-Zone Control Panel
Delivers advanced security features and flexible expandability for comprehensive protection of residential and commercial properties. Product Description: Paradox Spectra SP6000 is a flexible security alarm control panel with 8 hardwired on-board zones and 2 on-board PGM programmable outputs. SP6000 is the base for an extremely flexible and expandable security system ideal for both home and business. The system can be expanded to include support for wireless devices and remote controls (wireless receiver sold separately), as well as remote control through your Android or iOS smartphone with the iParadox app or Insite GOLD app (requires IP150 or PCS260 sold separately). Product Features:
