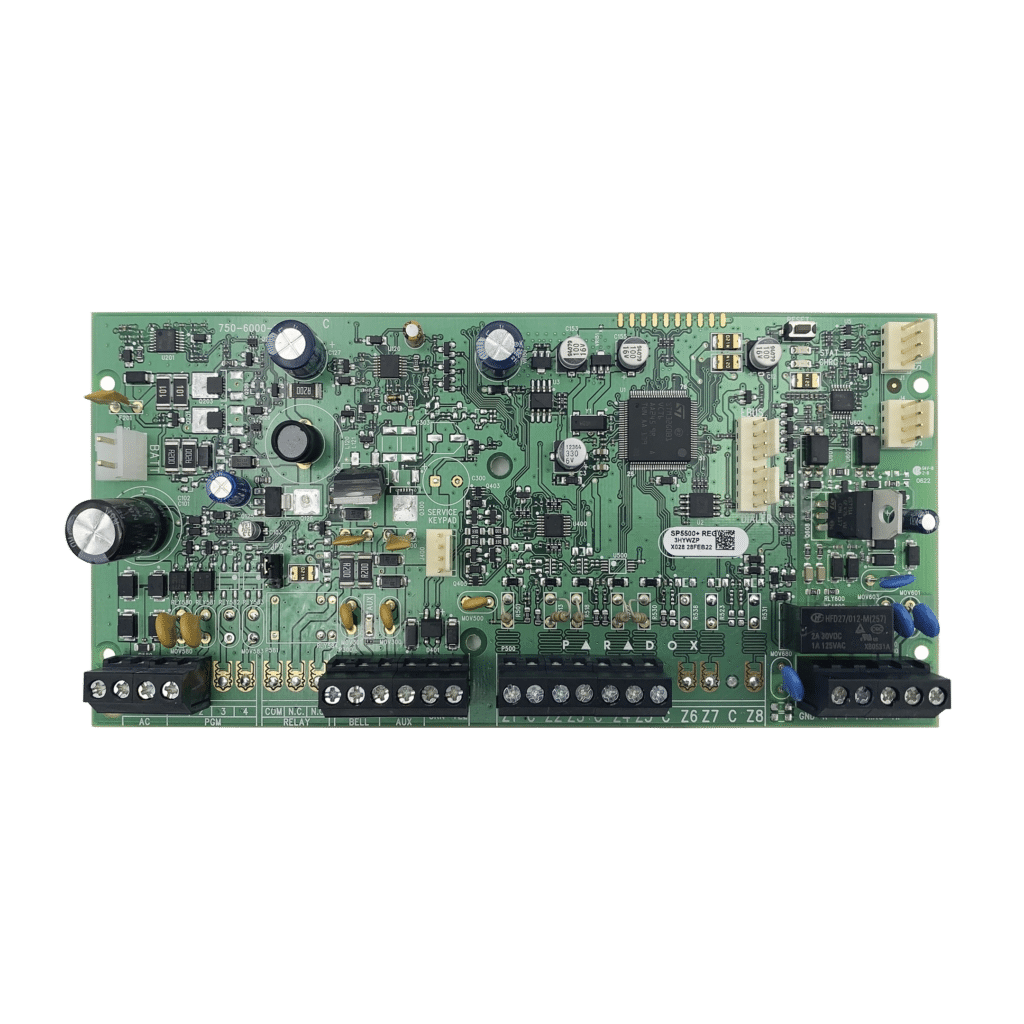

SP5500+ Controller | 5 to 32-Zone Control Panel
Offers versatile and scalable security solutions for larger homes or businesses, featuring a high zone capacity and advanced programming options. Product Description: Paradox Spectra SP5500 is a flexible security alarm control panel with 5 hardwired on-board zones and 2 on-board PGM programmable outputs. SP5500 is the base for an extremely flexible and expandable security system ideal for both home and business. The system can be expanded to include support for wireless devices and remote controls (wireless receiver sold separately), as well as remote control through your Android or iOS smartphone with the iParadox app or Insite GOLD app (requires IP150 or PCS260 sold separately). Product Features:

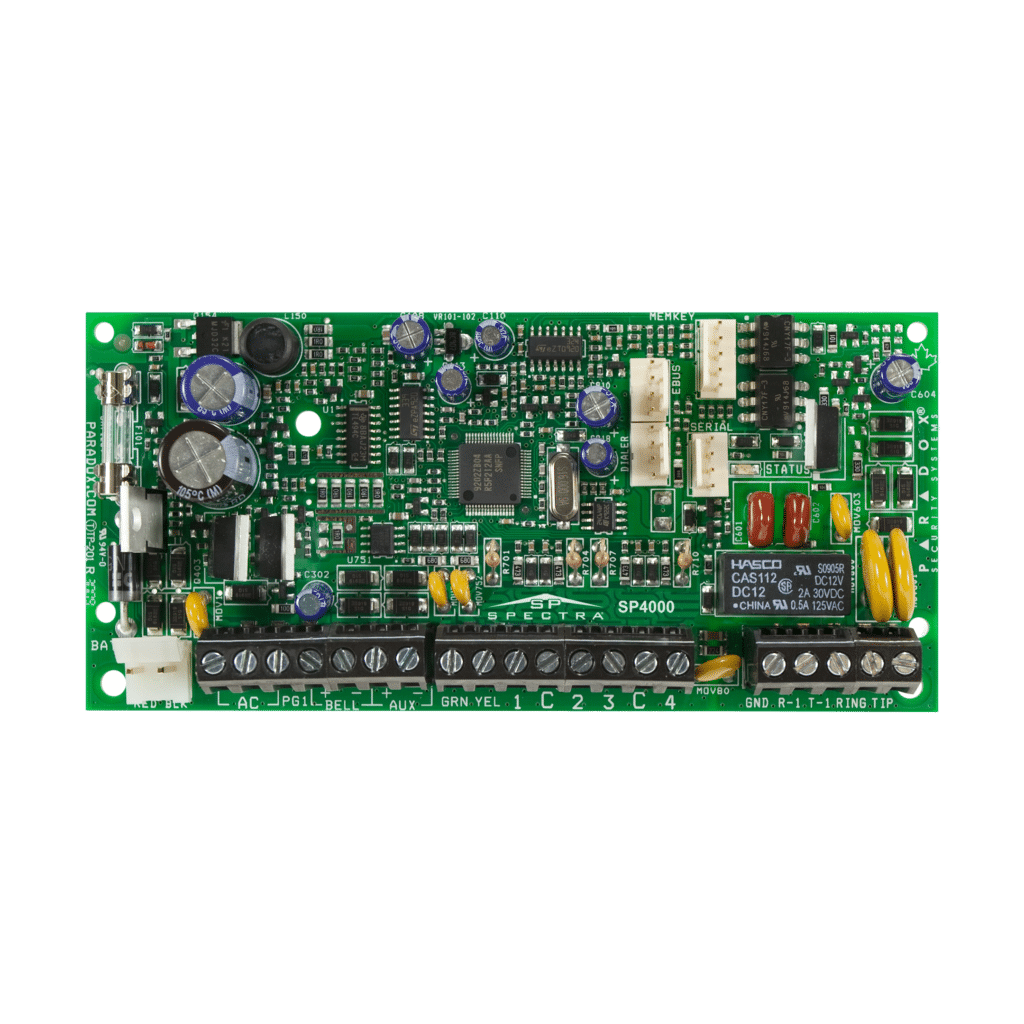

SP4000 Controller | 4 to 32-Zone Control Panel
Provides comprehensive security management for small to medium-sized premises, with expandable zone capacity and support for wireless devices. Product Description: Paradox SP4000 is a powerful, affordable alarm system control panel. Being part of Paradox’s exceptional SP series means the SP4000 is flexible, easy to program, and extremely expandable. It is compatible with Paradox’s wide selection of Spectra SP keypads, modules, and devices. It contains 4 on-board zone inputs, and is expandable up to 32 wired and / or wireless zones. With their in-field firmware upgrade capability, the Spectra SP series allows installers to upgrade their system without hassle – quickly, easily, and on-site. To further facilitate installation, every Spectra SP panel can be configured using easy-to-follow, menu-driven programming. Product Features:

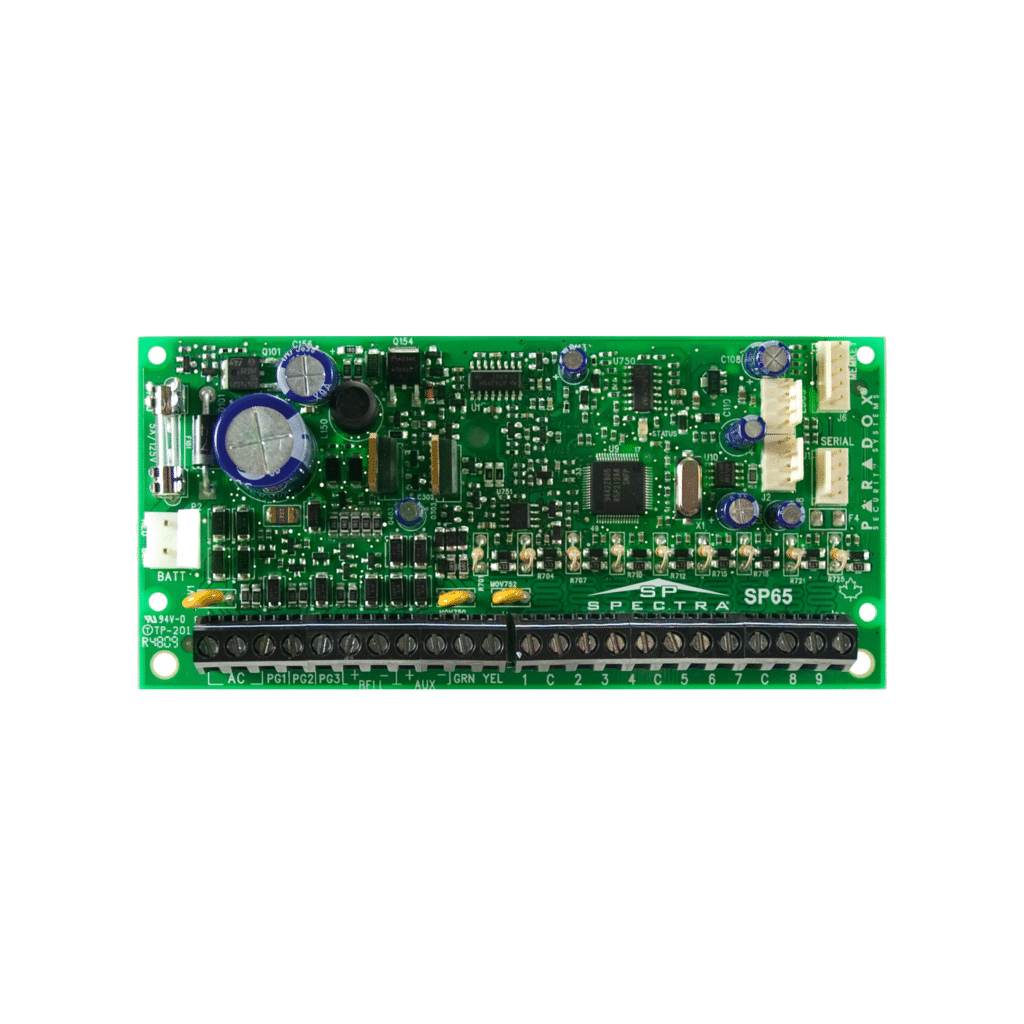

SP65 | Expandable to 32-Zone Control Panel
A reliable and expandable control panel that forms the core of a robust and customizable Paradox security system Product Description: The Paradox PDX-SP65 offers a combination of innovative features and an advanced communication bus for a unique expandable security system. Through its communication bus, The PDX-SP65 can be expanded via wireless and hardwired expansion modules and a variety of accessory modules. With its reliable communication technology, flexible expansion, and great-looking keypads, the PDX-SP65 is an ideal security system for any residential or commercial installations that require up to 32 zones of protection. Product Features: Technical Specification: Supply Power 16VAC – 1.5A Output Power 12VDC @ 500mA Zones 9 doubled to 18 and expandable to 32 PGM 3 expandable to 16 User codes 32 Partitions 2
ZX82 8-Zone Expansion Module
This divide provides up to 8 additional hardwired zones inputs, as well as on-board anti-tamper switch. Product Description: The Paradox ZX82 zone expansion module provides up to eight additional hardwired zone inputs and is compatible with all Paradox panels. The ZX82 comes mounted in its own ABS enclosure and includes Status LED indication for power, data and for each individual zone. Product Features: Technical Specification: Input Voltage 9 to 16 Vdc Current Consumption 95 mA max (all LED on) Number of zones 8 Operating temperature -20° C to +50° C (-4° F to 122° F) Dimensions(H x W x D) Box:16.5 cm x 10.2 cm x 2.5 cm(6.5 in x 4 in x 1 in) Approval EN50131-3 Grade 3 Class II, CE Compatibility All Paradox control panels

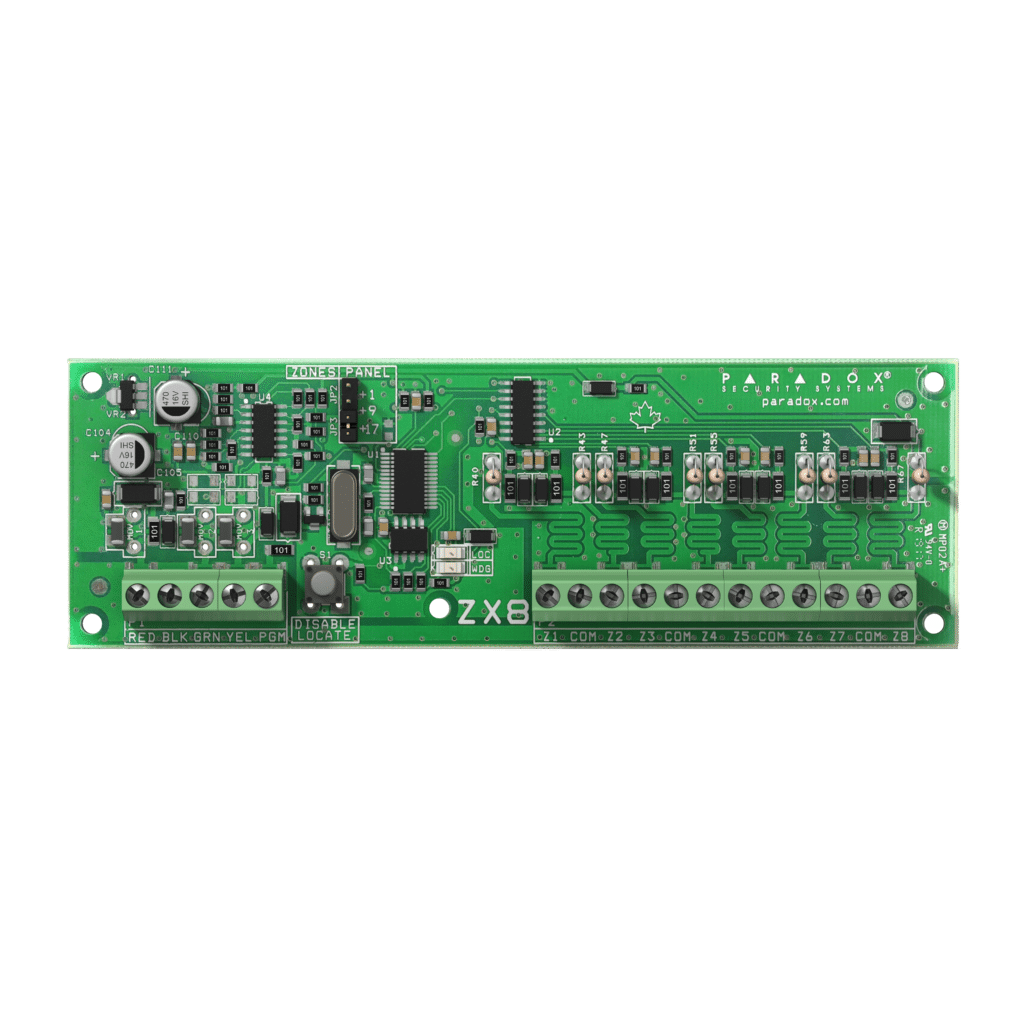

ZX8 8-Zone Expansion Module
Connects on the keypad bus of EVO, Spectra, or MG Panels. Product Description: The Paradox 8-zone Expansion Module (ZX8) is an interface between the control panels and any hardwired detection devices. The ZX8 connects to the alarm control panel’s combus to provide eight additional hardwired inputs and one 50mA on-board PGM output. Product Features: Technical Specification: Input Voltage 12 to 16 Vdc Current Consumption 28 mA max Number of zones 8 Operating temperature -20° C to +50° C (-4° F to 122° F) Dimensions(H x W x D) PCB:14 cm x 4.5 cm x 1.8 cm(5.5 in x 1.8 in x 0.7 in) Approval EN50131-3 Grade 3 Class II, CE Compatibility All Paradox control panels
PGM82 8-PGM Expansion Module
Expand the capabilities of your Paradox security system with the PGM82 Programmable Output Expansion Module. Product Description: The Paradox PGM82 programmable output expansion module includes eight programmable relay outputs and is compatible with all Paradox panels. Outputs can be activated using the Insite Gold mobile application, integrated manual switches or programmed to follow system events. The PGM82 comes mounted in its own ABS enclosure and includes Status LED indication for power, data and for each individual PGM. Product Features: Technical Specification: Input Voltage 11 to 16 Vdc Current Consumption 315 mA max(all PGMs activated) Number of outputs 8 Form ‘C’ relays Output 24V, 4A any load Maximum module current 15A total per module Operating temperature -20° C to +50° C (-4° F to 122° F) Humidity 95% maximum Dimensions(H x W x D) Box:16.5 cm x 10.2 cm x 2.5 cm(6.5 in x 4 in x 1 in) Compatibility EVO192, EVOHD,MG5000, MG5050,SP5500, SP6000, andSP7000 V6.80 and higher

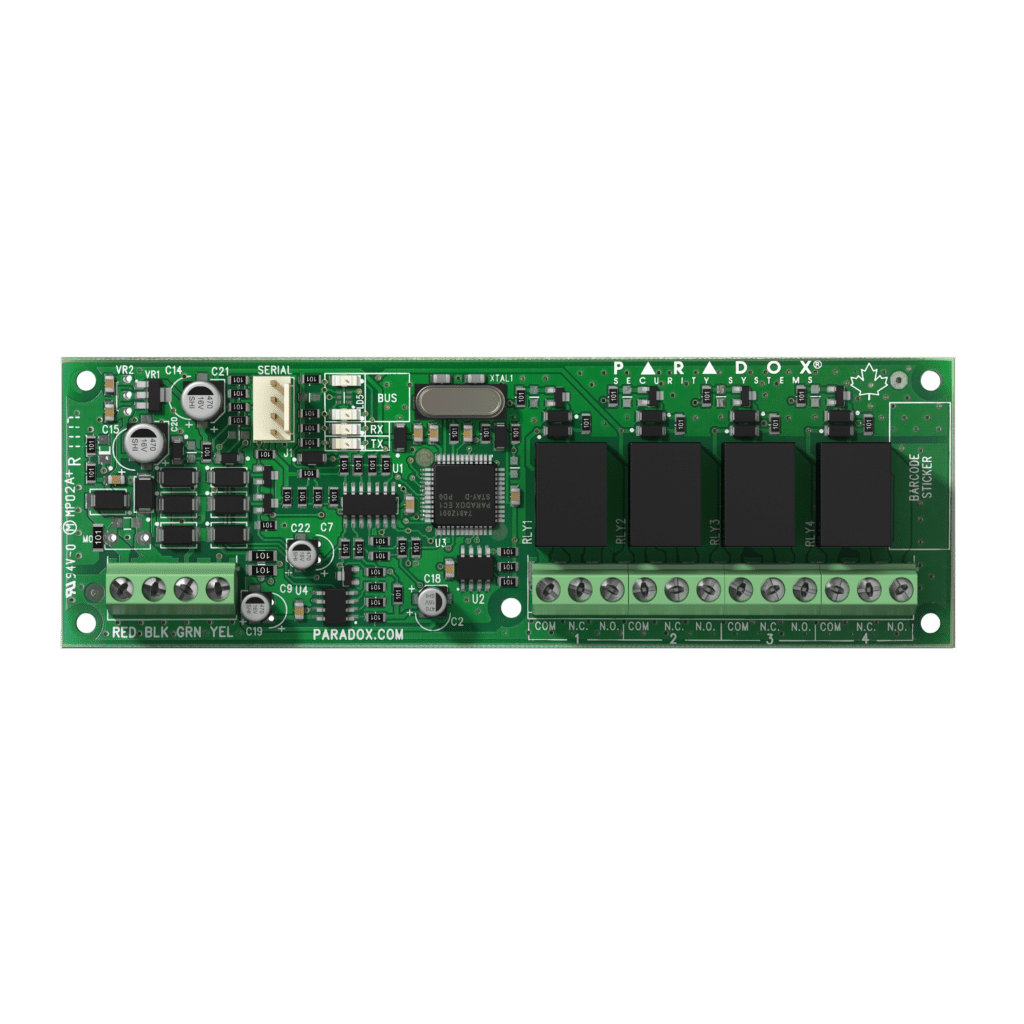

PGM4 4-Output Expansion Module
Expand the capabilities of your Paradox security system with the PGM4 Programmable Output Expansion Module. Product Description: The Paradox PGM4 is an expansion module with four fully programmable relay outputs. Each output contains a normally open (NO) and normally closed (NC) contact rated at 5A. The PGM4 is compatible with Digiplex, EVO, Spectra, Esprit E55, and MG / SP systems. Product Features: Technical Specification: Input Voltage 11 to 16 Vdc Current Consumption 150 mA max(all PGMs activated) Number of outputs 4 Form ‘C’ relays Output 24V, 4A any load Maximum module current 12A total per module Operating temperature -20° C to +50° C (-4° F to 122° F) Humidity 95% maximum Dimensions(H x W x D) PCB:14 cm x 4.5 cm x 3 cm(5.5 in x 1.8 in x 1.2 in.) Compatibility All panels
RX1 Wireless Receiver
Seamlessly integrates wireless devices with your Paradox security system, expanding its capabilities and offering flexible protection without the need for extensive wiring. Product Description: The RX1 Wireless Receiver adds wireless receiving capability to the Spectra SP Series control panels (V4.5 and higher). Adding the RX1 to an installation allows for the use of one- way remotes as well as wireless one-way zone transmitters with the system. Product Features: Technical Specification: Power Input Voltage 12 Vdc Frequency 433 MHz or 868 MHz Sensitivity -110 dBm (433 MHz) or -106 dBm (868 MHz) Current Consumption 25 mA Dimensions (no antenna) 5.1 x 8.3 x 2 cm (2 x 3.25 x 0.78 in.) Operating Temperature 0ºC to 50ºC (32ºF to 122ºF) PGM Outputs PGM1 and PGM2 – via PGM 13 and 14 of panel Antenna Monopole antenna; error correction algorithm Bus Supervision AC, Battery, Aux Voltage Statusand Consumption, Tamper Dimensions (H x W x D) 25.4 x 27.3 x 8.9 cm(10 x 10.75 x 3.5 in.) Compatibility EVO192, EVOHD all versions,MG5000, MG5050, SP5500,SP6000, SP7000 V6.80 and higher

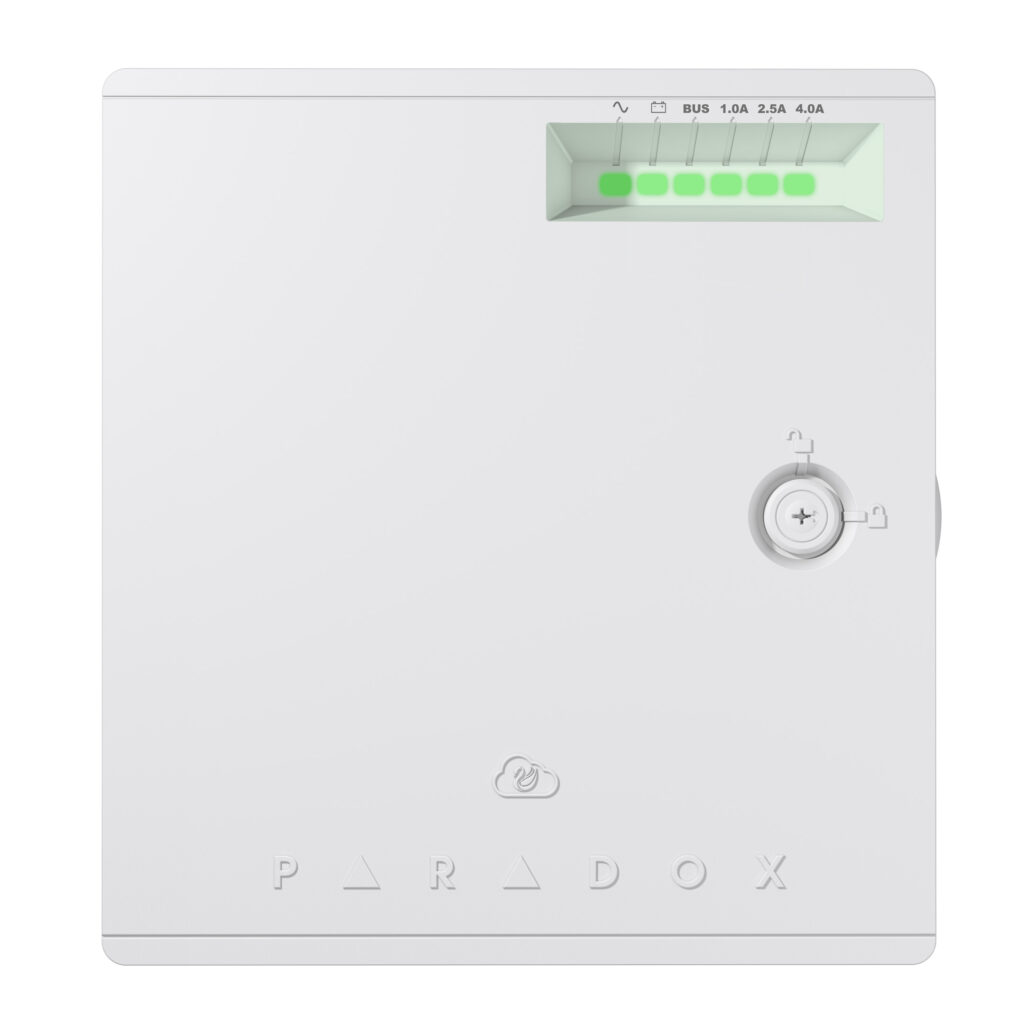

PS45 Supervised Power Supply
A supervised or standalone backup battery multi-purpose supply. Product Description: The PS45 is a 75W supervised or standalone backup battery multi-purpose power supply. Mainly designed to power up to 10 video cameras or any 13.8V rated devices. With up to 27 Ah battery backup capability, the PS45 will provide a reliable robust backup power solution. Product Features: Technical Specification: AC Power 100 Vac to 240 Vac, 50-60 Hz Auxiliary Voltage Output 15 Vdc +/- 5% AC or Battery Backup Auxiliary Current Output 4.0A maximum continuous current, cut off at 4.5A Battery 7 Ah in box mounted, 2nd battery upto 20 Ah in external box, total 27 Ah Indications Ac, Battery, Bus, Output:1A, 2.5A, 4.0A Charging 500 mA to 1500 mA, adaptive Operating Temperature -20 to 50° C (-4 to 122° F) Humidity 95% maximum Bus Supervision AC, Battery, Aux Voltage Statusand Consumption, Tamper Dimensions (H x W x D) 25.4 x 27.3 x 8.9 cm(10 x 10.75 x 3.5 in.) Compatibility EVO192, EVOHD all versions,MG5000, MG5050, SP5500,SP6000, SP7000 V6.80 and higher

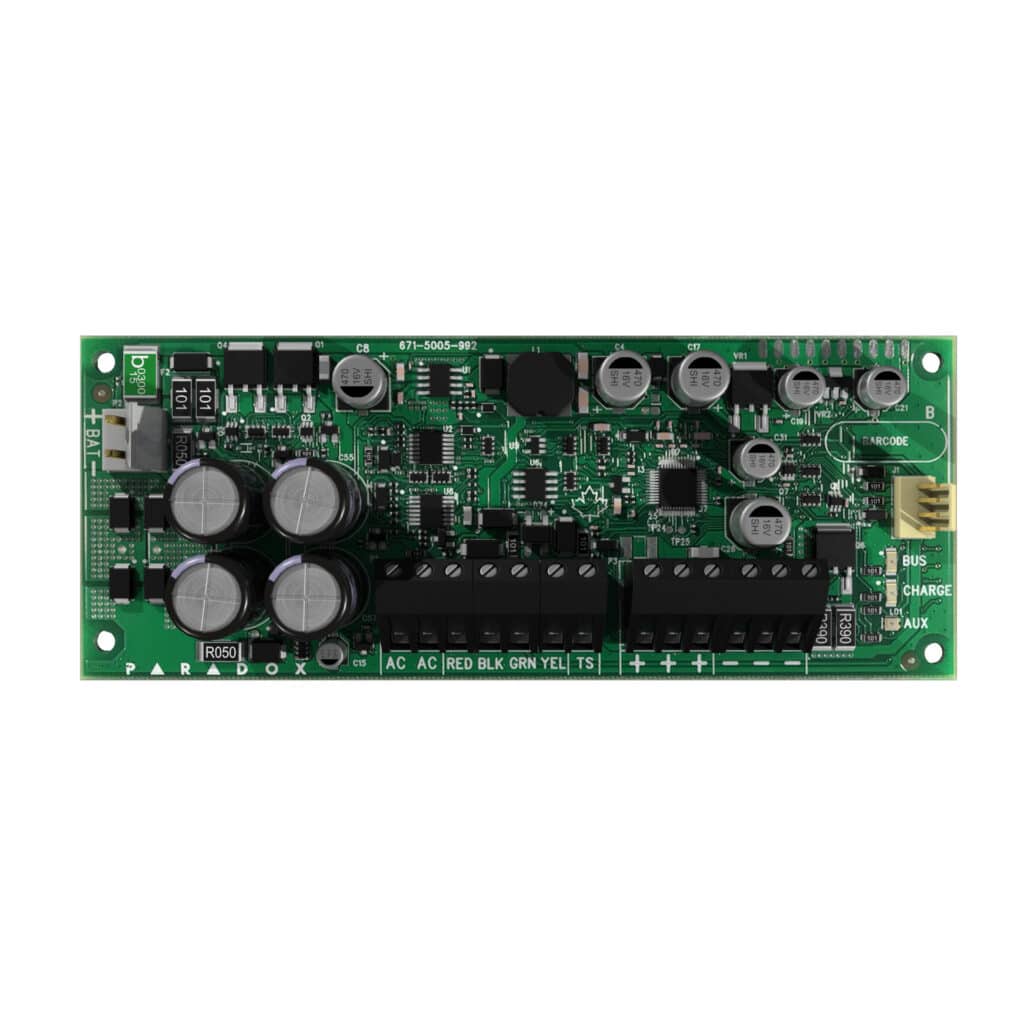

PS25 | 2.8A Supervised Power Supply
This divide provides reliable and consistent power to your security system, avoiding interruptions. Product Description: The PS25 is a 2.8A supervised switching power supply that connects to Paradox control panel bus or may work as a standalone power supply. The PS25 provides a maximum of 2.5A (13.8 Vdc) continuous auxiliary power output and charges a battery with 300 mA, battery charging current may increase up to 1.2A if Auxiliary current is reduced accordingly. Product Features: Technical Specification: AC Power 16 Vac, 40 VA, 50-60 Hz Auxiliary Power 2.5A maximum 13.8 Vdc when AC present 12.8 Vdc or battery 1V when battery supply Disconnect at 9.5V Battery 2 Vdc, 4 Ah to 14 Ah Charging 300 mA min to 1200 mA (redirect from auxiliary if less than 2.5A) Operating Temperature -20 to 50° C (-4 to 122° F) Humidity 95% maximum Bus Supervision AC, Aux voltage Dimensions (H x W x D) 5.6 x 14 x 2.5 cm (2.2 x 5.5 x 0.9 in.) Certification CE Compatibility EVO192, EVOHD all versions, MG5050, SP5500, SP6000, SP7000 V7.14 and higher
