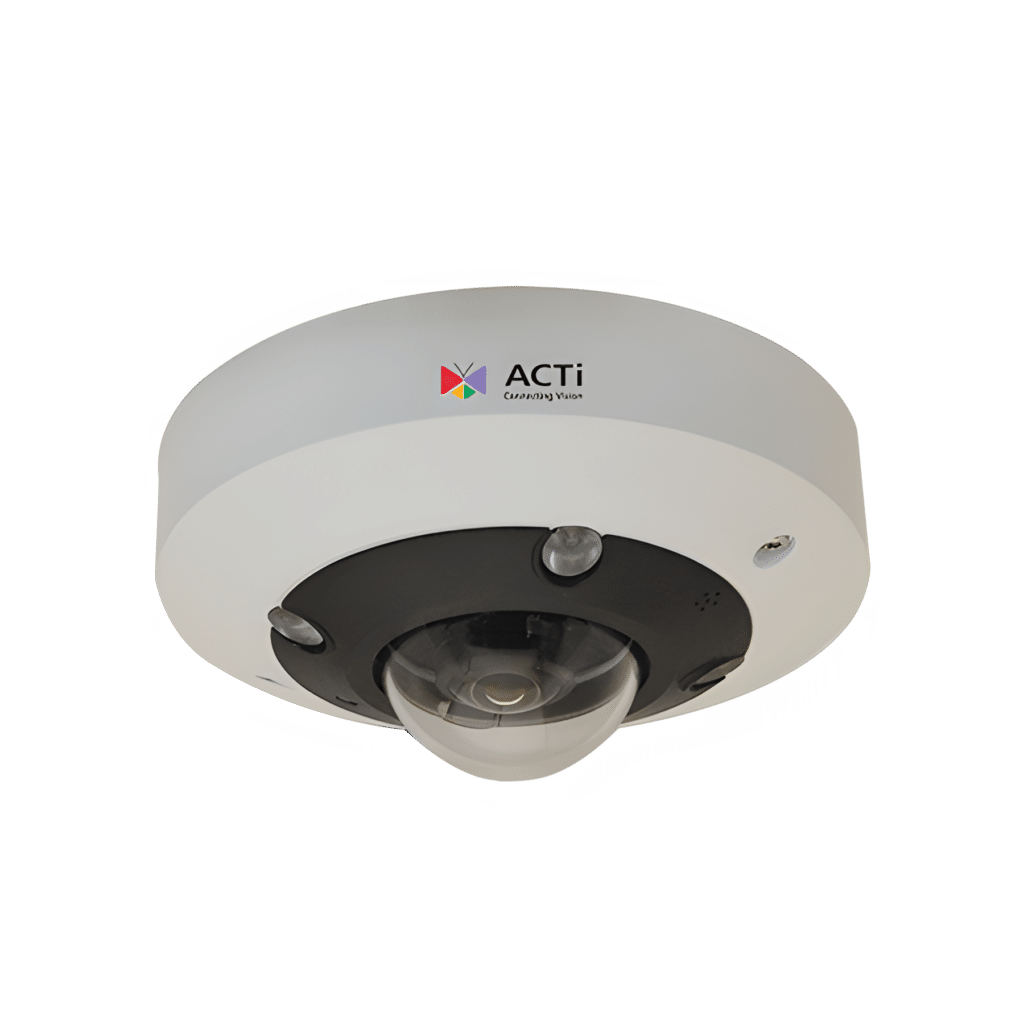

A713 5MP Outdoor Network Fisheye Dome Camera with Night Vision and Heater
A high-security surveillance camera with wide area coverage, night vision, and also two-way audio Product Description:Keep a watchful eye over your property with the A713 5MP Outdoor Network Fisheye Dome Camera from ACTi. This unit uses a progressive scan CMOS image sensor to capture 1920 x 1920 resolution video at 30 fps. An adaptive IR LED provides up to 16′ of night vision. The camera’s 1.1mm fisheye fixed lens delivers a 180° horizontal field of view. Two-way audio is possible thanks to an audio input and output. An onboard memory card slot accepts microSD/SDHC/SDXC cards (available separately). Integrated PoE technology simplifies connectivity by transferring data and power through a single cable. Product Features: Technical Specification: KEY SPECS Image Sensor Size-Unspecified CMOS Focal Length 1.1mm Field of View Horizontal: 180° Pan/Tilt No Power I/O 1x DC Input1x RJ45 Input/Output IMAGING Number of Lenses 1 Image Sensor Size-Unspecified CMOS Sensor Resolution Effective: 5 Megapixels IR Cut Filter Yes Mechanical Day/Night Yes LENS Focal Length 1.1mm Field of View Horizontal: 180° Maximum Aperture f/2.4 VIDEO Automatic Gain Control Yes Max IP Streaming via RJ451920 x 1920 up to 30.00 fps Multi-View Streaming Yes, 3 Streams CONTROL Pan/Tilt No NETWORKING Security HTTPS, IEEE 802.1X, IP Address Filtering, Password Protection Supported Protocols ARP, DDNS, FTP, HTTP, ICMP, IPv4/v6, NTP, ONVIF Profile G, PPPoE, QoS Layer 3 DiffServ, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), TCP, UDP, UPnP INTERFACE Media/Memory Card Slot Single Slot: microSD/microSDHC/microSDXC Other I/O 1x RJ45 1- or 2-Way Audio Two-Way Audio Formats AAC, G.711, G.726, PCM SYSTEM INTEGRATION Analytics Camera Sabotage/Tampering SENSORS & ALARMS Event Trigger Yes Event Action Recording, Notification, Alarm Alarm I/O No POWER Power I/O 1x DC Input1x RJ45 Input/Output Power Consumption PoE: 12.95 W GENERAL Environmental Resistance Dust/Water-Resistant (IP66) Impact Resistance Impact-Resistant (IK10) Operating Conditions -22 to 131°F / -30 to 55°C at 10 to 90% Humidity Illumination IR LED up to 16.4′ / 5 m Mobile App Compatible No Dimensions (W x H x D) 5.1 x 2.3″ / 130 x 57.8 mm Weight 1.2 lb / 557.5 g (Body Only)
DH-80840WANF 8MP 4K Starlight PTZ IP Security Camera with Analytics+ and 40x Optical Zoom
Designed for outdoor use, this 4K surveillance camera has a 40x optical zoom and Analytics+ for real-time face recognition. Product Description:The 4K IR PTZ Dome camera features a 1/1.8-in STARVIS™ CMOS imager with a 40x optical zoom lens, and provides an all in one solution for capturing long-distance video surveillance for outdoor applications. The camera offers Analytics+ functions at the edge – performing complex real-time face recognition and perimeter protection surveillance. The Dahua Analytics+ algorithms significantly improve accuracy and reliability as compared to standard intelligent features Product Features: Technical Specification: Model DH-IPC-PSDW81642M-A360 Innovative Features UltraSeries, WizMind Image Sensor 1/2.8-in. 8MP STARVISTM CMOS Lens 5.6 mm to 223 mm(40x Optical Zoom) Minimum Illumination Enhanced StarlightColor: 0.005 lux to F1.40 lux to F1.4 (IR on) Maximum IR Distance 1640 ft (500 m) Video Compression (Main Stream) Smart H.265+, H.265,Smart H.264+, H.264,(MJPEG substream) Maximum Resolution 8MP (3840 x 2160) Pan/Tilt/Zoom 300 Presets,Pan: 0° to 360° endless;Tilt: -30° to 90°, Auto Flip 180° Preset Speed Pan: 240° /s; Tilt: 120° /s Intelligent Video Scene Change, Abandoned/MissingObject, Perimeter Protection, FaceDetection**, Auto-tracking Audio In/Out 1/1 Memory Slot Micro SD,Max 128GB Alarm In/Out 7/2 Environmental Protection IP67 Working Temperature -40° F to 158° F(-40° C to 70° C) Power 36 VDC, 2.23A ±25% orHi-PoEMax 30 W, 48 W with IR on
DH-PSDW81642M-A360-D440-S3 16MP Multi-Sensor 360° Panoramic PTZ Hubble WizMind Network Camera
A high-speed surveillance camera that can provide a 360° panoramic view of your property. Product Description:The Panoramic Network Camera + PTZ Camera can splice up to a 360° horizontal view to give you a wider view. Working with high-speed PTZ, the camera can display the details. With advanced video analysis algorithms, the camera supports linkage between panorama and details, and situation analysis. Product Features: Technical Specification: Model DH-IPC-PSDW81642M-A360 Innovative Features UltraSeries, WizMind Image Sensor Panoramic: 8 x 1/1.8-in. 2MP CMOSPTZ: 1/1.8-in. 4MP CMOS Lens Panoramic: 5 mmPTZ: 5.6 mm to 223 mm Minimum Illumination Panoramic: 0.01 lux at F2.0PTZ: 0.008 lux at F1.3 Maximum IR Distance 1312 ft (400 m) Video Compression (Main Stream) Smart H.265+, H.265, Smart H.264+,H.264, H.264H, H.264B, (MJPEGsubstream) Maximum Resolution 12MP (4000 x 3000) Pan/Tilt/Zoom Pan: 0 ̊ to 360 ̊, endlessTilt: -20 ̊ to 90 ̊Auto flip: 180 ̊ Preset Speed Pan: 0.1° /s to 240° /sTilt: 0.1° /s to 120° /s Intelligent Video Motion, Tripwire, Intrusion, Smart Tracking Audio In/Out 2/2 Memory Slot Micro SD,Max 512GB (panoramic only) Alarm In/Out 7/3 Environmental Protection IP66 Working Temperature 7/3 Power 36 VDCMax < 84.4 W
DH-IPC-EBW81242N-AS-S2 12MP IR Fisheye WizMind Network Camera
A surveillance camera that can provide 360° ideal for shopping centers, airports, and banks. Product Description:With a fisheye lens, Dahua Fisheye series camera can realize 360° surveillance, and it is widely applied in various scenes such as airports, shopping centers, banks and hotels. Launched by Dahua Technology, Dahua WizMind is a full portfolio of solutions composed of project-oriented products including IPC, NVR, PTZ, XVR, Thermal and software platform which adopts industry-leading deep learning algorithms. Focusing on customer’s requirements, WizMind provides precise, reliable and comprehensive AI solutions for verticals. Product Features: Technical Specification: Model DH-IPC-EBW81242N-AS-S2 Innovative Features UltraSeries, WizMind Image Sensor 1/1.7-in. 12MP CMOS Lens 1.85 mm Minimum Illumination Color: 0.01 lux at F2.00 lux at F2.0 (IR on) Maximum IR Distance 33 ft (10 m) Video Compression (Main Stream) Smart H.265+, H.265, Smart H.264+,H.264, H.264H, MJPEG Maximum Resolution 12MP (4000 x 3000) Intelligent Video Analytics+ Functions —Perimeter Protection, People Counting, QueueManagement, Premium IVS Tripwire, Intrusion,Heat Map Audio In/Out 1/1 + Built-in Microphone and Memory Slot Micro SD,Max 256GB Alarm In/Out 2/2 Environmental Protection IP67, IK10 Working Temperature -40° F to 140° F(-40° C to 60° C) Power 12 VDC or PoE+ (802.3at, Class 4)12 VDC: 13 W maximumPoE+: 13.9 W maximum

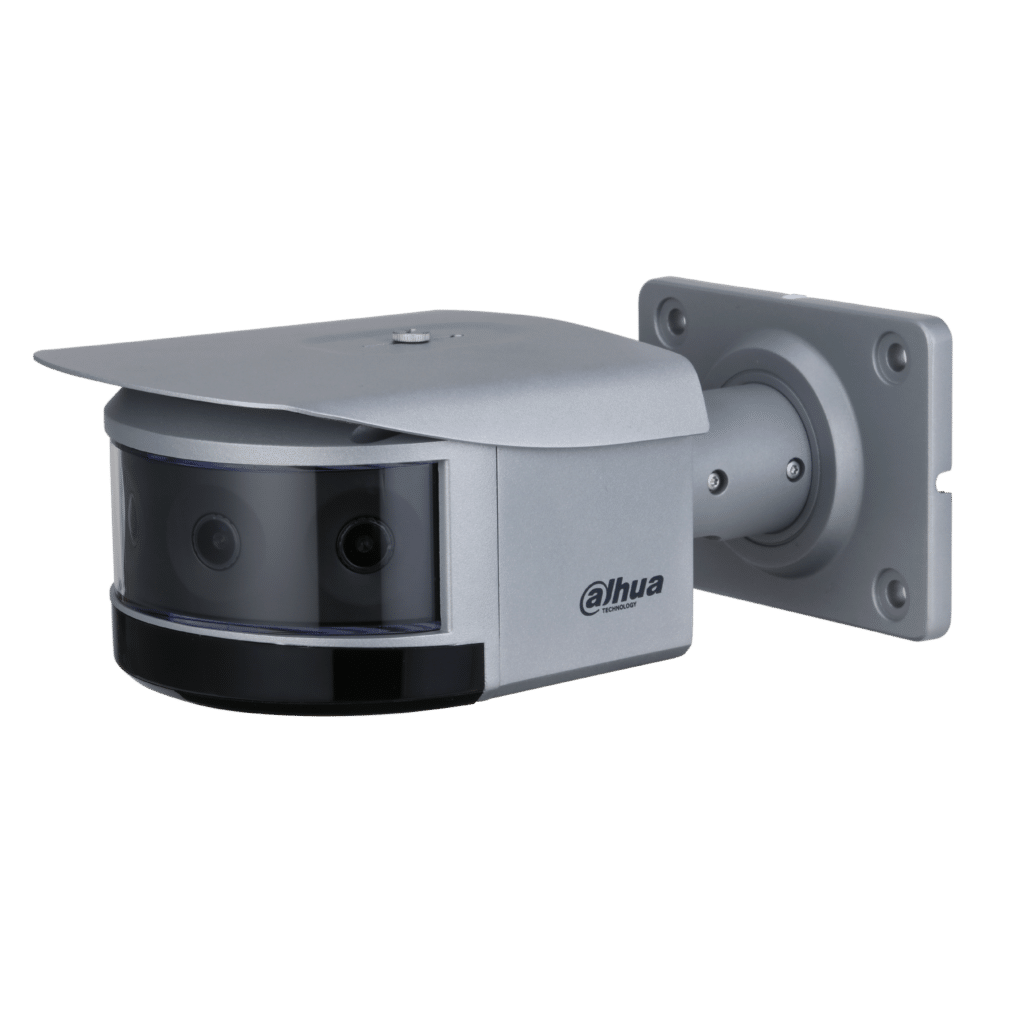

DH-IPC-PFW83242-A180-S2 4 x 8MP Multi-Sensor Panoramic Bullet WizMind Network Camera
A panoramic surveillance camera that accurately detects human and vehicles and can provide perimeter protection. Product Description:The splicing camera supports a 180° panoramic view and 4-channel hardware splicing to realize HD panoramic surveillance. The camera supports crowd situation analysis, vehicle situation analysis, and perimeter protection. It is widely applied in various scenes such as squares, airports and traffic. Product Features: Technical Specification: Model DH-IPC-PFW83242-A180-S2 Innovative Features UltraSeries, WizMind Image Sensor Four (4) 1/1.8-in. 8MP CMOS Sensors(4 sensors total) Lens 2.8 mm Minimum Illumination Enhanced StarlightColor: 0.005 lux at F1.60 lux to F1.6 (IR on) Maximum IR Distance 98 ft (30 m) Video Compression (Main Stream) Smart H.265+, H.265, Smart H.264+,H.264, H.264H, H.264B, (MJPEGsubstream) Maximum Resolution 8MP per Sensor (4 sensors total) Pan/Tilt/Zoom Pan: 0 ̊ to 355 ̊Tilt: 0 ̊ to 90 ̊Rotation: 0 ̊ to 360 ̊ Preset Speed – Intelligent Video Premium IVS, Analytics+ Functions —Crowd Density and Vehicle Density Audio In/Out 1/1 Memory Slot Micro SD,Max 256GB Alarm In/Out 2/2 Environmental Protection IP67, IK10 Working Temperature -40° F to 140° F(-40° C to 60° C) Power 12 VDC, 24 VAC or PoE+ (802.3at, Class 4),Max 10.6 W (12 VDC); 11.9 W (24VAC);11.9 W (PoE)

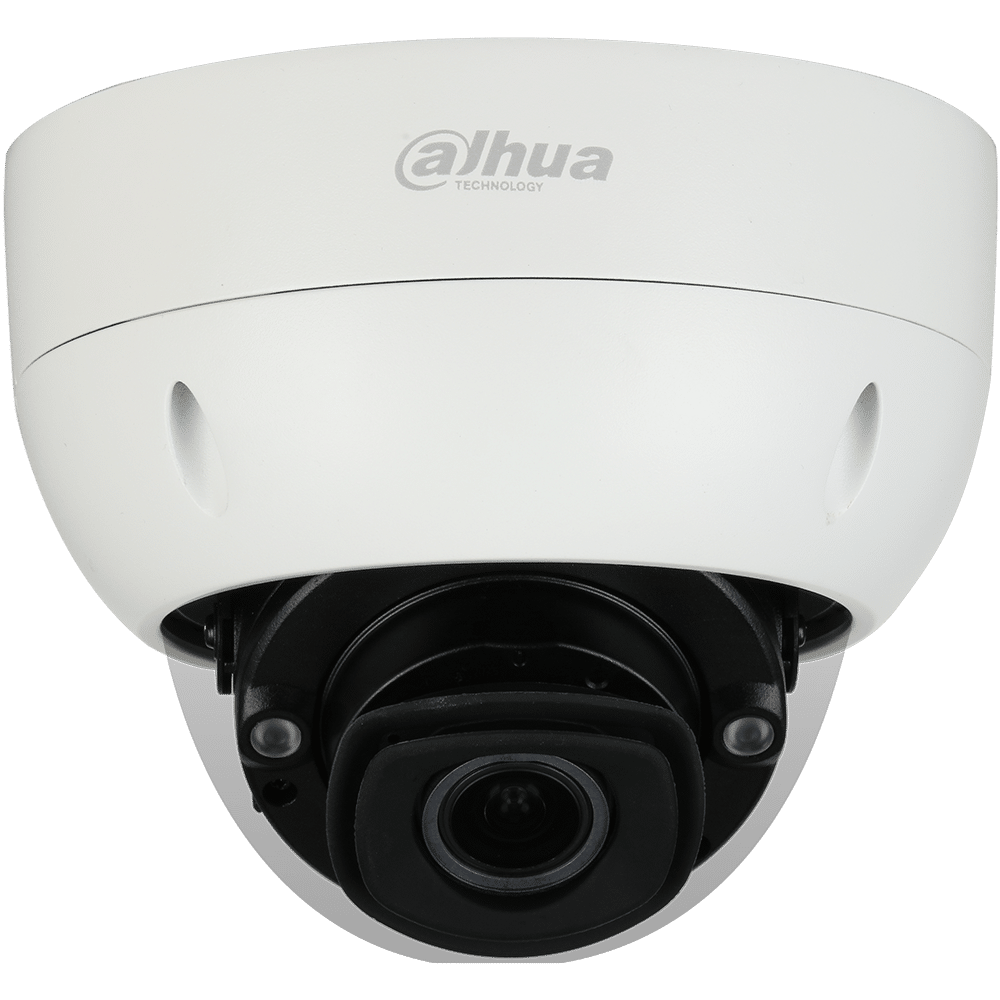

DH-IPC-HDBW7442H-Z-S 4MP IR Dome WizMind Network Camera
This surveillance camera can provide reliable image capture with this full portfolio of solutions. Product Description:With an advanced deep learning algorithm, Dahua WizMind 7 Series network camera supports various intelligent functions and satisfies the requirements in different scenes. The camera can accurately recognize person, vehicle, and non-motor vehicle, face, and liveness. This series camera has ultra starlight night vision effect, and works with ultra-low stream. It supports dust-proof function, waterproof function and vandal-proof function, complying with the standards of IP67 and IK10 (Supported by some select models). Product Features: Technical Specification: Model DH-IPC-HDBW7442H-Z Innovative Features UltraSeries, WizMind Image Sensor 1/1.8-in. 4MP CMOS Lens 2.7 mm to 12 mm, Motorized Minimum Illumination Starlight+Color: 0.001 lux at F1.20 lux at F1.2 (IR on) Maximum IR Distance 164 ft (50 m): Bullet131 ft (40 m): Dome Video Compression (Main Stream) Smart H.265+, H.265, Smart H.264+,H.264, H.264B, H.264H, (MJPEG substream) Maximum Resolution 4MP (2688 x 1520) Intelligent Video Analytics+(People Counting, Perimeter Protection,Image Attribute Extraction) Audio In/Out 1/1 Memory Slot Micro SD,Max 256GB Alarm In/Out 3/2 Environmental Protection IP67, IK10 Working Temperature -40° F to 140° F(-40° C to 60° C) Power 12 VDC, 24 VAC, or PoE (802.3af, Class 0) ePoE, Max <17.3 W: BulletMax <16.7 W: Dome

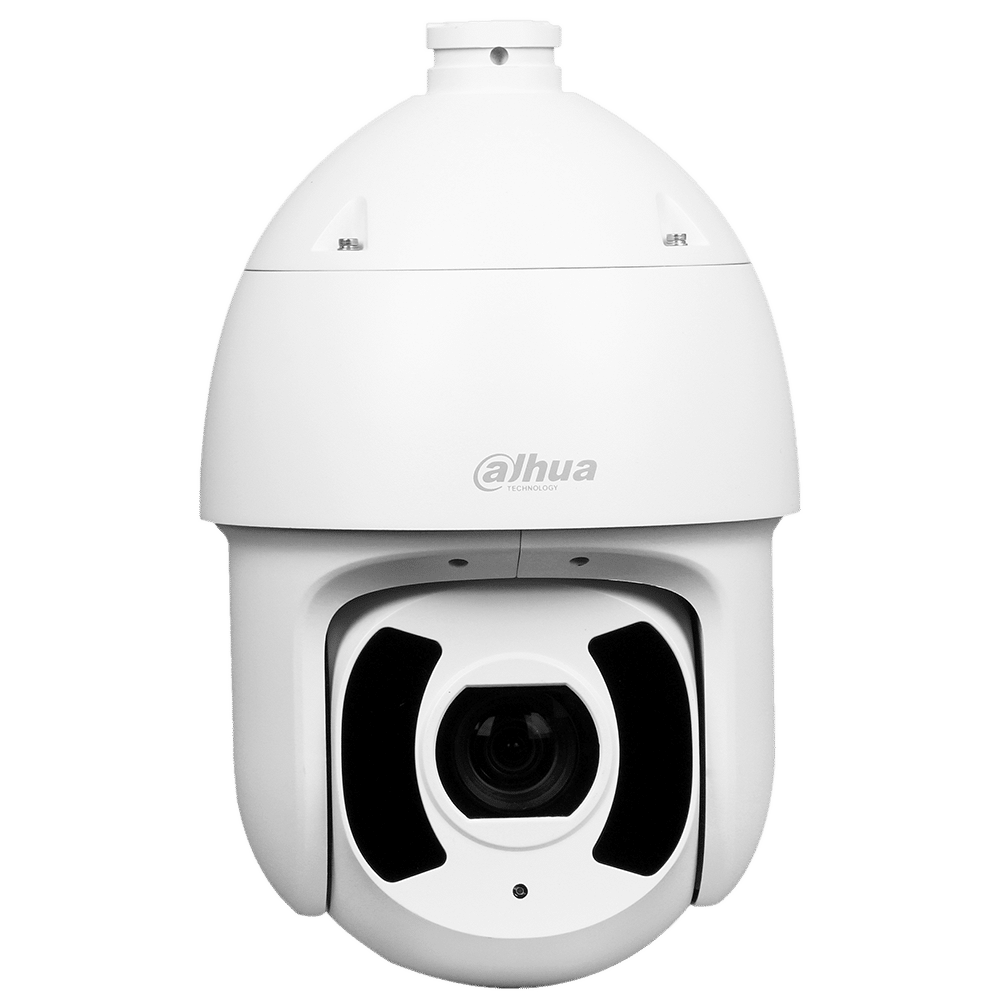

6CE445XANR 4MP IR 45x Starlight Analytics+ PTZ DomeCamera
Featuring an Analytics+ function, this surveillance camera provides real-time perimeter protection. It also has a 45x optical zoom. Product Description:The 4 MP Starlight PTZ Dome camera features offers Analytics+ functions at the edge – performing complex real-time perimeter protection surveillance. The Dahua Analytics+ algorithms significantly improve accuracy and reliability as compared to standard intelligent features. The camera features a 1/2.8-in. CMOS STARVIS™ imager with a 45x optical zoom lens, and provides an all-in-one solution for capturing long-distance video surveillance for outdoor applications. The camera uses the H.265 video compression standard to improve encoding efficiency while preserving high-quality video. The PTZ camera is equipped with quick and accurate pan/tilt/zoom control and True WDR for applications with direct sunlight or glare. Product Features: Technical Specification: Model 6CE445XANR Innovative Features ProSeries, WizSense Image Sensor 1/2.8-in. 4MP STARVISTM CMOS Lens 3.95 mm to 177.75 mm(45x Optical Zoom) Minimum Illumination Enhanced StarlightColor: 0.005 lux at F1.60 lux at F1.6 (IR on) Maximum IR Distance 820 ft (250 m) Video Compression (Main Stream) AI Coding, Smart H.265+,H.265, Smart H.264+, H.264,(MJPEG substream) Maximum Resolution 4MP (2560 x 1440) Pan/Tilt/Zoom 300 Presets,Pan: 0° to 360° endless;Tilt: -20° to 90°, Auto Flip 180° Preset Speed Pan: 300° /s; Tilt: 200° /s Intelligent Video Analytics+ (Perimeter Protection, Face Detection, Upgraded Smart Motion Detection+, Auto-tracking+) Audio In/Out 1/1 Memory Slot Micro SD, Max 512GB Alarm In/Out 7/2 Environmental Protection IP67, IK10 Working Temperature -40° F to 158° F(-40° C to 70° C) Power 24 VDC, 2.5A ±25% orPoE+ (802.3at, Class 4)13 W, 25 W with IR and heater on
WizSense Series 52C432GBNR 4MP Network PTZ Dome Camera
This surveillance camera features endless panning, a 0 to 90 tilt range, and 32x optical zoom. Product Description:Securely monitor your surroundings with the WizSense Series 52C432GBNR 4MP Network PTZ Dome Camera from Dahua Technology. This unit uses a 1/2.8″ progressive scan CMOS sensor to capture 2560 x 1440 resolution video at 30 fps. A 4.8-154mm varifocal lens delivers a 55.8 to 2.3° horizontal field of view. This camera features endless panning, a 0 to 90° tilt range, and 32x optical zoom. Two-way audio is possible thanks to an audio input and output. A memory card slot accepts microSD/SDHC/SDXC cards up to 512GB (available separately). Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable. Product Features: Technical Specification: Model 52C432GBNR Innovative Features ProSeries, WizSense Image Sensor 1/2.8-in. CMOS Lens 4.8 mm to 154 mm(32x Optical Zoom) Minimum Illumination Enhanced Starlight Color: 0.005 lux toF1.6 0 lux to F1.6 Maximum IR Distance — Video Compression (Main Stream) AI Coding, H.264H, H.264B, SmartH.265+, H.264, H.265, (MJPEGsubstream), Smart H.264+ Maximum Resolution 4MP (2560 x 1440) Pan/Tilt/Zoom — Preset Speed Pan: 500° /s; Tilt: 500° /s Intelligent Video Analytics+ (Perimeter Protection, Upgraded Smart Motion Detection+, Face Detection) Auto-tracking Audio In/Out 1/1 Memory Slot Micro SD, Max 512GB Alarm In/Out 2/1 Environmental Protection IP67, IK10 Working Temperature -40° F to 158° F(-40° C to 70° C) Power 24 VDC, 2.5A ± 25%, PoE+ (802.3at) Max 16 W

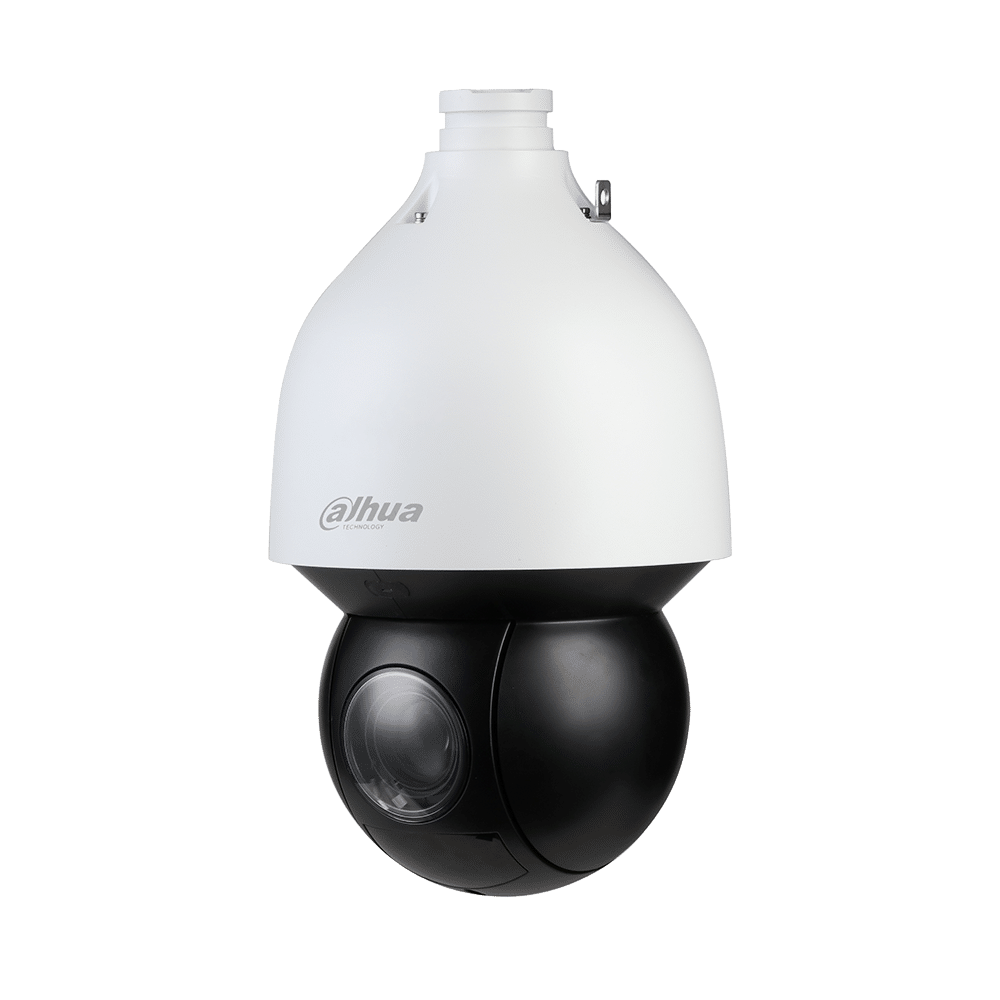

WizSense Series 5A445GBNR 4MP Outdoor Network PTZ Dome Camera
This surveillance camera features endless panning, a -15 to 90 tilt range, and 45x optical zoom. Product Description:Securely monitor your surroundings with the WizSense Series 5A445GBNR 4MP Outdoor Network PTZ Dome Camera from Dahua Technology. This unit uses a 1/2.8″ progressive scan STARVIS CMOS sensor to capture 2560 x 1440 resolution video at 30 fps. Four IR LEDs provide up to 492′ of night vision. A 3.95-177.75mm varifocal lens delivers a 65.7 to 1.9° horizontal field of view. This camera features endless panning, a -15 to 90° tilt range, and 45x optical zoom. Two-way audio is possible thanks to an audio input and output. A memory card slot accepts microSD/SDHC/SDXC cards up to 512GB (available separately). Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable. Product Features: Technical Specification: Model 5A445GBNR Innovative Features ProSeries, WizMind Image Sensor 1/2.8-in. CMOS Lens 3.95 mm to 177.75 mm Minimum Illumination Basic StarlightColor: 0.005 lux to F1.60 lux to F1.6 (IR on) Maximum IR Distance 492 ft (150 m) Video Compression (Main Stream) Smart H.265+, H.265, Smart H.264+, H.264, (MJPEG substream) Maximum Resolution 4MP (2560 x 1440) Pan/Tilt/Zoom 300 Presets,Pan: 0° to 360° endless;Tilt: -15° to 90°, Auto Flip 180° Preset Speed Pan: 400° /s; Tilt: 300° /s Intelligent Video Analytics+ Perimeter Protection, Smart Motion Detection;Auto-tracking: 8MP, Alarm Track: 4MP Audio In/Out 1/1 Memory Slot Micro SD, Max 512GB Alarm In/Out 2/1 Environmental Protection IP66 Working Temperature -40° F to 158° F(-40° C to 70° C) Power 24 VAC, 3 A ± 25% or PoE+(802.3at, Class 4) 13 W, 23 Wwith IR on

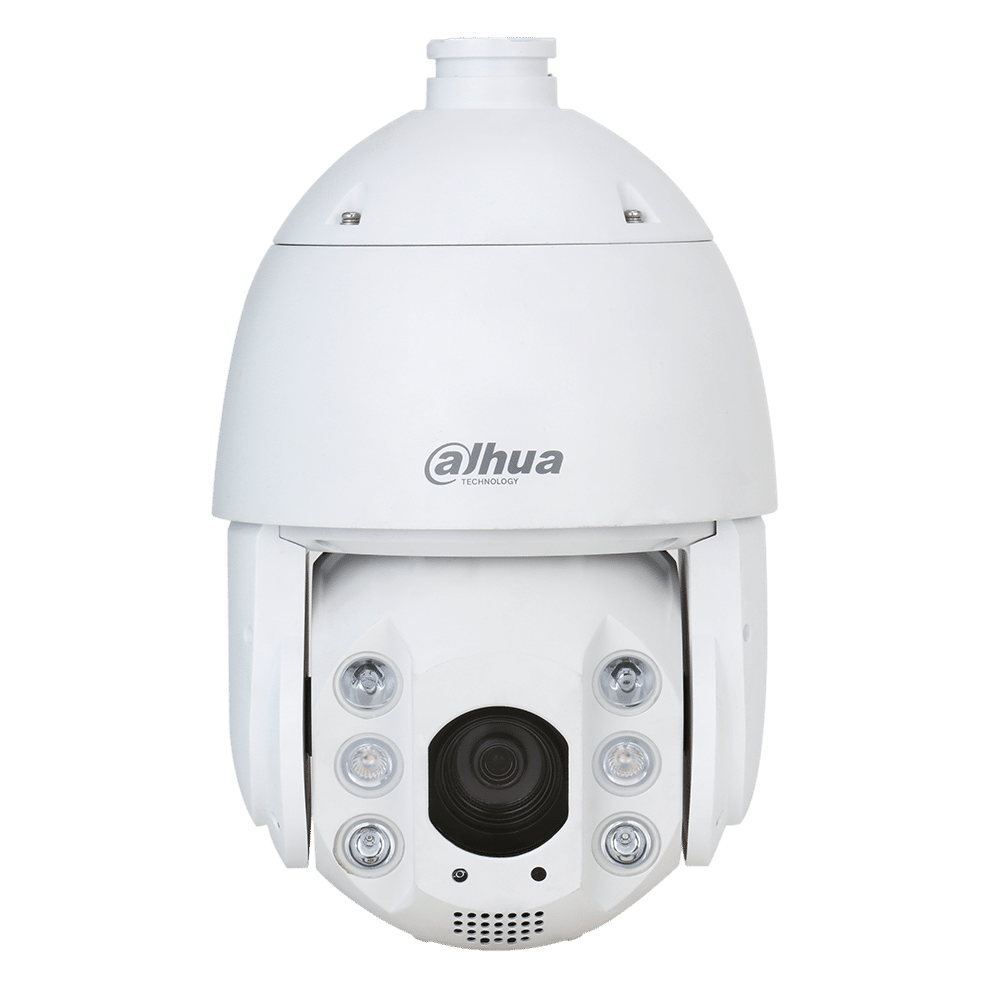

6C3425XBPV 4MP Outdoor TiOC NEtwork PTZ Dome Camera
Designed for outdoor use, this surveillance camera has an active alarm system featuring red and blue lights, and voice prompt to deter intruders. Product Description:Designed for outdoor use, the 6C3425XBPV 4MP Outdoor TiOC Network PTZ Dome Camera from Dahua Technology uses a 1/2.8″ progressive scan CMOS sensor to capture 2560 x 1440 resolution video at 30 fps. Two IR LEDs deliver a 492′ night vision range, while two white LEDs provide up to 164′ of illumination for recording full color video. Additionally, an active alarm system features red and blue lights, voice prompt broadcasting, and a siren to deter intruders or to prevent an incident. Product Features: Technical Specification: Model 6C3425XBPV Innovative Features UltraSeries, WizMind, TiOC Image Sensor 1/2.8-in. 4MP STARVISTM Lens 4.8 mm to 120 mm(25x Optical Zoom) Minimum Illumination Basic StarlightColor: 0.005 lux to F1.60 lux to F1.6 (IR on) Maximum IR Distance Smart Dual Illumination IR:492 ft (150 m),White Light: 164 ft (50 m) Video Compression (Main Stream) Smart H.265+, H.265, SmartH.264+, H.264B, H.264H,H.264M, (MJPEG substream) Maximum Resolution 4MP (2560 x 1440) Pan/Tilt/Zoom 300 Presets,Pan: 0° to 360° endless;Tilt: -20° to 90°, Auto Flip 180° Preset Speed Pan: 240° /s; Tilt: 150° /s Intelligent Video Analytics+ (Perimeter Protection, Face Detection, Smart Motion Detection+), Premium IVS (Motion, Scene Change, Abandoned/ Missing Object, Auto-track) Audio In/Out 1/1 Memory Slot Micro SD,Max 256GB Alarm In/Out 2/1 Environmental Protection IP66 Working Temperature -40° F to 158° F(-40° C to 70° C) Power 24 VDC, 2.5 A (± 25%)(Included)PoE+ (802.3at)Max 23 W
