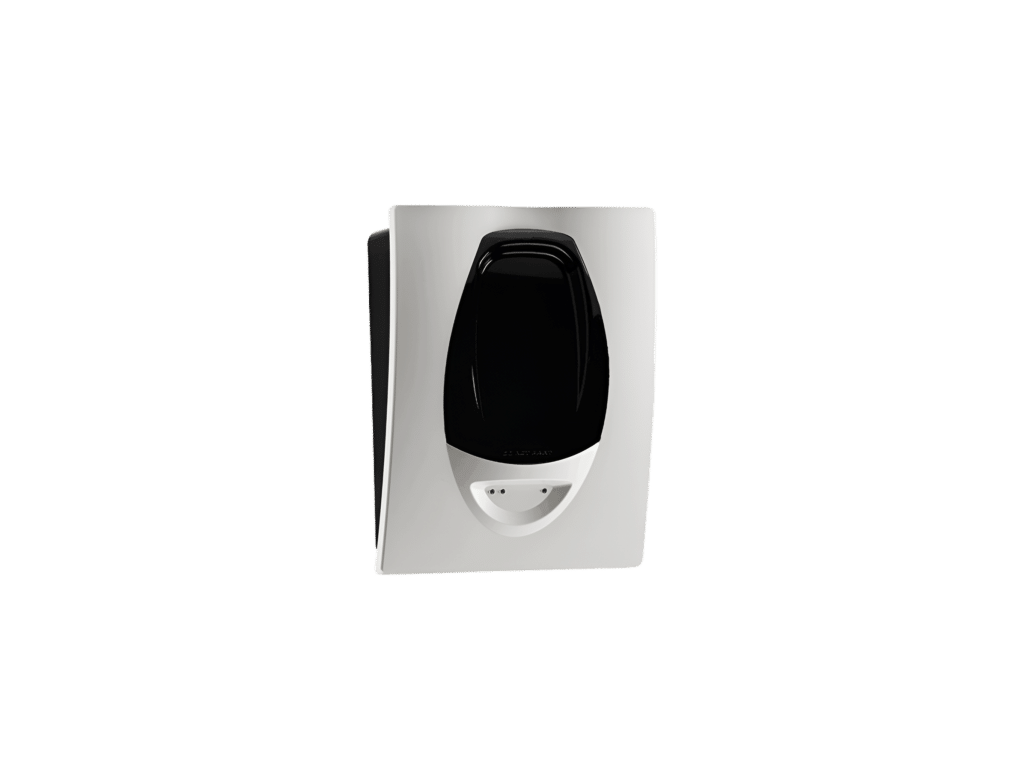

BEAM 1224 Smoke Detector
A smoke detector designed for protecting open areas with high ceilings. Description: System Sensor Model BEAM1224 is a four-wire conventional reflected beam smoke detector, which is uniquely suited for protecting open areas with high ceilings, where other methods of smoke detection are difficult to install and maintain. It is to be used with UL Listed compatible control panels only. An advantage of this single-ended reflective design is that it is much easier to install than the dual-ended projected beam detectors. Alignment is quickly accomplished via an optical sight and a two-digit signal strength meter incorporated into the product. Another advantage of the BEAM1224 is that it is listed for operation in temperatures ranging from –22°F to 131°F. This means it can be used in open areas to provide early warning in environments where temperature extremes may exceed the capability of other types of smoke detectors. Product Features: Technical Specifications: OPERATIONAL SPECIFICATIONS Protection Range 16 ft. to 328 ft. (5m to 100m) Adjustment Angle +/– 10 Degrees horizontal & vertical(The optics move independent of the unit) Sensitivity Levels Level 1 – 25%Level 2 – 30%Level 3 – 40%Level 4 – 50%Acclimate Level 1 – 30–50%Acclimate Level 2 – 40–50% Fault Condition (Trouble) 96% or more obscuration blockageIn alignment modeImproper initial alignmentSelf-compensation limit reached Alignment Aid Optical gunsightIntegral signal strength indication2-digit display Alarm Indicator Local red LED and remote alarm Trouble Indicator Local yellow LED and remote trouble Normal indicator Local flashing green LED Test/Reset Features Integral Sensitivity Test Filter (BEAM1224S only)Sensitivity filter (Incremental scale on reflector)Local alarm test switchLocal alarm reset switchRemote test and reset switch (Compatible with RTS451/RTS151 and RTS451KEY /RTS151KEY test station) Smoke Detector Spacing On smooth ceilings, 30–60 feet betweenprojected beams and not more than one-halfthat spacing between a projected beam and asidewall. Other spacing may be used dependingon ceiling height, airflow characteristics, andresponse requirements. See NFPA 72. ENVIRONMENTAL SPECIFICATIONS Temperature –22°F to 131°F (–30°C to 55°C) Humidity 10–93% RH Non Condensing ELECTRICAL SPECIFICATIONS Voltage 10.2 to 32 VDC (BEAM1224)15 to 32 VDC (BEAM1224S)BEAM1224S should not be usedwith 12V power sources Avg. Standby Current (24VDC) 17mA Max Avg. Current During Testing 500mA Max Avg. Alarm Current (24VDC) 38.5mA Max Avg. Fault Current (24VDC) 8.5mA Max Avg. Alignment Mode Current (24VDC) 28mA Max MECHANICAL SPECIFICATIONS Detector Dimensions 10 ̋ H × 7.5 ̋ W × 3.3 ̋ D(254mm H × 191mm W × 84mm D) Reflector Dimensions (16′ to 230′) 7.9 ̋ × 9.1 ̋ (200 × 230mm) Reflector Dimensions(beyond 230′) 15.7 ̋ × 18.1 ̋ (400 × 460mm) ELECTRICAL SPECIFICATIONS (BEAMHK) Voltage 15 to 32V Current 92mA at 32V Power consumption 1.6W @ 24V; 3W @ 32V

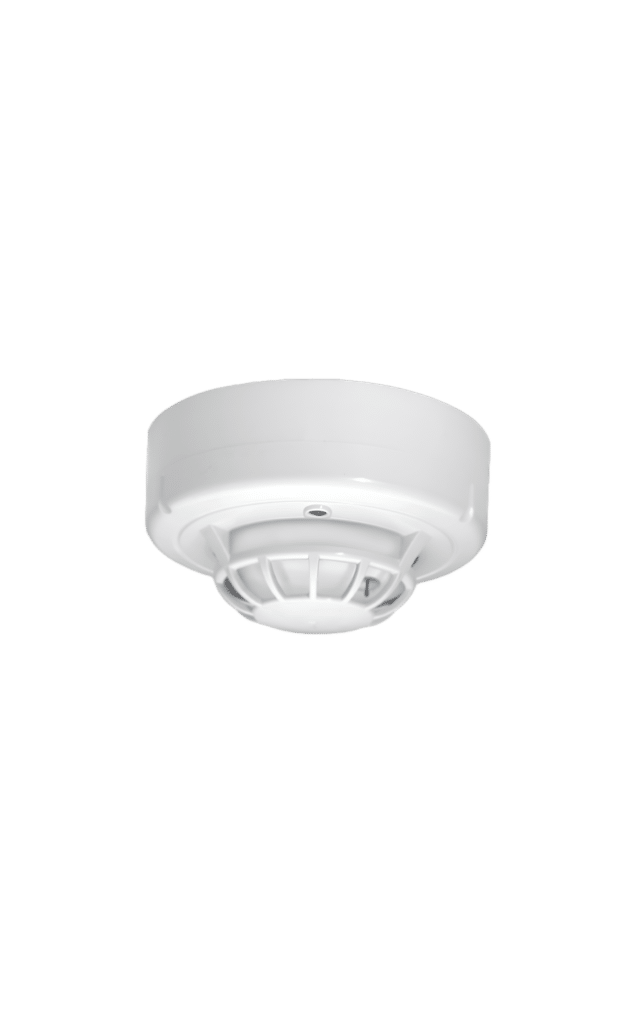

4351E 78°C Fixed TemperatureSmoke Detector
Designed to provide accurate heat detection for prompt incident response. Description: The 4351E thermal detector incorporates an Application Specific Integrated Circuit (ASIC). Combined with the latest in thermal element technology the detector provides efficient and accurate detection of fires, especially in environments such as boiler houses or kitchens where smoke detectors are inappropriate due to the high level of airborne contamination. Product Features: Technical Specifications: ELECTRICAL SPECIFICATIONS Operating Voltage Range 8 to 30VDC (Nominal 12/24VDC) Typical Standby Current @ 25ÞC 65μA @ 24VDC (LED no blink) Maximum Alarm Current (LED On) 80mA @ 24VDC (Limited by panel) ENVIRONMENTAL SPECIFICATIONS Application Temperature Range -30°C to +70°C Humidity 5 to 95% Relative Humidity (non condensing) MECHANICAL SPECIFICATIONS Height 38mm (plus 9mm for B401 base) Diameter 102mm Weight 105g (plus 60g for B401 base) Max Wire Gauge for Terminals 0.75mm2 to 2.5mm2 Colour Pantone Warm Grey 1C Material Bayblend FR110
2351-TEM Multi Criteria Photoelectric Smoke/Thermal Detector
A two-in-one detector that incorporates an optical chamber and a thermal element. Description: The 2351/TEM photoelectric smoke/thermal detector forms part of the Series 300 range of conventional detectors. This range of detectors has been produced using the latest in manufacturing and design techniques, pushing out the boundaries of existing conventional detector technology. The 2351/TEM photoelectric smoke/thermal detector incorporates an optical chamber and a thermal element, which in turn are continually monitored by an on board processor by using algorithms developed specifically for the unit. Product Features: EN54 – 5:2000 Class A1R; (Amendment 1) CEA4021 Technical Specifications: ELECTRICAL SPECIFICATIONS Operating Voltage Range 8 to 30VDC (Nominal 12/24VDC) Typical Standby Current @ 25ÞC 65μA @ 24VDC (LED no blink) Maximum Alarm Current (LED On) 80mA @ 24VDC (Limited by panel) ENVIRONMENTAL SPECIFICATIONS Application Temperature Range -30°C to +70°C Humidity 5 to 95% Relative Humidity (non condensing) MECHANICAL SPECIFICATIONS Height 38mm (plus 9mm for B401 base) Diameter 102mm Weight 105g (plus 60g for B401 base) Max Wire Gauge for Terminals 0.75mm2 to 2.5mm2 Colour Pantone Warm Grey 1C Material Bayblend FR110

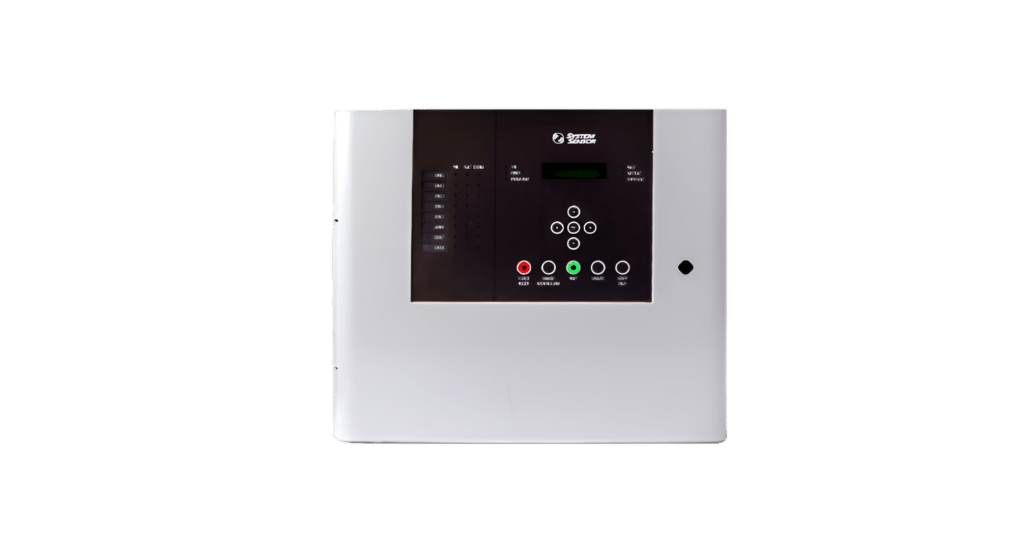

System Sensor Fire Alarm Control Panel
Provides enhanced feature set and advanced programming for all kinds of fire detection. Description: Honeywell System Sensor panels offer an out of the box and on the wall solution. A combination of quick installation, an enhanced feature set and advanced programming allows installers to quickly and simply meet the demands of the user. Equipped with configurable inputs, programmable relays, delay setting for alarm verification, software isolation of zone and NAC outputs, mapping of NAC to specific zones, password protections etc provide a wide variety of choice for system installers to customize the needs of an end user. Product Features: Technical Specifications: MECHANICAL SPECIFICATIONS Dimensions (H XW X D) 360 X 422 X 122.8 mm (Front Facia),360 X 380 X 92.3 mm (Back Box) Weight 5.8 Kg Approx. (No Battery Fitted) Construction Powder coated Cold Rolled STEEL1.2mm thick Cable Entry 15 X 20mm Knockout Operating Temperature 0 to 49°C Relative Humidity 5% to 95% Non-Condensing ELECTRICAL SPECIFICATIONS Operating Voltage 230V-AC +/- 20% Output current 2A maximum, Alarm Load 1A Maximum Standby Batteries Minimum capacity 2 x 12 V 2.8Ah,Maximum capacity 2 x 12 V 7 Ah Detection Circuit 2, 4, 6, 8 zone, Max 2mA per Detector Circuit Input Trigger Extended closing contact Trigger External Outputs Sounder Outputs:• 2 monitored outputs• 0.5 Amps per circuit Auxiliary Output:• 18.5 to +28.5 Vdc, 0.5 Amp. (max)

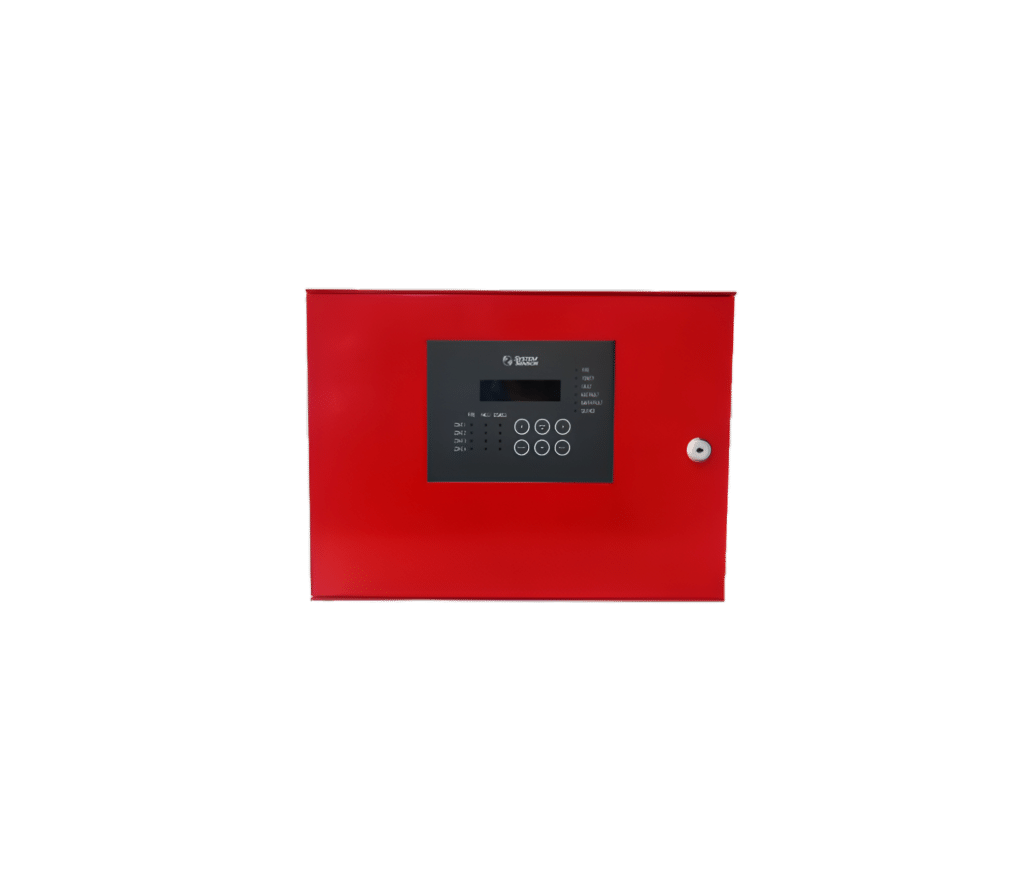

Conventional Fire Alarm Control Panel Compact Series
A user-friendly fire alarm control panel designed to suit small to medium-sized buildings. Description: Honeywell System Sensor Fire Alarm Control Panels have been developed to provide a simple and reliable solution to the demands of today’s fire detection solutions. The panels have been designed with both installer and end user’s requirements in mind suited for small to medium sized buildings like Commercial Buildings, Banking, Residential complexes, Retail Units/ Stores, Shops, Restaurants, Healthcare, Public Offices, Schools etc Product Features: Technical Specifications: MECHANICAL SPECIFICATIONS Dimensions (H XW X D) 250 X 290X 100 mm Weight 3.5kgs Approx (No battery fitted) Construction Cold Rolled Steel with powder coated finish with door lock Cable Entry 08 Number x 20.50mm knockout ELECTRICAL SPECIFICATIONS Operating Voltage 230VAC; 50 Hz Alarm Load (Sounder) 0.5Amp (max)NAC output 0.5Amp (max) OperatingTemperature 0oC – 49oC/32oF – 120oF Relative Humidity 5% to 95% Non-Condensing Standby Batteries Minimum capacity 2 x 12 V 2.8AhMaximum capacity 2 x 12 V 7 Ah Detection Circuits 2, 4, zone, Max 2mA per Detector Class B Circuit External Outputs Sounder Outputs: 18.5 to +28.0 Vdc, 0.5 Amp. (max)Auxiliary Output: 18.5 to +28.0 Vdc, 0.5 Amp. (max)

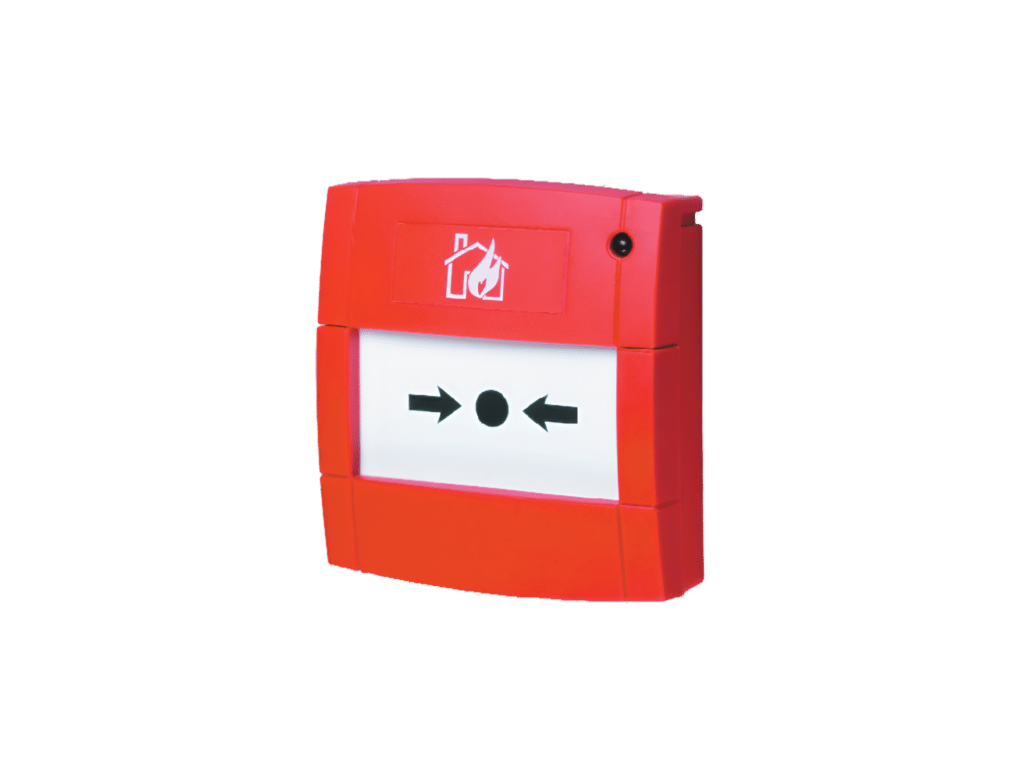

MCP2A Indoor Manual Call Point
A manual call point that can be quickly activated to manually trigger fire alarms. Description: Installation time and ultimately cost are of paramount importance to any fire or security installer. The MCP2A/R470FF/01 directly reflects this need by providing a unique ‘plug and play’ concept designed specifically to reduce installation time. It utilizes a special terminal block where all initial installation cabling is terminated. This terminal block is then simply connected to the back of the MCP. Simple and effective with no re-termination required and no time wasted. It can be configured as either a break glass or re-settable unit by simply changing from one element to another. The MCP2A/R470FF/01 comes with an LED indicator, a resistor and normally open, clean contact electrical options. Product Features: Technical Specifications: ELECTRICAL SPECIFICATIONS Cable Termination 0.5-2.5mm2 Maximum Voltage 30VDC Current Rating 2 Amps ENVIRONMENTAL SPECIFICATIONS Humidity 0-95% non-condensing Operating Temperature -100C to +550C Storage Temperature -100C to +550C Ingress Protection (IP) Rating IP24D MECHANICAL SPECIFICATIONS Material PC/ABS Weight 110g Flush160g Surface Color Red, Ral 3001

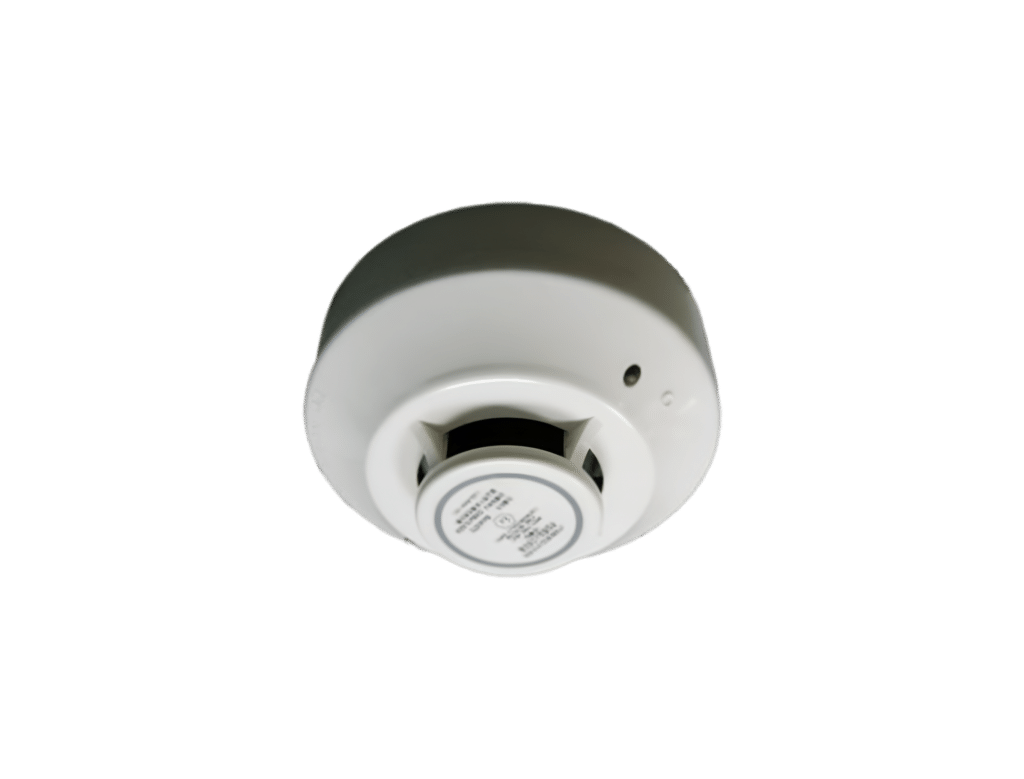

JWTB-BCD-515EIS Thermal Intrinsically Safe Detectors
Provides fast and accurate response to open areas with 2-wire control panels. Description: Model JTY-GD-2151EIS is a conventional intrinsically safe photoelectric smoke detector that uses a state-of-the-art sensing chamber. The detector is designed to provide open area protection and is for use with 2-wire control panels via interface module. Each detector is equipped with two LEDs that provide a local, visual indication of detector status. Once the detector senses a fire, it latches on in alarm and remains the state until it is reset by a momentary power interruption. The detector can be tested by activating an internal reed switch with a test magnet. Product Features: Technical Specifications: Dimension 104mm Height 51mm Weight 88g(JTY-GD-2151EIS),80g(JTWB-BCD-5151EIS) Input Voltage 8.5 to 28VDC(JTY-GD-2151EIS),8.5 to 28VDC(JTWB-BCD-5151EIS) Installation Temperature -10°C to 55°C(JTY-GD-2151EIS),-10°C to 50°C(JTWB-BCD-5151EIS) Operating Humidity Range 10% to 95% Relative Humidity ( non-condensing) Latching Alarm Reset by momentary power interruption Sensitivity 63°C fixed or 10°C/min rate-of-rise Intrinsic Safety Rating Exia II CT6
JTY-GD-2151EIS Photoelectric Smoke Detector

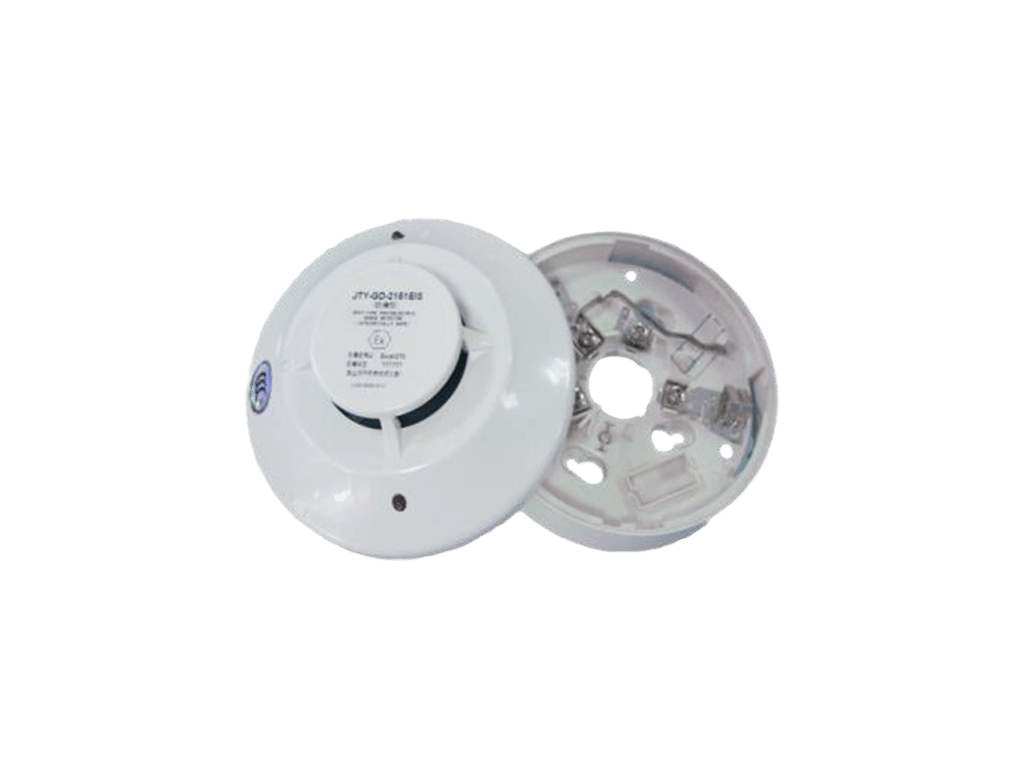

Designed for open area protection, this detector uses a state-of-the-art sensing chamber. Description: Model JTY-GD-2151EIS is a conventional intrinsically safe photoelectric smoke detector that uses a state-of-the-art sensing chamber. The detector is designed to provide open area protection and is for use with 2-wire control panels via interface module. Each detector is equipped with two LEDs that provide a local, visual indication of detector status. Once the detector senses a fire, it latches on in alarm and remains the state until it is reset by a momentary power interruption. The detector can be tested by activating an internal reed switch with a test magnet. Product Features: Technical Specifications: Dimension 104mm Height 51mm Weight 88g(JTY-GD-2151EIS),80g(JTWB-BCD-5151EIS) Input Voltage 8.5 to 28VDC(JTY-GD-2151EIS),8.5 to 28VDC(JTWB-BCD-5151EIS) Installation Temperature -10°C to 55°C(JTY-GD-2151EIS),-10°C to 50°C(JTWB-BCD-5151EIS) Operating Humidity Range 10% to 95% Relative Humidity ( non-condensing) Latching Alarm Reset by momentary power interruption Sensitivity 63°C fixed or 10°C/min rate-of-rise Intrinsic Safety Rating Exia II CT6

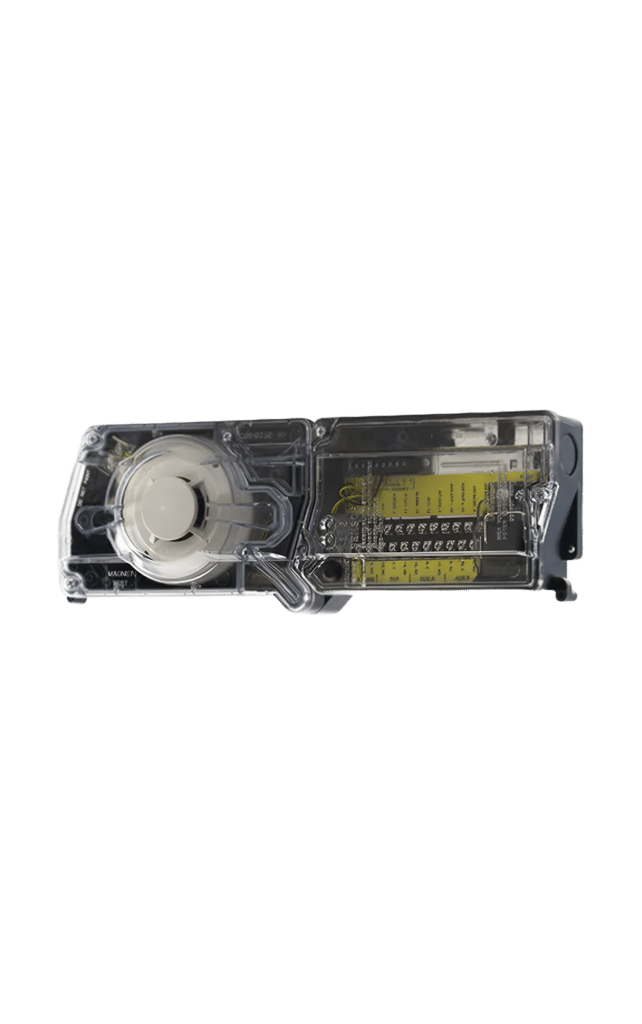

D4120 Duct Smoke Detector
A flexible duct smoke detector that can fit square or rectangular configurations. Description: The InnovairFlex D4120 4-wire photoelectric duct smoke detector features a pivoting housing that fits both square and rectangular footprints and mounts to round or rectangular ductwork. This unit senses smoke in the most challenging conditions, operating in airflow speeds of 100 to 4,000 feet per minute, temperatures of –4°F to 158°F, and a humidity range of 0 to 95 percent (non-condensing). A plug-in sensor head offers improved false alarm immunity and simple installation, testing, and maintenance. An improved cover design isolates the sensor head from the low-flow feature for simple maintenance. Product Features: Technical Specifications: PHYSICAL SPECIFICATIONS Size: (Rectangular Dimensions) (Square Dimensions) 14.38 in (37 cm) Length; 5 in (12.74 cm) Width; 2.5 in (6.36 cm) Depth 7.75 in (19.7 cm) Length; 9 in (22.9 cm) Width; 2.5 in (6.35 cm) Depth Weight 2.5 lbs (1.14 kg) Operating Temperature Range D4120 & D4S: –4° to 158°F (–20° to 70°C); D4P120: –40° to 158°F (–40° to 70°C) Storage Temperature Range D4120 & D4S: –22° to 158°F (–30° to 70°C); D4P120: –40° to 158°F (–40° to 70°C) Operating Humidity Range 0% to 95% relative humidity non-condensing Air Duct Velocity 100 to 4000 ft/min (0.5 to 20.32 m/sec) ELECTRICAL RATINGS Power supply voltage 20–29 VDC 24 VAC 50–60 Hz 120 VAC 50–60 Hz Input capacitance 270 μF max. 270 μF max. N/A Reset voltage 3.0 VDC min. 2.0 VAC min. 10 VAC min. Reset time: (with RTS151) .03 to 0.3 sec. .03 to 0.3 sec. .03 to 0.3 sec. Reset time: (by power down) 0.6 sec. max. 0.6 sec. max. 0.6 sec. max. Power up time 35 sec. max. 35 sec. max. 35 sec. max. Alarm response time 15 sec. 15 sec. 15 sec. Sensitivity Test See detector label Max. standby current 21 mA @ 24VDC 65 mA RMS @ 24VAC 60Hz20 mA RMS @ 120VAC 60Hz Max. alarm current 65 mA @ 24VDC135 mA RMS @ 24VAC60Hz 35 mA RMS @ 120VAC 60Hz CONTACT RATINGS Alarm initiation contacts:(SPST) 2.0A @ 30 VDC (resistive) Alarm auxiliary contacts:(DPDT) 10A @ 30 VDC (resistive); 10A @ 250 VAC (resistive); 1⁄2 HP @ 240 VAC ; 1⁄4 HP @ 120 VAC Supervisory contacts: (SPDT) 2.0A @ 30 VDC (resistive); 2.0A @ 125 VAC (resistive)

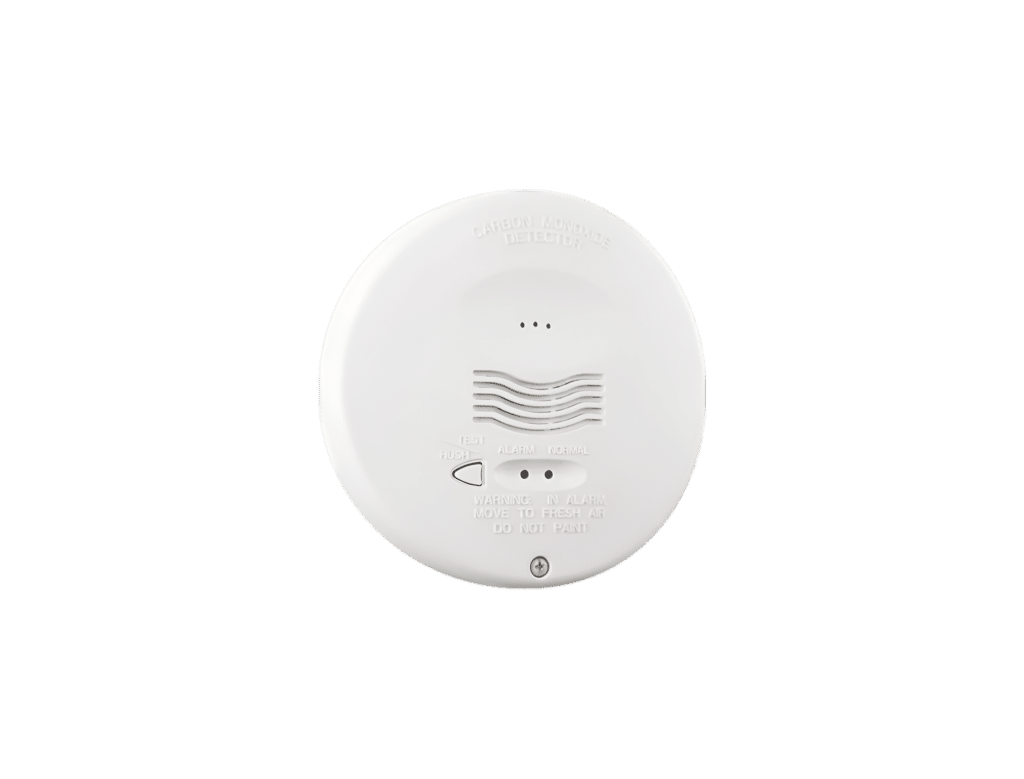

CO1224TR Carbon Monoxide Detector with Real Test Technology
Provides highly accurate and reliable electromechanical sensing cells to provide early warning of dangerous CO levels. Description: When dangerous amounts of CO are detected, the CO1224 Series CO detectors alert residents by sounding and flashing a temp 4 signal alarm. With 24/7 central station monitoring, residents are guaranteed protection whether they are away from home, sleeping, or already suffering from the effects of CO. With RealTest® technology, the CO gas sensing cell used in the CO1224 Series CO detectors can be tested using a CO gas agent, fully meeting the requirements of NFPA 720: 2009 (US models only). Simply put the detector into RealTest mode, spray a small amount of CO into the detector per the installation instructions, and within seconds the detector will alarm, indicating successful gas entry. Product Features: Technical Specifications: ELECTRICAL SPECIFICATIONS Operating Voltage 12/24 VDC Audible Signal 85 dB in alarm Standby Current 20 mA Alarm Current 40 mA (75 mA test) Alarm Contact Ratings 0.5 A @ 30 VDC Trouble Contact Ratings 0.5 A @ 30 VDC ENVIRONMENTAL SPECIFICATIONS Size: CO1224T & CO1224A Length: 5.1 in (130 mm), Width: 3.3 in (84 mm), Height: 1.3 in (33 mm) Size: CO1224TR Diameter: 6.0 in (152 mm), Height: 1.3 in (33 mm) Approximate Weight CO1224T & CO1224A: 7 oz (198 g); CO1224TR: 11 oz (312 g) Operating Temperature Range 32°F to 104° F (0°C to 40° C) Operating Humidity Range 22 to 90% RH Input Terminals 14 to 22 AWG Mounting Single-gang back box; surface mount to wall or ceiling
