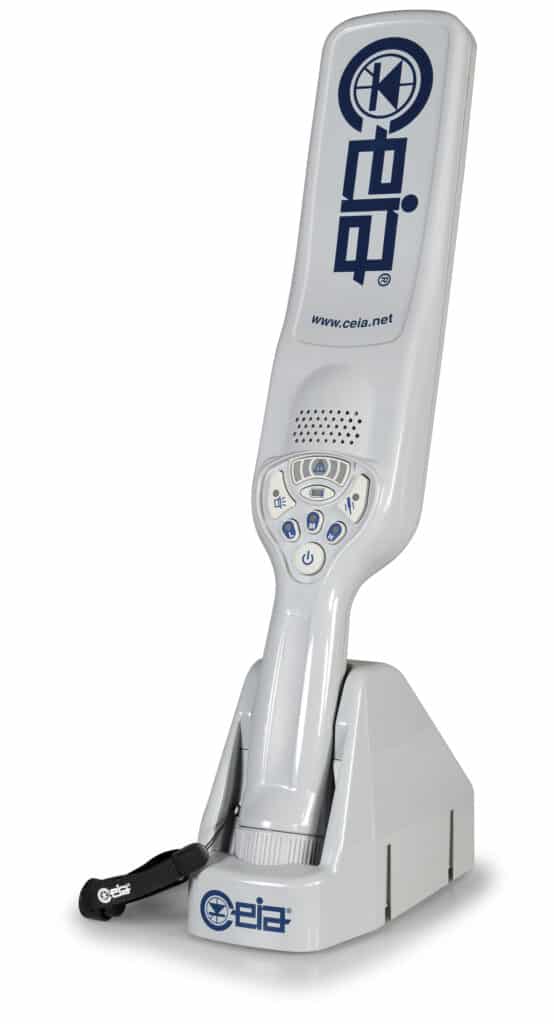

PD240 Wide Search Area Hand-Held Metal Detection Set
This hand-held metal detection device consists of an offset hand grip for a wider search area. Description: The PD240 is a Hand Held Metal Detector that combines high reliability and ergonomics with advanced detection and operator signaling features. Effective sensitivity to all metals, full compliance with the latest Security Standards and high immunity to external metal masses are among the main peculiarities of this new device. Product Features: Technical Specifications: Power Supply 2x AA size NiMH, rechargeable batteries Fully Customizable Control Panel Optical, acoustic and vibration alarm modes3-level sensitivity selection buttons Detection and Operational Functions Customizable via HHMD Configuration tool Battery Battery life: 100 + hours continuous service(AA NiMH batteries 2500 mAh);up to 200 hours with automatic sleep modeLow battery indicator Built-in fast battery charger in combination with the HHDS Docking station Operating Temperature -40°C to 70°C Storage Temperature -40°C to 80°C Relative Humidity 0 to 98% (without condensation) Dimensions PD240: 430 mm x 80 mm x 40 mmHHDS Docking station: 175 mm x 115 mm x 85 mm CARRY BAG: 430 mm x 340 mm x 105 mm Weight PD240 (with battery): 470 gHHDS Docking station (whit power adapter): 755 gCARRY BAG: 1.3 kg Color PD240: light gray RAL 7040 – Carry Bag: Green RAL 7013 Manufactured In Grey Shock-Resistant Technical Polymers Compliance Conforms to the NIJ 0602.02 and the new NIJ 0602.03 Standards for metal detection Conforms to the international standards currently applicable for safety, EMC and to the applicable CE regulations Accessories Carry Bag: part # 64081 Belt Holster: part # 64614NIJ 0602.02 Test Pieces Kit: part # NIJ-HHMD-0602.02 (includes 11 test objects for LO, MO, SO, VSO security levels)HHMD Configuration tool: part # 63537 (includes special USB adapter with cable, GUI application software)Cigarette lighter cable for battery charger: part # 64436

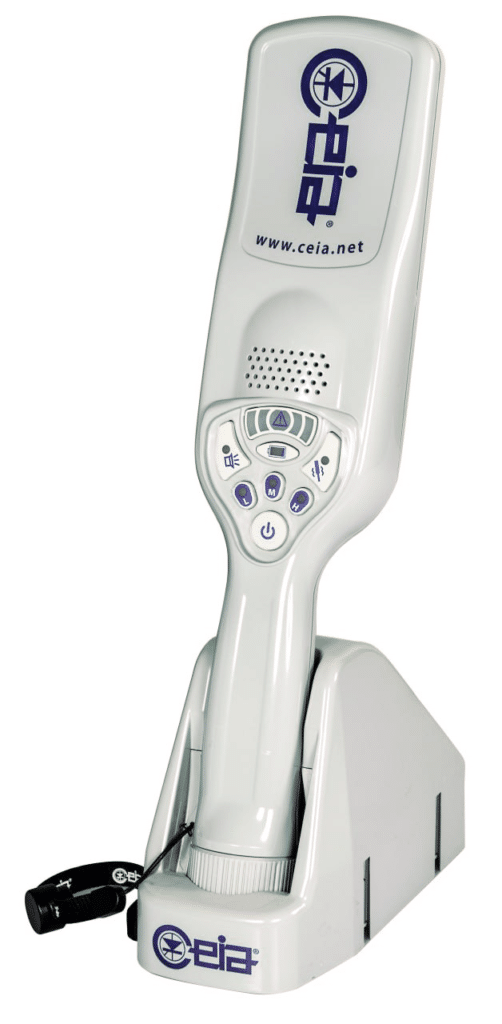

PD140N Compact Hand-Held Metal Detection Set
A highly reliable metal detection device with ergonomic design. Description: The PD140N is a Hand Held Metal Detector that combines high reliability and ergonomics with advanced detection and operator signaling features. Effective sensitivity to all metals, full compliance with the latest Security Standards and high immunity to external metal masses are among the main peculiarities of this new device. Product Features: Technical Specifications: Power Supply 2x AA size NiMH, rechargeable batteries Fully Customizable Control Panel Optical, acoustic and vibration alarm modes3-level sensitivity selection buttons Detection and Operational Functions Customizable via HHMD Configuration tool Battery Battery life:100 + hours continuous service(AA NiMH batteries 2500 mAh);up to 200 hours with automatic sleep modeLow battery indicator Built-in fast battery charger in combination with the HHDS Docking station Operating Temperature -40°C to 70°C Storage Temperature -40°C to 80°C Relative Humidity 0 to 98% (without condensation) Dimensions PD140N: 360 mm x 80 mm x 40 mmHHDS Docking station: 175 mm x 115 mm x 85 mm CARRY BAG: 430 mm x 340 mm x 105 mm Weight PD140N (with battery): 390 gHHDS Docking station (whit power adapter): 755 gCARRY BAG: 1.3 kg Color PD140N: light gray RAL 7040 – Carry Bag: Green RAL 7013 Manufactured In Grey Shock-Resistant Technical Polymers Compliance Conforms to the NIJ 0602.02 and the new NIJ 0602.03Standards for metal detection Conforms to the international standards currently applicable for safety, EMC and to the applicable CE regulations Accessories Carry Bag: part # 64081 Belt Holster: part # 64614 NIJ 0602.02 Test Pieces Kit: part # NIJ-HHMD-0602.02(includes 11 test objects for LO, MO, SO, VSO security levels) HHMD Configuration tool: part # 63537 (includes special USBadapter with cable, GUI application software) Cigarette lighter cable for battery charger: part # 64436

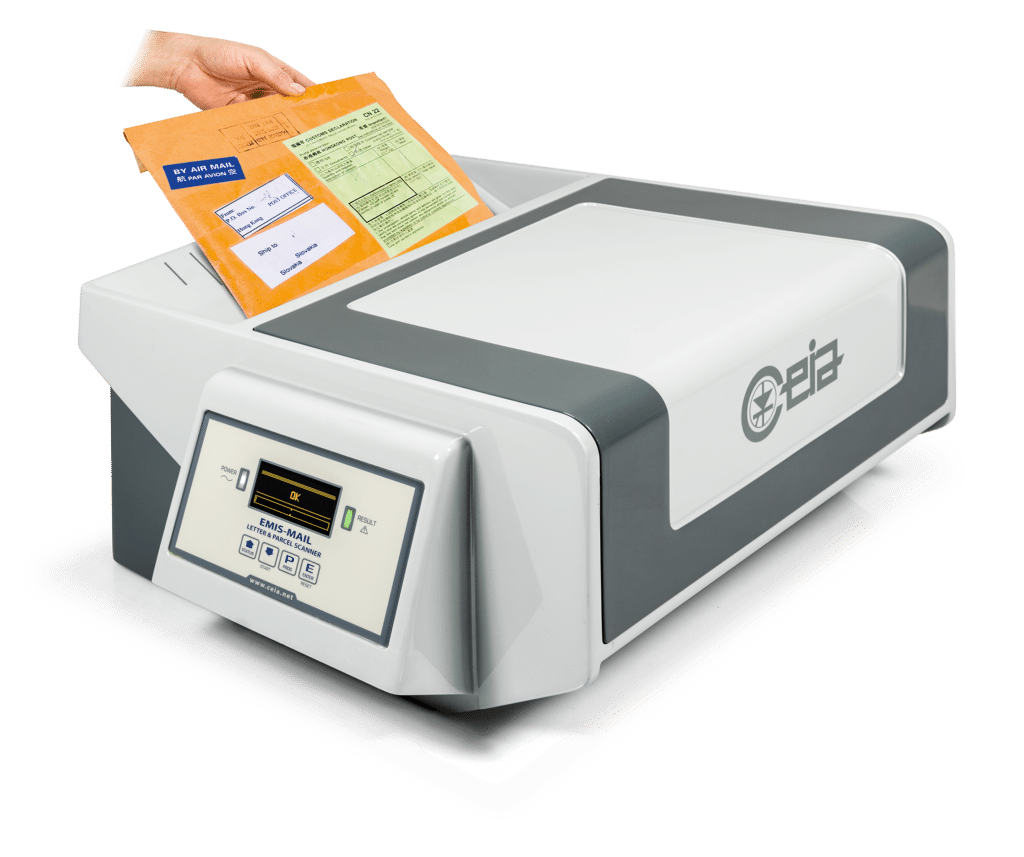

EMIS-MAIL Mail Scanner
Mail scanner for the detection of letter bombs and IEDs in small parcels. Description: The EMIS®-MAIL is designed to detect a wide variety of metal threat items including detonators, batteries, trigger circuits and other metal components of parcel bombs without false alarms for non-threat items such as metal staples, paper clips and metal binding spirals. Product Features: Technical Specifications: Key features High inspection speedNo alarm on metal staples, paper-clips and metal binding spiralsDigital programming with high-resolution OLED graphic displayVisual and audible alarm signalingBuilt-in Self-Test SystemPermanent memory storage of operating parameters without back-up batteriesIndependent operation, with mains power supply or batteries (opt.)Specific Settings available for Prison parcels inspection (Dept. of Justice requirements)Compliant with NIJ-0602.02 Dept. of Justice Detection requirements Structures Transit opening: 450 mm x 75 mmDegree of protection: IP40 Dimensions 450 mm x 565 mm x 250 mm (WxDxH) Weight 16kg Power Supply Voltage: 100-277 V~±10%, 47-63Hz with external AC/DC adapterCurrent: 1.3 A maxBattery operation (optional): 6 x 1.2V NiMH size DBattery life: 12 hoursBattery-charger incorporated: recharging time 6 h Programming TypeLocal: via integrated keypadRemote: via Bluetooth, RS232Data Logger Memory capacity: 10.000 events Signaling Audible: Internal buzzer Visual: High-contrast OLED graphic display with bar-graph indication/zone location (pinpointing) LED indicators on the control panel:WHITE: Power supplyGREEN: OKRED: Alarm, Auto DiagnosisBLUE: Alarm, detection of radioactive substances Security/Safety Access to programming protected by passwordGalvanic isolation: operates on Low DC voltage Communication Incorporated Bluetooth (FCC ID: QOQWT12 – IC:5123A-BGTWT12A) interface, RS232 Environmental Data TemperatureOperating: -10 to +50 °CStorage: -25 to +60 °CRelative humidity 5 to 90 %, without condensation Conformity SAFETY:EN61010-1ACGIH, 2014 Threshold Limit Value (TLV)IEEE C95.1-2005EC-Rec. 1999/519/ECEN 50364:2010 EMC:EN61000-6-1EN61000-6-3RED:EN300330: Short Range Devices (SRD)

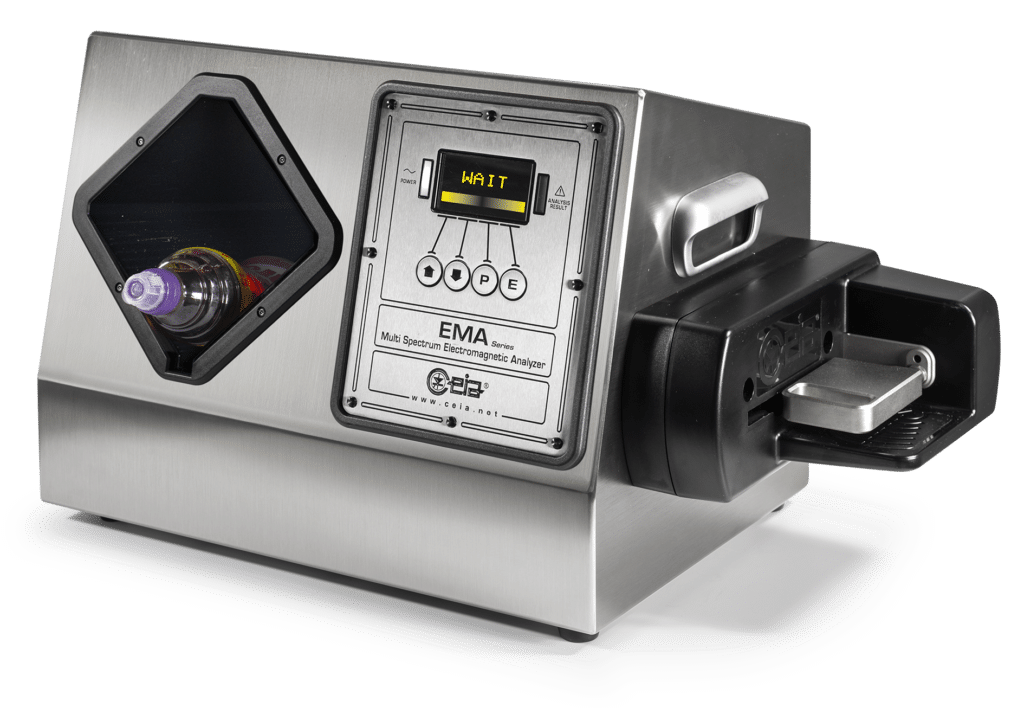

EMA Liquid Explosive Detector
A compact liquid detection device, scanning for possible presence of explosive precursors and exclusive liquids. Description: The EMA is a compact device designed for the analysis of liquid containers and their contents with the goal of detecting the possible presence of explosive precursors and explosive liquids. The content of the bottles is analyzed without the need to open the container as the detection uses simultaneous multiple sensing technologies. The housing of the analyser, which is extremely robust, durable and easy to clean, is made of AISI 304 Stainless Steel and anti-friction plastic. Product Features: Technical Specifications: Key features Integrated Type B and Type A Standard 3 certified SystemAutomatic inspection of any type of containersInspection time in ~ 5 seconds (type B) and ~ 4 seconds (type A)Multiple simultaneous sensing technologiesMinimum installation spaceMinimum operator training requiredAll solid stateNo mechanical parts in movementsNo-ionizing or laser sourcesNo maintenance required Multiple sensing technology Wideband Radio Frequency (R.F.)Infrared (IR)Magnetic InductiveGravimetric Inspection Characteristics Commercial Bottles of any shape and materials including plastic, glass, metal with capacity ranging from 100 ml to 2000 mlType A sample cups volume: 10 mlInitial Start-up time: 15 sec. maxAnalysis type: automaticAnalysis time: 5 sec. typical (type B) and 4 sec. typical (type A) Detectable substances Explosive precursors and explosive liquids Alarm Signaling Light Color Display Message MeaningGreen Ok Allowed liquidYellow Not allowed product Alarm of medium intensityRed Not allowed product Alarm of high intensity Acoustic alarmThreat classification availableOperator interface Easy to read high-contrast graphic displayHigh durability stainless steel function keysProgrammability of all the parameters protected by passwords Function and calibration control Automatic calibration, continuously runningManual verification of calibration, performed by the operator through Pass/No-Pass reference test pieces (according to the operational procedures) Communication capability RS-232 serial interfaceEthernet network interface Remote control and Ethernet Networking Functions Available through the CEIA NetID Management softwareProgrammingStatistical Data CollectionMaintenanceFirmware upgrade Degree of protection IP 20 (IEC 60529) Weight 17 kg (type B only)17.5 kg (type B and type A) Main Electronics Features High integration SMT32-bit flash-based microcontrollers32-bit DSPLow power and high reliabilityVery low power inspection field, confined in the analysis compartment, completely safe for both the operator and the liquidNo ionizing radiation or radioactive sourcesNo laser sources Main Mechanical Features Constructed entirely in AISI304 Stainless SteelAnti-fingerprint surface treatmentRugged and DurableCompact and Aesthetically pleasing Installation and Maintenance Automatic adjustment to environmental conditionsNo initial or periodic calibrations requiredFirmware upgradeable via RS232 or Ethernet interfaceNo periodical maintenance or consumables requiredBuilt-in automatic calibration and self-diagnosis system Certification and conformity Standard 3 Certified according to ECAC performance requirements for Type B Liquid Explosive Detection SystemsStandard 3 Certified according to ECAC performance requirements for Type A Liquid Explosive Detection SystemsConforms to the currently applicable International Standards for Electrical Safety and EMC Power Supply 115/230V~ ±15%, 50/60 Hz ±10%, 15W Environmental conditions Operating temperature: 0°C to +40°CStorage temperature: -10°C to +60°COperating Relative humidity: 0 to 95% (without condensation)Storage Relative humidity: 0-98%, without condensation NATO Stock Number 6665-1518052356665-151805236

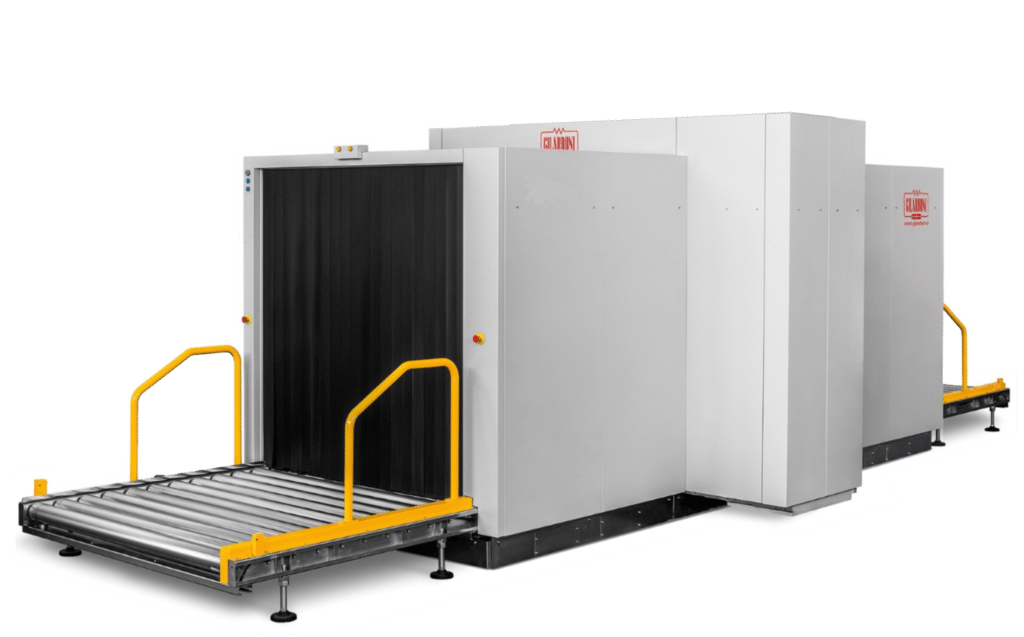

FEP CARGO
Designed for screening pallets and large packages, this x-ray system is suitable for high-security cargos. Description: The new FEP ME CARGO DV is a multi-energy X-ray system suitable for screening goods on pallets up to 3000 kg. It has one 200kV X-ray source and a large inspection tunnel opening of 180cm x 180cm. The FEP ME CARGO DV allows detection of organic materials (including explosives and drugs), and of weapons, detonators and dangerous objects representing threats to security. Multi-energy technology allows the screen to display the nature of different materials inside the inspected objects using a chromatic code. Product Features: Technical Specifications: PHYSICAL PROPERTIES Dimensions [Mm] 750 (L) x 308 (W) x 246 (H) Weight [Kg] 4300 Number Of Views 1 Number Of X-Ray Generators 1 Number Of Arrays 1 Tunnel Dimensions [Mm] 1800 (W) x 1800 (H) Max Load On Conveyor [Kg] 3000 Belt Height [Mm] 330 Belt Speed [M/S] 0,2 m/s Monitor [Nr] 1 Power Supply 380Vac ± 10% 50/60Hz Consumption [Kw] 4.5kVA Operating Temperature 0 ÷ 40 °C Storage Temperature -20 ÷ 60 °C Operating Humidity 0 ÷ 95 % IMAGING PROPERTIES Tube Voltage 200 kV Tube Current 1.5 mA Cooling Oil bath Resolution 40 AWG Penetration 50mm High Density Alarm Yes
FEP CARGO DV
Designed for cargo and large object screening, this x-ray inspection system provides dual view images. Description: The new FEP ME CARGO DV is a multi-energy X-ray system suitable for the screening of goods on pallets up to 3000 kg. It has one 200 kV X-ray source and a large inspection tunnel opening of 180 cm x 180 cm. The FEP ME CARGO DV allows the detection of organic materials (including explosives and drugs), and the detection of weapons, detonators and dangerous objects representing threats to security. The multi energy technology allows to display on the screen the nature of the different materials contained in the inspected objects, according to a chromatic code. Product Features: Technical Specifications: PHYSICAL PROPERTIES Dimensions [Mm] 840 (L) x 308 (W) x 315 (H) Weight [Kg] 5500 Number Of Views 2 Number Of X-Ray Generators 2 Number Of Arrays 2 Tunnel Dimensions [Mm] 1800 (W) x 1800 (H) Max Load On Conveyor [Kg] 3000 Belt Height [Mm] 330 Belt Speed [M/S] 0,2 m/s Monitor [Nr] 2 Power Supply 380Vac ± 10% 50/60Hz Consumption [Kw] 5 Operating Temperature 0 ÷ 40 °C Storage Temperature -20 ÷ 60 °C Operating Humidity 0 ÷ 95 % IMAGING PROPERTIES Tube Voltage 200 kV Tube Current 1.5 mA Cooling Oil bath Resolution 38 AWG guaranteed, 40 AWG typical Penetration 45 mm steel guaranteed, 50 mm steel typical High Density Alarm Yes
FEP 1000
An x-ray system designed for large baggage and cargo screening. Description: One of the larger X ray machines that Gilardoni manufacturer, the ME 1000 has a belt height of 376mm and maximum bag/parcel weight of 200kg, the 160 kv generator has a diagonal downwards beam which can penetrate up 35mm of steel and its resolution is 38 AWG guaranteed. Product Features: Technical Specifications: PHYSICAL PROPERTIES Dimensions [Mm] 337,4 (L) x 173,6 (W) x 202,6 (H) Weight [Kg] 1400 Number Of Views 2 Number Of X-Ray Generators 2 Number Of Arrays 2 Tunnel Dimensions [Mm] 1006 (W) x 1010 (H) Max Load On Conveyor [Kg] 200 Belt Height [Mm] 376 Belt Speed [M/S] 0,2 Monitor [Nr] 2 Power Supply 230 Vac – 50 Hz Consumption [Kw] 2 Operating Temperature 0 ÷ 40 °C Storage Temperature -20 ÷ 60 °C Operating Humidity 0 ÷ 95 % IMAGING PROPERTIES Tube Voltage 160 kV Tube Current 2 A Cooling Oil bath Resolution 41 AWG Penetration 37 mm High Density Alarm Yes
FEP 1000 HC DV
This high-performance x-ray is designed for hold baggage screening, giving dual-view images for enhanced threat detection. Description: New hold luggage inspection system for large baggage and medium to large parcels. New software interface, excellent performance and superior image quality. The ideal solution for aviation. Works in stand-alone or in BHS mode. Product Features: Technical Specifications: PHYSICAL PROPERTIES Dimensions [Mm] 338 (L) x 171,5 (W) x 197,5 (H) Weight [Kg] 1510 Number Of Views 2 Number Of X-Ray Generators 2 Number Of Arrays 2 Tunnel Dimensions [Mm] 1006 (W) x 1010 (H) Max Load On Conveyor [Kg] 200 Belt Height [Mm] 790 Belt Speed [M/S] 0,2 Monitor [Nr] 2 Power Supply 230 Vac – 50 Hz Consumption [Kw] 1,5 Operating Temperature 0 ÷ 40 °C Storage Temperature -20 ÷ 60 °C Operating Humidity 0 ÷ 95 % IMAGING PROPERTIES Tube Voltage 160 kV Tube Current 1,8 A Cooling Oil bath Resolution 41 AWG Penetration 37 mm High Density Alarm Yes
FEP 640 X-Ray
A versatile, multi-energy x-ray system designed for inspecting baggage and parcels capable of detecting dangerous objects. Description: Metal detector Gilardoni FEP ME 640. The ideal solution for hand baggage and medium size parcel control. It combines state-of-the-art technology, reliability and durability, high quality images and new ergonomic and user-friendly interface. Product Features: Technical Specifications: PHYSICAL PROPERTIES Dimensions [Mm] 228 (L) x 90,5 (W) x 125,5 (H) Weight [Kg] 540 Number Of Views 1 Number Of X-Ray Generators 1 Number Of Arrays 1 Tunnel Dimensions [Mm] 606×405 Max Load On Conveyor [Kg] 165 Belt Height [Mm] 680 Belt Speed [M/S] 0,2 Monitor [Nr] 1 Power Supply 230 Vac – 50 Hz Consumption [Kw] 1,5 Operating Temperature 0 ÷ 40 °C Storage Temperature -20 ÷ 60 °C Operating Humidity 0 ÷ 95 % IMAGING PROPERTIES Tube Voltage 150 kV – designed 160 kV Tube Current 0,5 mA Cooling Oil bath Resolution 41 AWG Penetration 34 mm High Density Alarm Yes
FEP 640 AMX
A multi-energy x-ray system designed for aviation security checkpoints; can detect explosives, narcotics, and weapons. Description: FEP ME 640 AMX – Advanced Multiview X-ray – introduces multiview technology for hand baggage check. With a small footprint and excellent image quality it is the ideal checkpoint solution. Its compact design makes checkpoint redesign unnecessary. Product Features: Technical Specifications: PHYSICAL PROPERTIES Dimensions [Mm] 2500x1250x1365H Weight [Kg] 850 Number Of Views 2 Number Of X-Ray Generators 2 Number Of Arrays 2 Tunnel Dimensions [Mm] 606×405 Max Load On Conveyor [Kg] 165 Belt Height [Mm] 690 Belt Speed [M/S] 0,2 Monitor [Nr] 2 Power Supply 230 Vac – 50 Hz Consumption [Kw] 2 Operating Temperature 0 ÷ 40 °C Storage Temperature -20 ÷ 60 °C Operating Humidity 0 ÷ 95 % IMAGING PROPERTIES Tube Voltage 150 kV – designed 160 kV Tube Current 0,5 mA Cooling Oil bath Resolution 41 AWG Penetration 35 mm High Density Alarm Yes
