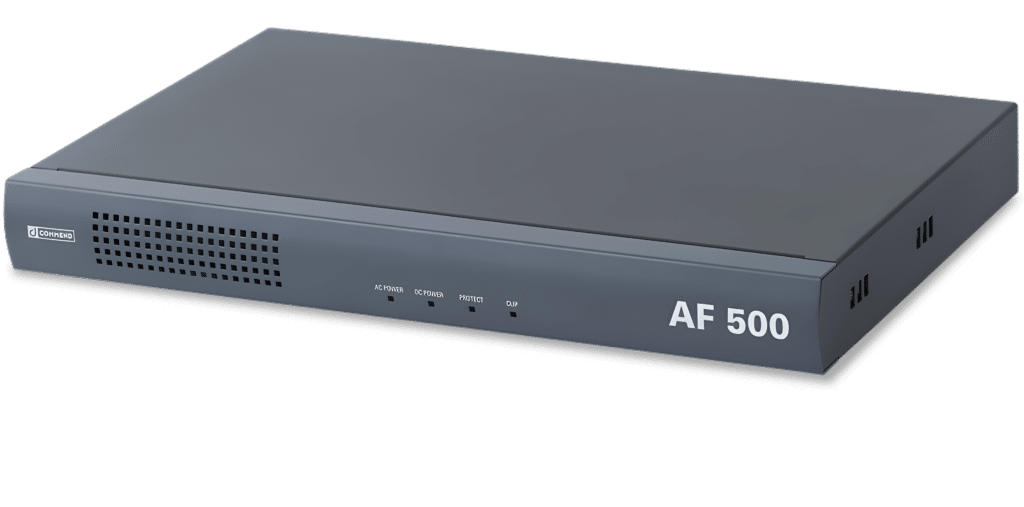

AF 500 – 500 Watt Amplifier
A 500 Watt IP amplifier with metal housing, 1U. Product Description: The AF 500H provides a high output range and various connections from a microphone input to a relay output. That’s why the amplifier is universally suitable for any size of application – even for complex public address and Intercom solutions. In order to avoid cabling costs and be more flexible, the AF 500H is specifically optimized for installation either in a 19” rack or on-site. Product Features: Technical Specification: IP Rating IP20 (acc. EN 60529) Output power 500 W RMS Power supply AC main power supply: 100–240 VAC (50–60 Hz, max. 680 W)DC backup power supply: 24 VDC (21–28 VDC, max. 25 A) Average power consumption(acc. to IEC-60268-3) idle mode: 25 W (AC main power supply),17 W (DC backup power supply)active mode (1 kHz sine @ −10 dB): 89 W (AC main powersupply), 72 W (DC backup power supply) Protocols (lolP) IoIP protocol based on UDP/IP Protocols (SIP) IPv6,IPv4, TCP, UDP, HTTP (RFC 2617, RFC 3310),RTP (RFC 3550), RTCP, DHCP, SDP (RFC 2327),SIP (RFC 3261), SNMPv2, STUN, TFTP, URI (RFC 2396),DTMF Decoding (RFC 2876, RFC 2833),SIP User Agent (UDP RFC 3261),SIP Refer Method (RFC 3515) Codecs (SIP) G.711 a-Law, G.711 μ-Law, G.722 ONVIF specification ONVIF Profile S for unidirectional audio IoIP audio bandwidth 16 kHz SIP audio bandwidth 7 kHz Total harmonic distortion (THD+N) < 0.2% at 1 kHz sine at 500 W Signal-to-noise ratio (SNR) amplifier: > 110 dBcodec G.722: > 84 dB Cabling min. Cat. 5 Connection 2 RJ45 modular jacks (IP uplink and IP downlink)outputs, inputs, microphone 3), line out: pluggable screwterminals (0.08–1.5 mm2/AWG 28–16)loudspeaker output: pluggable screw terminals(0.75–4 mm2/AWG 20–12, class 2 wiring)AC main power supply (IEC-60320-C14)DC backup power supply: 6 mm2/AWG 10 Loudspeaker output 100 V, switchable to 70 V via software Microphone input sensitivity: −43 dBV/Pafeeding voltage: 2.5 V at 3.3 kΩ Line output nominal level 0 dBu (0.775 V) Inputs 2 inputs for floating contacts(detection of 5 input states) Outputs relay output (changeover contact): max. 60 W (DC)/37.5 VA (AC), max. 2 A 4), max. 60 VDC/30 VAC effexpected life: min. 105 (30 VDC/2 A), 5 x 105 (30 VDC/1 A) Control input 0 – 10 V (for remote volume control) Operating temperature range −10 °C to +55 °C (+14 °F to +131 °F) Storage temperature range −25 °C to +70 °C (−13 °F to +158 °F) Relative humidity up to 95%, non-condensing Approvals and compliances EN 61000-6-2, EN 61000-6-3, EN 55032 Class B,EN 55024, EN 60529 IP20IEC/EN/UL 62368-1 and CB-Scheme (by UL)UL LISTED, FCC Part 15 Class B, ICES-003 Class B, Dimensions (W x H x D) 401 x 44 x 267 mm (15.79 x 1.73 x 10.51 in) Weight incl. package approx. 4,100 g (9.1 lbs)
AF 250 – 250 Watt Amplifier
A 250 Watt IP amplifier with metal housing. Product Description: The AF 250H provides a high output range and various connections from a microphone input to a relay output. That’s why the amplifier is universally suitable for any size of application – even for complex public address and Intercom solutions. In order to avoid cabling costs and be more flexible, the AF 250H is specifically optimized for installation either in a 19” rack or on-site. Product Features: Technical Specification: IP Rating IP20 (acc. EN 60529) Output power 250W RMS Power supply AC main power supply: 100–240 VAC (50–60 Hz, max. 340 W)DC backup power supply: 24 VDC (21–28 VDC, max. 13 A) Average power consumption(acc. to IEC-60268-3) idle mode: 28 W (AC main power supply),17 W (DC backup power supply)active mode (1 kHz sine @ −10 dB): 59 W (AC main powersupply), 43 W (DC backup power supply) Protocols (lolP) IoIP protocol based on UDP/IP Protocols (SIP) IPv6,IPv4, TCP, UDP, HTTP (RFC 2617, RFC 3310),RTP (RFC 3550), RTCP, DHCP, SDP (RFC 2327),SIP (RFC 3261), SNMPv2, STUN, TFTP, URI (RFC 2396),DTMF Decoding (RFC 2876, RFC 2833),SIP User Agent (UDP RFC 3261),SIP Refer Method (RFC 3515) Codecs (SIP) G.711 a-Law, G.711 μ-Law, G.722 ONVIF specification ONVIF Profile S for unidirectional audio IoIP audio bandwidth 16 kHz SIP audio bandwidth 7 kHz Total harmonic distortion (THD+N) < 0.2% at 1 kHz sine at 250 W Signal-to-noise ratio (SNR) amplifier: > 108 dBcodec G.722: > 82 dB Cabling min. Cat. 5 Connection 2 RJ45 modular jacks (IP uplink and IP downlink)outputs, inputs, microphone 3), line out: pluggable screwterminals (0.08–1.5 mm2/AWG 28–16)loudspeaker output: pluggable screw terminals(0.75–4 mm2/AWG 20–12, class 2 wiring)AC main power supply (IEC-60320-C14)DC backup power supply: 1.5–6 mm2/AWG 16–10,external fuse with 15 A Loudspeaker output 100 V, switchable to 70 V via software Microphone input sensitivity: −43 dBV/Pafeeding voltage: 2.5 V at 3.3 kΩ Line output nominal level 0 dBu (0.775 V) Inputs 2 inputs for floating contacts(detection of 5 input states) Outputs relay output (changeover contact): max. 60 W (DC)/37.5 VA (AC), max. 2 A 4), max. 60 VDC/30 VACeffexpected life: min. 105 (30 VDC/2 A), 5 x 105 (30 VDC/1 A) Control input 0 – 10 V (for remote volume control) Operating temperature range −10 °C to +55 °C (+14 °F to +131 °F) Storage temperature range −25 °C to +70 °C (−13 °F to +158 °F) Relative humidity up to 95%, non-condensing Approvals and compliances EN 61000-6-2, EN 61000-6-3, EN 55032 Class B,EN 55024, EN 60529 IP20IEC/EN/UL 62368-1 and CB-Scheme (by UL)UL LISTED, FCC Part 15 Class B, ICES-003 Class B Dimensions (W x H x D) 401 x 44 x 267 mm (15.79 x 1.73 x 10.51 in) Weight incl. package approx. 3,700 g (8.2 lbs)
AF 125 – 125 Watt Amplifier
A 125 Watt amplifier with metal housing. Product Description: The AF 125H provides a high output range and various connections from a microphone input to a relay output. That’s why the amplifier is universally suitable for any size of application – even for complex public address and Intercom solutions. In order to avoid cabling costs and be more flexible, the AF 125H is specifically optimized for installation either in a 19” rack or on-site. Product Features: Technical Specification: IP Rating IP20 (acc. EN 60529) Output power 125 W RMS Power supply AC main power supply: 100–240 VAC (50–60 Hz, max. 170 W)DC backup power supply: 24 VDC (21–28 VDC, max. 6.5 A) Average power consumption(acc. to IEC-60268-3) idle mode: 24 W (AC main power supply),17 W (DC backup power supply)active mode (1 kHz sine @ −10 dB): 36 W (AC main powersupply), 28 W (DC backup power supply) Protocols (lolP) IoIP protocol based on UDP/IP Protocols (SIP) IPv6,IPv4, TCP, UDP, HTTP (RFC 2617, RFC 3310),RTP (RFC 3550), RTCP, DHCP, SDP (RFC 2327),SIP (RFC 3261), SNMPv2, STUN, TFTP, URI (RFC 2396),DTMF Decoding (RFC 2876, RFC 2833),SIP User Agent (UDP RFC 3261),SIP Refer Method (RFC 3515) Codecs (SIP) G.711 a-Law, G.711 μ-Law, G.722 ONVIF specification ONVIF Profile S for unidirectional audio IoIP audio bandwidth 16 kHz SIP audio bandwidth 7 kHz Total harmonic distortion (THD+N) < 0.2% at 1 kHz sine at 125 W Signal-to-noise ratio (SNR) amplifier: > 106 dBcodec G.722: > 80 dB Cabling min. Cat. 5 Connection 2 RJ45 modular jacks (IP uplink and IP downlink)outputs, inputs, microphone 3), line out: pluggable screwterminals (0.08–1.5 mm2/AWG 28–16)loudspeaker output: pluggable screw terminals(0.75–4 mm2/AWG 20–12, class 2 wiring)AC main power supply (IEC-60320-C14)DC backup power supply: 1.5–6 mm2/AWG 16–10,external fuse with 8 A Loudspeaker output 100 V, switchable to 70 V via software Microphone input sensitivity: −43 dBV/Pafeeding voltage: 2.5 V at 3.3 kΩ Line output nominal level 0 dBu (0.775 V) Inputs 2 inputs for floating contacts(detection of 5 input states) Outputs relay output (changeover contact): max. 60 W (DC)/37.5 VA (AC), max. 2 A 4), max. 60 VDC/30 VACeffexpected life: min. 105 (30 VDC/2 A), 5 x 105 (30 VDC/1 A) Control input 0 – 10 V (for remote volume control) Operating temperature range −10 °C to +50 °C (+14 °F to +122 °F) Storage temperature range −25 °C to +70 °C (−13 °F to +158 °F) Relative humidity up to 95%, non-condensing Approvals and compliances EN 61000-6-2, EN 61000-6-3, EN 55032 Class B,EN 55024, EN 60529 IP20IEC/EN/UL 62368-1 and CB-Scheme (by UL)UL LISTED, FCC Part 15 Class B, ICES-003 Class B, Dimensions (W x H x D) 401 x 44 x 267 mm (15.79 x 1.73 x 10.51 in) Weight incl. package approx. 3,400 g (7.5 lbs)

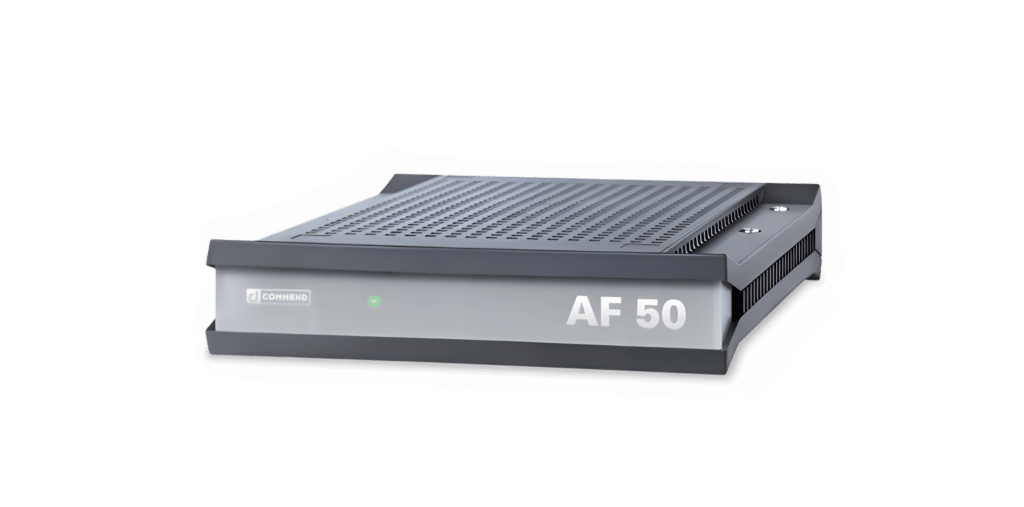

AF 50 – 50 Watt Amplifier
A 50 Watt amplifier with polycarbonate housing. Product Description: The AF 50H provides a particularly high output range and various loudspeaker outputs. The amplifier is universally suitable for any size of application up to complex public address and Intercom solutions. It is specifically optimized for installation either in a 19” rack or on site. This helps to save on cabling and any costs incurred. Product Features: Technical Specification: IP Rating IP20 (acc. EN 60529) Output power 50 WRMS Loudspeaker outputs low-resistance (min. impedance: 4 Ω) or 70 V/100 V Microphone input nominal level: 14 mV at 3.3 kΩmicrophone supply voltage: 2.5 V Line input nominal level: 0 dBu (0.775 V) Inputs 2 inputs for floating contacts(detection of 5 input states) Output relay output (changeover contact):max. 60 W (DC)/ 37.5 VA (AC),max. 2 A,max. 60 VDC/ 30 VAC effexpected life: min. 5 x 104 (2 A), 105 (1 A) Control input 0–10 V (for remote volume control) Protocols (lolP) IoIP protocol based on UDP/IP Protocols (SIP) IPv6,IPv4, TCP, UDP, HTTP (RFC 2617, RFC 3310),RTP (RFC 3550), RTCP, DHCP, SDP (RFC 2327),SIP (RFC 3261), SNMPv2, STUN, TFTP, URI (RFC 2396),DTMF Decoding (RFC 2876, RFC 2833),SIP User Agent (UDP RFC 3261),SIP Refer Method (RFC 3515) Codecs (SIP) G.711 a-Law, G.711 μ-Law, G.722 ONVIF specification ONVIF Profile S for unidirectional audio IoIP audio bandwidth: 16 kHz SIP audio bandwidth: 7 kHz Total harmonic distortion (THD+N): 4 Ω, 8 Ω, 70 V/100 V: < 0.2% Operating temperature range: −25 °C to +55 °C (−13 °F to +131 °F) Storage temperature range: −25 °C to +70 °C (−13 °F to +158 °F) Relative humidity: up to 95%, not condensing Connections: 2 RJ45 modular jacks with LEDs for connection tothe Intercom/SIP server (IP Uplink, IP Downlink)pluggable screw terminals (0.08 mm2– 1.5 mm2):power supply, outputs, microphone 1), inputs,line output, 70 V/100 V loudspeaker outputpluggable screw terminals (0.08 mm2– 2.5 mm2):low-resistance loudspeaker outputexpansion plug for e.g. EB2E2A Power supply: 20 –26 VDC(max. 2.6 A at 4 Ω/50 W or max. 1.3 A at 8 Ω/25 W,max. 3 A at the 70 V/100 V loudspeaker output)or PoE PoE (Power over Ethernet) 3): IEEE 802.3af/Class 0, IEEE 802.3at/Type 1 Cabling: min. Cat. 5 Dimensions (W x H x D): 201 x 44 x 255 mm (7.91 x 1.73 x 10.04 in) Weight incl. package: approx. 1,600 g (3.53 lbs)

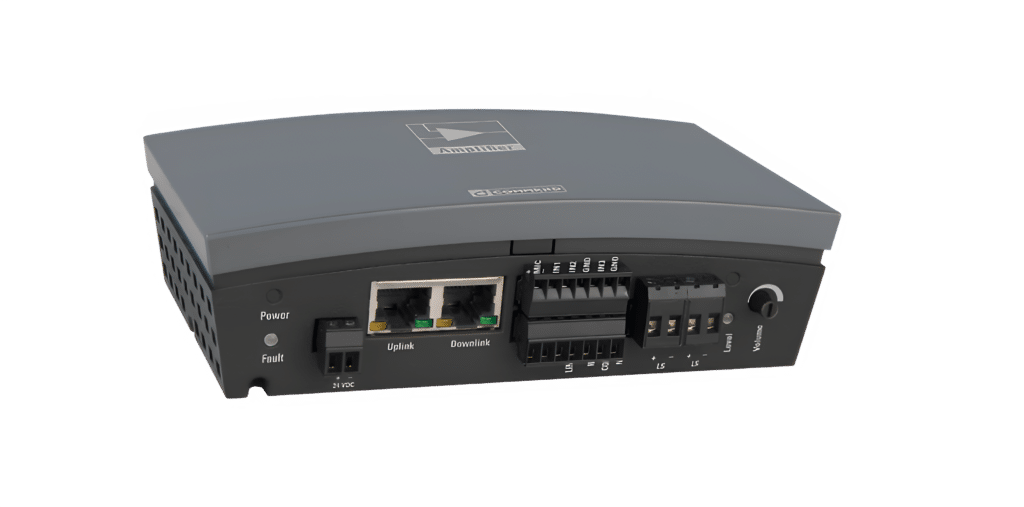

AF 20 – 20 Watt Amplifier
A 20 Watt amplifier with polycarbonate housing. Product Description: Their compact design makes the 20 Watt amplifiers ideal for a decentralized, cable saving installation next to PA loudspeakers and Intercom terminals. To provide even greater flexibility, the analogue amplifiers are available as add-in modules that integrate easily into the Intercom terminals themselves. Product Features: Technical Specification: IP Rating AF 20A: IP 20 Operating temperature range –25° C to +55° C (–13° F to 131° F) Storage temperature range –25° C to +70° C (–13° F to 158° Relative Humidity up to 95% Connection Pluggable screw terminals (0,08 mm^2 – 1,5mm^2):Intercom Server, power supplyPluggable screw terminals (0,08 mm^2 – 2,5mm^2):loudspeaker Power supply 20 – 26 VDC(max. 1.1A at 4 Ω / 20W or max. 0.5A at 8 Ω / 10W)Power supply e.g.: PA70W24V Cabling star feed, 4 wires, twisted pair Frequency response 50 Hz to 15 kHz (–3 dB) Transmission bandwidth 16 kHz Output power 20 watt (RMS) Input impedance 10 kΩ Input sensitivity from 390 mV to 3 V Audio output low resistance, minimum impedance 4 Ω Measurements AF 20A: 159 x 49 x 87 mm(6.26 x 1.93 x 3.43 inch) AF 20A EB: 130 x 82 x 16 mm(5.12 x 3.23 x 0.63 inch) Weight including package AF 20A: 180 g (0.4 lbs)AF 20A EB: 67 g (0.15 lbs)
WIT 10” HOME AUT. MONITOR POE BLACK MEET
With sleek black design and large 10-inch touchscreen display, this device offers a comprehensive solution for video door entry and home control automation. Product Description: WIT is a monitor with a 7” or 10” capacitive screen. WIT’s graphical interface creates a truly intuitive user experience thanks to its focus on residential intercom. Product Features/ Specifications: Technical Specification: System CPU: Quad-coreFLASH: 4GBSDRAM: 1 GBS.O. Android 10 Screen 7- and 10-inch formatCapacitive touch screenFormat: 16:9Resolution: 1024x600Brightness: 7” 200cd/m2; 10” 220cd/m2Contrast: 7” 400/1; 10” 450/1View Angle: 7” 160º Horizontal, 130º vertical; 10” 120º Horizontal, 110º Vertical Audio/Video Features G.711 audio codecH.264 video codecRTSP compatible for CCTV IP camerasAudio level adjustable on conversation and muteHands-free operationPrivate communicationSelectable call melodies based on call origin Power Consumption On standby: 200 mA (7”) / 210 mA (10”)• Conversation: 500 mA (7”) / 600 mA (10”) Working voltage: PoE12 Vdc Connectivity 1 x Ethernet RJ-45 (WIT 7”)2 x Ethernet RJ-45 (WIT 10”) for building and apartment network isolation.Doorbell input (1 alarm zone input)Panic button input (1 alarm zone input)Built in web server for configuration and remote management Working Environment Temperature: -10oC + 55oCHumidity: 10 – 90% (non-condensing)IP: 30; IK: 04 Technology MEET Measures of the product 130 X 210 X 20 mm Weight 0.663 kg Measures of the packed product 6,8x31x21,5 cm EAN 13 88424299147239
WIT 7” MONITOR POE BLACK MEET
A functional video door entry solution with Power over Ethernet (POE). It has a sleek black design, a 7-inch touch display, and clear video communication. Product Description: WIT is a monitor with a 7” or 10” capacitive screen. WIT’s graphical interface creates a truly intuitive user experience thanks to its focus on residential intercom. Product Features/ Specifications: Technical Specification: System CPU: Quad-coreFLASH: 4GBSDRAM: 1 GBS.O. Android 10 Screen 7- and 10-inch formatCapacitive touch screenFormat: 16:9Resolution: 1024x600Brightness: 7” 200cd/m2; 10” 220cd/m2Contrast: 7” 400/1; 10” 450/1View Angle: 7” 160º Horizontal, 130º vertical; 10” 120º Horizontal, 110º Vertical Audio/Video Features G.711 audio codecH.264 video codecRTSP compatible for CCTV IP camerasAudio level adjustable on conversation and muteHands-free operationPrivate communicationSelectable call melodies based on call origin Power Consumption On standby: 200 mA (7”) / 210 mA (10”)• Conversation: 500 mA (7”) / 600 mA (10”) Working voltage: PoE12 Vdc Connectivity 1 x Ethernet RJ-45 (WIT 7”)2 x Ethernet RJ-45 (WIT 10”) for building and apartment network isolation.Doorbell input (1 alarm zone input)Panic button input (1 alarm zone input)Built in web server for configuration and remote management Working Environment Temperature: -10oC + 55oCHumidity: 10 – 90% (non-condensing)IP: 30; IK: 0 Technology MEET Measures of the product 130 X 210 X 20 mm Weight 0.663 kg Measures of the packed product 6,8x31x21,5 cm EAN 13 88424299147239
NEO 7” MONITOR POE WHITE MEET
This modern and easy-to-install video door entry solution has a 7-inch color touchscreen display for easy operation and intuitive control. It has Power over Ethernet (POE). Product Description: The NEO 7” MONITOR POE WHITE MEET is An advanced management monitor, with hands-free communication, digital audio quality and high definition video. It incorporates a capacitive touch screen that offers an intuitive user experience, thanks to its graphic icons and LED notification indicators (missed calls, messages, do not disturb). Product Features/ Specifications: Technical Specification: Screen 7-inch formatCapacitive touch screenFormat: 16:9Resolution: 800x480Brightness: 200cd/m2Contrast: 400/1View Angle: 90º Horizontal, 75º Vertical Audio/Video Features G.711 audio codecH.264 video codecRTSP compatible for CCTV IP camerasAudio level adjustable on conversation and muteHands-free operationPrivate communicationSelectable call melodies based on call origin Power Consumption On standby: 200 mAConversation: 500 mA Working voltage: PoE12 Vdc Connectivity 1 x Ethernet RJ-45Doorbell input (1 alarm zone input)Panic button input (1 alarm zone input)Built in web server for configuration andremote managementRemote firmware upgrade Working Environment Temperature: -10o C +55o CHumidity: 10 – 90% (non-condensing)IP: 30; IK: 0 Technology MEET Measures of the product 203 x 129 x 17,5 mm Weight 0.593 kg Measures of the packed product 6,8x31x21,5 cm EAN 13 8424299145013
MILO TOUCH DIGITAL VIDEO PANEL
A combination of sleek design and advanced functionality, this video & audio door panel features a 7-inch touchscreen for clear communication with visitors. Product Description: The MILO board comes in two different versions: capacitive touch keyboard and mechanical keyboard. It has a 4.3” TFT that facilitates interaction with the user and indicates how to make calls. Product Features/ Specifications: Technical Specification: System CPU: Quad-core Cortex™-A7 1.5GHzGPU: Mali400MP2FLASH: 4GBSDRAM: 1GB DDR3L Screen TFT Color 4.3”Resolution 480 x 272 pixelsViewing angle: 110º H, 90º VContrast: 400/1Brightness: 200cd/m2 Audio Features G.711 codecAudio OLR > 15dB Camera 1/3” CMOS ColorHorizontal 72º, Vertical 54º1.2 MP0.5 LUX minimum illumination. Automatic activation of white LEDs.AWB Consumption Standby: 250 mAOperating: 500 mA Operating voltage 12VDC Connectivity RJ-45 Ethernet connectorRS485 connection for elevator controlWiegand 26 connector for input-output of access control devices.Built-in web server for remote configuration and management. Integrated web server for configuration Funcionament condition Temperature: -40ºC.. + 55ºCHumidity: 10 – 90% (No condensation)IP54 Technology MEET Measures of the product 154 x 379 x 50 mm Weight 2.207 kg Measures of the packed product 46,8x10x21 cm EAN 13 8424299095325
MEET DESKTOP GUARD UNIT
A versatile intercom system with 7-inch touchscreen. It is designed for concierge desks or guard posts for easier communication with visitors. Product Description: The CONCIERGE has a 10″ capacitive screen. The graphic interface allows the functions to be accessible and intuitive for the operator or concierge. Product Features/ Specifications: Technical Specification: Screen Resolution 1024x600pxViewing angle: 130º (H), 140º (V)Contrast: 800/1Luminosity: 300 cd/m2 Audio G.711 codecOLR Audio 23.5dB (Hands-free), 10.5dB (Arm) Camera Connectivity with external IP cameraSupports RTSP protocol Consumption Standby: 200 mAOperating: 500 mA Operating voltage PoE or 12 Vd Connectivity RJ-45 Ethernet ConnectorSD card slot for recording photos, audio and video. Integrated web server for configuration Funcionament condition Temperature: -10ºC .. + 55ºCHumidity: 20 – 93% Technology MEET Measures of the product 303 x 190 mm Weight 1.599 kg Measures of the packed product 8x35x33,6 cm EAN 13 8424299953915
