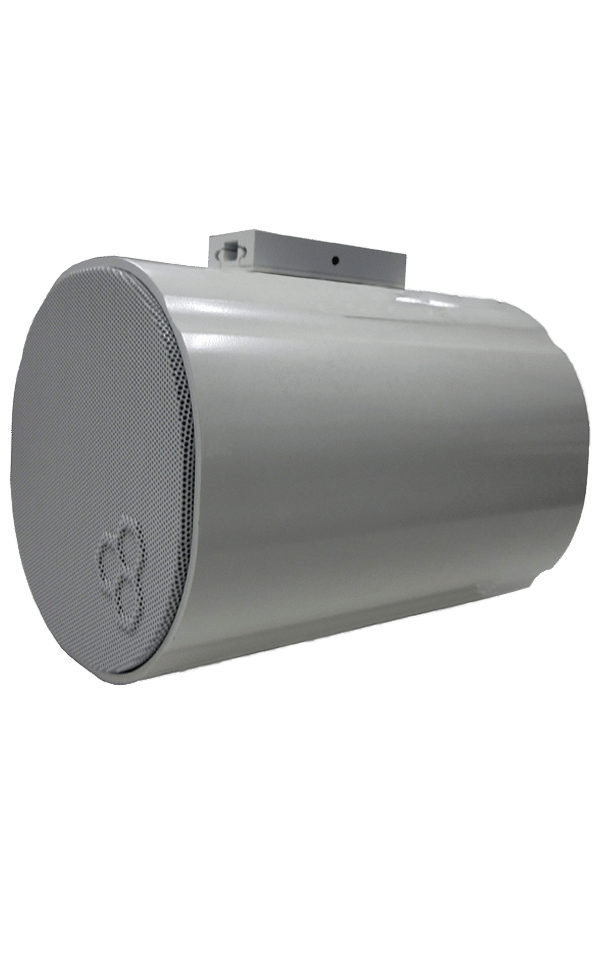

L-PBM20A BIDIRECTIONAL PROJECTION LOUDSPEAKER
A high-performance bidirectional loudspeaker with broad frequency range–resulting in accurate and high-quality sound reproduction. Product Description: The L-PBM20A is a high-performance, 20 W public address bidirectional projection loudspeaker. It offers a broad frequency response range, low distortion, and a high sound pressure level – resulting in an accurate and intelligible broadcast of evacuation messages, and high-quality sound reproduction. Product Features: Technical Specification: Max power 30W Rated power 20W (10W x 2) Power tapping 20 W/10 W/5 W/2.5 W SPL @ 20 W / 1m (200 Hz ~ 15 kHz) 107 dB/ 95 dB Frequency response range (-10 dB) 150Hz-20KHz Dispersion angle (1 KHz/ -6 dB) 180° Rated input voltage 70V Rated impedance 245Ω/ 490Ω/ 980Ω/ 1960Ω Connection Fire-resistant cable Dimensions Ø140 mm x 195 mm Weight 3.23 kg (7.12 lbs) Color White (RAL 9003) Speaker Size 5.25” x 2” Operating temperature -25°C to + 55°C (-13°F to 131°F) Storage temperature -40°C to +70°C (-40°F to 158°F) Relative humidity <95%
L-VJM10A/EN 10W UNIDIRECTIONAL SOUND PROJECTOR
A high-performance 10W loudspeaker with unidirectional sound and board frequency response range. It can be used in indoor, outdoor, dry, or wet applications. Product Description: This loudspeaker is a high-performance 10 W voice alarm unidirectional sound projector. It provides a broad frequency response range, low distortion and high sound pressure level for accurate and intelligible broadcast of evacuation messages and high quality sound reproduction. It can be used in indoor, outdoor, dry, or wet applications, providing reliable operations over wide temperature and humidity ranges. Its low- profile, white color design blends easily with most interiors in locations such as hotels, conference rooms, cinemas, theme parks, factories and exhibitions. Product Features: Technical Specification: Max power 9W Rated power 6W Power tapping 10 W / 5 W / 2.5 W / 1.25 W Power taps @ 70V 3W/ 1.5W SPL @ 1 W / 1m (100 Hz ~ 10 kHz) 91 dB/ 84 dB SPL @ 1 W / 4m (100 Hz ~ 10 kHz) 110Hz-20KHz Frequency range (- 10 dB) 150° Rated input voltage 1.7KΩ/ 3.3KΩ Rated impedance 100V/70V Connection Push-in terminal block Dimensions Φ103mm × 80mm Diameter of speakers 95mm Weight 0.42kg Color White (RAL 9003) Material 93g Operating temperature – 25 °C … + 55 °C Storage temperature – 40 °C … + 70 °C Relative humidity <95%

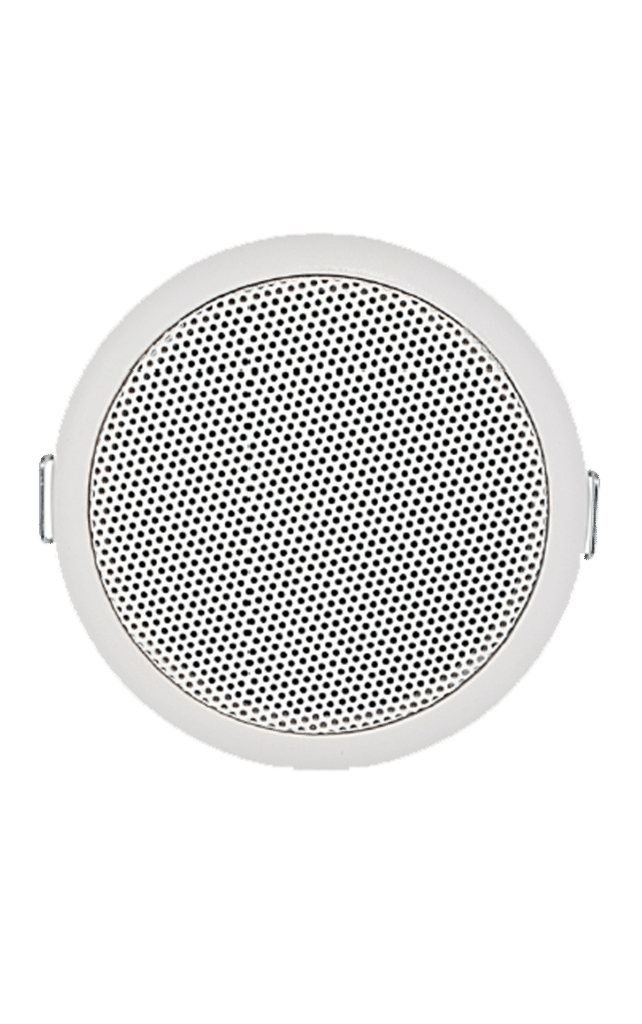

L-PCP06A 2.5” ABS CEILING LOUDSPEAKER
A cost-effective loudspeaker for general purpose application. It is ideal for general use such as music reproduction in shopping malls and educational institutes. Product Description: L-PCP06A is a cost-competitive ceiling loudspeaker with 6W power handling intended for general purpose applications. This full range loudspeaker is an ideal choice for excellent speech and music reproduction used in shopping malls, supermarkets,educational institutes, office buildings, sport fields, hotels and restaurants. The loudspeaker is equipped with a 6W dual cone speaker and a 100V matching transformer mounted on the back. Product Features: Technical Specification: Max power 9W Rated power 6W Power taps @ 100V 6W/ 3W Power taps @ 70V 3W/ 1.5W SPL at 6W/1W (140 Hz-20 KHz,1m) 91 dB/ 84 dB Frequency response (-10dB) 110Hz-20KHz Dispersion angle (1KHz / -6dB) 150° Rated impedance 1.7KΩ/ 3.3KΩ Rated input voltage 100V/70V Connector Push-in terminal block Dimensions (H) Φ103mm × 80mm Hole cut-out size 95mm Diameter of speaker 2.5″ Weight 0.42kg Color White (RAL 9003) Weight of magnet 93g

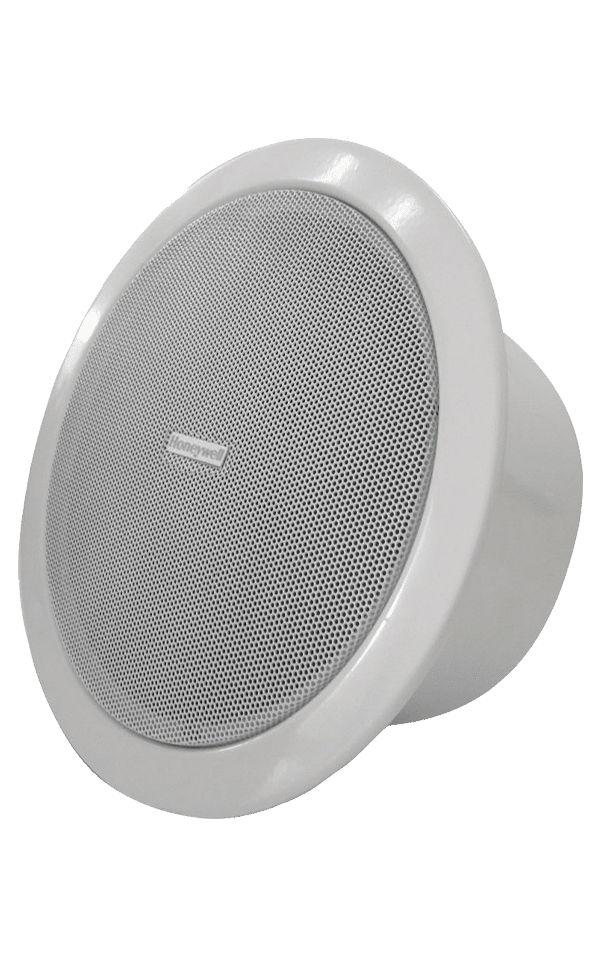

L-PCM06B 6.5” METAL CEILING LOUDSPEAKER WITH METAL DOME
This full range loudspeaker features a high sound pressure level, wide frequency, and metal dome to protect it against fire. Product Description: L-PCM06B is a cost-competitive ceiling loudspeaker which has an excellent audio performance and an aesthetically appealing enclosure. Its low-profile, white color design blends easily with most interiors in locations such as hotels, warehouses, schools, office buildings, stadiums and restaurants. This full range loudspeaker features a high sound pressure level and a wide frequency response range. Product Features: Technical Specification: Max power 9W Rated power 6W Power taps @ 100V 6W/ 3W/ 1.5W SPL at 20W/1W (100 Hz-10 KHz,1m) 100dB/92dB Frequency response (-10dB) 110Hz-20KHz Dispersion angle (1KHz / -6dB) 180° Rated input voltage 100V/70V Rated impedance 1.7KΩ/ 3.3KΩ/6.7KΩ Connector Push-in terminal block Dimensions (H) Φ200×100mm Hole cut-out size Φ 175mm Weight 1.08 Kg Color White (RAL 9003) Speaker size 6.5″ Operating temperature -25°C to +55°C Storage temperature -40°C to +70°C Relative humidity <95%

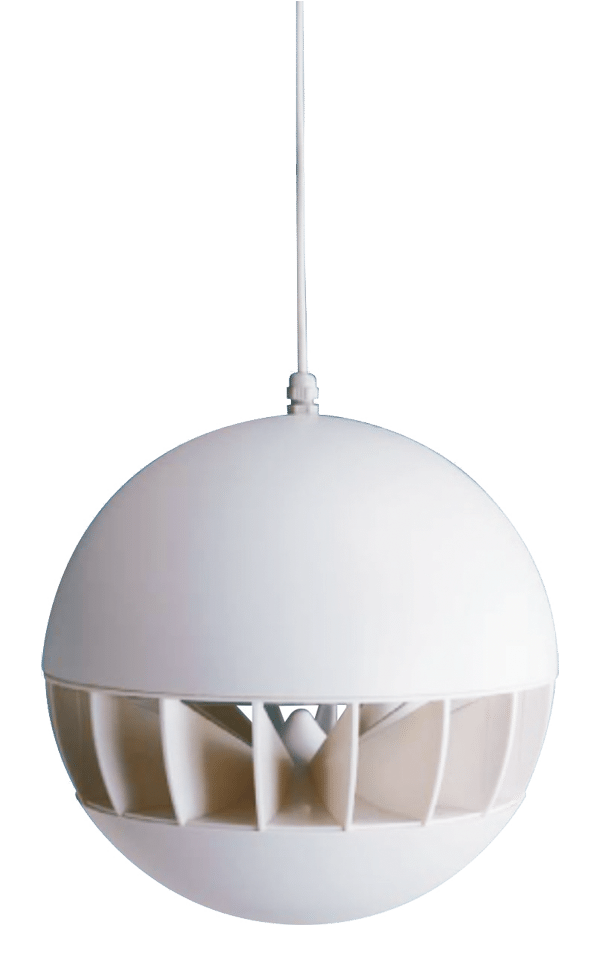

L-PPP20A ABS PENDANT LOUDSPEAKER
This modern-style, pendant loudspeaker allows for omni-directional sound. It blends easily in interiors such as warehouses and supermarkets. Product Description: L-PPP20A is a 20W modern style pendant loudspeaker. Its low-profile, white color design blends easily with most interiors in locations such as warehouses, supermarkets, concourses, factories etc. This modern styled spherical loudspeaker is a true omni-directional loudspeaker, providing coverage angles of 360 degrees horizontal and 140~160 degrees vertical, even giving a dispersion over the audio spectrum. Product Features: Technical Specification: Max power 30W Rated power 20W Power taps @ 100V 20W/ 10W/ 5W SPL at 20W/1W (100 Hz-10 KHz,1m) 103dB/90dB Frequency response (-10dB) 80Hz-12KHz Dispersion angle (1KHz / -6dB) Horizontal 360°, Vertical 140°-160° Rated input voltage 100V/70V Rated impedance 500Ω/ 1KΩ/2KΩ Connector wire cable Rated input voltage 500Ω/ 1KΩ/2KΩ Dimensions Φ 2 54 mm Weight 2.2 Kg Color White Speaker size 8″ Operating temperature -25°C to +55°C Storage temperature -40°C to +70°C Relative humidity <95%

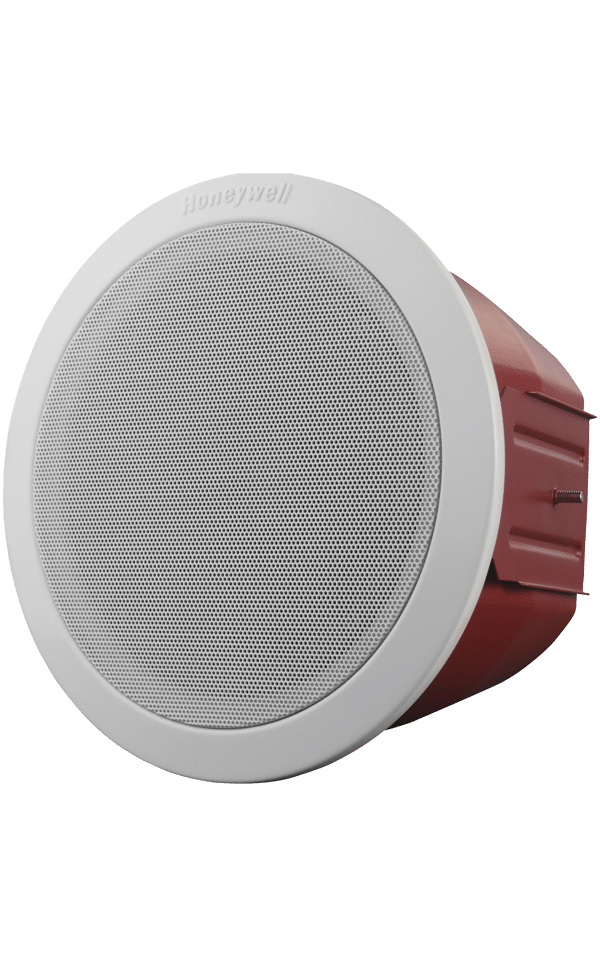

L-VCM6A/EN 6.5” METAL CEILING LOUDSPEAKER WITH METAL DOME
Designed for even sound distribution, this loudspeaker has a metal dome to protect it against fire and other damages. Product Description: L-VCM6A/EN (C) Voice Alarm ceiling loudspeaker is designed for flush in suspended ceiling and ideal for even sound distribution. The loudspeaker has a built-in protection to ensure that, in the event of a fire, damage to the loudspeaker does not result in failure of the loudspeaker circuit which is connected. In this way, system integrity is maintained and ensuring loudspeakers connected in the same circuit in other areas can still use the mounting spring attached. Product Features: Technical Specification: Max power 9W Rated power 6W Power taps @ 100V 6W/3W/1.5W/0.75W Power taps @ 70V 3W/1.5W/0.75W/0.375W SPL at 6W/1W (100 Hz-10 KHz,1m) 99dB/91dB SPL at 6W/1W (100 Hz-10 KHz,4m) 87dB/79dB Frequency range (-10dB) 170Hz-20kHz Dispersion angle (1KHz / -6dB) 170° Rated impedance 1.7k Ω/ 3.3k Ω/ 6.7k Ω/ 13k Ω Rated input voltage 100V/70V Connection Ceramic Terminal Dimensions Φ2 22mm×129mm Hole cut-out size Φ 1 95 mm Diameter of speaker 6.5″ Weight of magnet 1.57kg Front grill color White ( RAL9003 ) Dome color Red ( RAL3000 ) Thermal Fuse 150°C DC Blocking capacitor Yes (2.2uF) L-VCM6A/EN(C) No L-VCM6A/EN

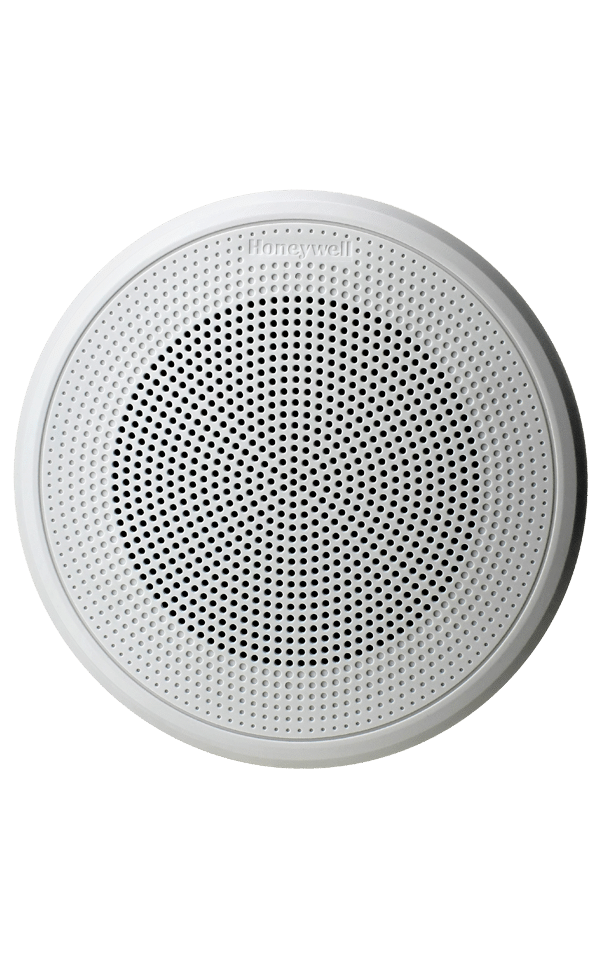

LM2-PCP06X ABS MODULAR CEILING LOUDSPEAKER
A series of economic modular loudspeakers with white, stylish design to make it blend easily into all indoor decoration. Product Description: LM2-PCP06x is a series of 6W economic modular ceiling loudspeakers, including three models for selection: 5” ABS Modular Ceiling Loudspeaker LM2- PCP06A, 5” ABS Modular Ceiling Loudspeaker with ABS Dome LM2-PCP06B and 5” ABS Modular Moisture-proof Ceiling Loudspeaker LM2-PCP06C, adapting to different installation requirement. Its stylish design with a pretty white cover makes it blend easily into all indoor decoration. The series of loudspeaker features good moisture and dust resistant: the integrated panel protects the inside components from water splash and the ABS material prevents the enclosure from getting rusted. Product Features: Technical Specification: Model LM2-PCP06A LM2-PCP06B LM2-PCP06C LM2-PM LM2-MHA Max power 9W Rated power 6W Power taps @ 100V 6W / 3W/ 1.5W Power taps @ 70V 3W/ 1.5W/ 0.75W SPL at 6 W /1 W 100 dB / 92 dB(120 Hz-18 KHz,1 m) 100 dB / 92 dB (120 Hz-18 KHz, 1m) 97 dB / 89 dB (150 Hz-18 KHz, 1m) Frequency range (-10 dB) 80 Hz – 20 KHz 80 Hz – 20 KHz 110 Hz – 20 KHz Dispersion angle (1kHz/4kHz,-6 dB) 184/90 Rated input voltage 100V/ 70V Rated impedance 1.7 KΩ/ 3.3 KΩ / 6.7 KΩ Connection 4-pole screw plastic block Dimensions(Ø x H) Ø180 x 73 mm Ø180 x 105 mm Ø180 x 73 mm Ø139 x 100 mm 143x19x94 mm Hole cut-out size Ø160+5 mm Diameter of speaker 5″ Material ABS(UL94V0) ABS(UL94V0) STEEL Weight 0.64kg 0.76kg 0.64kg 0.12kg 0.063kg Color White (RAL9003) White (RAL9003) White (RAL9003) Certification CE CE/IP4/IP55
HCU-2000 INTERVIO CONTROLLER
A cost-effective Public Address System that allows for audio storage, signal processing, routing, control and supervision functions. Product Description: HCU-2000 controller is the core unit of INTEV IO VA/ PA system which performs the audio storage, signal processing, routing, control and supervision functions for the whole system. With the built-in 500W Class-D amplifier, the single controller can work as an 8-zone VA/PA system. When more power and speaker zones are needed, it can be expanded by using external power amplifier HAM-2000 and zone expander HEX-8/HEX-24. Product Features: Technical Specification: Main power supply voltage AC 220-240V, 50/60Hz Backup power supply voltage AC 220-240V, 50/60Hz Main power supply fuse T10AH 250V Rated power 750 W MICROPHONE INPUT Input sensitivity -65±3dBV Input impedance 250Ω Frequency response 90 Hz -13KHz SNR >50dB (with A-Weight) AUXILIARY INPUT Channels 2 Input sensitivity 1V (0dBV) Input impedance 10 KΩ Frequency response 85Hz-18KHz SNR >77dB (with A-Weight) MIC/LINE INPUT Input sensitivity -50dBV/0dBV, selectable Input impedance 10 KΩ Frequency response 85Hz-18KHz SNR >77dB (with A-Weight) Phantom power DC 24V, switchable CALL STATION INTERFACE Input signal 2V Input impedance 20 KΩ Output signal 2V Output impedance 20 KΩ Frequency response 85Hz-18KHz AUDIO OUTPUT Output channels Channel 1, channel 2 and recording output Output signal 1V (0dBV) THD 2V AMPLIFIER INTERFACE Channels 3 (channel 1, channel 2 and backup amplifier) Output signal 1.4V THD <0.5% Control Signal Self-test signal, amplifier fault signal and power saving control signal LOUDSPEAKER CIRCUITS Output channels 8 (with group A and group B) Maximum loudspeaker load 500W CONTACT INPUT/OUTPUT Contact inputs 10 (monitored) Contact outputs 8 (NO, NC & COM), “fault” output, “emergency” output Max. working voltage for outputs AC 250V/DC 30V Max. working current for outputs 2.5A OTHERS DC power output 24V/1A Monitoring loudspeaker 2W/8Ω Ethernet port 10M/100M Memory capacity 1GB OPERATING CONDITIONS Humidity < 95%, without condensation Operating temperature -10°C~+50°C (14°F~+122°F) Storage temperature -40°C~+70°C (-40°F~+158°F) WEIGHTS AND DIMENSIONS Product dimension (WxHxD) 482 mm×133.5 mm ×420 mm Package dimension (WxHxD) 580 mm×279 mm ×552 mm Net weight 14.3Kg
HMC-2000 INTERVIO CONTROLLER
A cost-effective and user-friendly Public Address System for single buildings. Up to 6 call stations can be connected together in the system. Product Description: HMC-2000 is the call station for the INTEVIO system which allows users to deliver live paging and trigger background music, service broadcast or emergency broadcast to the selected speaker groups. It can also be used for volume control, temporary recording and audio monitoring, etc. Up to 6 call stations can be connected together in the system. Product Features: Technical Specification: Power supply voltage DC 24V Rated Power 10W Mic Input Input sensitivity 5mV Input impedance 600Ω Frequency response 100 Hz -10KHz SNR >77dB, A weighted THD <0.5% Optimal pickup distance 10~20cm Line Input Input Signal 1V(0dBV) Input impedance 10 KΩ Frequency response 50Hz-18KHz SNR >90dB, A weighted Others Monitoring loudspeaker 2W/8Ω Operation Conditions Humidity < 95%, without condensation Operating temperature –10°C~+55°C(14°F to +131°F) Storage temperature -40°C~+70°C (-40°F~+158°F) Weights and Dimensions Product dimension (WxHxD) 200×46.5×200mm Package dimension (WxHxD) 403 × 133 × 268mm Net weight 1.4Kg Gross weight 2.5Kg
Pro-Watch™ Integrated Security Suite
A comprehensive security system that helps secure people, property, and assets. It can monitor access controls, videos, and manage intrusions all in one interface.
