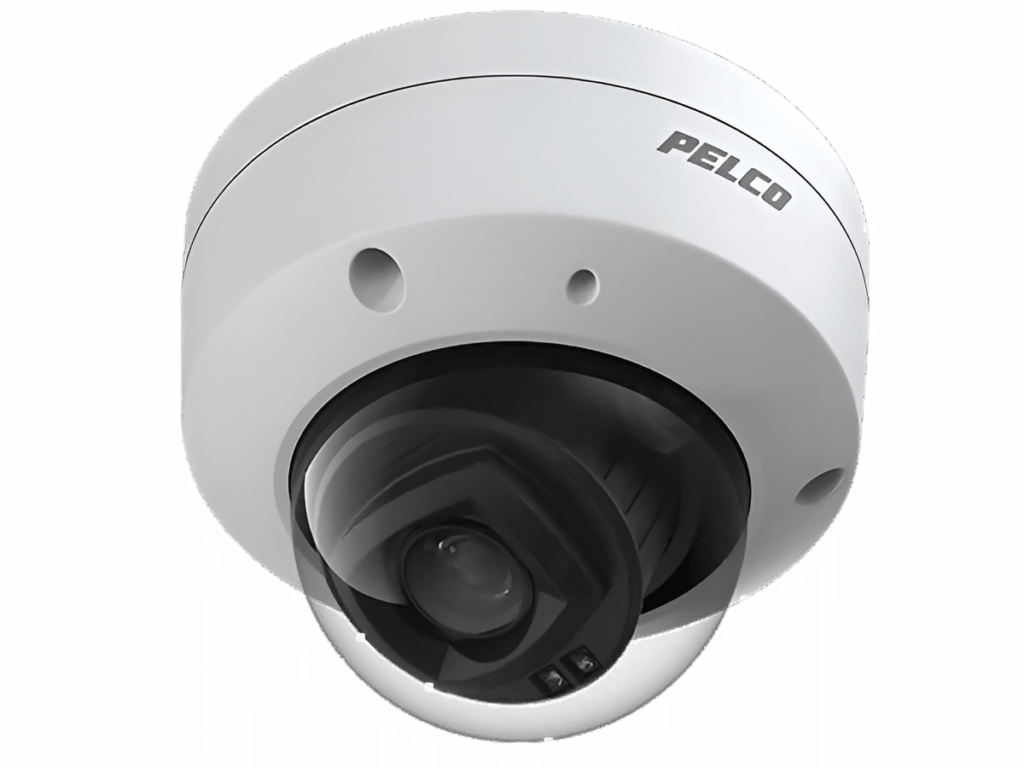

Sarix Value Series IR Environmental Mini Dome Cameras (IMV229-1ERS, IMV529-1ERS)
A budget-friendly, compact surveillance camera that blends with its surroundings. Product Description: Sarix Value IMV Series cameras are ideal for discreet surveillance with their compact size and design that blends in with surroundings. The Sarix Value Series features excellent image quality with great low light performance, color fidelity and true wide dynamic range (WDR) for increased visibility in difficult lighting situations. And with built-in IR illumination, the camera can provide coverage even in total darkness. The vari-focal lensing gives you the flexibility to set a range of fields of view. Product Features: Technical Specification: Model Name VARIFOCAL MINI DOME Part Number IIMV229-1ERSIMV529-1ERS Resolution (MP) 2 MP/ 5 MP Image Sensor 1/2.9” Progressive CMOS(IMV229-1ERS); 1/2.7”Progressive CMOS(IMV529-1ERS) Max. Dynamic Range (dB) 120 dB Max. Image Rate 30 fps at 2 MP20 fps at 5 MP Environmental IK10 / IP66 AUDIO, POWER, STORAGE Audio Compression Method G.711, G.726 Audio Input/Output One way audio:Bulit-in Microphone PoE Power Source PoE Class 3 Onboard Storage MicroSD/SDHC/SDXC card Learn more at www.pelcom.com

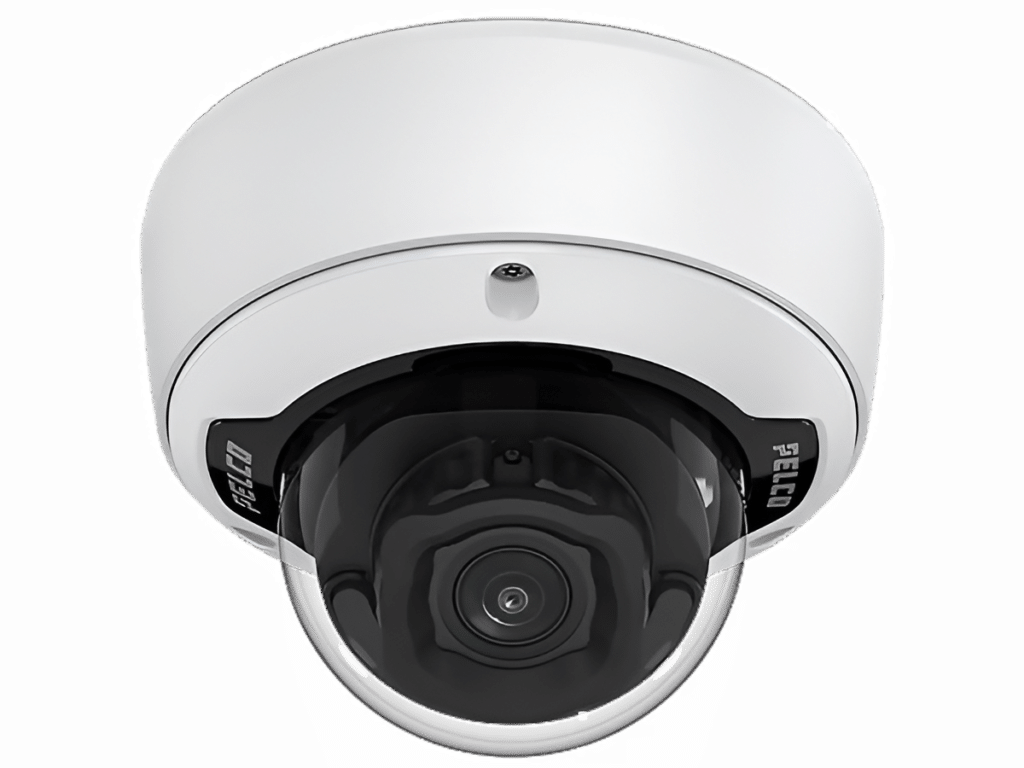

Sarix Professional 4 Series Dome Camera
A high-performance, dome-shaped security camera designed to capture activity in high-definition. Product Description: With security challenges becoming increasingly complex, it’s more important than ever to future-proof your site. Enhance your security infrastructure with the cutting-edge Sarix Professional 4 Series camera designed to capture activity in high-definition. A clear understanding of what is happening on-site elicits more informed decisions, faster responses and produces necessary evidence to support any incident requiring further review. Obtain more accurate insights and reduce the risk of missing critical events utilizing a camera that produces impeccable imaging quality. Product Features: Technical Specification: Model Name DOME Part Number Indoor: SRXP4-2V10-IMDSRXP4-2V10-IMD-IRSRXP4-3V10-IMDSRXP4-3V10-IMD-IRSRXP4-5V10-IMDSRXP4-5V10-IMD-IR Environmental:SRXP4-2V10-EMDSRXP4-2V10-EMD-IRSRXP4-3V10-EMDSRXP4-3V10-EMD-IRSRXP4-5V10-EMDSRXP4-5V10-EMD-IR Resolution (MP) 2 MP / 3 MP / 5 MP 2 MP / 3 MP / 5 MP Image Sensor 1/2.8” progressive scan CMOS 1/2.8” progressive scan CMOS Max. Dynamic Range (dB) 2 MP: 126 dB3 MP: 130 dB5 MP: 130 dB 2 MP: 126 dB3 MP: 130 dB5 MP: 130 dB Max. Image Rate 30m 40m Environmental IK10 IK10, IP66/67, Type 4X AUDIO, POWER, STORAGE Audio Compression Method G.711 PCM 8 kHz, Opus G.711 PCM 8 kHz, Opus Audio Input/Output Line level I/O Line level I/O External I/O Terminals Alarm In, Alarm Out Alarm In, Alarm Out PoE Power Source IEEE 802.3af Class 3 compliant, 12VDC Aux IEEE 802.3af Class 3 compliant, 12VDC Aux Onboard Storage microSD/microSDHC/microSDXC slot – video speed class card required. Class V10 or better recommended. 1 TB card tested. microSD/microSDHC/microSDXC slot – video speed class card required. Class V10 or better recommended. 1 TB card tested. Learn more at www.pelcom.com

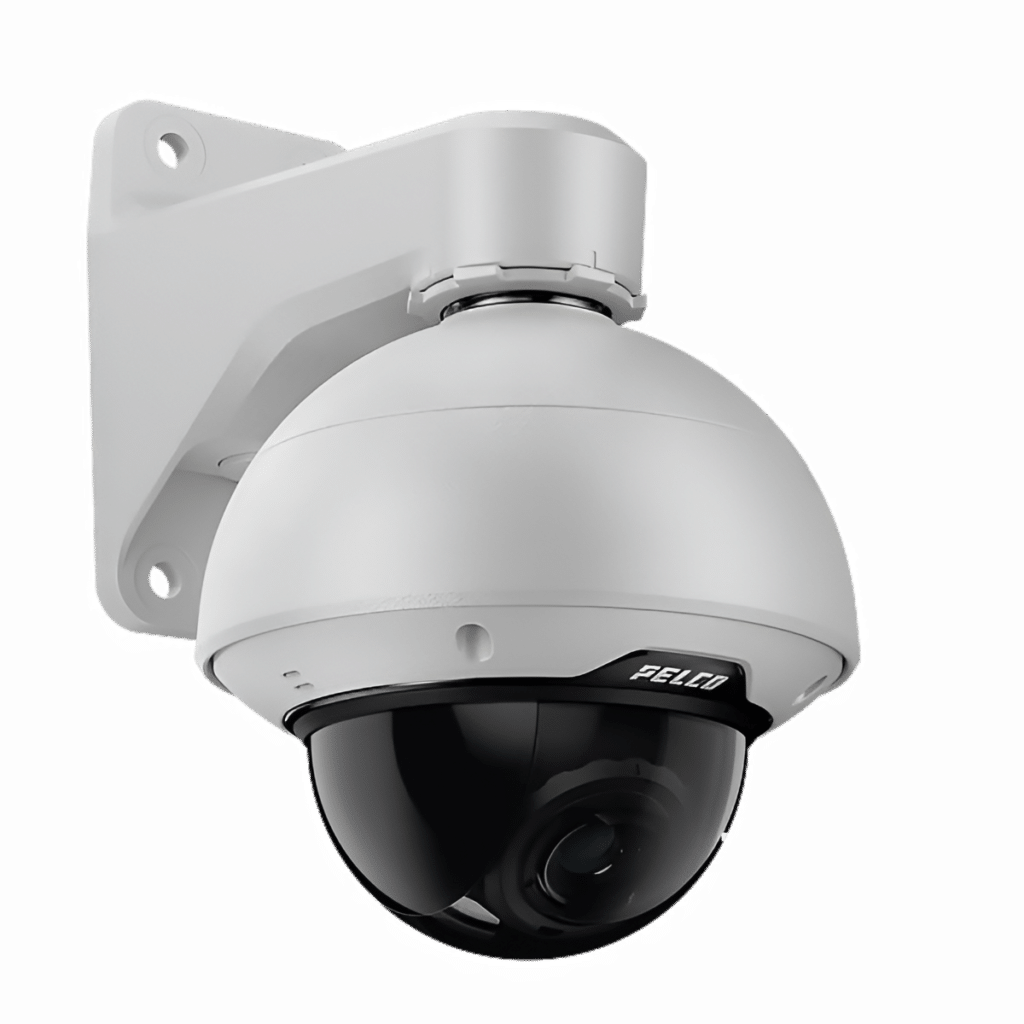

Sarix Enhanced 4 and 4P Series Dome Camera
A dome-shaped surveillance camera designed to run multiple analytics at once. Product Description: The Sarix Enhanced 4 Series camera line, consisting of the 4 and 4P Series dome cameras, introduces new analytic capabilities and sets an even higher standard for security by simultaneously running multiple analytics. Extract more information and in greater detail to optimize threat detection and response efficiency. Product Features: Technical Specification: Resolution (MP) 2 MP / 3 MP / 5 MP Image Sensor 1/2.8” progressive scan CMOS 1/1.8” progressive scan CMOS Dynamic Range WDR Off: Up to 83 dBWDR On (IEC 62676): Up to 126 dB (dual exposure, 30 fps) Up to 144 dB (triple exposure, 20 fps or less)Up to 106dB (dual exposure, 30 fps) Up to 136dB (triple exposure, 20 fps or less)Up to 130dB (dual exposure, 30 fps)WDR On: Up to 130 dB (dual exposure, 30 fps) Up to 150 dB (triple exposure, 20 fps or less)Up to 120dB (dual exposure, 30 fps) Up to 144dB (triple exposure, 20 fps or less)Up to 144 dB (dual exposure, 20 fps or less) Image Rate (50 Hz/60 Hz): 50 fps/60 fps in High Frame RateMode1, otherwise 25 fps/30 fps (50 Hz/60 Hz): 25 fps/30 fps Operating Temperature Range -10°C to +55°C (-14°F to 131°F) -30°C to +65°C (-22°F to 149°F) with IEEE 802.3af Class 3 (13W PoE) Environmental Indoor Dome:IEC 60529 IP54, IEC/EN 62262 IK11 (IK10 Surface Mount w/IR) Outdoor Dome:IEC 60529 IP66, IP67, IP68 (2m depth for 2 hours), IPX9K, NEMA 4X, IEC 60068-2 Shock & Vibration,NEMA TS2 Sec 2.2.7-2.2.9, IK11 AUDIO, POWER, STORAGE Audio Compression Method G.711 PCM 8 kHz, Opus Audio Input/Output Line level input and output External I/O Terminals 1 x Relay In, 1 x Relay Out, 1 x 12 VDC out at 50 mA PoE Power Source IEEE 802.3af Class 3 Onboard Storage Two microSD/microSDHC/microSDXC slots – video speed class card required. Class V10 or better recommended. Learn more at www.pelcom.com

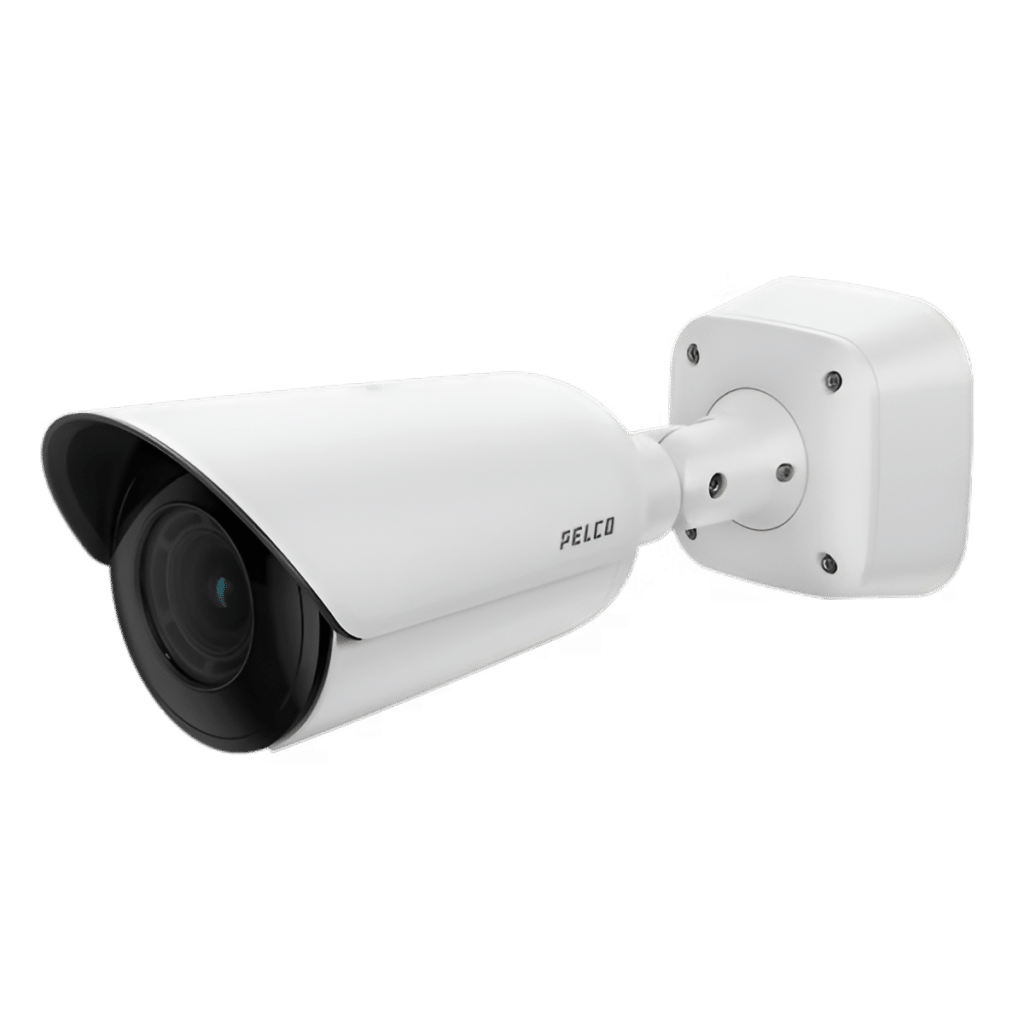

Sarix Enhanced 4 and 4P Series Short and Long Bullet Cameras
A high-performance surveillance camera designed to run multiple analytics at once. Product Description: The Sarix Enhanced 4 and 4P Series short and long bullet cameras introduce new analytic capabilities and set an even higher standard for security by simultaneously running multiple analytics. Extract more information and in greater detail to optimize threat detection and response efficiency. Product Features: Technical Specification: Model Name THERMAL VARIANTS RADIOMETRIC VARIANTS Part Number SXTE4-QF04-EBTSXTE4-QF04-EBT-1SXTE4-QF09-EBTSXTE4-QF09-EBT-1 SXTE4-QF13-EBTSXTE4-QF13-EBT-1SXTE4-QF18-EBTSXTE4-QF18-EBT-1 SXTE4-VF24-EBTSXTE4-VF24-EBT-1SXTE4-VF36-EBTSXTE4-VF36-EBT-1 SXRE4-VF09-EBTSXRE4-VF09-EBT-1SXRE4-VF14-EBT SXRE4-VF14-EBT-1SXRE4-VF18-EBTSXRE4-VF18-EBT-1 Thermal Resolution (MP) 320×256 640×512 640×512 Image Sensor Uncooled VOx Microbolometer Uncooled VOx Microbolometer Uncooled VOx Microbolometer Radiometric Pixel Pitch 12μm Spectral Range 8μm to 14μm Aspect Ratio 5:4 Imaging Rate Up to 30 fps (-1 models up to 8.6 fps) Dynamic Range -40 °C to 225 °C (-40 °F to 437 °F) [may vary based on operating temperature] Resolution Scaling 320×256, can be scaled up to 640×512 640×512, can be scaled down to 320×256 640×512, can be scaled down to 320×256 3D Noise Reduction Filter Yes Sensitivity NETD ≤50mK (NETD ≤40mK on 30FPS models when Frame Averager feature is enabled) Image Uniformity Optimization Automatic Flat Field Correction (FFC) – Thermal and Temporal Operating Temperature Range -40 °C to +65 °C (-40 °F to 149 °F) Environmental IP66, IP67(IK10 rating) includes window impact on all modelsType 4X IP66, IP67IK10 rating includes window impact only on models SXRE4-VF14-EBT, SXRE4-VF14-EBT-1, SXRE4-VF18-EBT,SXRE4-VF18-EBT-1, SXTE4-VF24-EBT, SXTE4-VF24-EBT-1Type 4X Learn more at www.pelcom.com

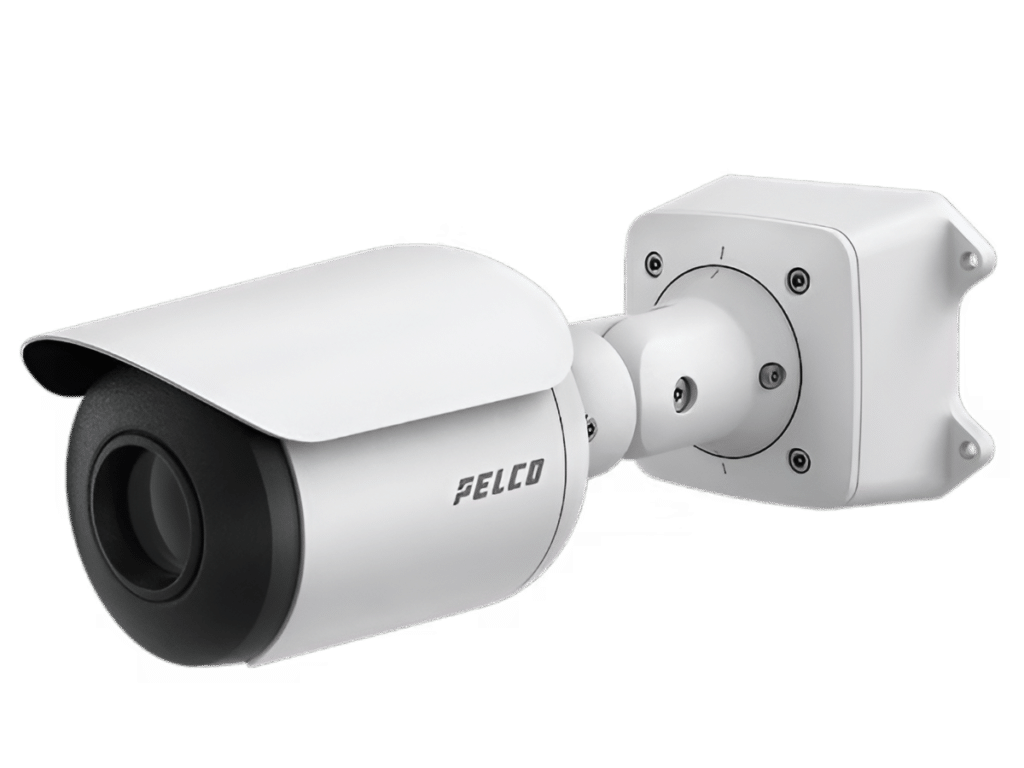

Sarix Thermal Enhanced 4 Camera Series
More than just a security camera, this surveillance device has a heat-sensing technology to identify incoming threats. Product Description: The Sarix® Thermal Enhanced 4 Series enables sites to harness the power of intelligence-driven analytics and heat-sensing technology to identify threats beyond what is visible to the human eye. Protect your perimeter like never before, even in the most challenging conditions. Pelco Smart Analytics, powered by Motorola Solutions, automatically detects threats at distances over 300 m (980 ft) away. Using radiometric thermal imaging, the Sarix Thermal Enhanced measures temperature fluctuations to help identify and prevent hazardous situations, such as overheating equipment. The camera’s superior long-range smart analytics detection and ability to concurrently trigger alerts based Product Features: Technical Specification: Model Name THERMAL VARIANTS RADIOMETRIC VARIANTS Part Number SXTE4-QF04-EBTSXTE4-QF04-EBT-1SXTE4-QF09-EBTSXTE4-QF09-EBT-1 SXTE4-QF13-EBTSXTE4-QF13-EBT-1SXTE4-QF18-EBTSXTE4-QF18-EBT-1 SXTE4-VF24-EBTSXTE4-VF24-EBT-1SXTE4-VF36-EBTSXTE4-VF36-EBT-1 SXRE4-VF09-EBTSXRE4-VF09-EBT-1SXRE4-VF14-EBT SXRE4-VF14-EBT-1SXRE4-VF18-EBTSXRE4-VF18-EBT-1 Thermal Resolution (MP) 320×256 640×512 640×512 Image Sensor Uncooled VOx Microbolometer Uncooled VOx Microbolometer Uncooled VOx Microbolometer Radiometric Pixel Pitch 12μm Spectral Range 8μm to 14μm Aspect Ratio 5:4 Imaging Rate Up to 30 fps (-1 models up to 8.6 fps) Dynamic Range -40 °C to 225 °C (-40 °F to 437 °F) [may vary based on operating temperature] Resolution Scaling 320×256, can be scaled up to 640×512 640×512, can be scaled down to 320×256 640×512, can be scaled down to 320×256 3D Noise Reduction Filter Yes Sensitivity NETD ≤50mK (NETD ≤40mK on 30FPS models when Frame Averager feature is enabled) Image Uniformity Optimization Automatic Flat Field Correction (FFC) – Thermal and Temporal Operating Temperature Range -40 °C to +65 °C (-40 °F to 149 °F) Environmental IP66, IP67(IK10 rating) includes window impact on all modelsType 4X IP66, IP67IK10 rating includes window impact only on models SXRE4-VF14-EBT, SXRE4-VF14-EBT-1, SXRE4-VF18-EBT,SXRE4-VF18-EBT-1, SXTE4-VF24-EBT, SXTE4-VF24-EBT-1Type 4X Learn more at www.pelcom.com

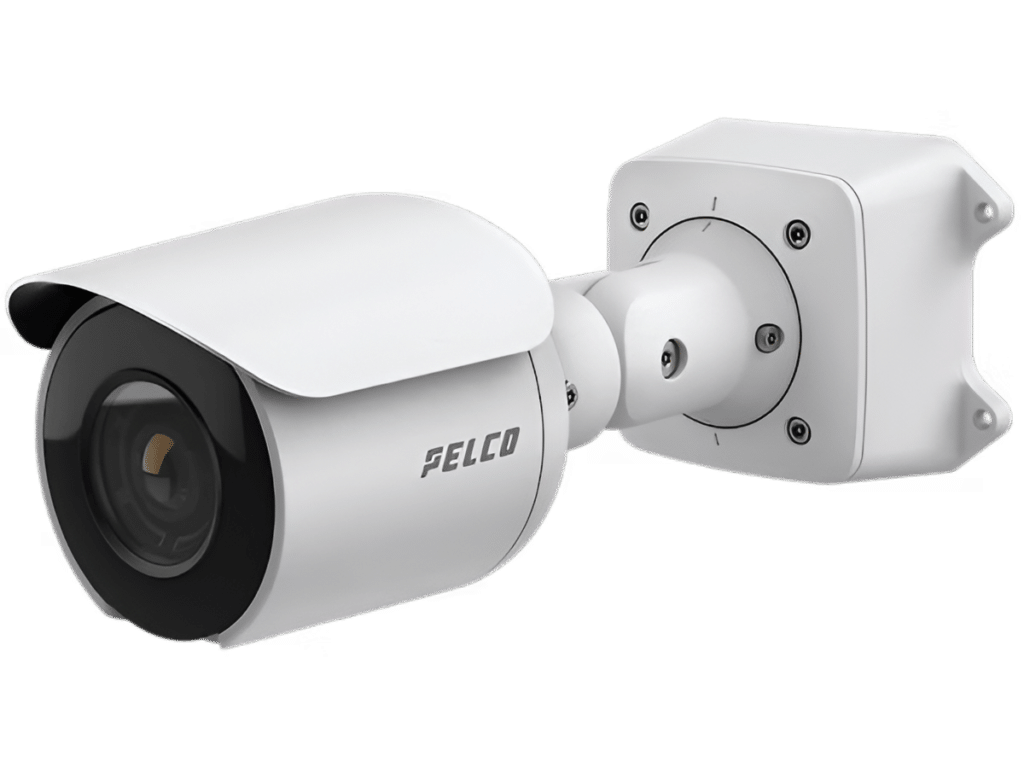

Sarix Professional 4 Series Bullet Camera
A high-performance, bullet-style security camera designed to capture activity in high-definition. Product Description: With security challenges becoming increasingly complex, it’s more important than ever to future-proof your site. Enhance your security infrastructure with the cutting-edge Sarix Professional 4 Series camera designed to capture activity in high-definition. A clear understanding of what is happening on-site elicits more informed decisions, faster responses and produces necessary evidence to support any incident requiring further review. Obtain more accurate insights and reduce the risk of missing critical events utilizing a camera that produces impeccable imaging quality. Product Features: Technical Specification: Model Name BULLET Part Number SRXP4-2V10-EBT-IRSRXP4-3V10-EBT-IRSRXP4-3V29-EBT-IRSRXP4-3V40-EBT-IRSRXP4-5V10-EBT-IRSRXP4-5V29-EBT-IRSRXP4-5V40-EBT-IR Resolution (MP) 2 MP / 3 MP / 5 MP Image Sensor 1/2.8” progressive scan CMOS Max. Dynamic Range (dB) 2 MP: 126 dB3 MP: 130 dB5 MP: 130 dB Max. Image Rate 50m Environmental IK10, IP66/67, Type 4X AUDIO, POWER, STORAGE Audio Compression Method G.711 PCM 8 kHz, Opus Audio Input/Output Line level I/O External I/O Terminals Alarm In, Alarm Out PoE Power Source IEEE 802.3af Class 3 compliant, 12VDC Aux Onboard Storage microSD/microSDHC/microSDXC slot – video speed class card required. Class V10 or better recommended. 1 TB card tested. Learn more at www.pelcom.com

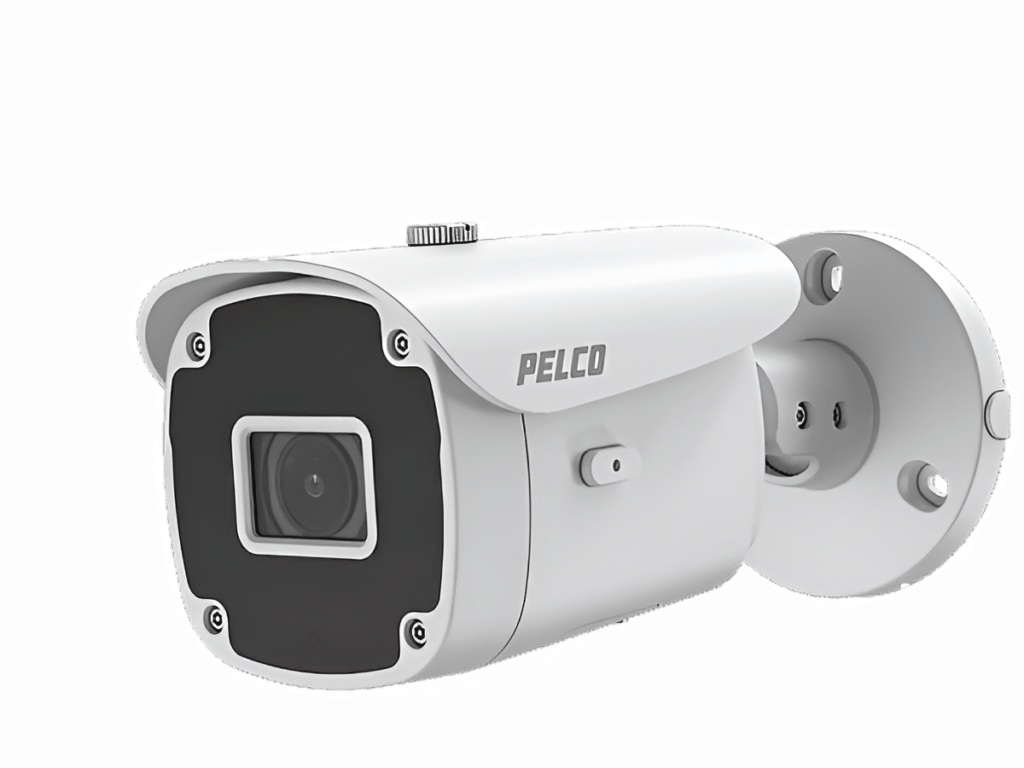

Sarix Value Series IR Environmental Bullet Cameras (IBV229-1ER, 1BV529-1ER)
A cost-friendly, surveillance camera with reliable image quality and excellent low-light performance. Product Description: Sarix Value IBV Series cameras are ideal for overt surveillance that can help deter criminal activity. The Sarix Value Series features excellent image quality with great low light performance, color fidelity and true wide dynamic range (WDR) for increased visibility in difficult lighting situations. And with built-in IR illumination, the camera can provide coverage even in total darkness. The vari-focal lensing gives you the flexibility to set a range of fields of view. Product Features: Technical Specification: Model Name VARIFOCAL BULLET Part Number IBV229-1ERIBV529-1ER Resolution (MP) 2 MP / 5 MP Image Sensor 1/2.9” Progressive CMOS(IBV229-1ER); 1/2.7”Progressive CMOS(IBV529-1ER) Max. Dynamic Range (dB) 120 dB Max. Image Rate 30 fps at 2 MP 20 fps at 5 MP Environmental IP66 AUDIO, POWER, STORAGE Audio Compression Method NA Audio Input/Output One way audio:Bulit-in Microphone PoE Power Source PoE Class 3 Onboard Storage MicroSD/SDHC/SDXC card Learn more at www.pelcom.com
NT4100PT-IR-Z3.7W Intelligent Network Camera
A high-security pan-tilt-zoom camera with 37x Optical Zoom. It has reliable results even in low-light environments. Product Features: Technical Specification: CAMERA MODULE Image Sensor 1/1.8′′ progressive scan CMOS Mini. Illumination Color:0.005Lux @ (F1.5,AGC ON)B/W:0.001Lux @ (F1.5,AGC ON)0 Lux with IR Image setting Flip, Mirror, Saturation, Brightness, Contrast, Sharpness, AGC, and AWB adjusted by client software / browser Shutter Speed 1/1 s – 1/100,000 s White Balance Auto / Manual / Indoor / Outdoor Gain Auto / Manual Day & Night IR Cut filter 3D DNR Auto / Manual Image Enhancement BLC, HLC, WDR(120 dB) Privacy Mask 4 Programmable privacy masks Defog Electronic EIS YES Regional Exposure No Picture overlay Logo picture could be overlaid on video with128×128pixels, 24bits jpg format LENS Focus length F=5.6-208mm lens, 37x optical zoom Zoom Speed Approx. 4.4s (optical zoom, wide-tele) Field of View Horizontal:59.8° to 2.0°(wide-tele)Vertical: 33.6°to 1.1°(wide-tele)Diagonal: 68.6° to 2.3°(wide-tele) Working distance wide: 1.0m ~ INF; tele: 1.5m ~ INF Aperture Range F1.55 ~ F4.5 (wide-tele) PTZ Pan Range 360°endless Pan speed Configurable, from 0.1~180°/sMax Preset speed: 180°/s Tilt Range From -20°to 90° (auto-flip at 90°) Tilt Speed Configurable, from 0.1°~ 150°/s,Max Preset speed: 150°/s Proportional Zoom Yes Preset 360 Cruise 8 cruises, up to 16 presets for each cruises Track 4 tracks, record time over 3 minutes for each track Power off memory Support Action mode Preset / Cruise / Track / Auto Scan / Random Scan 3D Positioning Support PTZ Position Display Support Scheduled Task Preset / Cruise / Track / Auto Scan / Random Scan /Dome reboot IR IR Distance 500m Smart IR Yes NETWORK Max Resolution 2560×1440 Main Stream 25/30fps (2560×1440, 2304×1296, 1920×1080, 1280×720) Sub Stream 25fps (1280×720, 704×576, 352×288)30fps (1280×720, 704×480, 352×240) Third Stream 25fps (704×576, 480×240, 352×288)30fps (704×480, 480×240, 352×240) SVC Yes Video Compression H.265 / H.264 / MJPEG Protocols HTTP, HTTPS, IPv4/IPv6, 802.1x, QoS, FTP, SMTP, UPnP, SNMP,DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP,DHCP, PPPoE Simultaneous Live View Up to 10 channels User/Host Up to 16 users, 3 levels: Administrator, Advanced User and Normal User Security Measures User authentication (ID and PW), Host authentication (MAC address)HTTPS encryption, IEEE802.1x port-based networkaccess control; IP address filtering SMART FEATURES Basic Event Motion detection, video tampering alarm, exception(network disconnected, IP address conflict, SD full, SD error) Face Detection Default off, max 30 human faces per second Face Comparison People Density Not support by this product Smart Detection Intrusion detection, Line crossing detection, Regionentrance detection, Region exiting detection, Unattended baggage detection, Object removal detection, Scene change detection, Support alarm triggering by human or vehicle, filtering flag/animal. Smart Tracking Manual Tracking, Auto Tracking(human or vehicle by software setting) SYSTEM INTEGRATION Alarm Interface 7CH alarm input, 2CH alarm output Audio Interface 1CH audio input, 2 to 2.4v[p-p] 1kΩ±10%1CH audio output (line out), impedance 600Ω Alarm Linkage Alarm actions, such as Preset, Cruise, Track, Memory Card Video Record, Trigger Recording, Notify Surveillance Center, Upload to FTP/Memory Card, Send Email, etc. Network Interface 1 RJ45 10M/100M Ethernet (Hi-PoE optional) CVBS Yes, 1 BNC Connector RS 485 Pelco-D / P protocol, custom protocols available Storage On-Body memory card slot, support microSD/SDHC/SDXC, up to 256G API ONVIF Web Browser IE 8-11, Chrome 31.0-44, Firefox 30.0-51,Not support Safari GENERAL Power AC24V/DC24V 5A (Max.75W, including max.18w forlaser and max.12w for heater)Hi-PoE (Max.60W, including max.18w for laser andmax.12w for heater) Working Condition -50°C~65°C(-40°F~149°F), 90%RH less(non-condensing), Cold start at -40°C Storage Condition -40°C ~ 70°C ; ≤ 95% RH Protection IP67 Level, IK10, 6000V Lightning Protection,Surge Protection and Voltage Transient Protection Material Aluminum Alloy Dimensions Φ 278mm × 435mm (Φ10.94′ × 17.12′) Weight Approx. 8.8 Kg (19.4 lb.) Certification KC, CE, FCC
NT4100PT-IR-Z2.5W Intelligent Network Camera
A high-security pan-tilt-zoom camera with 25x Optical Zoom. It has reliable results even in low-light environments. Product Features: Technical Specification: CAMERA MODULE Image Sensor 1/2.7′′ progressive scan CMOS Mini. Illumination Color:0.01Lux @ (F1.65,AGC ON)B/W:0.002Lux @ (F1.65,AGC ON)0 Lux with IR Image setting Flip, Mirror, Saturation, Brightness, Contrast, Sharpness, AGC, and AWB adjusted by client software / browser Shutter Speed 50Hz: 1/25s ~1/25,000s; 60Hz: 1/30s ~ 1/30,000s White Balance Auto / Manual / Indoor / Outdoor Gain Auto / Manual Day & Night IR Cut filter 3D DNR Auto / Manual Image Enhancement BLC, HLC, WDR Privacy Mask 4 areas, up to 8 per request Defog Electronic EIS YES Regional Exposure No Picture overlay Logo picture could be overlaid on video with128×128pixels, 24bits jpg format LENS Focus length f=4.8-120mm lens, 25x optical Zoom Speed Approx. 3.6s (optical zoom, wide-tele) Field of View Horizontal:55° to 2.4°(wide-tele)Vertical: 33°to 1.4°(wide-tele)Diagonal: 61.5°to 2.8°(wide-tele) Working distance wide: 1.0m ~ INF; tele: 1.5m ~ INF Aperture Range F1.65 ~ F3.8 (wide-tele) PTZ Pan Range 360°endless Pan speed Configurable, from 0.1~200°/s, Preset speed: 240°/s Tilt Range From -10°to 90° Tilt Speed Configurable, from 0.1~200°/s, Preset speed: 240°/s Proportional Zoom Yes Preset 360 Cruise 8 cruises, up to 16 presets for each cruises Track 4 tracks, record time over 3 minutes for each track Power off memory Support Action mode Preset / Cruise / Track / Auto Scan / Random Scan PTZ Position Display Support Scheduled Task Preset / Cruise / Track / Auto Scan / Random Scan /Dome reboot IR IR Distance 160m, dual stack IR LED Array Smart IR Yes NETWORK Max Resolution 2560×1440 Main Stream 25/30fps (2560×1440, 2304×1296, 1920×1080, 1280×720) Sub Stream 25fps (1280×720, 704×576, 352×288)30fps (1280×720, 704×480, 352×240) Third Stream 25fps (704×576, 480×240, 352×288)30fps (704×480, 480×240, 352×240) Video Compression Smart H.265 / H.264 / MJPEG Audio Compression G.711 A / U Audio Enhancement NO Protocols HTTP, HTTPS, IPv4/IPv6, 802.1x, QoS, FTP, SMTP, UPnP, SNMP,DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP,DHCP, PPPoE Simultaneous Live View Up to 6 channels User/Host Up to 16 users, 3 levels: Administrator, Advanced User and Normal User Security Measures User authentication (ID and PW), Host authentication (MAC address)HTTPS encryption, IEEE802.1x port-based networkaccess control; IP address filtering SMART FEATURES Basic Event Motion detection, video tampering alarm, exception(network disconnected, IP address conflict, SD full, SD error) Face Recognize Default off, Detecting max 15 faces at same scene.Detecting, tracking, capturing Road Traffic Vehicle detecting and tracking Smart Detection Tripwire, Bi-directional tripwire, Illegal intrusion detection, Region entrance detection, Region exiting detection, etc. More VCA per request Smart Tracking Smart tracking of human or vehicle, auto/manual SYSTEM INTEGRATION Alarm Interface 1 Alarm input(Dry contact); 1 Alarm output Audio Interface 1 audio input(MIC in); 1 audio output, line level,impedance,600Ω Alarm Linkage Alarm actions, such as Preset, Cruise, Track, Memory Card Video Record, Trigger Recording, Notify Surveillance Center, Upload to FTP/Memory Card, Send Email, etc. Network Interface RJ45 10M/100M Adaptive Ethernet ,Support PoE+ CVBS None RS 485 None Storage One MicroSD slot, up to 256G Web Browser IE 8-11 GENERAL Power DC12V±25%,3000mA ,PoE+ (802.3.at),max 23W include IR ON+PTZ working Working Condition -40°C ~ 60°C (-40°F ~ 140°F),Cold start at – 30°C (30 minutes waiting); 90%RH Storage Condition -40°C ~ 70°C ; ≤ 95% RH Protection 6000V Lightning Protection, Surge Protection andVoltage Transient Protection Material Aluminum Alloy ; Plastic +Glass Fiber 15% Dimensions Φ 173mm × 268mm ( 6.8′ Φ × 10.55′) Weight Approx. 2.1 Kg (4.63 lb.) Certification KC, CE, FCC
NK1080D-IR30-AF Network Camera
This high-security surveillance camera has Internal IR Distance of 40M and Wide Dynamic Range. Product Features: Technical Specification: CAMERA Sensor Type 1/2.8”, 2.1Megapixel Sony STARVIS Sensor Sensor Pixels 1920(H) × 1080(V) = 2.1M pixels Scanning System Progressive Scan Min. Illumination Color 0.02Lux@F1.3 B/W 0Lux (IR LED On) Lens Filter True Day & Night (ICR) Type 2-Motor / DC Auto Iris / 2.7~12mm / F1.3 / IR Corrective Mega Pixel Lens Camera Functions Day & Night AUTO / COLOR / BW / EXTERN WDR LOW / MIDDLE / HIGH BLC OFF / ON HCL LEVEL(0~20) / COLOR AGC 0~10 ACE OFF / LOW / MIDDLE / HIGH DNR OFF / LOW / MIDDLE / HIGH DSS OFF / AUTO / x2 / x4 / x8 / x16 / x32 SHARPNESS 0~10 Mirror Horizontal / Vertical White Balance AUTO / AUTOext / PRESET / MANUAL Electric shutter INDOOR / OUTDOOR / INDOOR-ANTI BLUR / OUTDOOR-ANTI BLUR / MANUAL (1/30~1/30000 / 12 steps) Privacy ON / OFF (BOX-10 Positions) DE-FOG OFF / ON (MODE / LEVEL) IR distance 40m VIDEO Compression Type H.264 (MPEG4 AVC) Main profile, Baseline profile / MJPEG Resolution 1st : 1920×1080 / 1280×720 / 800×600 / 704×480 / 704×400 / 640×360 / 480×272 / 320×1842nd : 640×360 / 480×272 / 320×1843rd : 1920×1080 Bitrate 128Kbps ~ 5Mbps Frame Rate 30fps@1080p Streaming 1st : H.264 Stream up to 1080p 30fps2nd : H.264 nHD Stream / 30fps3rd: JPEG 1080p Stream / 1fps NETWORK & SOFTWARE Interface 1 Fast Ethernet RJ-45 port (10/100Mbps) Network Type Fixed IP / DHCP DDNS Not Supported Port HTTP : 80 / RTSP : 554 Protocol HTTP / RTSP/RTP / Onvif / TCP/IP / UDP / ARP / ICMP / DHCP Onvif Support Simultaneous Users Max. 3 users DST Support NTP Support IP Address Filtering TBD Web Browser IE 11 Web Monitoring IE : ActiveX based / Other browser : JPEG based Web Configuration Multi-platform web config / Desktop (Mac / Linux / Windows) NVR NVRs supporting Onvif PC CMS Software Control Center Standard (bundle) / Control Center Pro Relay Server WinRDS ENVIRONMENTAL & PHYSICAL Power Source DC 12V ± 10% / PoE (802.3af, 36V~57V) Power Consumption IR OFF : 150mA(MAX) / IR ON : 400mA(MAX) Operating Temperature -20°C ~ 50°C (-4°F ~ 122°F) Humidity 0% RH ~ 90% RH Certification KC, FCC, CE
