A supervised or standalone backup battery multi-purpose supply.
Product Description:

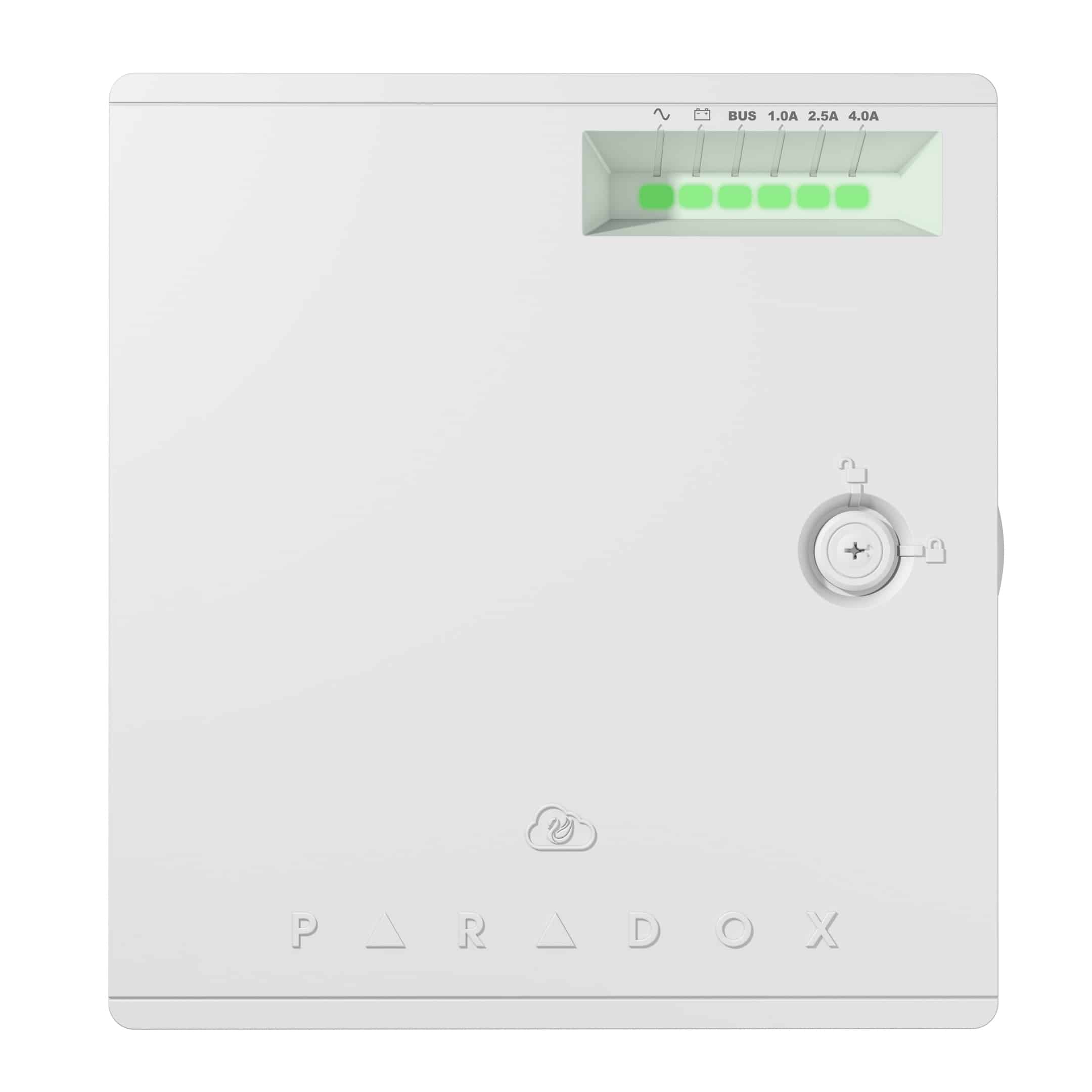

The PS45 is a 75W supervised or standalone backup battery multi-purpose power supply. Mainly designed to power up to 10 video cameras or any 13.8V rated devices. With up to 27 Ah battery backup capability, the PS45 will provide a reliable robust backup power solution.
Product Features:
- AC input: 110 Vac to 240 Vac
- 75W total power
- 15 Vdc 4.0A continuous auxiliary output
- Standalone operation or Bus supervised with Paradox Security Systems
- On-board anti-tamper switch
- Application monitored notifications (when connected to Bus)
- Compatible with EVO Series (all versions), SP5500, SP6000, SP7000 V6.80 and higher, MG5000, MG5050 and MG5075
Technical Specification:
| AC Power | 100 Vac to 240 Vac, 50-60 Hz |
| Auxiliary Voltage Output | 15 Vdc +/- 5% AC or Battery Backup |
| Auxiliary Current Output | 4.0A maximum continuous current, cut off at 4.5A |
| Battery | 7 Ah in box mounted, 2nd battery upto 20 Ah in external box, total 27 Ah |
| Indications | Ac, Battery, Bus, Output:1A, 2.5A, 4.0A |
| Charging | 500 mA to 1500 mA, adaptive |
| Operating Temperature | -20 to 50° C (-4 to 122° F) |
| Humidity | 95% maximum |
| Bus Supervision | AC, Battery, Aux Voltage Statusand Consumption, Tamper |
| Dimensions (H x W x D) | 25.4 x 27.3 x 8.9 cm(10 x 10.75 x 3.5 in.) |
| Compatibility | EVO192, EVOHD all versions,MG5000, MG5050, SP5500,SP6000, SP7000 V6.80 and higher |
