Expands the control relay capacity of M-Series Controllers with 8 additional dry relay outputs.
Product Description:

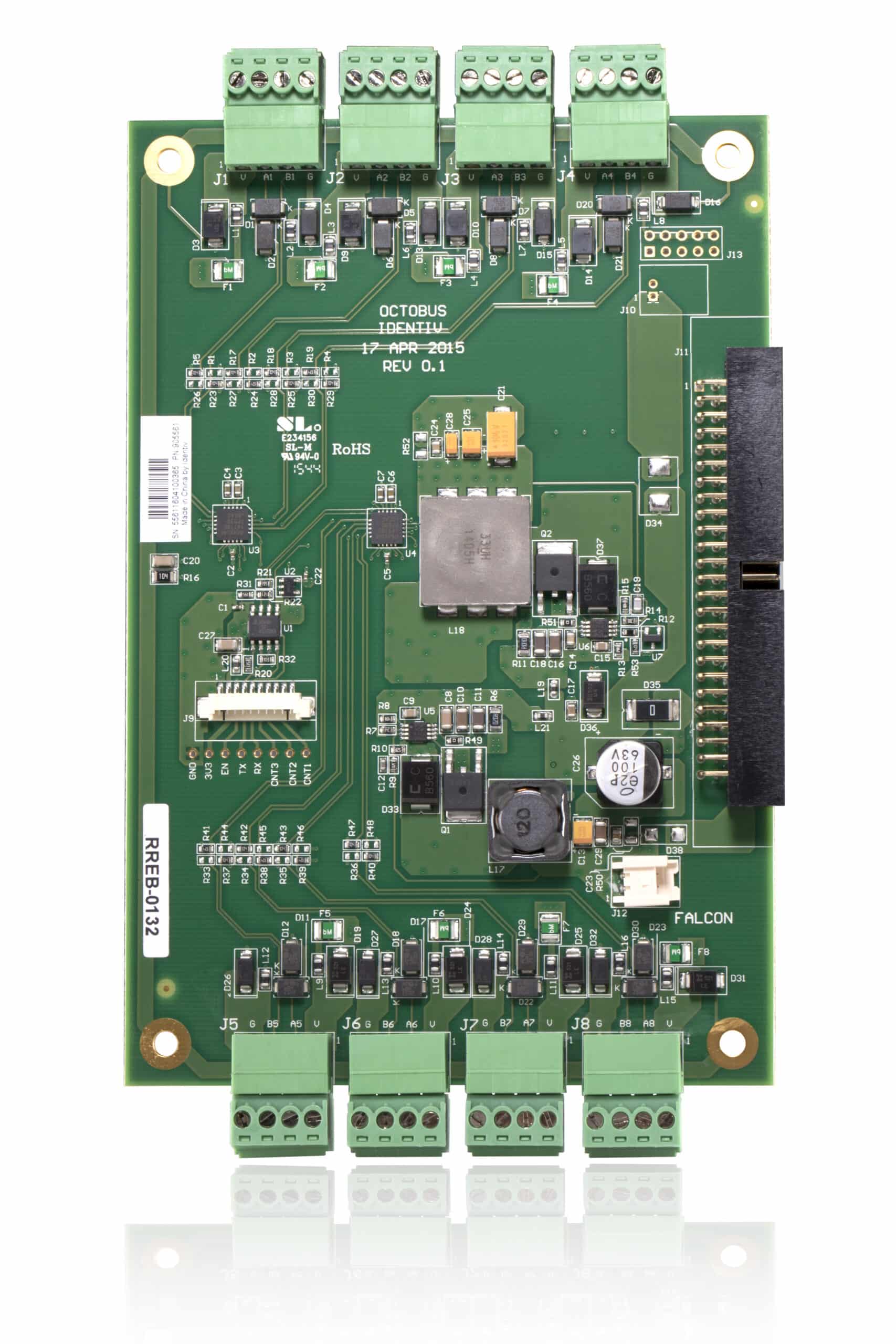

Identiv’s Relay Expansion Board (REB8) expands the control relay capacity of M-Series Controllers. REB8 provides eight (8) additional two (2) AMP form C dry relay outputs, rated for 24VDC. These relays are socketed and removable. Unlike the large heavy-duty door relays used to switch electric locks or strike power at ten (10) AMP loads, the expansion relays are normally used for signal level switching or pilot duty. Such switches, when closed, provide an input to a low-voltage sensing circuit. However, the switch can also be used to activate the coils of a remote heavy-duty relay.
Product Features:
- Modular: Up to 40 expansion relays (elevators, sounders, intrusion,shooter)
- High Performance: 2 AMP 24VDC form C relays
- Simple: Dry contacts for any I/O application
Technical Specification:
| COMMUNICATIONS | |
| Wiring from Controller | One (1) pair twisted shielded |
| PHYSICAL | |
| Alarm | Physical tamper on panel enclosure |
| Dimensions | 6.85 x 4.05 x .52 in (17.4 x 10.3 x 1.32 cm) |
| Shipping Weight | 1 lb (0.45 kg) |
| Operating Temperature Range | 32° to 140°F (0° to 60°C) |
| Relative Humidity | 0 to 90%, non-condensing |
| Listings and Approvals | CE |
