A highly sensitive metal detection system that detects even the smallest metal items anywhere on or in the body.
Description:

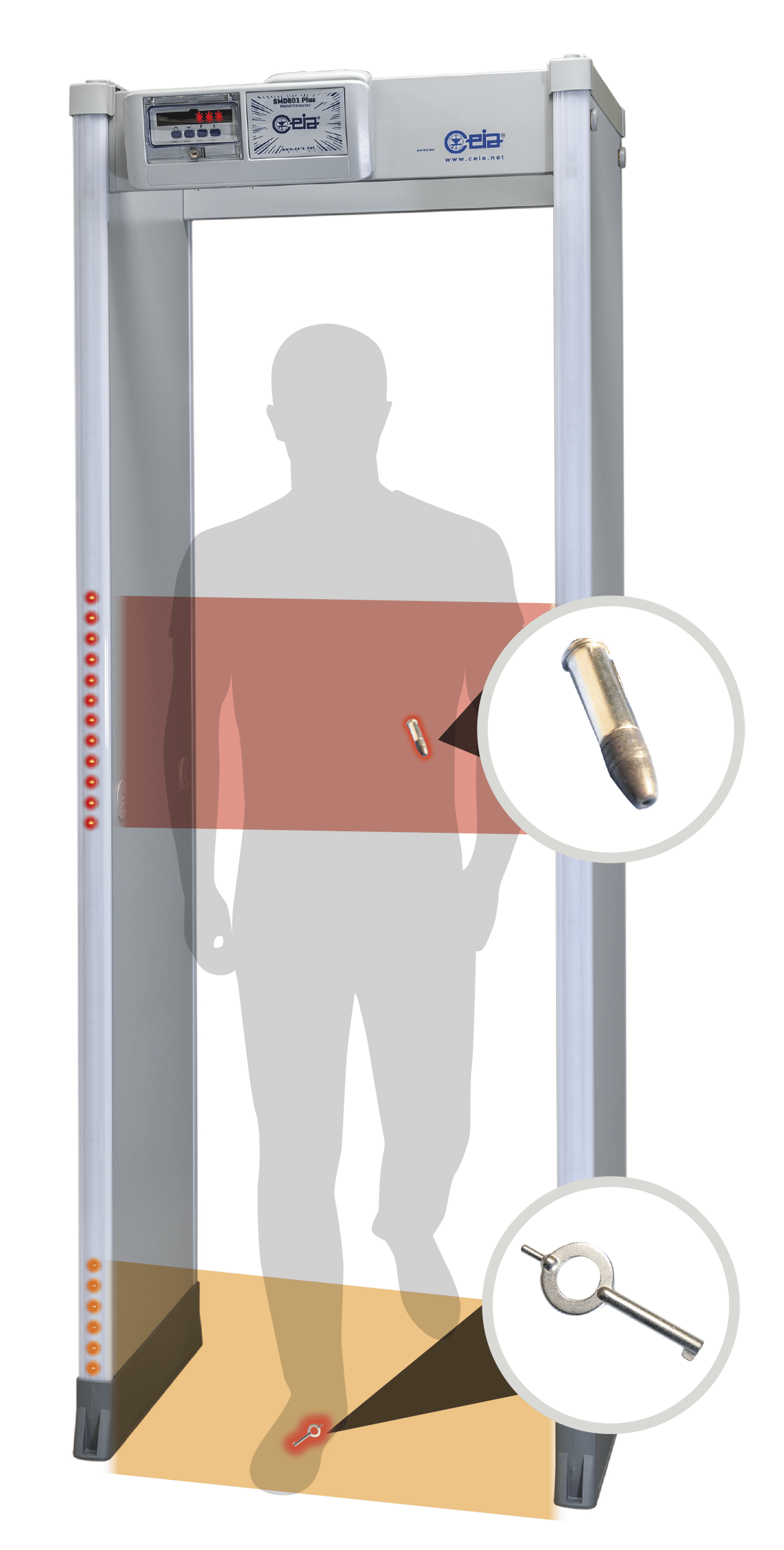

The SMD601 Plus is a very highly sensitive Walk-Through Metal Detector. A full-height light bar displays the location of the detected metal masses in transit. This results in rapid identification of threats and a reduction or elimination of the need for manual searches. SMD601 Plus detects even the smallest metal items anywhere on or in the body.
Product Features:
- MOST SENSITIVE WTMD, fully compliant with the NIJ-0601.02 and NIJ-0601.03 Standards
- QUICK, ACCURATE ANALYSIS OF ALL PARTS OF THE BODY of people in transit, from the shoe level to the crossbar
- ACCURATE PINPOINTING of individual and multiple metal targets
- EXCEPTIONAL IMMUNITY to external interferences
- NEW MECHANICAL STRUCTURE with high protection degree
- INTEGRATED CORRECTIONAL PROFILING SYSTEM (optional)
- UNMATCHED RELIABILITY
Technical Specifications:
| Gate Structure | State-of-the-art, robust and washable panels Antivandalic and anti tampering IP66 control unit Embedded high precision transit counters (2-beam photocells) Anti Tampering ON/OFF switch Protected against aging, weather and wear |
| Operational Features | High discrimination and transit flow rates five or more times greater than other metal detection systems Quick reset time as short as 0.2 seconds for high throughput rate Very high detection speed (up to 15 m/sec.) Built-in operational functional verification (OFV) One-touch key reading of inbound, outbound and Security Level Data |
| Quality | Continuous self diagnostic system Proven reliability No periodic re-calibration and preventive maintenance required No scheduled maintenance Fully digital design |
| Alarm Signaling | Multi-zone display bar for “height on person” localization 20 vertical localization zones 2 display bars programmable as zone indicators and/or pacing lights Specific shoe alarm color indication Green and red metering signals proportional to the mass of the detected target 10 selectable continuous and pulsed tone plus 34 special tones 10 selectable sound intensities ranging from 0 to 90 dbA at 1m Random alarm capability with independent counters, alarm tone and alarm volume Met-Identity technology (separate Ferrous and Non-Ferrous alarm signaling) |
| Type of Signaling | Fixed or proportional to the mass in transit – visible from 6m under lighting of 4000 lux 20 x 4 distinct zones (20×2 entry side and 20×2 exit side) |
| Programming | Over 40 built-in Security Programs Remote via Infrared Remote Control Unit, BT or Ethernet 10/100 base T (option) interface Security level: International Standard (IS) command / Chip card Local by Control Unit alphanumeric display and keyboard Programming and chip card access protected by user and super-user passwords |
| Installation Data | Automatic synchronization between two or more metal detectors with distance of down to 5 cm without the use of external cables One Touch Automatic Self Installation (OTS) |
