A leading edge communication device that provides TCP/IP version 6, Gigabit Ethernet, and AES 256 bit encryption.
Product Description:

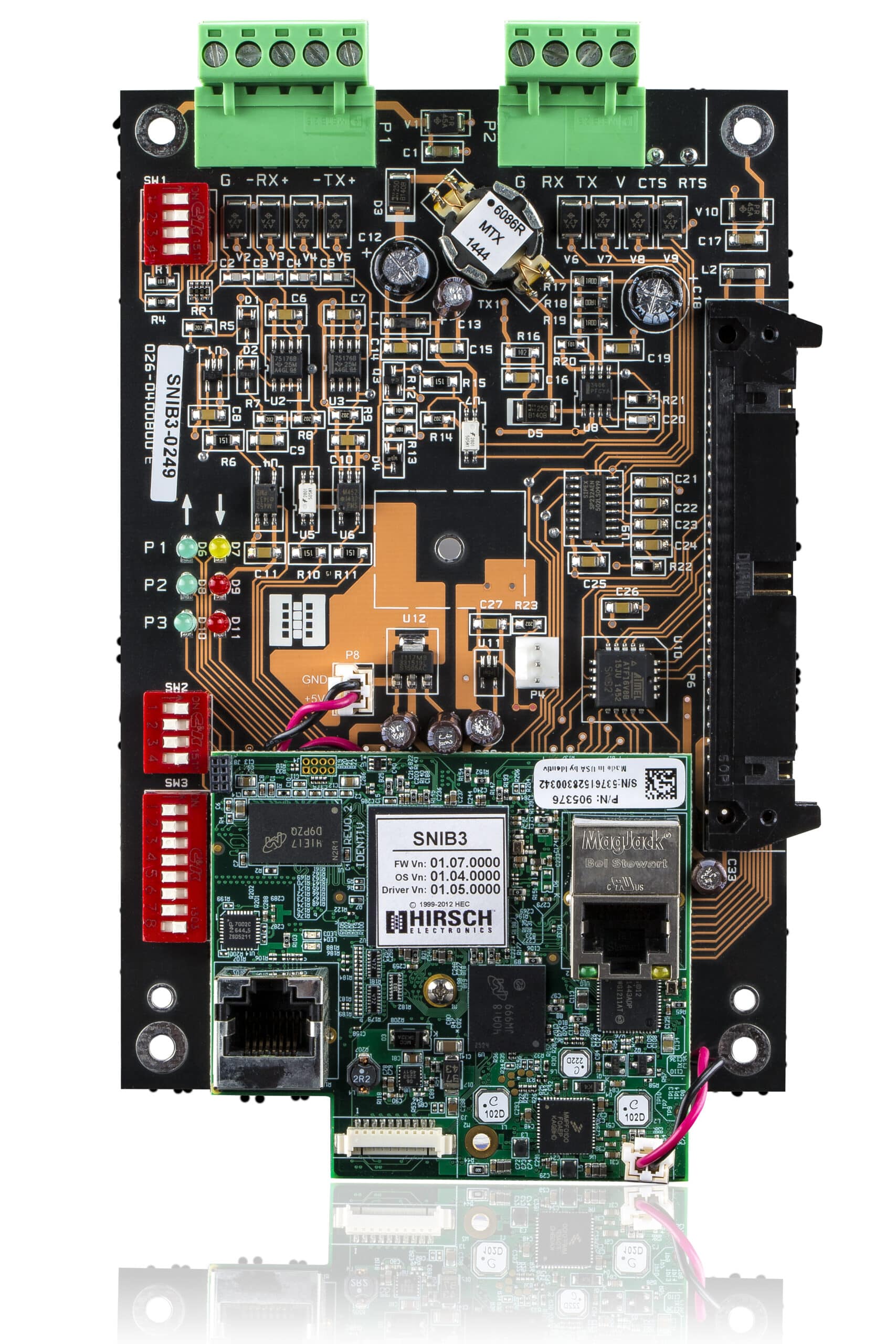

The SNIB3 is a leading edge communication device that provides IPv4 or IPv6, Gigabit Ethernet, and FIPS 140-2 certified cryptography, including AES 256 bit encryption. If you already have controllers from Identiv, the SNIB3 is a drop-in replacement for the SNIB2
and SNIB communications boards, allowing for easy upgrades.
Product Features:
- Advanced Communication: IPv4 or IPv6, Gigabit Ethernet, FIPS 140-2, AES 256 bit encryption, TLS 1.2
- Easy Upgrades: Simply drop into an installation
- Upgraded Functionality: ● Anti-Passback, Occupancy Counting, Limit/Day Usage, Absentee Tracking, Up to 500,000 Credentials
- FICAM Support: GSA APL Approved, Supports Card Auth, PIV Auth, and PIV Auth + Biometric
Technical Specification:
| Encrypted CommunicationOptions | • TLS v1.2 (FIPS 140-2)• AES 256 (FIPS 140-2)• AES 128 (FIPS 197) |
| Communication Options | • 10/100/1000 Base-T Ethernet• IPv4 addressing• IPV6 addressing |
| FICAM | • GSA APL Approved• Card Auth, PIV Auth, and PIV Auth + Biometric reader support |
| Globalization/ Gateway | • SNIB3 master with downstream SNIB3 and SNIB2- All SNIB3s are required for TLS v1.2• Anti-passback• Occupancy counting• Limit/Day Usage• Absentee tracking• If/Then Programming |
| Communications | • Serial Interface ports:RS-485: Multi-drop up to 16 controllers maximum (without NET*MUX4)RS-485 XNET2/3 baud rate: 9600, 38.4K, 57.6K, 115.2KRS-485: 4000 ft (1220 m) to the last controller on a cable run with 22 gauge, two-pair, stranded, twisted overall shield • Ethernet Ports:TCP/IP 10/100BASE-T (SNIB2)TCP/IP 10/100/1000BASE-T (SNIB3) |
