A reliable and expandable control panel that forms the core of a robust and customizable Paradox security system
Product Description:

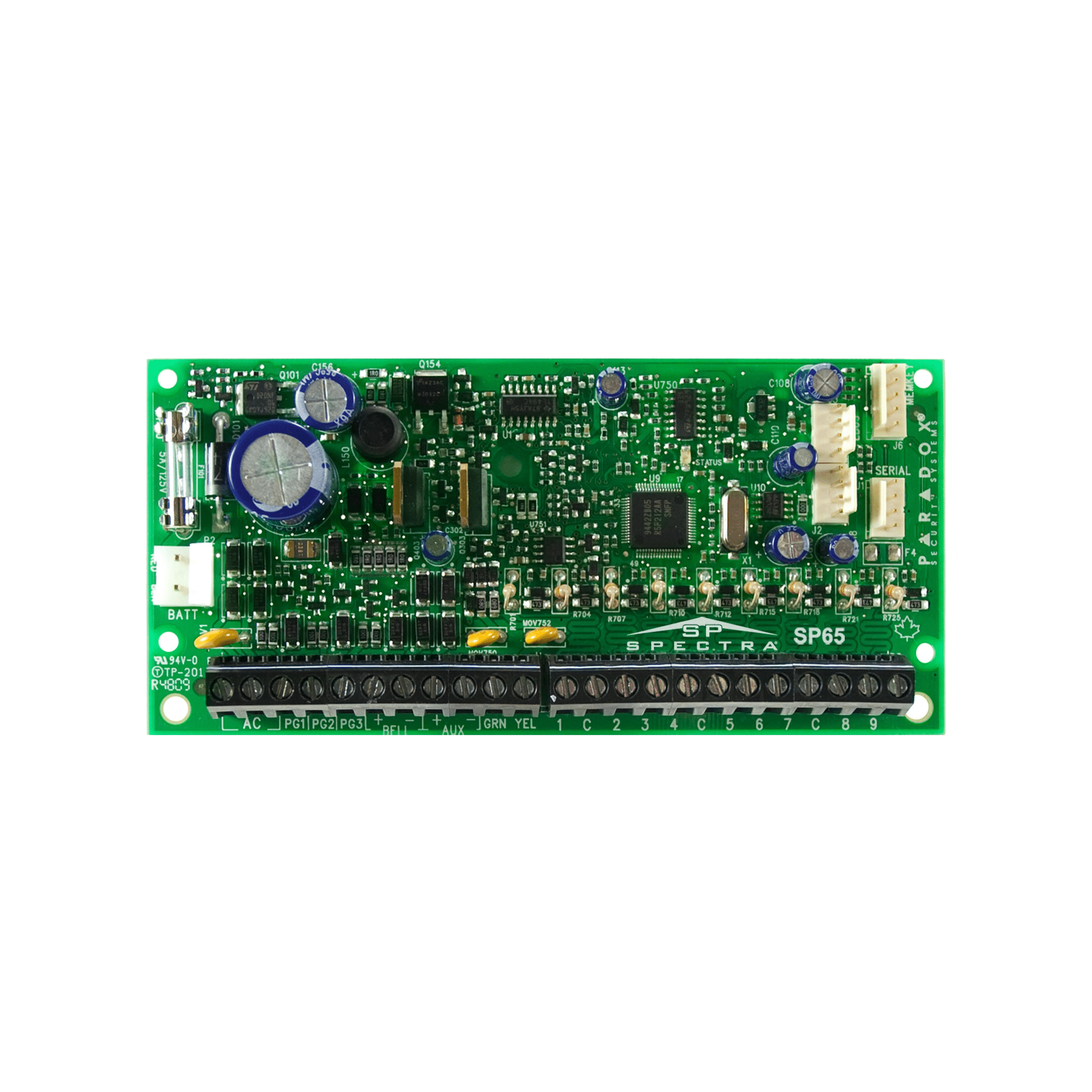

The Paradox PDX-SP65 offers a combination of innovative features and an advanced communication bus for a unique expandable security system. Through its communication bus, The PDX-SP65 can be expanded via wireless and hardwired expansion modules and a variety of accessory modules. With its reliable communication technology, flexible expansion, and great-looking keypads, the PDX-SP65 is an ideal security system for any residential or commercial installations that require up to 32 zones of protection.
Product Features:
- StayD Mode
- 32 zones (9 on-board, 18 with ATZ) either wireless (using RTX3 / RX1), or hardwired (using ZX82 / ZX8SP / ZX8)
- 16 PGMs (3 on-board and any of which can be wireless)
- 2 partitions
- 32 user codes
- 4-wire expansion bus (connects up to 15 keypads)
- Supports wired and wireless sirens (SR130 / SR150) with RTX3
- Supports PCS Series
- Supports IP150 Internet Module
- Supports VDMP3 Plug-In Voice Dialer (via PCS250)
- Supports PMC5 USB Memory Key
- App-based system control via Insite GOLD
- Menu-driven programming for the Installer, Master and Maintenance codes
- Multiple phone numbers: 3 for monitoring station, 5 for personal dialing and 1 for pager reporting (via PCS250 only – GSM reporting)
- Automatic Daylight Savings Time feature
- Push button software reset (reset to default values and restart)
- Compatible with RAC1, REM15, REM1, and REM101 remote controls (requires RX1) and with REM2, REM3 and REM25 remote controls (requires RTX3)
- In-field firmware upgrade via BabyWare
Technical Specification:
| Supply Power | 16VAC – 1.5A |
| Output Power | 12VDC @ 500mA |
| Zones | 9 doubled to 18 and expandable to 32 |
| PGM | 3 expandable to 16 |
| User codes | 32 |
| Partitions | 2 |
