A supplementary with Magnetic barriers, these terminals provide tickets for vehicles entering or exiting the vicinity.
Description:

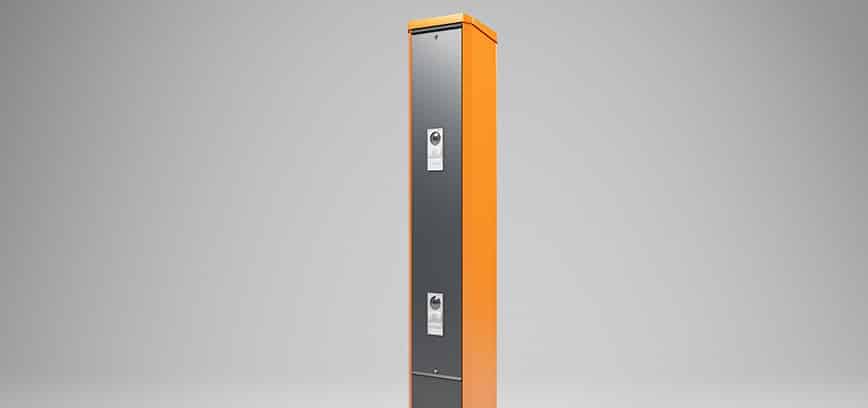

MS, MH and ML Terminals are the optimum functional and de- sign supplements for all Magnetic barriers. They offer a universal platform for customer-specific equipment – for intercom systems and video monitoring or for complex access and exit control systems. The Terminals are made of aluminum and stainless steel, and are thus designed for long service lives. The front con- sists of a front cover that can be slid out on telescope rails and a slot-in door which can only be opened with a single key.
Product Features:
- Large barrier width of up to 10.0 m
- High security with optional barrier boom skirt
- Ease-of-use and optimum accessibility thanks to well thought-out design
- Legal security with Declarations of Conformity and Performance
- Designed for 2 million opening and closing actions
Technical Specifications:
| Terminal-MS | Terminal-MH | Terminal-ML | |
| Application | Cars | Cars | Cars and Trucks |
| Housing Dimension (W x H x D) | 296 x 1202 x 266 mm | 296 x 1202 x 266 mm | 296 x 2202 x 266 mm |
| Installation Space (W x H) | 209 x 337mm | 209 x 487 mm | 209 x 337 mm (2x) |
| Weight | 15 kg | 15 kg | 27 kg |
| Front Cover Design | Slide out on telescopic rails | Slide out on telescopic rails | Slide out on telescopic rails |
| Housing Design | Powder-coated aluminum | Powder-coated aluminum | Powder-coated aluminum |
| Base Design | Stainless Steel | Stainless Steel | Stainless Steel |
| Enclosure Rating | IP 54 | IP 54 | IP 54 |
