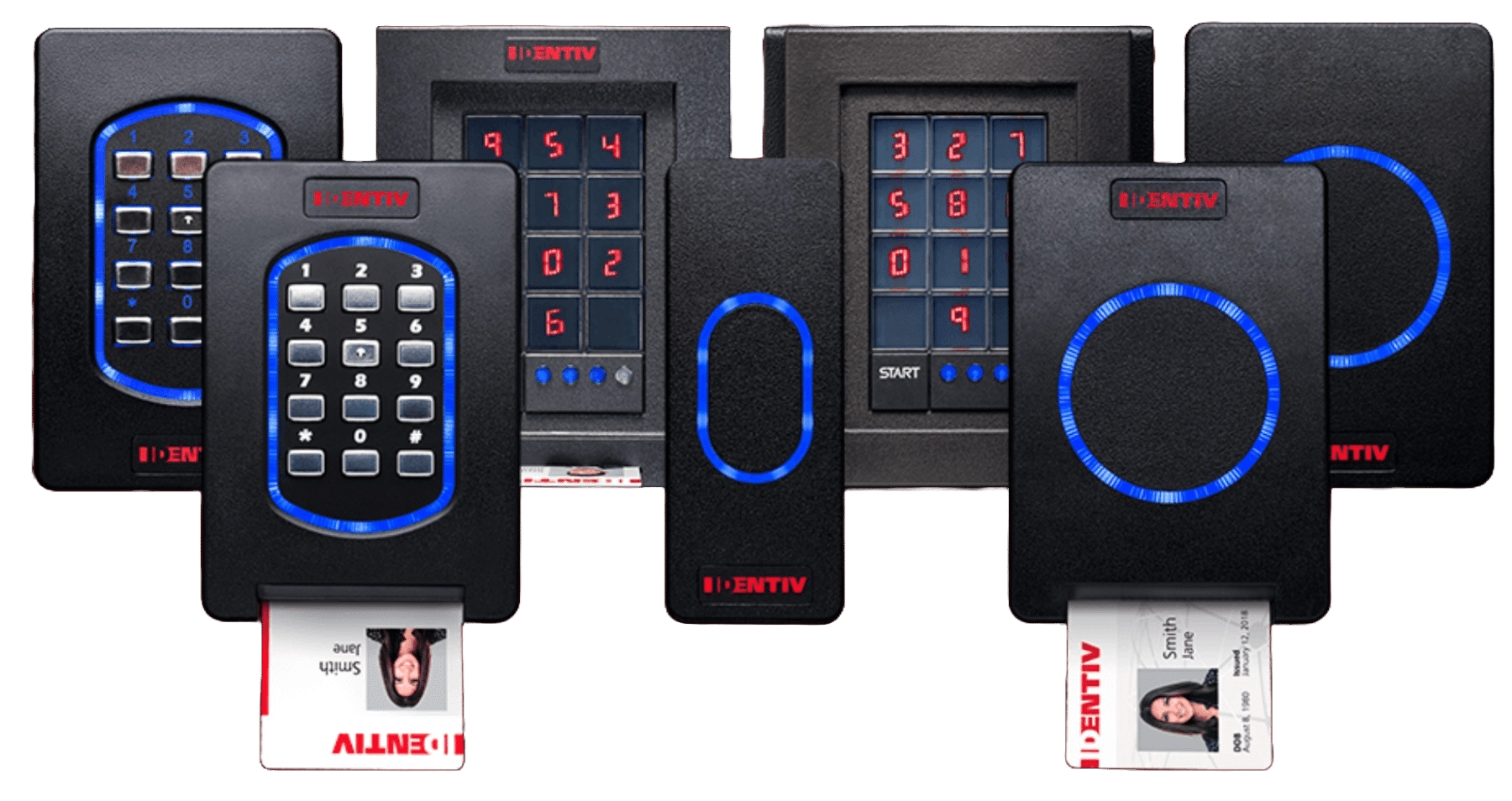

uTrust TS Government Readers: Mullion, Wall Mount, and Wall Mount Keypad

Provides cost-effective, highly secure, and compliant FICAM-certified solutions for federal agencies and contractors,

Product Description:
Identiv’s uTrust TS Government Readers offer an extensive product line that encompasses both single and dual-factor authentication configurations.

uTrust TS Government Readers are the industry’s most flexible and highly secure intelligent door reader endpoint. They enable agencies to deploy a highly secure U.S. government FICAM card authentication key (CAK) at a fraction of the cost of competing solutions.

Product Features:

• Versatile platform with full range of FIPS 201 approved products
• Supports PIV, PIV-I, CIV, CAC, with optional support for legacy proximity
• Fast, usable, FICAM-compliant card authentication key (CAK) validation
• FICAM certified for CAK validation systems; enables compliance with FIPS 201, FIPS 140-2, and NIST SP800-116 publications


Technical Specification:

uTrust TS Mullion Government Reader Specifications

	TS Mullion HF	TS Mullion HF/LF	TS Mullion HF/LF PoE	TTS Mullion HF PoE
Part Numbers	8002ABP00008002ABT00008002ABPF0008002ABTF0008002ABPR0008002ABTR000	8012ABP00008012ABT00008012ABPF0008012ABTF0008012ABPR0008012ABTR000	8032ABP00008032ABT00008032ABPF0008032ABTF0008032ABPR0008032ABTR000	8052ABP00008052ABT00008052ABPF0008052ABTF0008052ABPR0008052ABTR000
Current Consumption (@12V)	100 mA Average 133 mA Peak		167 mA Average; 211 mA Peak; PoE: @48V
Dimensions	Body: 4.6 in (11.7 cm) H x 1.7 in (4.3 cm) W x 1.1 in (2.8 cm) D
Product Weight	5 oz. (142 g)
Connection	Pigtail or Terminal Strip

uTrust TS Wall Mount Government Reader Specifications

	TS Wall Mount HF	TS Wall Mount HF/LF	TS Wall Mount HF/LF PoE	TS Wall Mount HF PoE
Part Numbers	8102ABP00008102ABT00008102ABPF0008102ABTF0008102ABPR0008102ABTR000	8112ABP00008112ABT00008112ABPF0008112ABTF0008112ABPR0008112ABTR000	8132ABP00008132ABT00008132ABPF0008132ABTF0008132ABPR0008132ABTR000	8152ABP00008152ABT00008152ABPF0008152ABTF0008152ABPR0008152ABTR000
Current Consumption (@12V)	97 mA Average 114 mA Peak		172 mA Average; 202 mA Peak; PoE: @48V 50
Dimensions	Body: 4.6 in (11.7 cm) H x 3.1 in (7.8 cm) W x 1.1 in (2.8 cm) D
Product Weight	10.25 oz (290 g)
Connection	Pigtail or Terminal Strip

uTrust TS Wall Mount Keypad Government Reader Specifications

	TS Wall Mount Keypad HF	TS Wall Mount Keypad HF/LF	TS Wall Mount Keypad HF/LF PoE	TS Wall Mount Keypad HF PoE
Part Numbers	8202ABP00008202ABT00008202ABPF0008202ABTF0008202ABPR0008202ABTR000	8212ABP00008212ABT00008212ABPF0008212ABTF0008212ABPR0008212ABTR000	8232ABT00008232ABTF0008232ABTR000	8252ABT00008252ABTF0008252ABTR000
Current Consumption (@12V)	110 mA Average 155 mA Peak		180 mA Average; 255 mA Peak; PoE: @48V 80 mA Peak
Dimensions	Body: 4.6 in (11.7 cm) H x 3.1 in (7.8 cm) W x 1.1 in (2.8 cm) D
Product Weight	10.93 oz (310 g)
Connection	Pigtail or Terminal Strip

Common Specifications

	HF	HF/LF	HF/LF PoE	HF PoE
Carrier Frequencies	13.56 MHz	13.56 MHz and 125 kHz13.56 MHz and 125 kHz		13.56 MHz
Low Frequency(125kHz) Compatibility	N/A	HID ® Prox, Indala ®, CASI-RUSCO®, AWID and others		N/A
High Frequency(13.56MHz)Compatibility	uTrust TS, MIFARE Classic, MIFARE DESFireEVx, ISO15693 UID, ISO14443A UID
Data Protocol	Wiegand or RS-485/OSDP (2 Wire – Half Duplex) FICAM Ready
Power Supply	12 VDC or PoE (802.3af)
Housing Material	UL 94 Polycarbonate, Black
OperatingTemperature	-31 to 151° F (-35 to 66° C)		32 to 120° F (0 to 49° C)
Storage Temperature	-31 to 185° F (-35 to 85° C)
Operating Humidity	5% to 95% relative humidity (non-condensing)
Status Indicator	RGB LED, Buzzer
Cable Distance	Wiegand 500 ft (152 m) 18 AWG wire, RS-485 4000 ft (1200 m) 18 AWG shielded twisted pair
Certifications	FCC, UL 294, CE, IC, RCM, RoHS2, REACH
Environmental Rating	Pigtail versions: IP67; Terminal versions IP65; PoE versions: IP55
Warranty	Limited Lifetime
