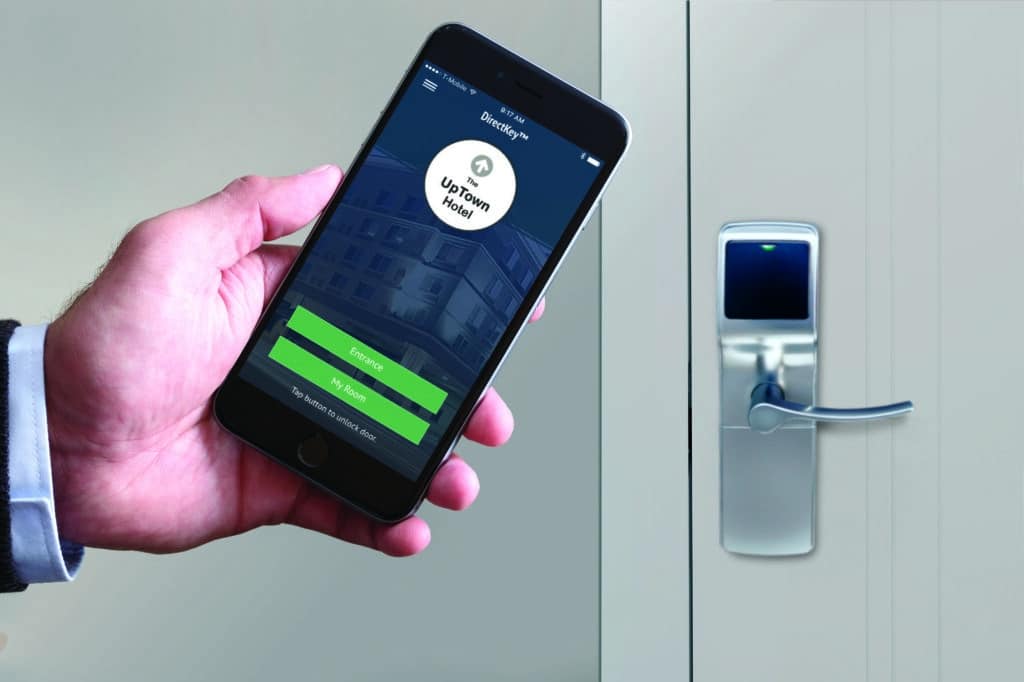

Onity DirectKey with Serene
Designed for luxury hotels, this sleek all-in-one lock allows guests to unlock with the DirectKey mobile access technology. Description: Serene, from Onity, is a sleek all-in-one lock designed both inside and out for luxury hotels. Its small glowing halo of light symbolizes both timeless design and leading-edge DirectKey mobile access technology that allows guests to unlock their room with ease as they approach the door. And, with a range of lever styles and finishes, Serene can be customized to fit the look of any property. This is a lock both technology specialists and designers can easily and securely, totally love. Product Features: Technical Specifications: POWER Power supply 1.5 VDC (4x AA alkaline batteries) Battery Life 2 years normal life Battery Location Inside of the door in electronics module Lock programming and audit records retained during batteryreplacement GENERAL Door Thickness ANSI – 1.57” – 2.16” (40-55 mm); EURO – 1.38” -3.74” (35-95 mm) Minimum Door Stile 6” (152.4 mm) / 2” Solid vertical edge Distance Requirement between strike and face plate: 1/8” to 3/16” ADA Compliant Yes (ANSI, EURO) System Software Compatibility Onity OnPortal BLE Enabled BLE 5 module included, no further upgrade required Supported RFID Standards ISO 14443 A (MIFARE Plus® and MIFARE Ultralight C) User Interface Multi colored light pipe around reader indicates lock status and communication Panic Release Function Inside lever automatically retracts the deadbolt and latch in emergency situations Audit Log Stores last 3000 events Upgradeable Firmware Yes Online Compatibility RMS capable (1-way or 2-way communication) Construction Steel latch construction with an anti-friction mechanism Mechanical Key Override EURO only (key cylinder) Finishes Satin Nickel, Satin Chrome, Polished Chrome, BlackChrome, Satin Brass, Polished Brass, Antique Brass, Dark Bronze Levers Granada, Toledo, Wing. Supports designer levers with8mm square interface. Warranty 2 years ENVIRONMENTAL Operating Temperature -30C to +75C (-22F to +167F) With Alkaline Battery: -10C to +55C (14F to +131F) Storage Temperature -40C to +85C (-40F to +185F) Humidity: +60C/ 95%RH
MAD-401 and MAD-402 Series Addressable Modules 1 & 2 Technical Inputs
A device ideal for the supervision of any signal for fire control panels. Description: The MAD-401 and MAD-402 modules are ideal for the supervising of any signal which may require supervision through a NC or NO contact (for example, the state of a door or a watertight door, or the monitoring of any type of sensors which provide free contact relay). The MAD-401 and MAD-402 modules take the power supply directly from the loop and assign a number of loop addresses according to the number of inputs available in the module. Product Features: Technical Specifications: MODULE Loop Features Operating Voltage From 22 to 38VDC Quiescent current consumption < 300 μA Alarm current consumption 3 mA Technical input through a NC or NO contact (configurable) CONNECTION 2 x 1,5 mm2twisted and shielded cable to a Z-200 base ENVIRONMENT Operating temperature From -10°C to +70°C Relative humidity 95% without condensation IP Index IP40 TECHNICAL FEATURES Size 100 mm x 100 mm x 23 mm Material ABS APPROVALS EN 54-18 and EN 54-17 (only MAD-401-I and MAD-402-I) MAD-401, MAD-402 Certificate number: 0370-CPR-1181 MAD-401-I, MAD-402-I Certificate number : 0370-CPR-1863

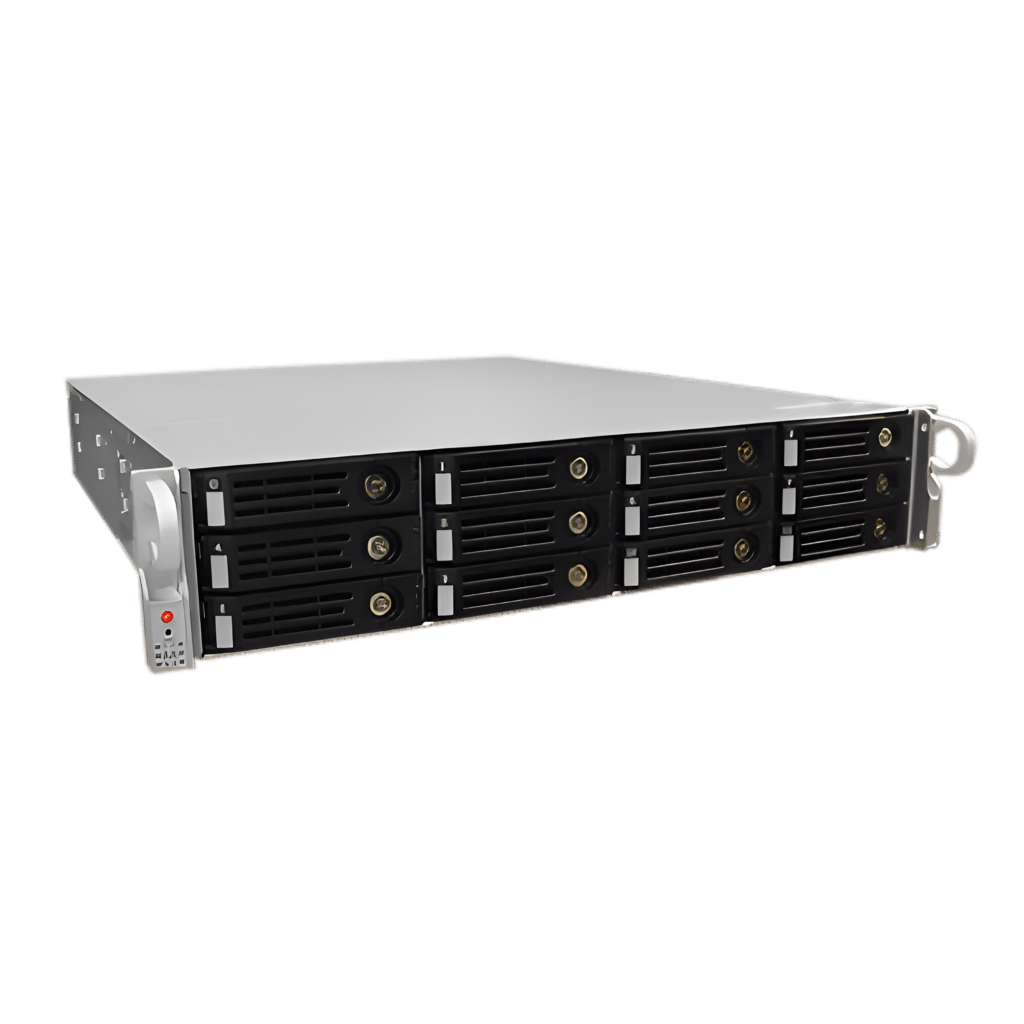

INR 415 256-Channel 12 Bay RAID Backmount Standalone
A network video recorder that can manage up to 256 channels. Product Features: Technical Specification: Model INR-415 Maximum Number of Cameras 256 Maximum Number of Clients Local: 1, Remote: 5 Free License 64 (64 channels for ACTi and 1 channel for third-party video device) Video Resolution Support all ACTi cameras in all resolutions Compression H.265, H.264, MPEG-4, MJPEG Scheduled Recording Yes Event Recording Yes Manual Recording Yes Speed Up Yes Dual Stream Management Yes Recording Throughput 550 Mbps HDD Interface Maximum 2 SATA disks; Options to have empty bays, one 2TB or one4TB storage disk included External Storage Interface iSCSI RAID Level Hardware RAID 0, 1, 5, 6, 10, 50, 60 Digital Zoom Yes Event Status Display event status upon alarm or upon connection loss or recovery between server and client or when the allocated disk space is full Instant Playback Instant Playback in live view window e-Map Yes PTZ Control Yes Playback Control Continuous forward and backward playback with speeds (1/64, 1/32, 1/16, 1/8, 1/4, 1/2, 1, 2, 4, 8, 16, 32, 64, 128, 256) or frame-by-frame, pause, stop Synchronized Playback 9 channels (Local), 64 channels (Remote) Local Access USB joystick, keyboard & mouse Remote Access Workstation, Web Client, Mobile Client Event Trigger [NVR]: Disk full, Disk not found, Disk is available, S.M.A.R.T. Failure and Normal, Schedule service start and stop, Video Push start and stop, Time Backward, CPU limit exceeded for Server PC, CPU limit exceeded for NVR services, GPU Loading Detection for workstation only, Memory limit exceeded for Server PC and NVR services, Network Send/Receive Limit Exceeded for Server PC.[Video Device]: Video motion detection, Passive IR sensor, External device through digital input, Sound detection, Intelligent event detection, Video Push start and stop, Video loss and recovery, Disk Write Failure and Available.[Extended Device]: Point-of-sale (POS) status, Network I/O status, Access Control status Event Response Pop-up window with live video and event confirmation activation, Switch to hotspot window, Switch to customize view, Command a PTZ device to go to a preset point, Play alert sound, Activate external device through digital output, Execute system command to activate other programs, Upload video or snapshot to FTP server, E-mail notification with snapshots, Push notification, Send Snapshot to Line Messenger Permission Control Unlimited number of users, Active Directory, Customizable permissions for user groups, Account lockout, Automatic logout after idle, Playback password protected, Password validity period, Password Expiration Notification Video Export RAW, AVI, MP4, EXE, GPU Hardware accelerated video export supported with AVI format Server Operating System Windows 10 IoT ONVIF Compliant Yes, Profile S (contains the officially ONVIF conformant software NVR 3 Corporate) Operating Temperature 0°C ~ 40°C (32°F ~ 104°F) Approvals CE Class B, FCC Class B, BSMI

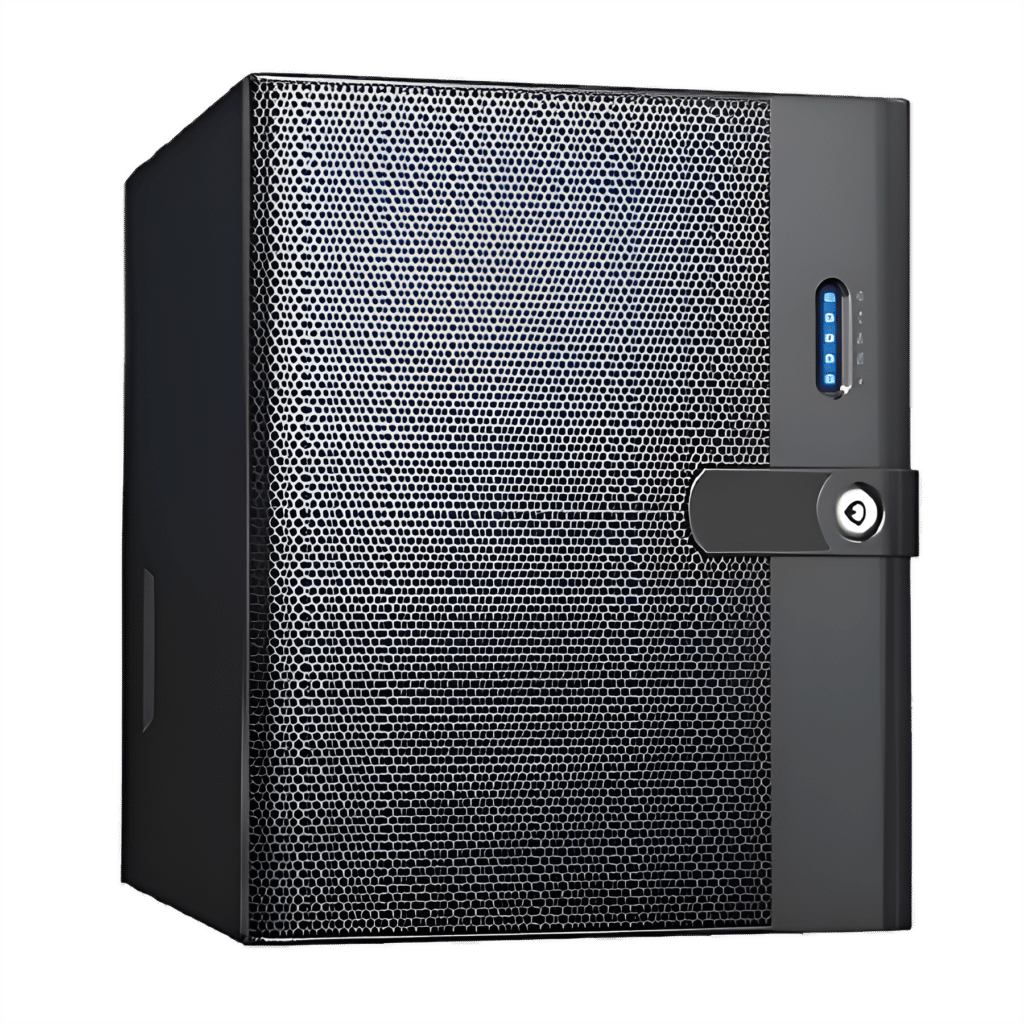

GNR 340 100-Channel Tower Strandalone
A network video recorder that can manage up to 72 channels and can be expanded to host 5 HDDs. Product Description:Record from and manage up to 100 cameras with the GNR-340 72-Channel Tower Standalone NVR (No HDD) from ACTi. This recorder can be expanded to host five HDDs up to 18TB each for a maximum internal capacity of 90TB. Compliance with ONVIF profile S ensures interoperability with ONVIF IP cameras. Product Features: Technical Specification: Model GNR-340 Maximum Number of Cameras 100 Maximum Number of Clients Local: 1, Remote: 4 Free License 32 (32 channels for ACTi and 1 channel for third-party video device) Video Resolution Support all ACTi cameras in all resolutions Compression H.265, H.264, MPEG-4, MJPEG Scheduled Recording Yes Event Recording Yes Manual Recording Yes Speed Up Yes Dual Stream Management Yes Recording Throughput 180 Mbps HDD Interface Maximum 2 SATA disks; Options to have empty bays, one 2TB or one4TB storage disk included External Storage Interface iSCSI, USB RAID Level No Digital Zoom Yes Event Status Display event status upon alarm or upon connection loss or recovery between server and client or when the allocated disk space is full Instant Playback Instant Playback in live view window e-Map Yes PTZ Control Yes Playback Control Continuous forward and backward playback with speeds (1/64, 1/32, 1/16, 1/8, 1/4, 1/2, 1, 2, 4, 8, 16, 32, 64, 128, 256) or frame-by-frame, pause, stop Synchronized Playback up to 225 layout grids** Local Access USB joystick, keyboard & mouse Remote Access Workstation, Web Client, Mobile Client Event Trigger [Video Device]: Video motion detection, Passive IR sensor, External device through digital input, Sound detection, Intelligent event detection, Video Push start and stop, Video loss and recovery, Disk Write Failure and Available.[Extended Device]: Point-of-sale (POS) status, Network I/O status, Access Control status Event Response Pop-up window with live video and event confirmation activation, Switch to hotspot window, Switch to customize view, Command a PTZ device to go to a preset point, Play alert sound, Activate external device through digital output, Execute system command to activate other programs, Upload video or snapshot to FTP server, E-mail notification with snapshots, Push notification, Send Snapshot to Line Messenger Permission Control Unlimited number of users, Active Directory, Customizable permissions for user groups, Account lockout, Automatic logout after idle, Playback password protected, Password validity period, Password Expiration Notification Video Export RAW, AVI, MP4, EXE, GPU Hardware accelerated video export supported with AVI format Server Operating System Windows 10 IoT ONVIF Compliant Yes, Profile S (contains the officially ONVIF conformant software NVR 3 Corporate) Operating Temperature 0°C ~ 40°C (32°F ~ 104°F) Approvals CE, FCC, UL (for built-in power adapter)

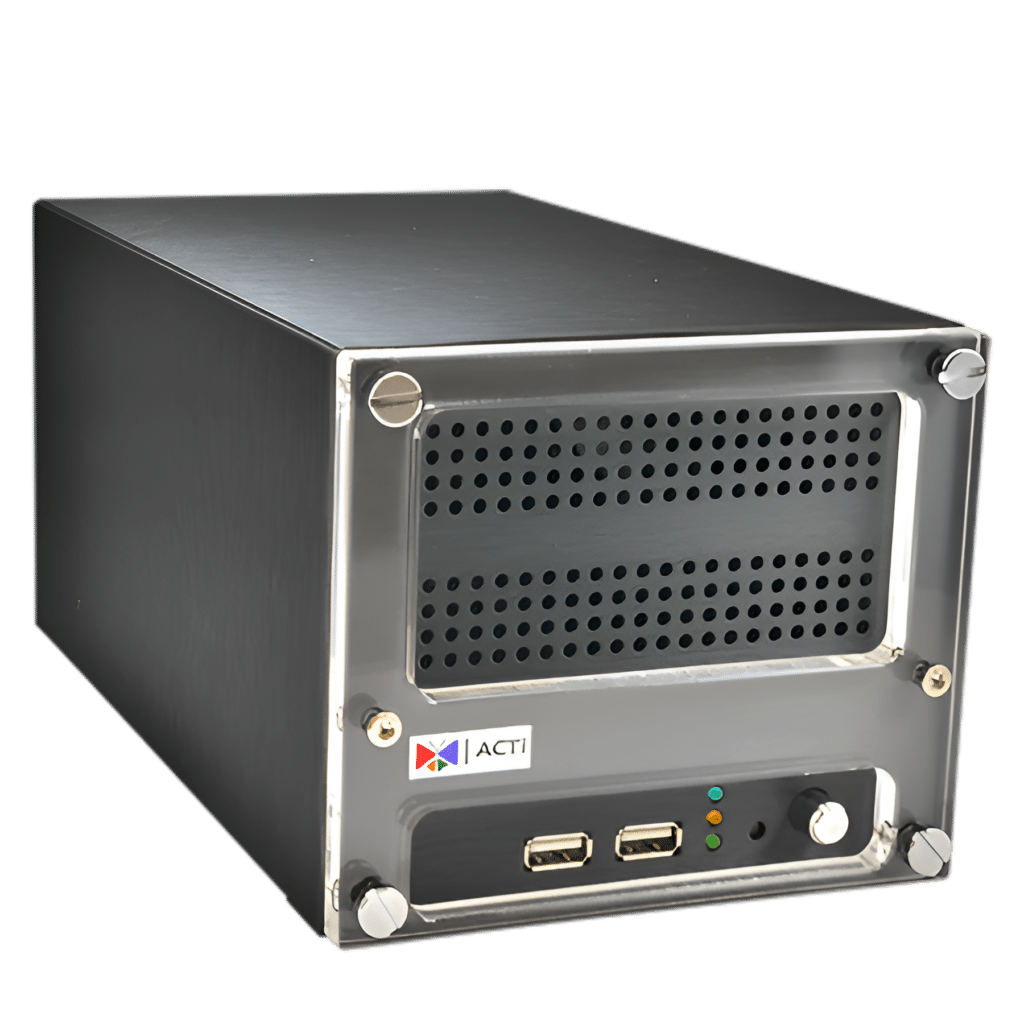

ENR 130 16-Channel Desktop Standalone NVR- No HDD Included
high-performance network video recorder that can accommodate up to 16 channels. Product Description:Stream and record up to 16 channels of video with this ACTi ENR-130 4MP/10MP Standalone NVR. The recorder allows simultaneous access to one local client and two remote clients, supporting up to 4MP on a local display and up to 10MP on a remote display. When viewing live video you can choose among a variety of display modes to monitor some or all of the connected cameras at the same time. Pan, tilt, and zoom controls with speed settings offer remote control of PTZ cameras, joystick control being supported via the recorder’s dual USB 2.0 interface. Two HDD bays, each with a 10TB capacity, provide the NVR with a total storage capacity of 20TB (HDDs available separately). H.264 formatting optimizes bandwidth and storage usage. Product Features: Technical Specification: Model ENR-130 Maximum Number of Cameras 16 Maximum Number of Clients 1 local, 2 remote Free License 16 Video Resolution Up to 4-Megapixel (Local display),Up to 10-Megapixel (Remote display) Compression H.264 Scheduled Recording Yes Event Recording Yes Manual Recording Yes Speed Up Yes Dual Stream Management Yes Recording Throughput 48 Mbps HDD Interface Maximum 2 SATA disks; Options to have empty bays, one 2TB or one4TB storage disk included External Storage Interface No RAID Level No Digital Zoom Yes Event Status Display event status upon alarm or upon connection loss or recovery between server and client Instant Playback Instant Playback in live view window(Remote client) e-Map No PTZ Control Yes Playback Control Continuous forward and backward playback with speeds0.5x/1x/2x/4x/8x/16x/32x; pause; stop Synchronized Playback 16 channels Local Access HDMI monitor, USB keyboard & mouse Remote Access Web Client (IE),Mobile Client (iOS & Android) Event Trigger Video motion detection; External device through digital input; Network loss and recovery Event Response Record video; Beep; Digital output;E-mail with snapshots; Event logging;Go to PTZ preset point Permission Control Unlimited number of users,Customizable permissions for usergroups Video Export USB Server Operating System Embedded Linux Client PC Operating System Windows 8, Windows 7 PC Web Browser IE 9, IE 10, IE 11 ONVIF Compliant Yes Operating Temperature 0°C ~ 40°C (32°F ~ 104°F) Approvals CE, FCC

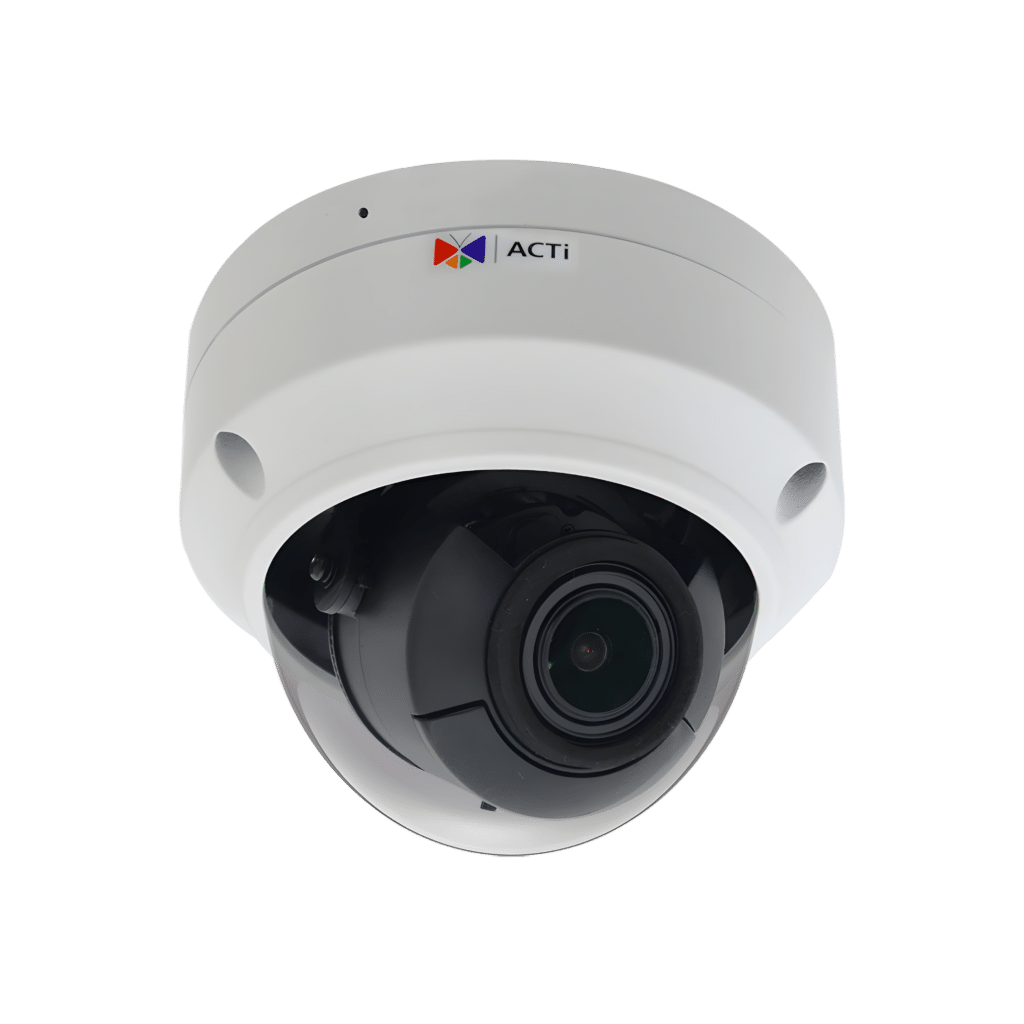

Z86 Outdoor Network Dome Camera with Night Vision
Designed both for indoor and outdoor use, this surveillance camera has a wide area coverage and two-way audio. Product Description:Monitor an indoor or outdoor area with the Z86 4MP Network Dome Camera from ACTi. This unit uses a 1/3″ progressive scan CMOS image sensor to capture 2688 x 1520 resolution video at 25 fps. Two adaptive IR LEDs provide up to 131′ of night vision. The camera’s 2.8-12mm varifocal lens delivers a 102.1 to 30.7° horizontal field of view. A built-in microphone enables the camera to pick up audio. An onboard memory card slot accepts microSD/SDHC/SDXC cards up to 256GB (available separately). Integrated PoE technology simplifies connectivity by transferring data and power through a single cable. Product Features: Technical Specification: KEY SPECS Image Sensor 1/3″-Type CMOS Focal Length 2.8 to 12mm Field of View Horizontal: 102.1 to 30.7°Vertical: 54.5 to 16.9° Pan/Tilt No Built In Microphone Yes Power I/O 1x DC1x RJ45 IMAGING Number of Lenses 1 Image Sensor 1.3”-Type CMOS Sensor Resolution Effective: 4 Megapixels IR Cut Filter Yes Mechanical Day/Night Yes EXPOSURE CONTROL Minimum Illumination 0.003 Lux (Color)0 Lux (Black and White) LENS Focal Length 2.8 to 12mm Optical Zoom Ratio 4.3x Field of View Horizontal: 102.1 to 30.7°Vertical: 54.5 to 16.9° Maximum Aperture f/1.6 VIDEO Automatic Gain Control Yes Max IP Streaming via RJ452688 x 1520 up to 25 fps2304 x 1296 up to 30.00 fps Multi-View Streaming Yes, 2 Streams CONTROL Camera Angle Adjustment Horizontal: 3 to 360°Vertical: 0 to 70° Pan/Tilt No NETWORKING Security HTTPS, IP Address Filtering, Password Protection Supported Protocols ARP, DDNS, FTP, HTTP, ICMP, IPv4/v6, NTP, ONVIF Profile G, PPPoE, QoS Layer 3 DiffServ, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), TCP, UDP, UPnP, ONVIF Profile G, ONVIF Profile S, ONVIF Profile T INTERFACE Media/Memory Card Slot Single Slot: microSD/microSDHC/microSDXC[256 GB Maximum] Other I/O 1x RJ45 1- or 2-Way Audio One-Way Audio Formats G.711 Built-In Speaker Yes SYSTEM INTEGRATION Analytics Camera Sabotage/Tampering, Virtual-Line Crossing Detection, Intrusion Detection, Motion Detection (4-Zones), Audio Detection SENSORS & ALARMS Event Trigger Yes Event Action Recording, Notification, Alarm Alarm I/O No POWER Power I/O 1x DC1x RJ45 Power Consumption PoE: 7.5 W GENERAL Material Construction Metal, Plastic Environmental Resistance Dust/Water-Resistant (IP68) Impact Resistance Impact-Resistant (IK10) Operating Conditions -22 to 140°F / -30 to 60°C at 10 to 95% Humidity Illumination 2x 850 nm IR LEDs up to 131.2′ / 40 m Mobile App Compatible No Dimensions (W x H x D) 5 x 3.9″ / 128 x 100 mm Weight 1.7 lb / 775 g (Body Only)
Z49 4MP Zoom Bullet with D/N, Adaptive IR, Superior WDR, SLLS, 4.3x Lens
A bullet-style surveillance camera with Wide Dynamic Range and can trigger notifications/alarms to the user. Product Description:Monitor an indoor or outdoor area with the Z49 4MP Network Bullet Camera from ACTi. This unit uses a 1/3″ progressive scan CMOS image sensor to capture 2688 x 1520 resolution video at 25 fps. Three adaptive IR LEDs provide up to 164′ of night vision. The camera’s 2.8-12mm varifocal lens delivers a 102.1 to 30.7° horizontal field of view. A built-in microphone enables the camera to pick up audio. An onboard memory card slot accepts microSD/SDHC/SDXC cards up to 256GB (available separately). Integrated PoE technology simplifies connectivity by transferring data and power through a single cable. Product Features: Technical Specification: DEVICE Product Type Speed dome Maximum Resolution 4 MP Environment Outdoor Image Sensor Progressive scan CMOS Sensor Size 1/3″ Day & Night Yes Low Light Sensitivity Superior Minimum Illumination Color: 0.003 lux at F1.6 (AGC on); B/W: 0 (IR LED on) Mechanical IR Cut Filter Yes IR LED Adaptive IR LED x 3 (850 nm) IR Working Distance 50m Electronic Shutter 1-1/100000 second (manual mode); 1-1/100000 second (auto mode) S/N Ratio 75 dB For more info visit www.acti.com

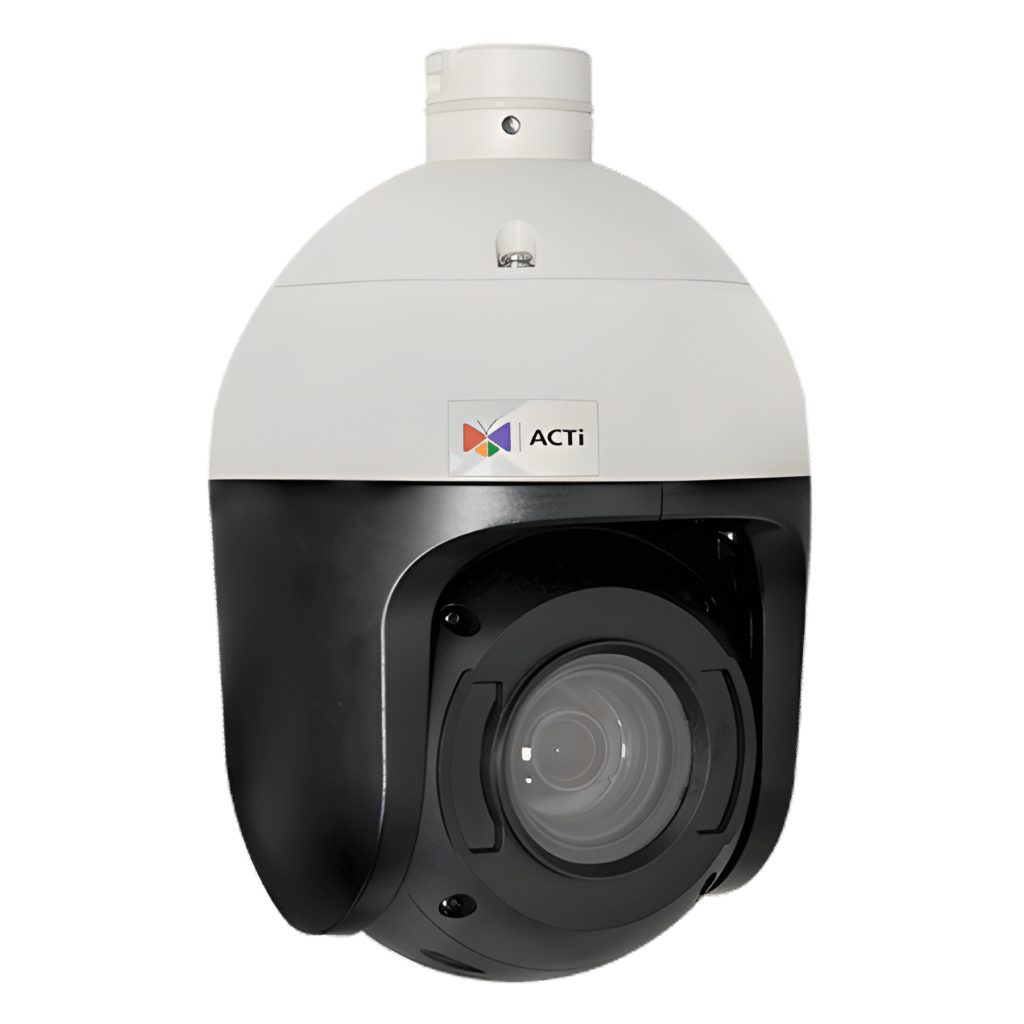

I915 2MP Outdoor PTZ Network Dome Camera with Night Vision and Heater
A pan-tilt-zoom surveillance camera that can capture videos up to 60fps. Product Description:The I915 2MP Outdoor PTZ Network Dome Camera with Night Vision & Heaterfrom ACTi has a 1/2.8″ progressive scan CMOS sensor to capture 1920 x 1080 resolution video at up to 60 fps. Its 4.6-165.6mm varifocal lens delivers a 62.7-2.7° horizontal field of view. Additionally, PTZ functionality delivers 360° endless panning, a -20-200° tilting range, and 36x optical zoom. Two-way audio communication is possible thanks to a line input and output. A built-in card slot supports microSDHC/SDXC cards. microSDHC/SDXC are available separately. Integrated PoE technology simplifies connectivity by transferring data and power over one cable. Product Features: Technical Specification: DEVICE Product Type Speed dome Maximum Resolution 2 MP Environment Outdoor Image Sensor Progressive scan CMOS Sensor Size 1/2.8″ Effective Pixels 1945 x 1097 / 2.13 MP Day & Night Yes Low Light Sensitivity Extreme Minimum Illumination Color: 0.1 lux at f/1.55, 30 IRE, 2400KB&W: 0 lux at f/1.55 with IR LED on D/N Switch ISP-based switch, configurable Mechanical IR Cut Filter Yes IR Sensitivity Range 700 to 1100 nm IR Wavelength 850 nm Number of IR LEDs 6 x adaptive IR LEDs IR Working Distance 492′ / 150 m Electronic Shutter Manual Mode: 1/32,000 to 1/5 secondsAuto Mode: 1/32,000 to 1/5 seconds Horizontal Resolution (TV Lines) 1800 TVL S/N Ratio 56 dB For more info visit www.acti.com

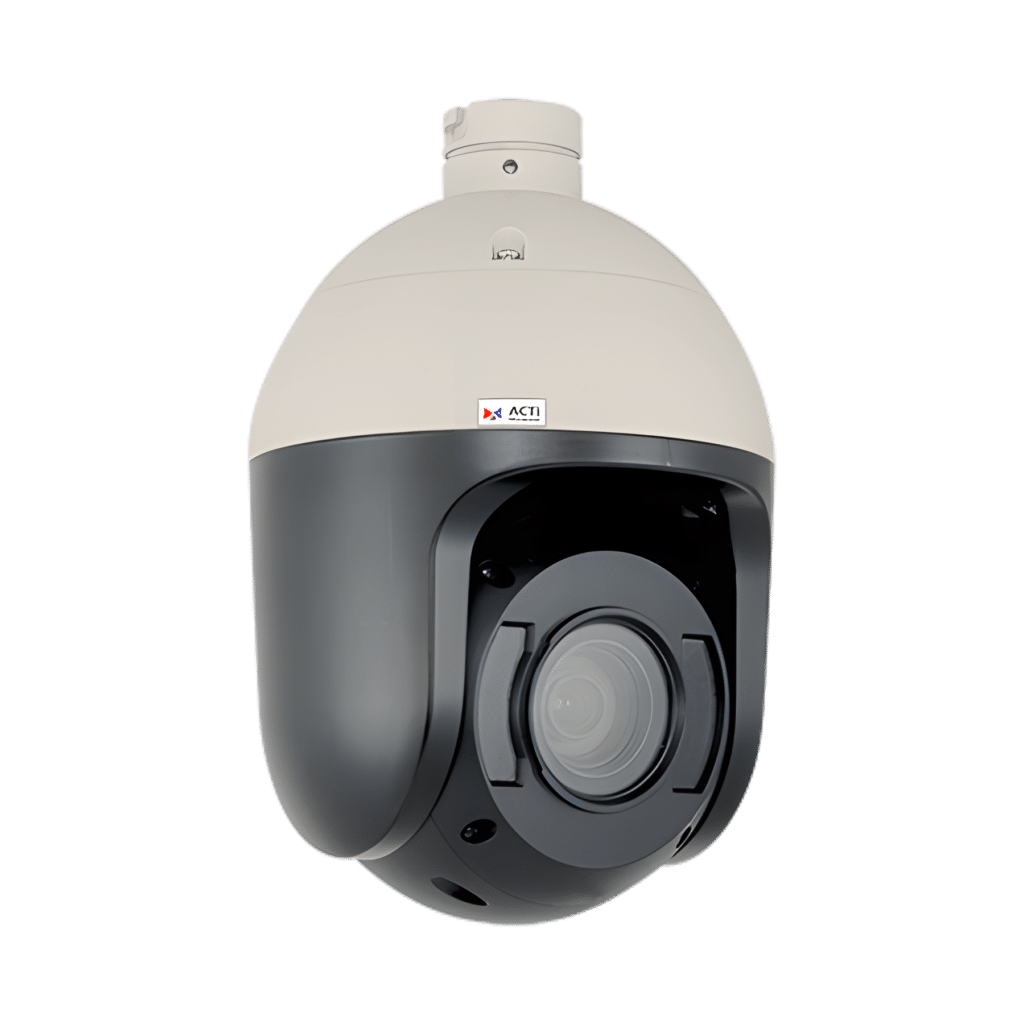

B928 5MP Outdoor PTZ Network Speed Dome Camera with Night Vision
A pan-tilt-zoom surveillance camera with 36x optical zoom and extreme Wide Dynamic Range for clearer imaging. Product Description:The B928 5MP Outdoor PTZ Network Speed Dome Camera from ACTi features a 4.6-165.6mm varifocal lens for 36x optical zoom. Utilizing a 1/2.9″ progressive scan CMOS sensor, the camera captures images at a maximum resolution of 2592 x 1944. The camera uses H.264, H.265, and MJPEG compressions to maximize storage and bandwidth efficiency, and a memory card slot supports microSD cards for on-site recording and storage. It also features a mechanical IR cut filter and IR LEDs for night vision up to 492′. Image enhancements include extreme WDR, white balance, brightness, contrast, saturation, sharpness, AGC, 2D & 3D digital noise reduction, flickerless, defogging, and digital image stabilization. Product Features: Technical Specification: KEY SPECS Image Sensor 1.3”-Type CMOS Focal Length 4.6 to 165.6mm Field of View Horizontal: 64.3 to 2.04°Vertical: 39.62 to 1.62° Pan/Tilt ProgrammedPan: 360° (-180 to 180°) at 300°/s Tilt: 220° at 150°/s Built In Microphone No IMAGING Number of Lenses 1 Image Sensor 1.3”-Type CMOS Sensor Resolution Effective: 5 Megapixels IR Cut Filter Yes Mechanical Day/Night Yes EXPOSURE CONTROL Minimum Illumination 0.05 Lux (Color)0.005 Lux (Black and White) LENS Focal Length 4.6 to 165.6mm Optical Zoom Ratio 36x Field of View Horizontal: 64.3 to 2.04°Vertical: 39.62 to 1.62° VIDEO Automatic Gain Control Yes Max IP Streaming via RJ452592 x 1944 up to 30.00 fps Multi-View Streaming Yes, 3 Streams CONTROL Pan/Tilt ProgrammedPan: 360° (-180 to 180°) at 300°/s Tilt: 220° at 150°/s NETWORKING Security Anonymous Authentication, HTTPS, IEEE 802.1X, IP Address Filtering, Password Protection Supported Protocols ARP, DDNS, FTP, HTTP, ICMP, IPv4/v6, NTP, ONVIF Profile G, PPPoE, QoS Layer 3 DiffServ, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), TCP, UDP, UPnP INTERFACE Media/Memory Card Slot Single Slot: microSD/microSDHC/microSDXC[64 GB Maximum] Audio I/O Two-Way Audio Formats G.711 Built-In Mic No Built-In Speaker No SENSORS & ALARMS Event Trigger Yes Event Action Notification, Alarm GENERAL Impact Resistance Impact-Resistant (IK10) Operating Conditions -40 to 131°F / -40 to 55°C at 10 to 85% Humidity Startup Temperature -40 to 131°F / -40 to 55°C Illumination IR LEDs up to 98.4′ / 30 m

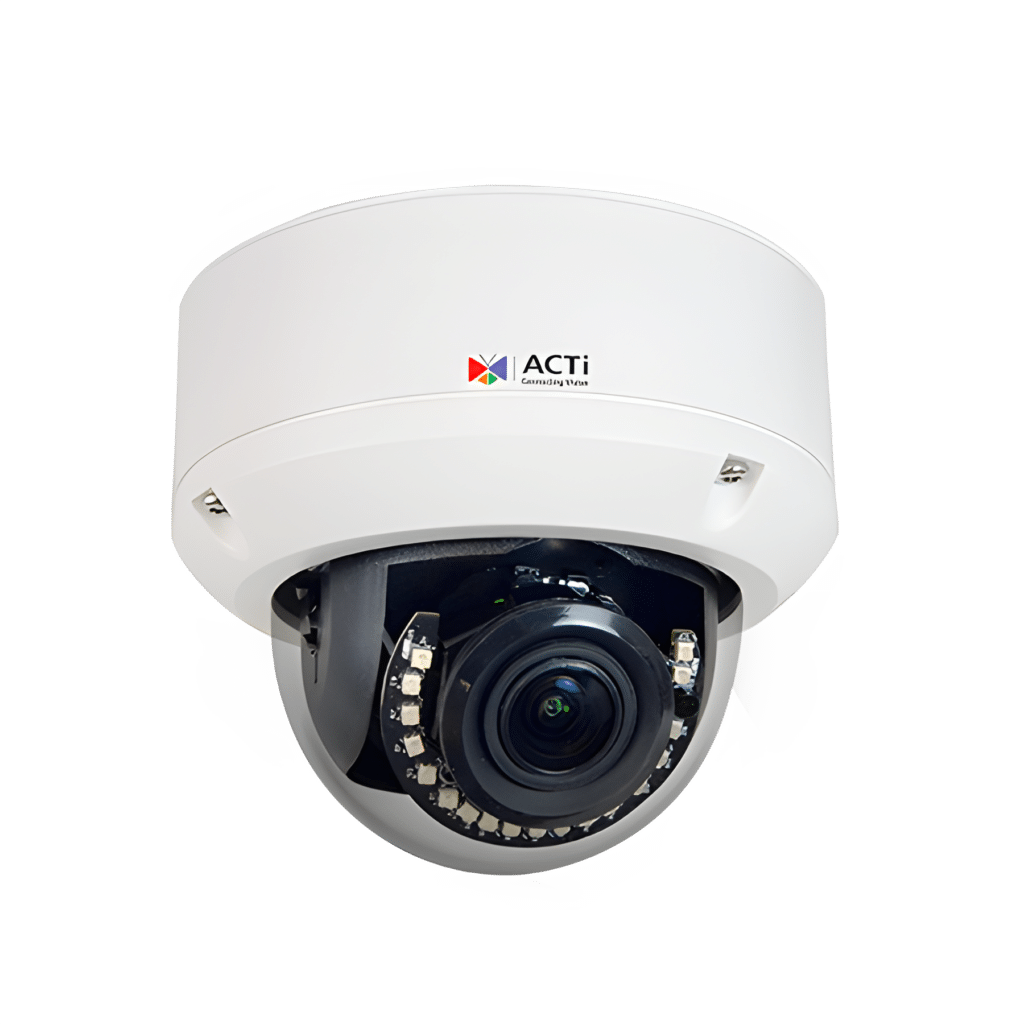

A817 8MP Outdoor Network Dome Camera
Designed both for indoor and outdoor use, this surveillance camera has a high resolution to clearly capture images even at night. Product Description:Monitor an indoor or outdoor area with the white A817 8MP Network Dome Camera from ACTi. This unit uses a 1/2.8″ progressive scan CMOS image sensor to capture 3840 x 2160 resolution video at 30 fps. An adaptive IR LED provides up to 98′ of illumination in low-light conditions. The camera’s 2.8-12mm varifocal lens delivers a 103.6 to 31.1° horizontal field of view. Two-way audio is possible thanks to an audio input and output. A built-in memory card slot accepts microSD/SDHC/SDXC cards up to 256GB (available separately). Integrated PoE technology simplifies connectivity by transferring data and power through a single cable. Product Features: Technical Specification: KEY SPECS Image Sensor 1.28”-Type CMOS Focal Length 2.8 to 12mm Field of View Horizontal: 103.6 to 31.1°Vertical: 56.8 to 17.4° Pan/Tilt No Power I/O 1x DC 1x RJ45 IMAGING Number of Lenses 1 Image Sensor 1.28”-Type CMOS Sensor Resolution Effective: 8 Megapixels IR Cut Filter Yes Mechanical Day/Night Yes EXPOSURE CONTROL Minimum Illumination 0.05 Lux (Color)0.005 Lux (Black and White) LENS Focal Length 2.8 to 12mm Optical Zoom Ratio 4.3x Field of View Horizontal: 103.6 to 31.1°Vertical: 56.8 to 17.4° Maximum Aperture f/1.3 VIDEO Automatic Gain Control Yes Max IP Streaming via RJ453840 x 2160 up to 30.00 fps Multi-View Streaming Yes, 3 Streams CONTROL Camera Angle Adjustment Horizontal: 0 to 360°Vertical: 0 to 90 Pan/Tilt No NETWORKING Security Anonymous Authentication, HTTPS, IEEE 802.1X, IP Address Filtering, Password Protection Supported Protocols ARP, DDNS, FTP, HTTP, ICMP, IPv4/v6, NTP, ONVIF Profile G, PPPoE, QoS Layer 3 DiffServ, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), TCP, UDP, UPnP, ONVIF Profile G, ONVIF Profile Q, ONVIF Profile S, ONVIF Profile T INTERFACE Media/Memory Card Slot Single Slot: microSD/microSDHC/microSDXC[256 GB Maximum] Audio I/O 1x Block Input1x Block Output Other I/O 1 x RJ45 1- or 2-Way Audio Two-Way Audio Formats G.711 SYSTEM INTEGRATION Analytics Camera Sabotage/Tampering SENSORS & ALARMS Event Trigger Yes Event Action Recording, Notification, Alarm POWER Power I/O 1x DC 1x RJ45 Power Consumption PoE: 12.95 W GENERAL Environmental Resistance Dust/Water-Resistant (IP67) Impact Resistance Impact-Resistant (IK10) Operating Conditions -40 to 122°F / -40 to 50°C Startup Temperature -4 to 122°F / -20 to 50°C Illumination IR LEDs up to 98.4′ / 30 m Mobile App Compatible No Dimensions (W x H x D) 5.5 x 5.1″ / 139.4 x 130 mm Weight 2.7 lb / 1231 g (Body Only)
