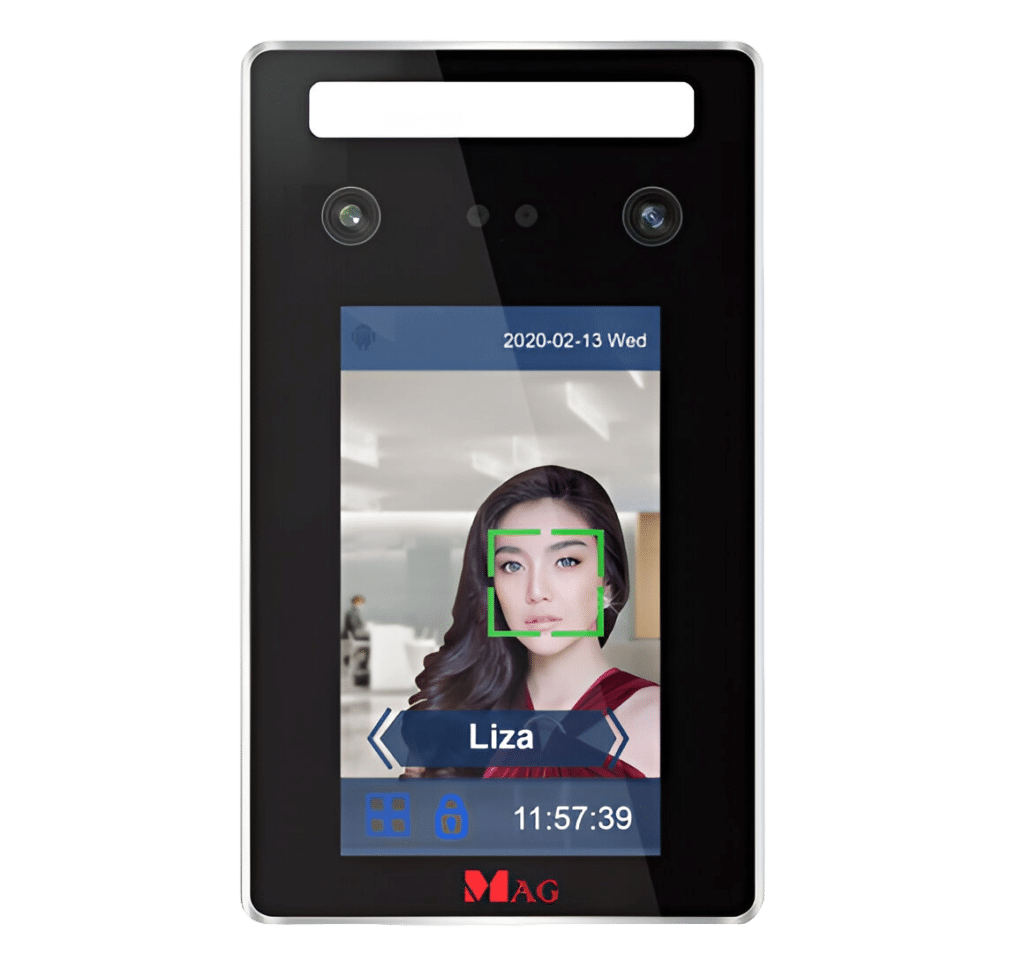

FR300 Face Recognition Reader
A mid-level face recognition reader suitable for door access and pedestrian access. Product Description: MAG FR300 face recognition reader is a dynamic face recognition reader built with an advanced face tracking algorithm for faster and more accurate dynamic face detection. The modern, compact and slim design with premium finishes make it easy to fit into any commercial premises either for door access or pedestrian access. It is suitable for use in pedestrian gate or door access for office buildings, school, hospital, airport, condominium, factory, etc. Product Features: Technical Specifications: User ID/ Face Capacity 10,000 Event Record Capacity 1,000,000 Access Mode Dynamic Face Recognition, PINFace Recognition + PIN Face Recognition Mode 1:1, 1:N Validation Display Name & Number Real Time Face Detection < 0.2sec Intelligent Function Infrared Live Person Identification Detection Facial Scanning Range Purely Dynamic Face Recognition: 0.5-3mInfrared Live movement detection: 0.5-1.5m Dual Camera ColorSense camera and IRSense camera Dual Light Smart LED light and infrared light Display Screen 5 inch smart touch screen Operating System LINUX False Rejection Rate (FRR) <= 0.1% False Approval Rate (FAR) <= 0.001% Relay Output Lock Relay OutputAlarm Relay Output Relay Input Door sensor U-Disk Output Yes Push Button Input Yes Communication Interface RS485, RS232,TCP/IP External Wiegand Port Yes, WG26/34 Output/Input Power Supply DC 12V,1A Working Temperature -15°C to 60°C Casing Aluminum alloy Dimension (L x W x H) 110mm x 20mm x 185mm User ID/ Face Capacity 10,000 Event Record Capacity 1,000,000 Access Mode Dynamic Face Recognition, PINFace Recognition + PIN Face Recognition Mode 1:1, 1:N Validation Display Name & Number Real Time Face Detection < 0.2sec Intelligent Function Infrared Live Person Identification Detection Facial Scanning Range Purely Dynamic Face Recognition: 0.5-3mInfrared Live movement detection: 0.5-1.5m Dual Camera ColorSense camera and IRSense camera Dual Light Smart LED light and infrared light Display Screen 5 inch smart touch screen Operating System LINUX False Rejection Rate (FRR) <= 0.1% False Approval Rate (FAR) <= 0.001% Relay Output Lock Relay OutputAlarm Relay Output Relay Input Door sensor U-Disk Output Yes Push Button Input Yes Communication Interface RS485, RS232,TCP/IP External Wiegand Port Yes, WG26/34 Output/Input Power Supply DC 12V,1A Working Temperature -15°C to 60°C Casing Aluminum alloy Dimension (L x W x H) 110mm x 20mm x 185mm

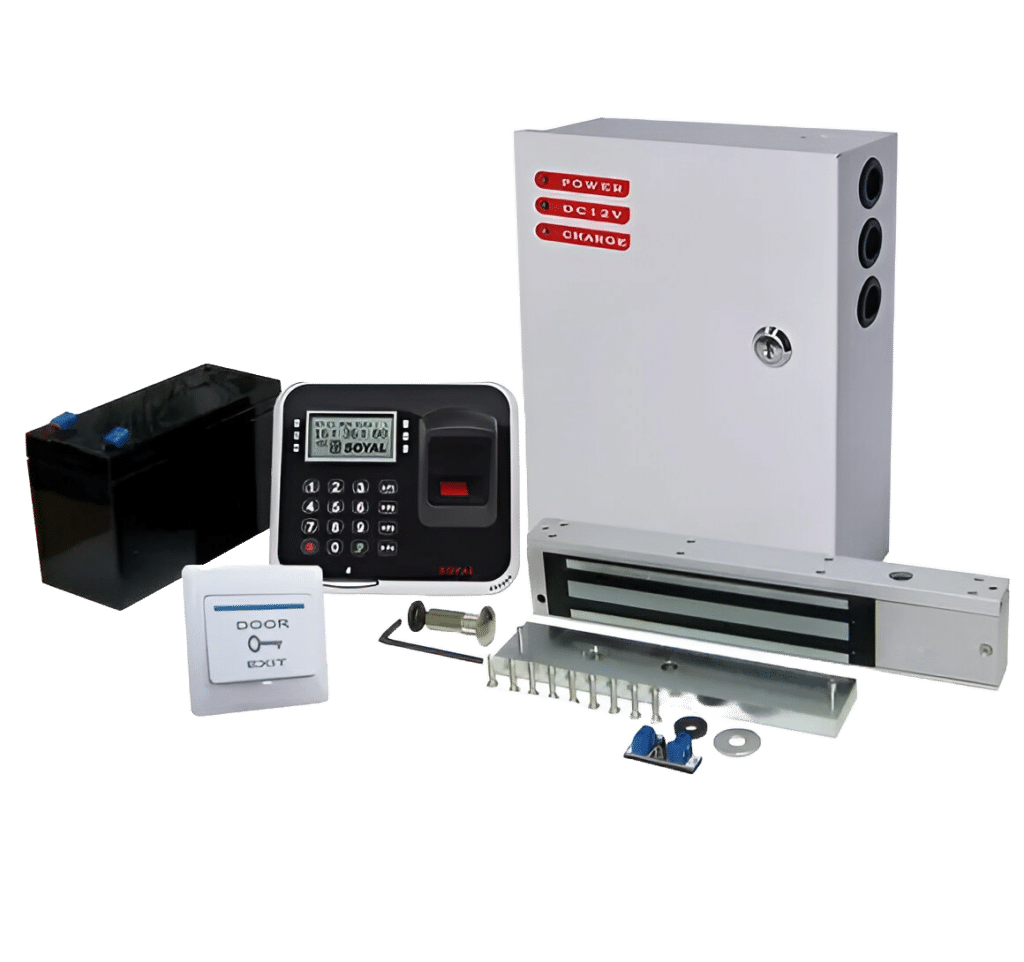

DF1A Fingerprint with Optical Sensor
A door access control system that requires fingerprint authentication and uses a robust optical sensor. Product Description: DF1A is an optical fingerprint door access control system with a time attendance function. DF1A increases door access security by requiring fingerprint authentication. Fingerprint access reader design using optical sensors is more robust and less prone to damage by vandalism. DF1A is ideal for offices, factories or any commercial building that require cost effective and reliable fingerprint access control solutions. Ordering Info: Quantity Equipment 1 pcs Soyal AR837EF_OS fingerprint reader 1 pcs NVS1230P power supply w/ backup battery 1 pcs EM lock 600 lb 1 pcs Exit push button

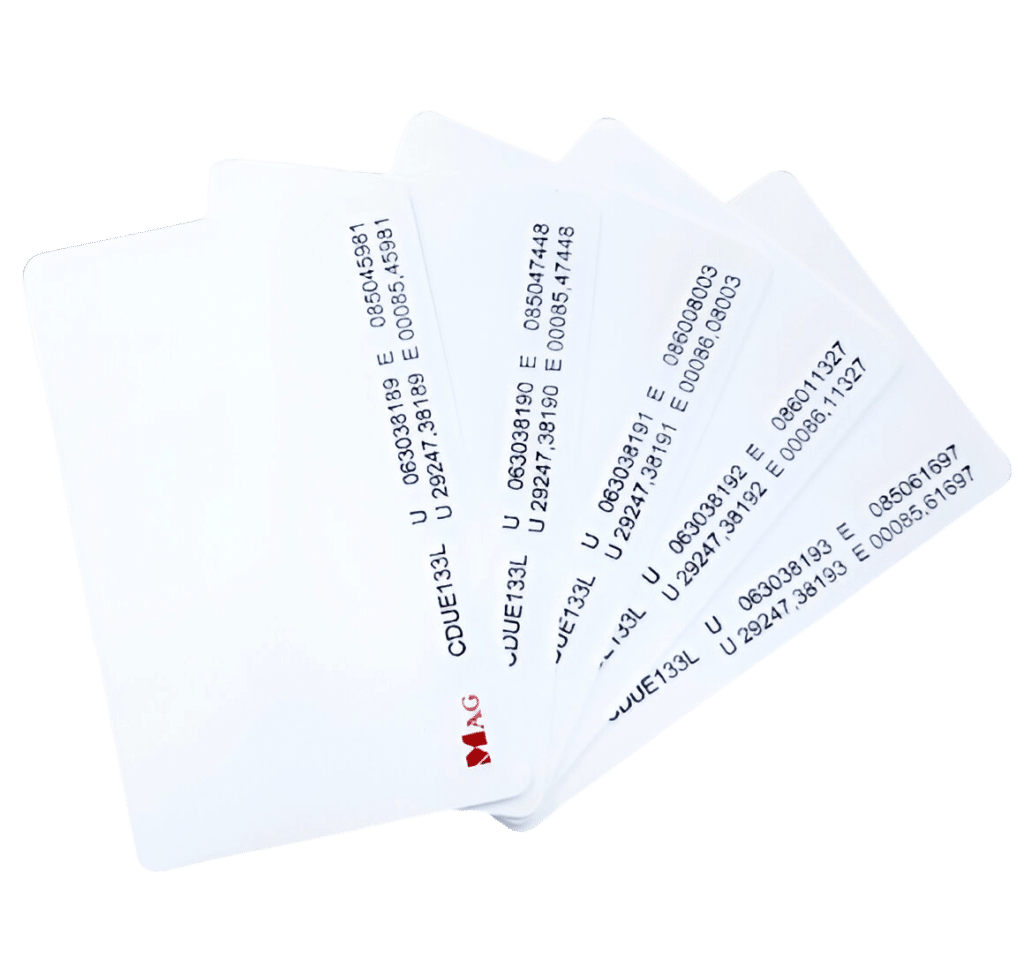

CDUE133L UHF & EM Hybrid Card
A dual frequency keycard with 0.84mm thickness and can be used for AR300U Xclone UHF long-range reader. Product Description: CDUE133L is a dual-frequency card. UHF (Anti clone) and EM (125Khz) 0.84mm thickness. Printed wiegand number on card. Program cards to the system are easier with a printed number. It can be used for AR300U Xclone UHF long-range reader Technical Specifications: Dual Frequency UHF 919-923MHz and EM 125Khz Printed Number UHF Wiegand 26/34, EM Wiegand 26/34 Dimension 85 x 55 x 0.84mm Weight 6g Printing on Card Yes Color White Material PET Reading Distance 10-18 cm

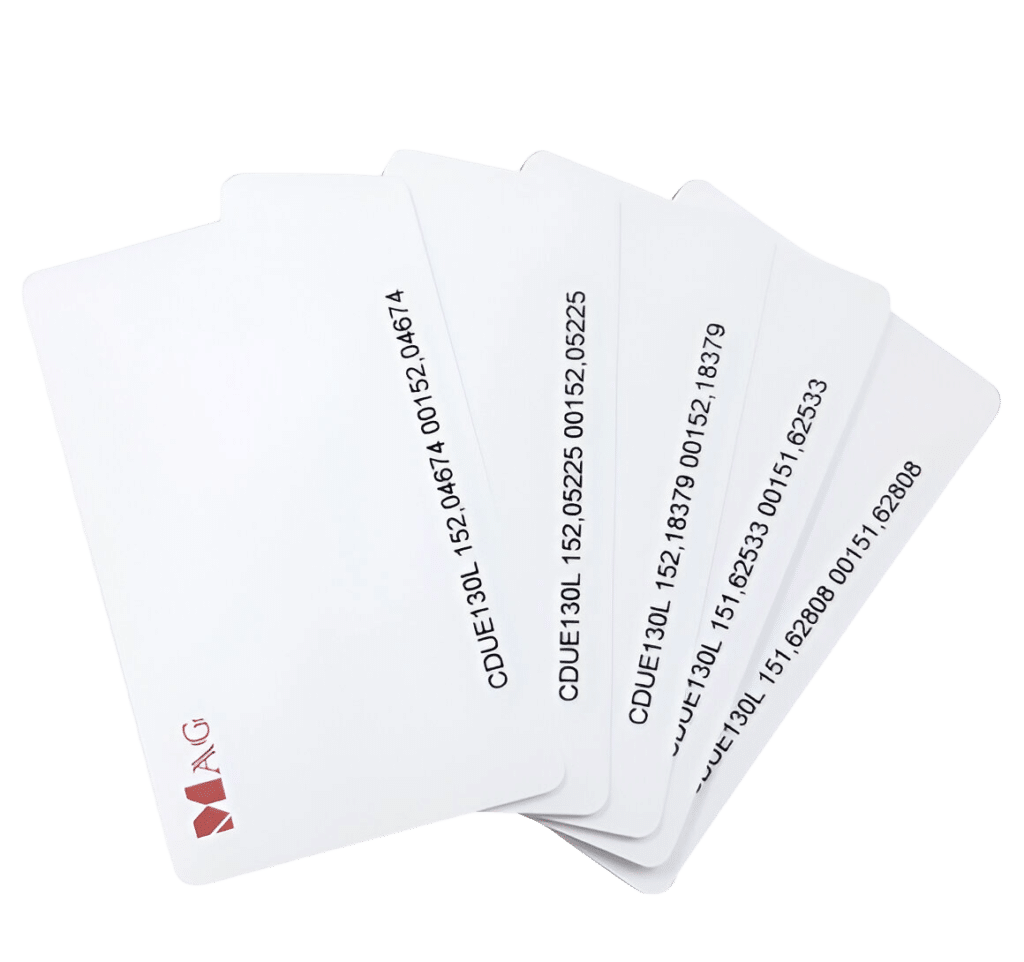

CDUE130L Dual Frequency UHF & EM Hybrid Card
A dual frequency keycard with 0.84mm thickness and can be used for AR300U mid range readers. Product Description: CDUE130L is a dual frequency card. UHF and EM (125Khz) have the same card number. 0.84mm thickness. Printed wiegand number on card. Program card to the system are easier with a printed number. Can be used for AR300U UHF mid range reader or other UHF reader. Technical Specifications: Dual Frequency UHF 919-923MHz and 125Khz Printed Number UHF Wiegand 26/34, EM Wiegand 26/34 Dimension 85 x 55 x 0.84mm Weight 6g Printing on Card Yes Color White Material PET Reading Distance UHF: 200-600 cm; EM: 5-10cm

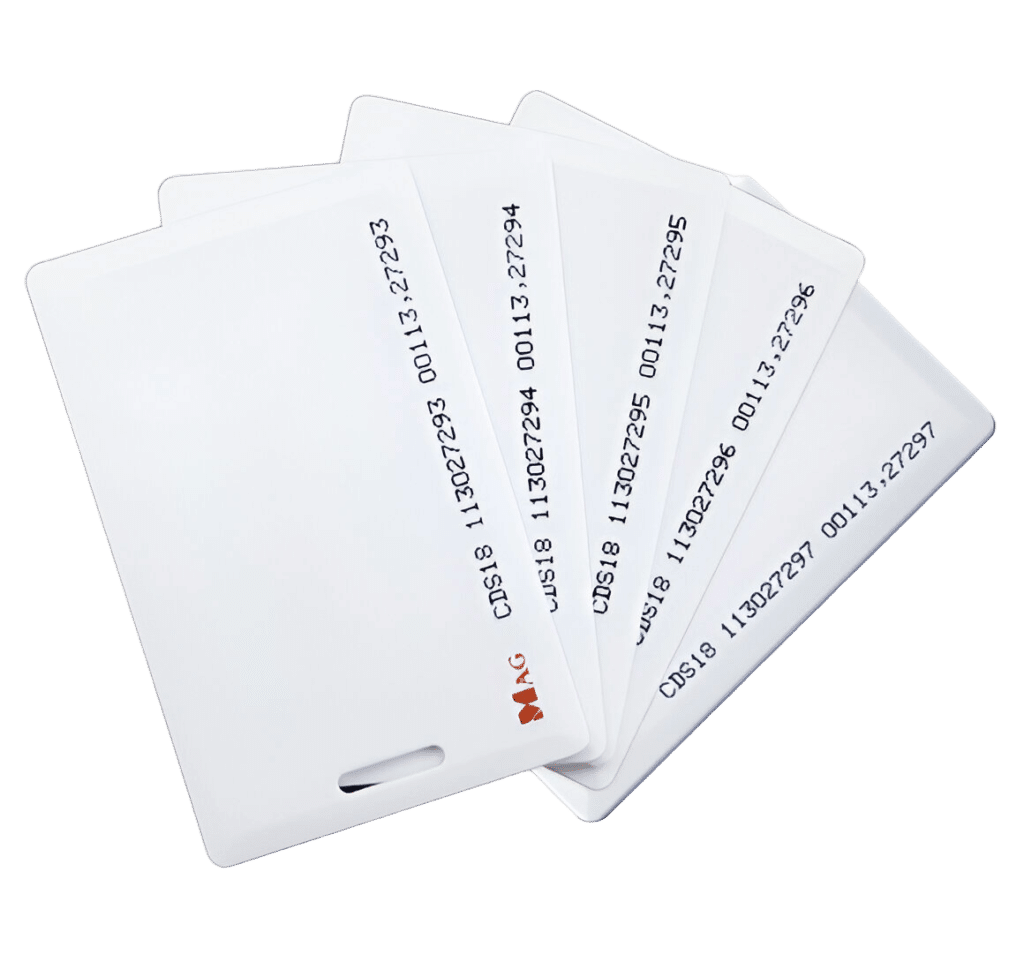

CDS18 EM Proximity Card
A 125Khz proximity card with 1.8mm thickness. Product Description: CDS18 is a 125Khz proximity card. 1.8mm thickness. Printed wiegand number. Program card to system is easier with a printed number. Technical Specifications: Frequency EM 125KHZ Printed Number ABA40/ Wiegand 26 Dimension 85 x 55 x 1.8mm Weight 11g Printing on Card Yes Color White Reading Distance 5-10

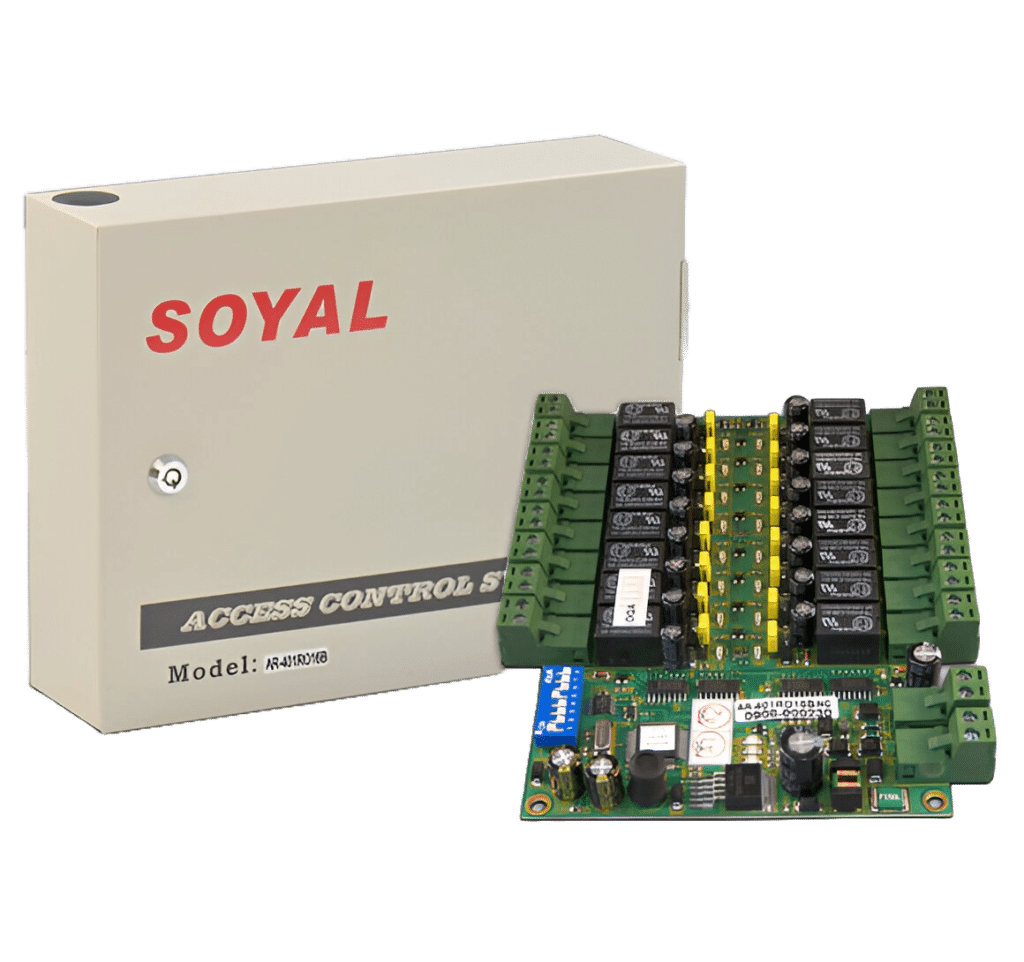

AR401RO16 16-Channel Digital Output Module
Designed to accommodate up to 16 channels, this card reader can connect up to 16 lift levels. Product Description: AR401R016 is a 16 channel relay interface to connect up to 16 lift levels. Multiple AR401R016 can be looped together via RS485 bus to achieve more than 16 floors. All relays are NC by default. Upon power up, all relay will become NO. Card access reader will instruct AR4016R016 lift relay to open designated relay depending on the floor allowed for access permission. Product Features: Technical Specifications: Power supply 10-24VDC Power consumption 8W Communication interface RS-485 Data transfer rate RS-485: 9600 bps/ 19200 bps (N, 8, 1) Channel 16 form C relay output Indicator Power; TX/RX; relay (on/off) Real time clock No Housing material metal Dimension (mm) 180 (L) x 231 (W) x 62 (H) Weight (g) 1780+- 10

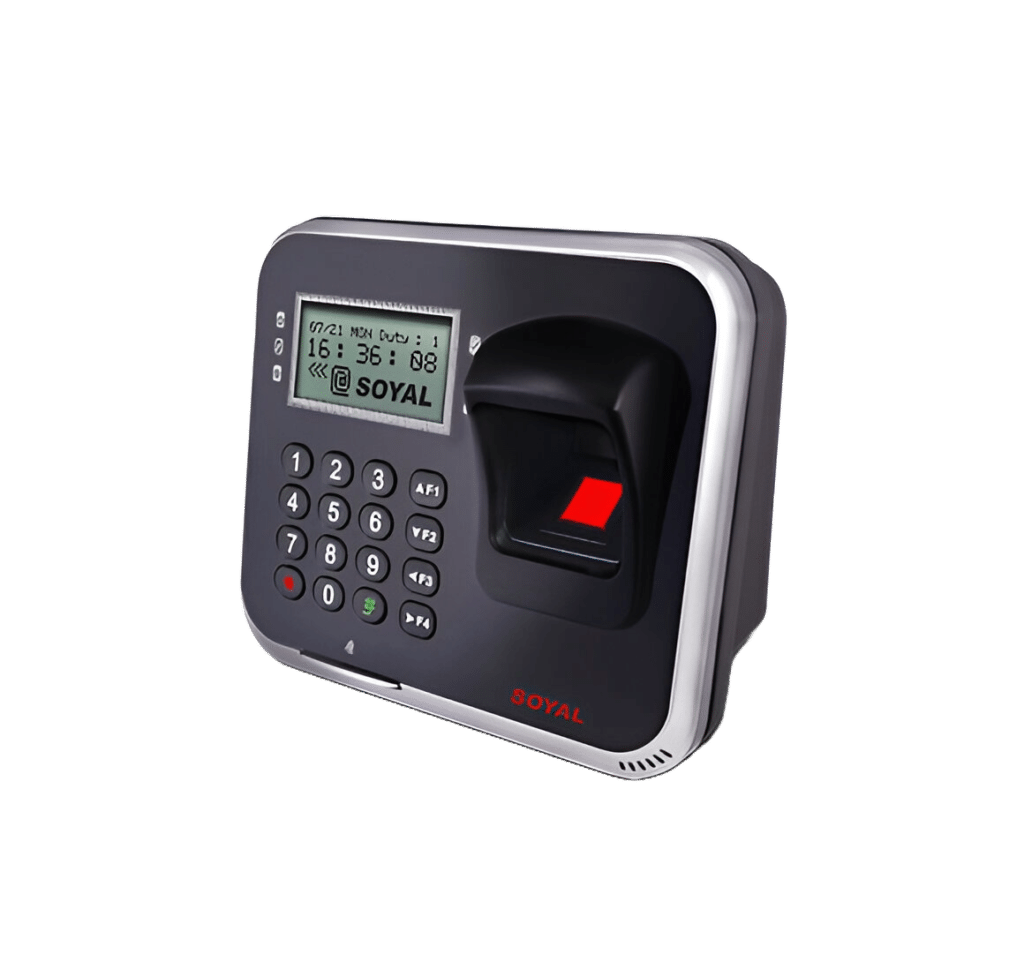

AR837EF Direct TCPIP Fingerprint with LCD & Keypad Panel
A contemporary door access that has a manual keypad, LCD panel, and fingerprint biometric access. Product Description: High performance fingerprint reader built in LCD screen and keypad, support 125Khz & 13.56Mhz. RS485 & TCPIP interface. 0.8 sec identification time. 16K card users. 32K event memory. 9000 fingerprint (2 fingers per user). Product Features: Technical Specifications: Model AR837EF Card user 16,000 card users Event memory 32,000 Time zone 63 Holiday per year 120 Door group 255 Anti-passback YES (Local anti-passback) Alarm function Door sensor input for force entrance and door open too long Duress function 4 duress code pin number LCD screen for AR837EF only Graphical big LCD 128 x 64(4 line message, 16 character per line) External weigand port Yes, WG26/WG34 Push button input YES Access modePin only for AR837EF Fingerprint only*Card only/ Card or PIN/ Card + PIN Fingerprint sensor Optical sensor OS 1:1000 identification time 700 msec FRR <0.01% Fingerprint module CPU 400 MHz DSP Image size 384 Bytes Fingerprint capacity 9,000 templates (each user 2 templates) Sensor size (mm) 63 (L) x 43 (W) x 10(H) Encryption 256 bit AES (fingerprint data protection) Card reading range EM 5-8cm & Mirfare 2-5cm Relay output 1 x Door relay output1 x Alarm relay output Door unlock travel time interval Toggle, 0.1 – 600 sec Alarm relay timer Toggle, 0.1 – 600 sec Communication interface RS485 & TCPIP Serial port RS485, 9600, N, 8, 1 Ethernet TCPIP 10/100M Base T Power consumption 10 to 18VDC, Less than 5W Operating temperature 0°C to 50°C AR837EF dimension & weight 128 x 147 x 65mm (LxWxH), 520g AR8371EF dimension & weight 151 x 81 x 73mm (LxWxH), 330g

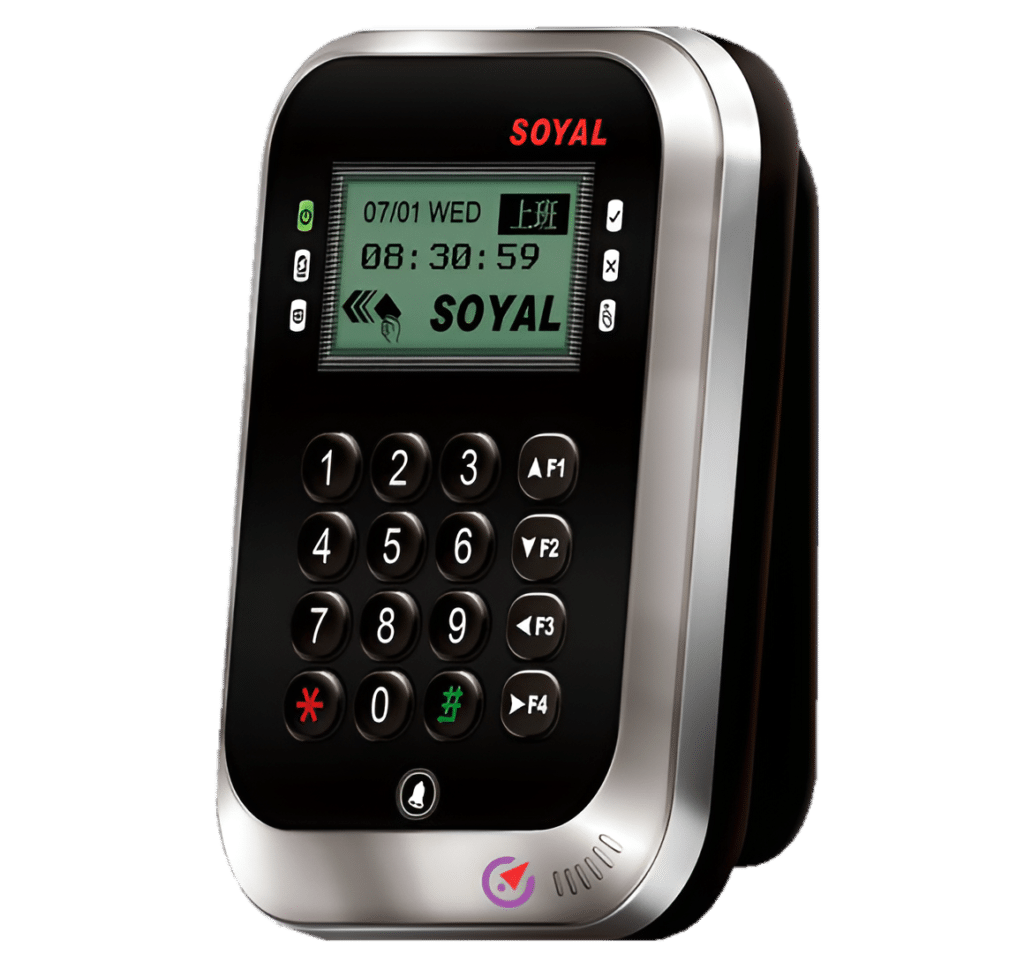

AR837E Direct TCPIP LCD and Keypad Panel
A metallic and compact door access with manual keypad and large LCD design. Product Description: AR837E is a card access reader typically installed at the door to restrict unauthorized access. It reads EM or Mifare proximity cards. It supports RS485 and TCPIP connection, 16,000 users and 32000 event memory. It has a built-in touch panel keypad and LCD screen. Product Features: Technical Specifications: Model AR837E Frequency Dual frequency EM125KHz and 13.56 Mhz Standard Dual standard EM and Mifare ISO14443A Reading Range( Depends on Tags ) 5-15cm2-5cm Power Supply 10-24VDC Power consumption <5W Communication Interface RS-485 or Ethernet Baud Rate 9600 bps(N,8,1) or 10/100M Ease T Temperature -10。C to +60。C Digital Input Egress(R.T.E.) / Door contact x 2 Relay Output Alarm Relay / Lock Relay Lock Relay Time ON/OFF, 0.1-600 Sec. Alarm Time Toggle, 1-600 Sec. Tamper Switch Limit Switch (Form C) User Capacity 16,000 Event log 32,000 External Reader 1 Weigend Port Anti-pass-back Yes Lift Control 64 Floor, 16,000 Users Serial port Yes Real Time Clock Yes Transistor Output Arming LED/Alarm/ Duress/WG Lock Relay / Security trigger signal LCD Panel 128*64 (4 Lines message, 16 Character each line) Indicator 6 LED & 1 Beeper Keypad Material Illuminated Rubber Housing Material ABS By Order Module AR-MDL-721V (Voice Module); ar-837i (TPC/IP)AR-WG-HID (HID RF Module) Door Bell Button Yes Time Zone 63 Operation Mode Standalone/ Networking Color Black / Silver Dimensions (mm) 133(L)X96(W)X25(H) Weight (g) 230±10

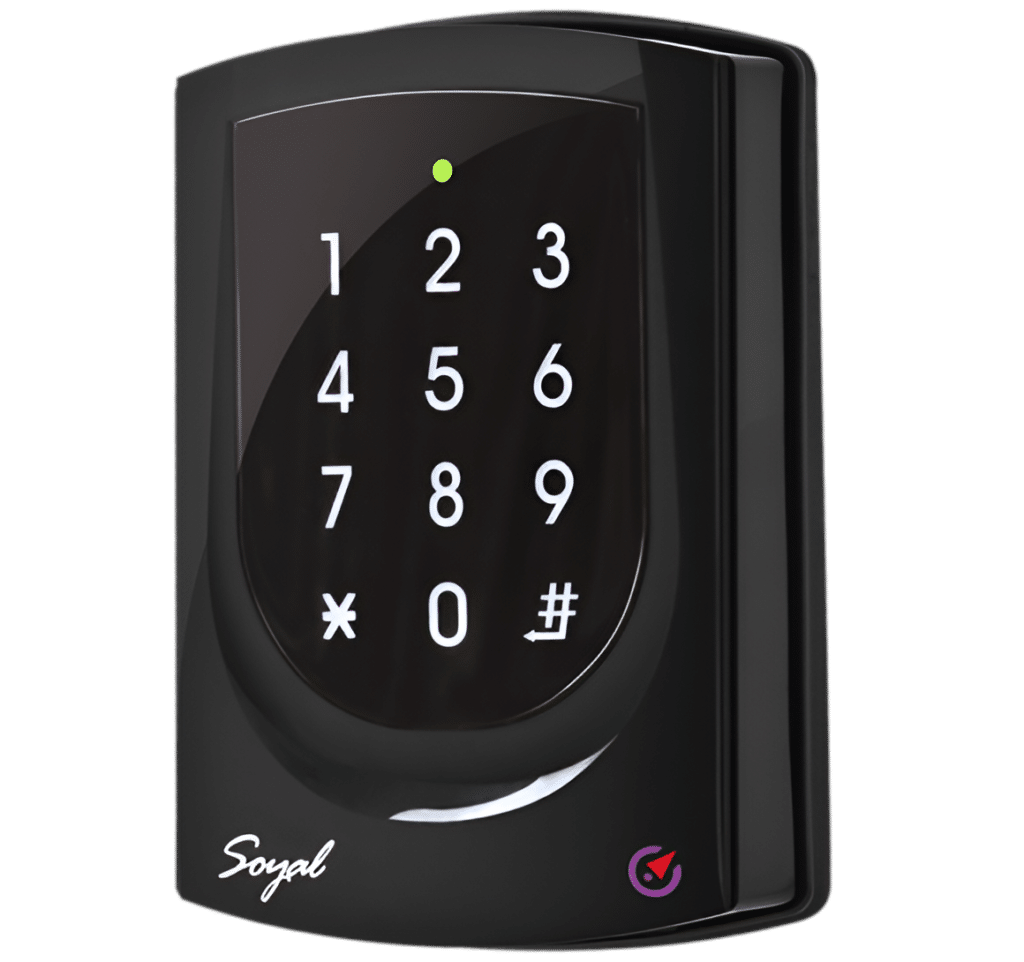

AR725E Direct TCPIP Illuminated Touch Keypad Panel
A shiny silverblack door access with built-in touchpad and patented anti-vibration relay. Product Description: AR725E is a card access reader typically installed at the door, pedestrian gate and barrier gate to restrict unauthorized access. It reads EM or Mifare proximity cards. It supports RS485 and TCPIP connection, 16,000 users and 32000 event memory. It has a built-in touch panel keypad. Product Features: Technical Specification: Model AR725E AR725E_M Frequency 125KHz 13.56MHz Standard Em Standard Mifare ISO14443A Reading Range(Depends on Tags) 5-15cm 2-5cm Power Supply 10-24VDC Power consumption <5W Baud Rate RS-485 + Ethernet Temperature 9600 bps (N, 8, 1) or 10/100M Base T Digital Input Egress (R. T. E.)/ Door contact x2 Relay Output Lock Relay Lock Relay Time ON/OFF, 0.1-600 Sec. Alarm Time Toggle, 1-600 Seec. Tamper Switch Limit Switch (Form C) User Capacity 16,000 Event Log 32,000 External Reader 1 Weighted Port Anti-passback Yes Lift Control 64 Floor, 16,000 Users Serial Port Yes Real Time Clock Yes Transistor Output Arming LED/Alarm/Duress/WG Lock Relay/Security Trigger signal Ingress Protection IP55 Indicator 1 Bi-Color LED &1 Beeper Keypad Material Illuminated Touch Panel Housing Material PC (V2)/ Zinc Alloy + PC (V2-M) Time Zone 63 Operation Mode Standalone/ Networking Color Black/ Gray/ SilverOption: White/ Blue/ Green/ Yellow/ Orange/ Red Dimensions (mm) 110 (L) x 179 (W) x 26 (H) (V2)125 (L) x 89 (W) x 30 (H) (V2-M) Weight (g) 165 ± 10 (V2) / 510 ± 10 (V2-M)

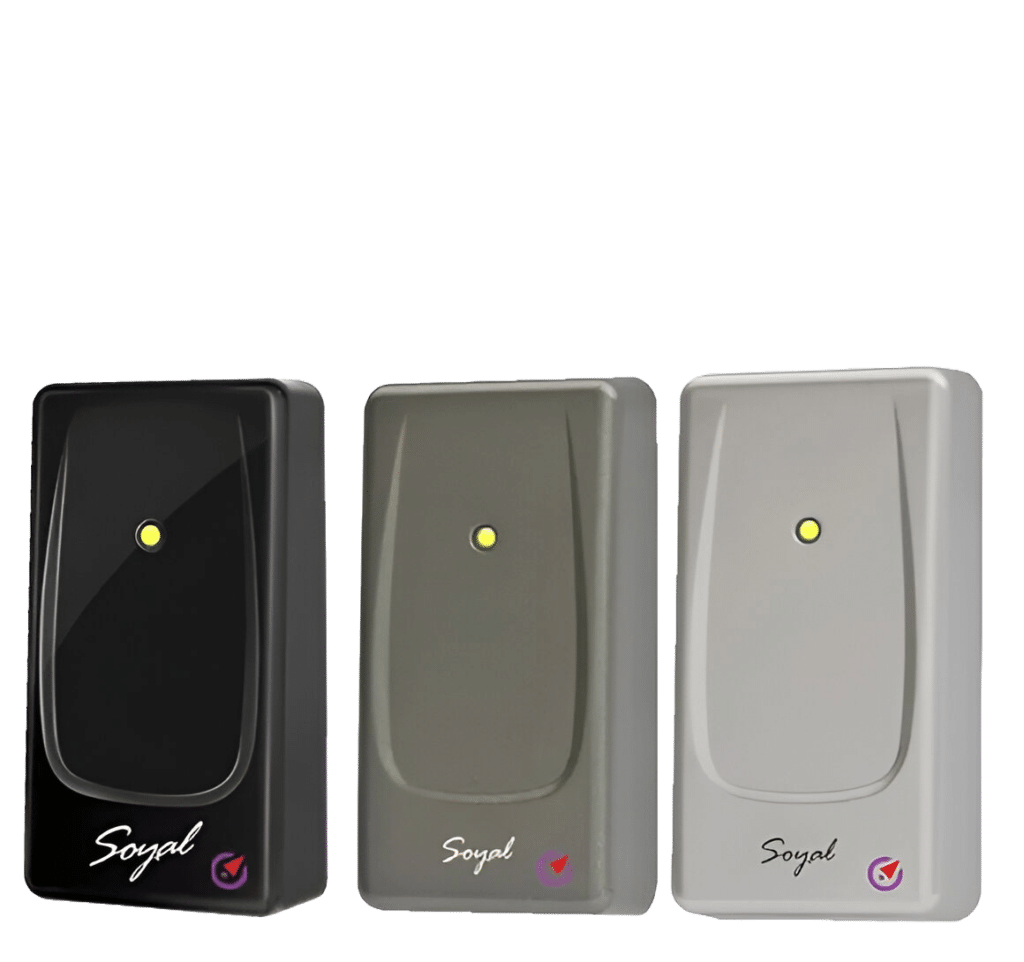

AR723U Soyal Wiegand Readers
Designed to be used together with the main card reader as exit reader for anti-passback function. Product Description: Minimalistic design allows it to look simple but elegant. Easily blend into any interior design. Dark SilverBlack color concept further enhanced the modern contemporary impression of your office. Compact mini size allows it to easily fit into a narrow door frame with limited space. Product Features: Technical Specification: Model AR723HN AR723HN_M Frequency 125KHz 13.56MHz Standard Em Standard Mifare ISO14443A Reading Range(Depends on Tags) 5-15cm 2-8cm Power Supply 19-16VDC Power consumption <1W Baud Rate 9600 bps (N, 8, 1) Temperature -20°C t o +60°C Digital Input Egress (R. T. E.)/ Door contact x2 Relay Output External Relay Lock Relay Time ON/OFF, 0.1-600 Sec. Alarm Time Toggle, 1-600 Seec. Tamper Switch Limit Switch (Form C) User Capacity 1,024 Event Log 1,200 External Reader 1 Weighted Port Anti-passback Yes (M4/M8 Only) Lift Control 32 Floors, 1,024 Users Serial Port Yes (M4/M8 Only) LCD Panel No Transistor Output Arming LED (or Security trigger signal)/ Alarm/ Duress Ingress Protection IP56 (Optional) Indicator 1 Bi-Color LED &1 Beeper Keypad Material No (Option: AR-WG-KEYBOARD-M) Housing Material ABS Time Zone 11/63 (Connect to Multi-Door Networking Controller) Operation Mode Standalone/ Networking Color Black Dimensions (mm) 81 (L) x 43 (W) x 18 (H) Weight (g) 40 ± 5 60 ± 5
