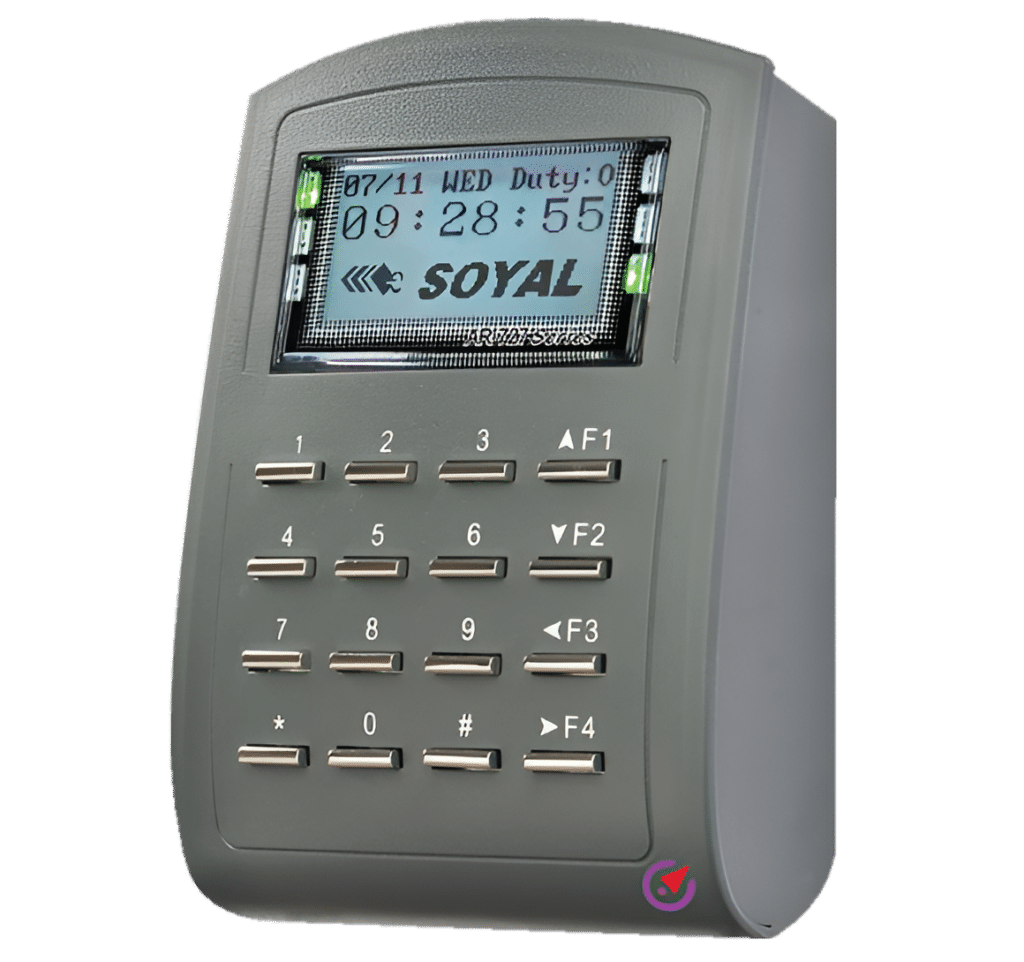

AR727H Standard Controller with Built-In Reader
A cost-effective door access with manual keypad, LCD screen, and easy to use software. Product Description: SOYAL Standard system is the most affordable, best value PC based door, turnstile, parking and elevator access control system in the market. Effectively control who (card user) can enter where (door group) at what time (time zone) using what method(card and/or pin). Product Features: Technical Specification: Built-In Operation Mode M4 M6 M8 Card User 1024 65,536 1024 Event Memory 1200 NONE 1200 Time Zone/ Holiday 11/120 NONE 11/120 Anti-passback YES NONE YES Alarm (tamper, force entry & door open too long) YES NONE YES Elevator Control 1024 users,32 floors NONE 1024 users,32 floors Direct PC Software YES NONE YES Multi reader networking with AR716E YES NONE YES Access Mode Card only, card or pin, card and pin Access Pin Number Format 5 digit user num + 4 digit pin Public pin4 digit User pin4 digit Big LCD Screen Resolution 128 x 64 | 4 text lines with 16 characters each line Wiegand Port 1 input port (selectable WG26 or 34) Push Button Input 1 negative trigger input Alarm Sensor Input 1 negative trigger input Door Output (Dry Contact) 0.1-600 sec N.O/N.C, max 24V-1A Alarm Output (Open Collector) 0.1-600 sec, active low output Reader RF Frequency 125KHz or Mifare 13.56MHz Reading Range Approx 10cm (4 inch) Data Communication RS485-9600bps (N, 8, 1) Power Consumption 10-24V, less than 3W Dimension, Weight 126 (H) x 91 (W) X 46 (D) mm, 210 gram AR721U Wiegand Specification RF frequency 125KHz or Mifare 13.56MHz Reading range 5cm Power Consumption 9-16V, less than 1.5W Dimension, Weight 113 (H) x 71 (W) X 36 (D) mm, 90 gram

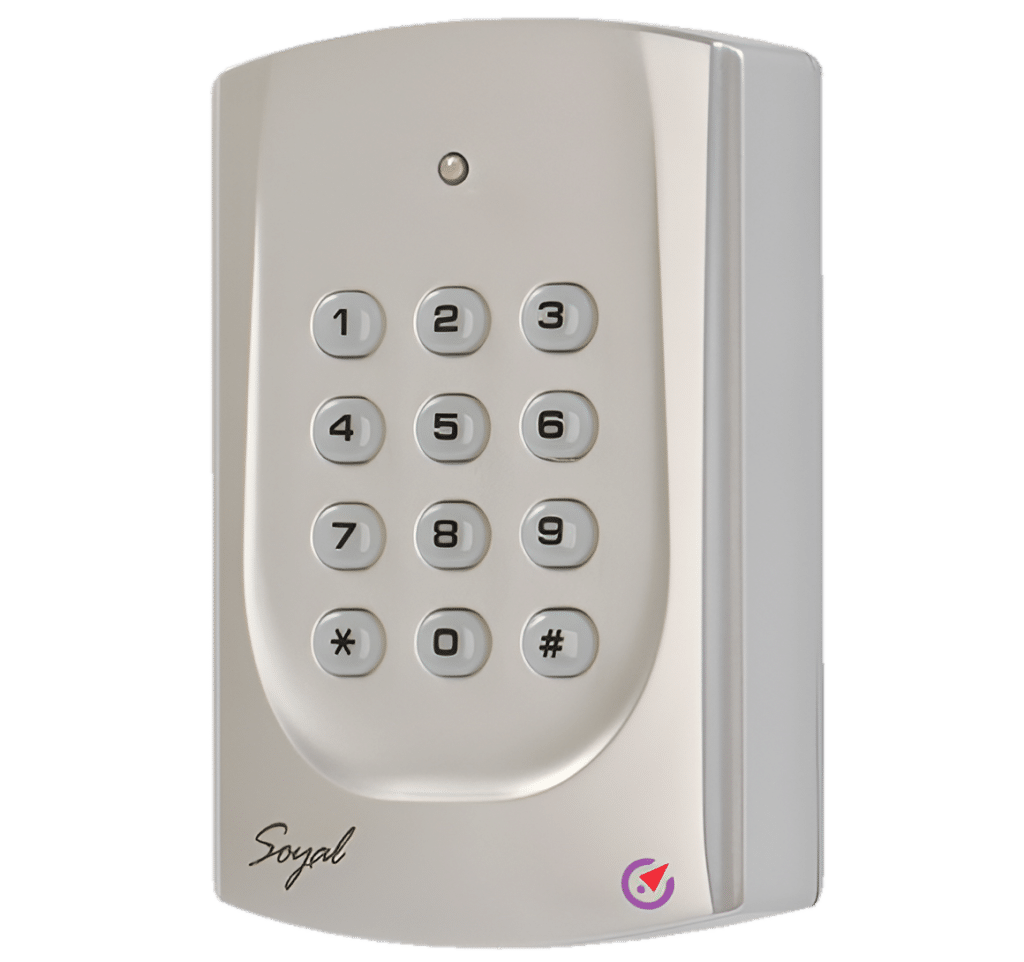

AR721H Basic Controller with Built-In Reader
A cost-effective and compact door access with manual keypad. Product Description: SOYAL Basic system is efficiently optimized for low budget door, turnstile, parking and elevator access control systems. Effectively control who (card user) can enter where (door group) at what time (time zone) using what method (card and/or pin). Product Features: Technical Specification: Built-In Operation Mode M4 M6 M8 Card User 1024 65,536 1024 Event Memory 1200 NONE 1200 Time Zone/ Holiday 11/120 NONE 11/120 Anti-passback YES NONE YES Alarm (tamper, force entry & door open too long) YES NONE YES Elevator Control 1024 users,32 floors NONE 1024 users,32 floors Direct PC Software YES NONE YES Multi reader networking with AR716E YES NONE YES Access Mode Card only, card or pin, card and pin Access Pin Number Format 5 digit user num + 4 digit pin Public pin4 digit User pin4 digit Wiegand Port 1 input port (selectable WG26 or 34) Push Button Input 1 negative trigger input Alarm Sensor Input 1 negative trigger input Door Output (Dry Contact) 0.1-600 sec N.O/N.C, max 24V-1A Alarm Output (Open Collector) 0.1-600 sec, active low output Reader RF Frequency 125KHz or Mifare 13.56MHz Reading Range Approx 10cm (4 inch) Data Communication RS485-9600bps (N, 8, 1) Power Consumption 9-16V, less than 3W Dimension, Weight 111 (H) x 77 (W) X 26 (D) mm, 210 gram AR721U Wiegand Specification RF frequency 125KHz or Mifare 13.56MHz Reading range 7cm Power Consumption 9-16V, less than 0.7W Dimension, Weight 81 (H) x 43 (W) X 18 (D) mm, 45 gram

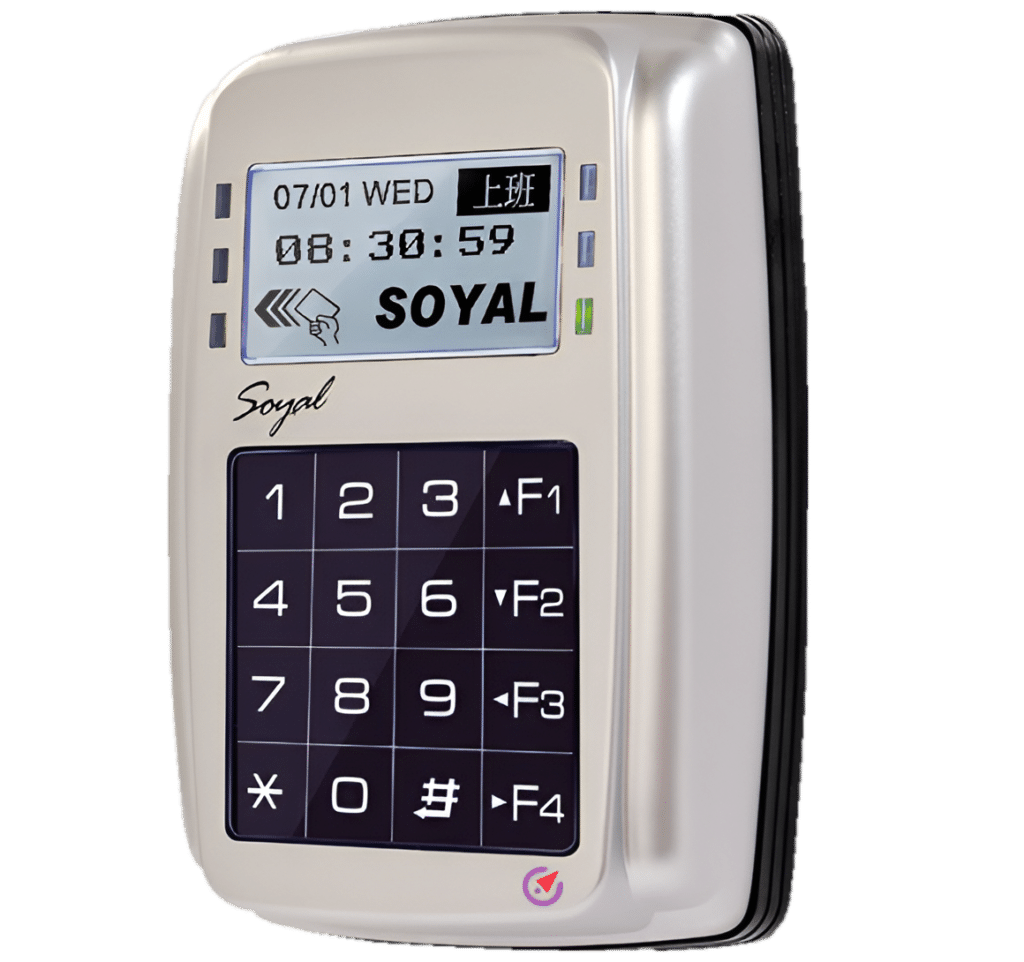

AR327H Vandal Resistant Illuminated Touch-Panel Keypad
A water and vandal-resistant door access that has a built-in touchpad and can even read proximity cards. Product Description: AR327H is a card access reader typically installed at the door to restrict unauthorized access. It reads EM or Mifare proximity cards. It supports an RS485 connection, 3000 users and 1500 event memory. It has a built-in illuminated touch panel keypad and LCD screen display. Product Features: Technical Specification: Model AR327H AR327H_M Frequency 125KHz 13.56MHz Standard Em Standard Mifare ISO14443A Reading Range(Depends on Tags) 3-7cm 1-3cm Power Supply 10-24VDC Power consumption <3W Communication Interface RS-485 Baud Rate 9600 bps(N,8,1) Temperature -10。C to +60。C Digital Input Egress(R.T.E.) /Door contact/ Arming Switch Relay Output Alarm Relay / Lock Relay Lock Relay Time ON/OFF, 0.1-600 Sec. Alarm Time Toggle, 1-600 Seec. Tamper Switch Limit Switch (Form C) User Capacity M4/M8 – 3,000M6 – 65,000 Event Log M4/M8 – 1,500 External Reader 1 Weigand Port Anti-passback Yes (M4/M8 only) Lift Control 32 Floors, 3,000 Users Serial Port Yes LCD Panel 128*64(4 Lines messages, 16 Characters each line) Transistor Output Lock (or security trigger signal)/ Alarm Duress Ingress Protection IP56 Indicator 2 LED & 1 Beeper Keypad Material Illuminated Touch Panel Housing Material Zinc Alloy Time Zone 11/63(Connect to Multi-Door Networking Controller) Operation Mode Standalone/ Networking Color Chrome Dimensions (mm) 140(L)X92(W)X40(H) Weight (g) 430±10

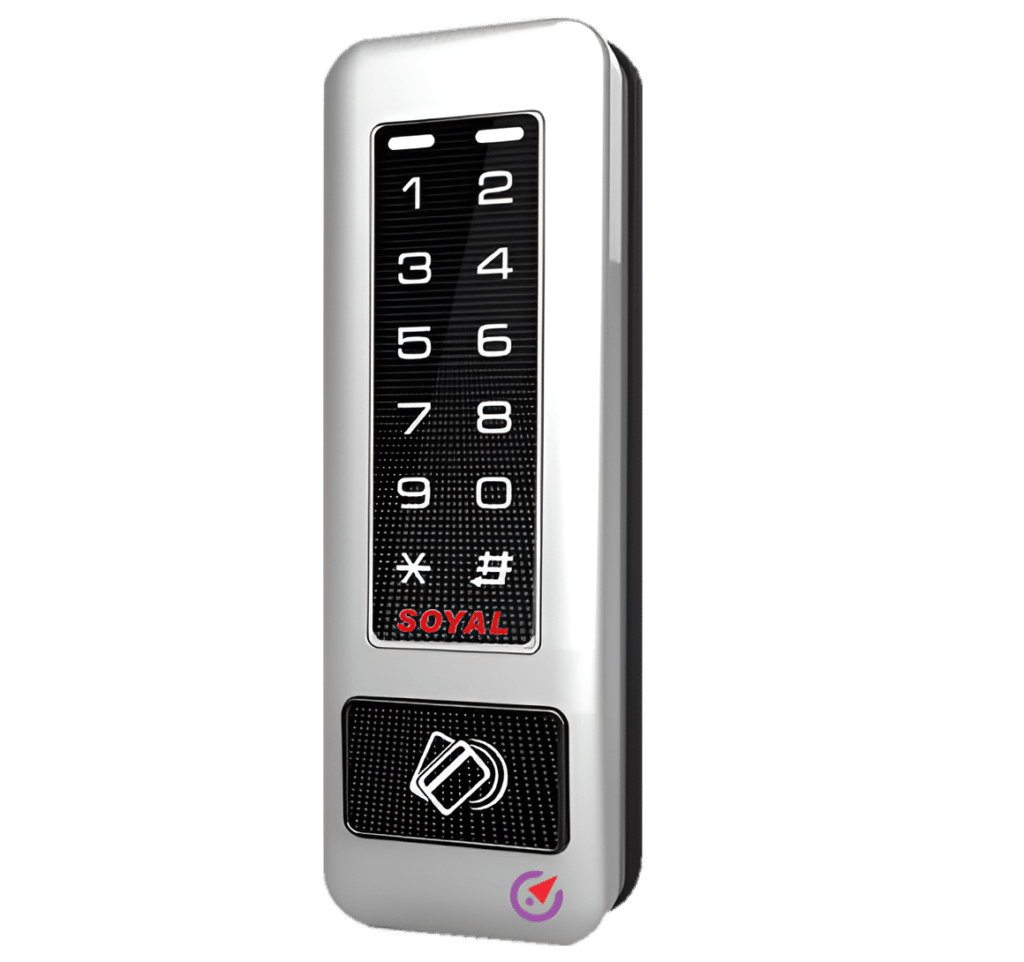

AR331HT Weather Proof Illuminated Touch-Panel Keypad
A weatherproof-card door access with built-in touchpad and can read proximity cards for contactless access. Product Description: AR331HT is a card access reader typically installed at the door to restrict unauthorized access. It reads EM or Mifare proximity cards. It supports an RS485 connection, 3000 users and 1500 event memory. It has a built-in touch panel keypad. Slim design to easily fit into a narrow door frame. Product Features: Technical Specification: Model AR331HSAR331HT AR331HS_MAR331HT_M Frequency 125KHz 13.56MHz Standard Em Standard Mifare ISO14443A Reading Range(Depends on Tags) 3-7cm 1-3cm Power Supply 10-24VDC Power consumption <3W Baud Rate RS-485 Temperature 9600 bps (N, 8, 1) Digital Input Egress (R. T. E.)/ Door contact Relay Output Lock Relay Lock Relay Time ON/OFF, 0.1-600 Sec. Alarm Time Toggle, 1-600 Seec. Tamper Switch Limit Switch (Form C) User Capacity M4/M8 – 3,000M6 – 65,000 Event Log M4/M8 – 1,500 External Reader 1 Weigand Port Anti-passback Yes (M4/M8 only) Lift Control 32 Floors, 3,000 Users Serial Port Yes Real Time Clock No Transistor Output Arming LED (or Security trigger signal) /Alarm / Duress Ingress Protection IP56 Indicator 3 LED & 1 Beeper Keypad Material Illuminated Touch Panel Housing Material Zinc Alloy Time Zone 11/63(Connect to Multi-Door Networking Controller) Operation Mode Standalone/ Networking Color Chrome Dimensions (mm) 114(L)X78(W)X33(H) Weight (g) 290±10
AR331HS Weather Proof Illuminated Touch-Panel Keypad
With a sleek design and silverblack color, this contactless door access can read EM or Mifare proximity cards. Product Description: AR331HS is a card access reader typically installed at the door to restrict unauthorized access. It reads EM or Mifare proximity cards. It supports an RS485 connection, 3000 users and 1500 event memory. It does not have a built-in keypad. Slim design to easily fit into a narrow door frame. Product Features: Technical Specification: Model AR331HSAR331HT AR331HS_MAR331HT_M Frequency 125KHz 13.56MHz Standard Em Standard Mifare ISO14443A Reading Range(Depends on Tags) 3-7cm 1-3cm Power Supply 10-24VDC Power consumption <3W Baud Rate RS-485 Temperature 9600 bps (N, 8, 1) Digital Input Egress (R. T. E.)/ Door contact Relay Output Lock Relay Lock Relay Time ON/OFF, 0.1-600 Sec. Alarm Time Toggle, 1-600 Seec. Tamper Switch Limit Switch (Form C) User Capacity M4/M8 – 3,000M6 – 65,000 Event Log M4/M8 – 1,500 External Reader 1 Weigand Port Anti-passback Yes (M4/M8 only) Lift Control 32 Floors, 3,000 Users Serial Port Yes Real Time Clock No Transistor Output Arming LED (or Security trigger signal) /Alarm / Duress Ingress Protection IP56 Indicator 3 LED & 1 Beeper Keypad Material Illuminated Touch Panel Housing Material Zinc Alloy Time Zone 11/63(Connect to Multi-Door Networking Controller) Operation Mode Standalone/ Networking Color Chrome Dimensions (mm) 114(L)X78(W)X33(H) Weight (g) 290±10

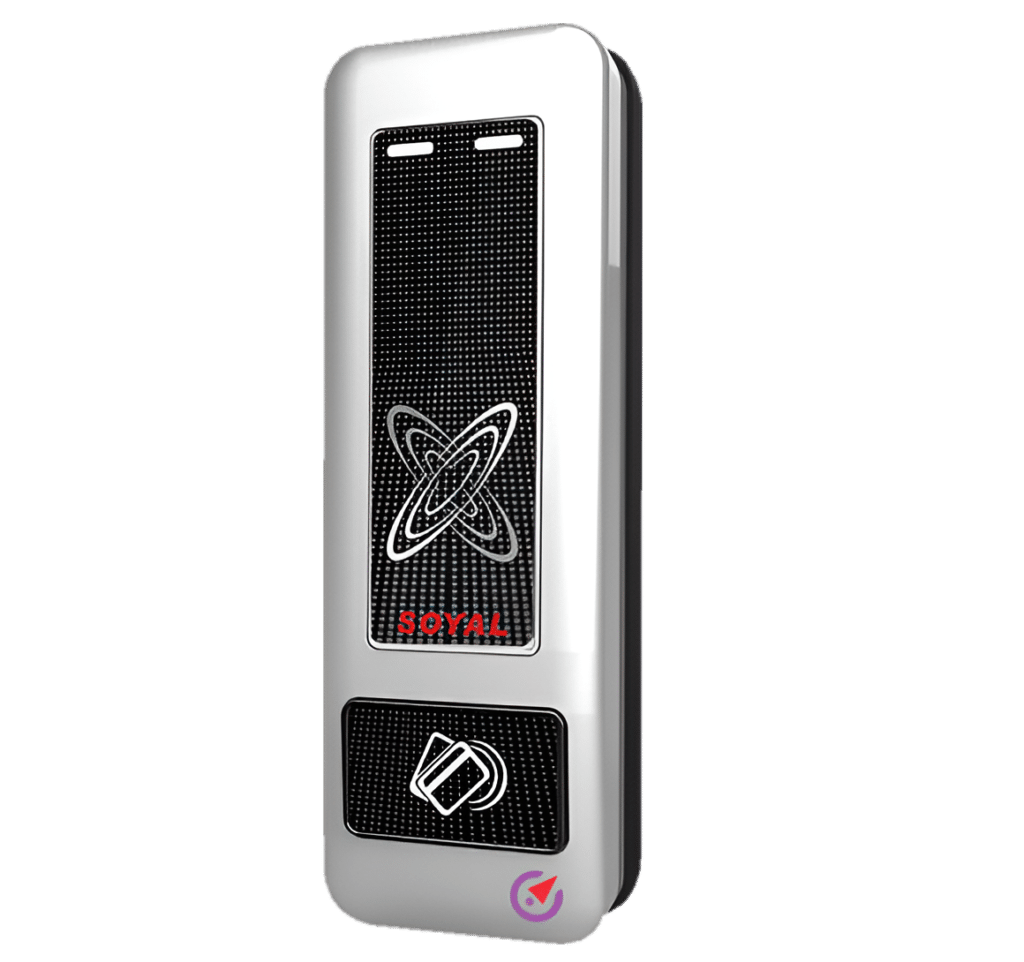

AR331U Weather Proof Illuminated Touch-Panel Keypad
With a sleek design and silverblack color, this contactless door access can read EM or Mifare proximity cards. Product Description: Metallic SilverBlack color concept further enhance modern contemporary impression of your office. Slim shape easy to fit into a narrow door frame with limited space. Weatherproof IP56 case design allows it to be installed in an outdoor environment. Illuminated touch keypad looks cool and allows you to still see the keypad at night. Product Features: Technical Specification: Model AR331HSAR331HT AR331HS_MAR331HT_M Frequency 125KHz 13.56MHz Standard Em Standard Mifare ISO14443A Reading Range(Depends on Tags) 3-7cm 1-3cm Power Supply 10-24VDC Power consumption <3W Baud Rate RS-485 Temperature 9600 bps (N, 8, 1) Digital Input Egress (R. T. E.)/ Door contact Relay Output Lock Relay Lock Relay Time ON/OFF, 0.1-600 Sec. Alarm Time Toggle, 1-600 Seec. Tamper Switch Limit Switch (Form C) User Capacity M4/M8 – 3,000M6 – 65,000 Event Log M4/M8 – 1,500 External Reader 1 Weigand Port Anti-passback Yes (M4/M8 only) Lift Control 32 Floors, 3,000 Users Serial Port Yes Real Time Clock No Transistor Output Arming LED (or Security trigger signal) /Alarm / Duress Ingress Protection IP56 Indicator 3 LED & 1 Beeper Keypad Material Illuminated Touch Panel Housing Material Zinc Alloy Time Zone 11/63(Connect to Multi-Door Networking Controller) Operation Mode Standalone/ Networking Color Chrome Dimensions (mm) 114(L)X78(W)X33(H) Weight (g) 290±10

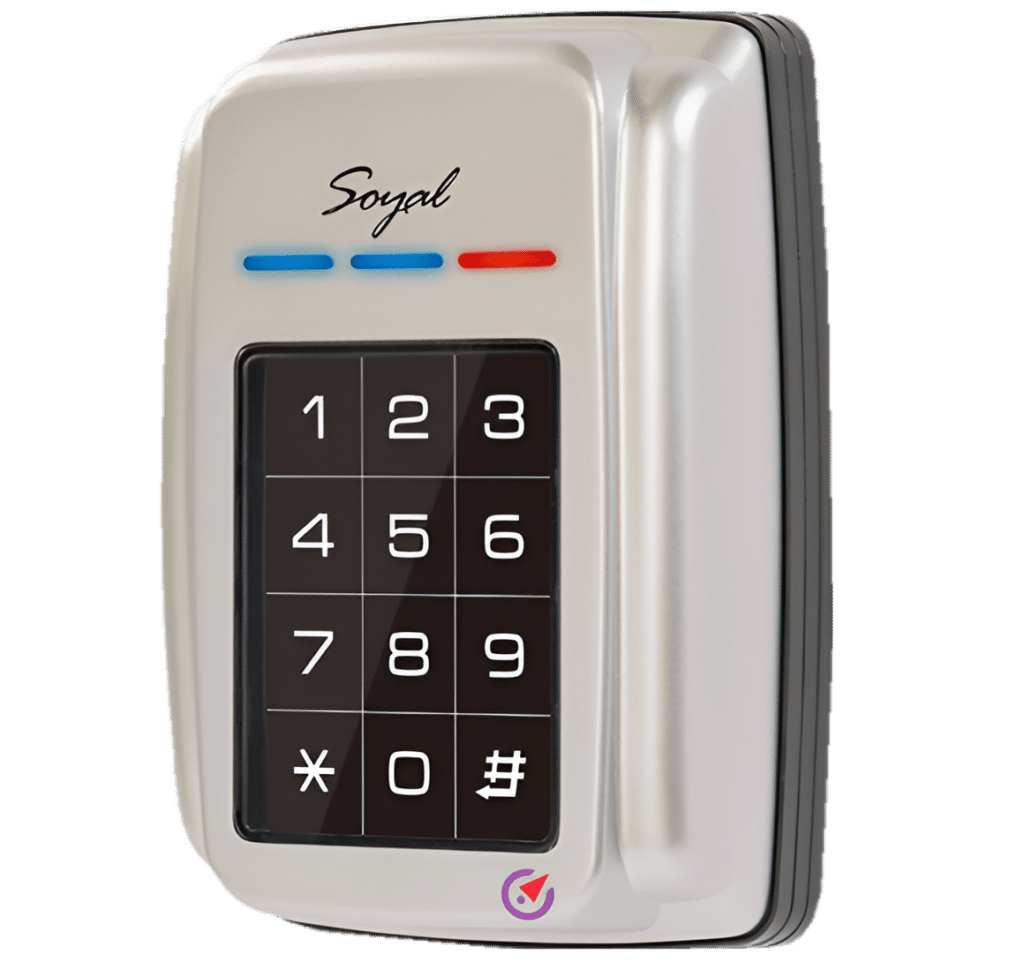

AR321H Vandal Resistant Illuminated Touch-Panel Keypad
A compact, touchpad door access with anti-vandalism design to prevent damage or tampering. Product Description: AR321H is a card access reader typically installed at the door to restrict unauthorized access. It reads EM or Mifare proximity cards. It supports an RS485 connection, 3000 users and 1500 event memory. It has a built-in illuminated touch panel keypad. Product Features: Technical Specification: Model AR321H AR321H_M Frequency 125KHz 13.56MHz Standard Em Standard Mifare ISO14443A Reading Range(Depends on Tags) 3-7cm 1-3cm Power Supply 10-24VDC Power consumption <3W Baud Rate RS-485 Temperature 9600 bps (N, 8, 1) Digital Input Egress (R. T. E.)/ Door contact x2 Relay Output Lock Relay Lock Relay Time ON/OFF, 0.1-600 Sec. Alarm Time Toggle, 1-600 Seec. Tamper Switch Limit Switch (Form C) User Capacity M4/M8 – 3,000M6 – 65,000 Event Log M4/M8 – 1,500 External Reader 1 Weighted Port Anti-passback Yes (M4/M8 only) Lift Control 32 Floors, 3,000 Users Serial Port Yes Real Time Clock No Transistor Output Arming LED (or Security trigger signal) /Alarm / Duress Ingress Protection IP56 Indicator 3 LED & 1 Beeper Keypad Material Illuminated Touch Panel Housing Material Zinc Alloy Time Zone 11/63(Connect to Multi-Door Networking Controller) Operation Mode Standalone/ Networking Color Chrome Dimensions (mm) 114(L)X78(W)X33(H) Weight (g) 290±10
ADC-AC-ET Access Control Readers
A series of multi-technology, contactless access control to properly secure your properties or business. Product Description: Alarm.com’s Smarter Access Control is a powerful, easy-to-use solution for commercial properties that seamlessly integrates with the Alarm.com for Business platform. This platform enables intelligent automation and features, such as disarming when badging in, locking doors when arming, and tagging access events on the video timeline. These three multi-technology contactless access control readers offer a modern aesthetic and a state-of-the-art feature set, including Proximity (125 kHz), MIFARE DESFire (13.56 MHz), NFC, and Bluetooth®. All readers are fully OSDPTM compliant and are enabled for OSDP Secure Channel. Product Features: Technical Specification: RF Technologies 125 KHz, 13.56 MHz, NFC,Bluetooth Low Energy Reads MIFARE DESFire® EV1 & EV2, LEAF, FSK and ASK proximity Input power 5-16 VDC, 144 mA max (ET10),169 mA max (ET20), 193 mA max (ET25) Output OSDP, Wiegand, accelerometer-based tamper detection Read ranges EV1: 1.2”, EV2: 2.2”, 125 kHz up to 4” Temperature -31°F – 151°F (-35°C – 66°C) Dimensions 5.1 x 1.7 x 0.7” (13.0 x 4.3 x 1.8cm) (ET10),5.1 x 3.3 x 0.7” (13.0 x 8.4 x 1.8cm) (ET20 & ET25) Operating Humidity 5 – 95% (non-condensing) RH Weight 7 oz (ET10), 10 oz (ET20), 11.3 oz (ET25) Country of Origin USA Weight Weight: 7 oz (ET10), 10 oz (ET20), 11.3 oz (ET25) Certifications FCC, IC, CE, UL 294,EN 302291, EN 301489, EN 300330,EN 50130-4, IP55, BIS IS 13252
ADC-AC-CARD and ADC-AC-FOB Smart Credentials
Secure your properties or business through smart cards and keyfobs designed to work with Alarm.com readers. Product Description: Alarm.com’s Smarter Access Control is a powerful, easy-to-use solution for commercial properties that seamlessly integrates with the Alarm.com for Business platform. This platform enables intelligent automation and features, such as disarming when badging in, locking doors when arming, and tagging access events on the video timeline. Alarm.com Smart Credentials provide secure access control authentication, in addition todata storage for biometrics, user privileges, or other custom applications. Each Smart Cardand Smart Key Fob is equipped with an Alarm.com-specific encryption key which can only be read using Alarm.com readers, providing an additional layer of security. The Smart + Proximity Card allows businesses to continue supporting older credentials while transitioning to new smart credentials. Product Features: Technical Specification: Features Smart Card Smart + Proximity Card Smart Key Fob SKU ADC-AC-CARD-50H4 ADC-AC-CARD-50D4 ADC-AC-FOB-60H8 Security Level EAL 5+ EAL 5+ EAL 5+ Memory Size 4K 4K 8K Frequency 13.56 MHz 125 kHz + 13.56 MHz 13.56 MHz Technology MIFARE DESFire EV2 MIFARE DESFire EV2 + Proximity MIFARE DESFire EV2 Dimensions 3.4 x 2.1 x 0.03”(8.7 x 5.4 x 0.08 cm) 3.4 x 2.1 x 0.03”(8.7 x 5.4 x 0.08 cm) 1.6 x 1.2 x 0.2”(4.0 x 3.1 x 0.5 cm) Road Range Up to 3” (7.6 cm) Up to 3” (7.6 cm) Up to 3” (7.6 cm) Slot Punch Vertical or Horizontal Vertical or Horizontal N/A Storage & Operating Temperatures -50°F – 160°F (10°C – 71°C) -50°F – 160°F (10°C – 71°C) -13°F – 176°F (-25°C –80°C) Material PVC + PET PVC + PET Polycarbonate LEAF Compatibility LEAF enabled LEAF enabled LEAF enabled Color White White Black with White Center Country of Origin USA USA USA
ADC-AC-X1100-4PSE Four Door Controller and Power Kit
Secure your expansion modules and door controllers in this secured kit. Product Description: Alarm.com’s Smarter Access Control is a powerful, easy-to-use solution for commercial properties that seamlessly integrates with the Alarm.com for Business platform. This platform enables intelligent automation and features, such as disarming when badging in, locking doors when arming, and tagging access events on the video timeline. The X1100 Four Door Controller and Power Kit comes with an X1100 Door Controller and an X100 Two Reader Expansion Module pre-wired to a 12/24 VDC dual-voltage power supply. Installation is easy with this self-contained kit that can provide power for a complete 3- or 4-door access control system. Product Features: Technical Specification: Input power 12 to 24 VDC ±10%, 1.9 A max (Controller);12 to 24 VDC ±10%, 1.5 A max (Expansion Module) Output power 12 VDC ±10%,500 mA max each reader Communication Shielded 2-wire RS-485 Inputs Two dedicated reader inputsFour programmable inputsOne dedicated input for each of the following: Tamper, AC Fail, and Battery Fail Outputs Four relay outputs 5 A (NO) and 3 A (NC) @ 30 VDCTwo-wire LED controlSingle-wire buzzer output Certifications FCC, CE, UL 294 certified (Controller);UL 294 recognized, CE compliant, FCC Class A, ICES-003(Expansion Module) Dimensions 6.46 x 5.51 x 1.02” (16.4 x 14 x 2.6 cm) Temperature 32°F — 158°F (0°C — 70°C) operational, -67°F — 185°F (-55°C — 85°C) storage Operating humidity 5% – 85%(non-condensing) RH Kit Specifications Dimensions: 20 x 16 x 4.5″ (50.8 x 40.64 x 11.43 cm) Weight 20 lbs. (9.1 kg)
