ADC-AC-X1100 Door Controller
This device supports two card readers with four relay outputs and four programmable inputs. Product Description: Alarm.com’s Smarter Access Control is a powerful, easy-to-use solution for commercial properties that seamlessly integrates with the Alarm.com for Business platform. This platform enables intelligent automation and features, such as disarming when badging in, locking doors when arming, and tagging access events on the video timeline. The X1100 Door Controller supports two readers with four relay outputs and four programmable inputs. For larger installations, the X1100 controller can manage up to 64 doors by connecting up to 31 X100 Two Reader Expansion Modules together. Product Features: Technical Specification: Input power 12 to 24 VDC ±10%,1.9 max Communication Shielded 2-wire RS-485 Inputs Two dedicated reader inputsFour programmable inputsOne dedicated input for each of the following: Tamper, AC Fail, and Battery Fail Outputs Four relay outputs 5 A (NO) and 3 A (NC) @ 30 VDCTwo-wire LED controlSingle-wire buzzer output Certifications FCC, CE, UL 294 Certified Dimensions 6.46 x 5.51 x 1.02” (16.4 x 14 x 2.6 cm) Temperature 32°F — 158°F (0°C — 70°C) operational, -67°F — 185°F (-55°C — 85°C) storage Operating humidity 5% – 85%(non-condensing) RH

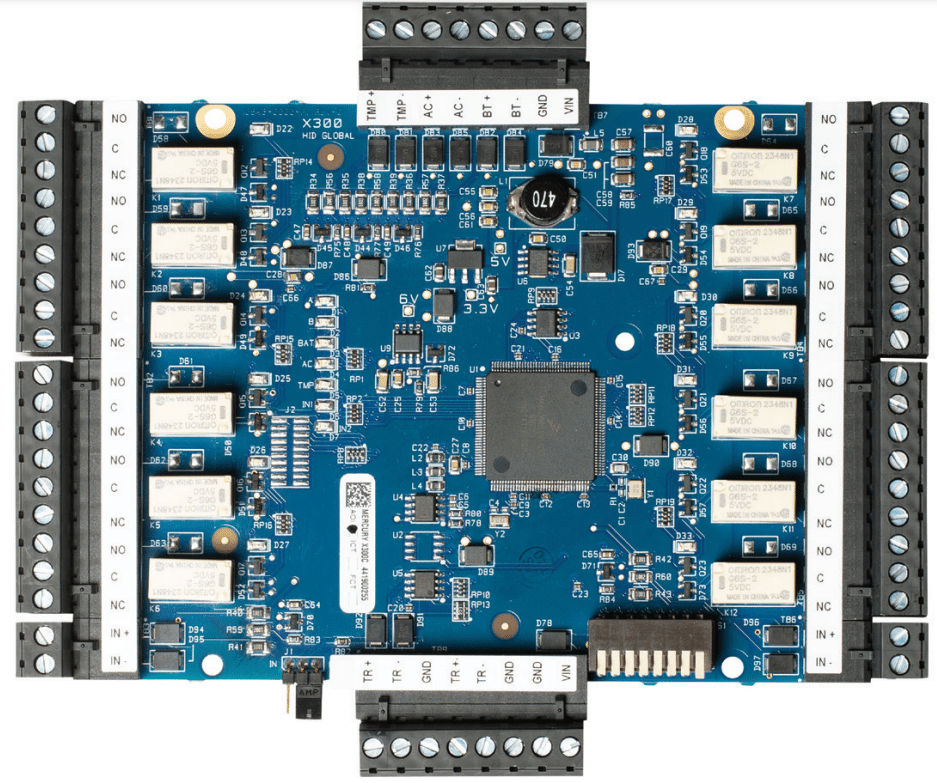

ADC-AC-X300 Output Control Expansion Module
Designed to work with X1100 Door Controllers, this expansion module adds 12 additional outputs and two additional outputs. Product Description: Alarm.com’s Smarter Access Control is a powerful, easy-to-use solution for commercial properties that seamlessly integrates with the Alarm.com for Business platform. This platform enables intelligent automation and features, such as disarming when badging in, locking doors when arming, and tagging access events on the video timeline. The X300 Output Control Expansion Module adds support for twelve additional outputs and two additional inputs to an Alarm.com X1100 Door Controller. Product Features: Technical Specification: Input power 12 to 24 VDC ±10%,500 mA max Communication Shielded 2-wire RS-485 Inputs 2 unsupervised/supervised programmable inputs, standard EOL: 1k/1kΩ, 1%, 1⁄4 watt, one dedicated input for each ofthe following: Tamper, AC Fail, Battery Fail Outputs Twelve Form-C relay outputs: 2 A @ 30 VDC resistive Certifications UL 294 and UL1076 recognizedCE compliant, FCC Class A, ICES-003 Dimensions 6.46 × 5.51 × 1.02″(16.4 × 14.0 × 2.6 cm) Temperature 32°F — 158°F (0°C — 70°C) operational, -67°F — 185°F (-55°C — 85°C) storage Operating humidity 5% – 85%(non-condensing) RH

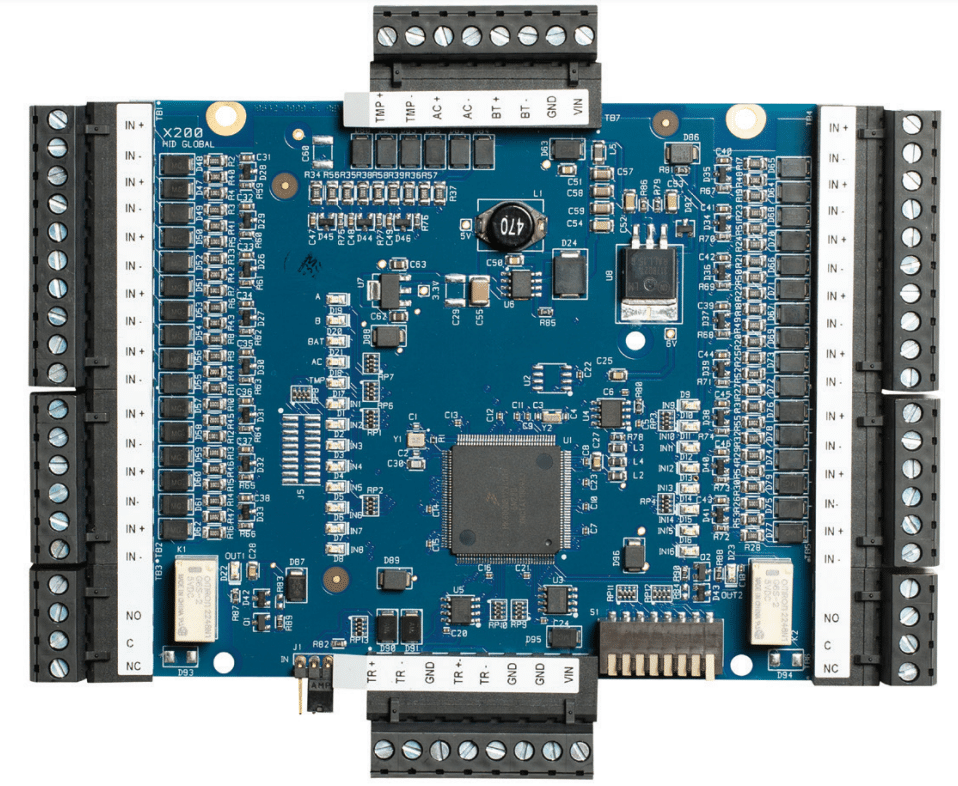

ADC-AC-X200 Input Monitor Expansion Module
Designed to work with X1100 Door Controllers, this expansion module adds support for 16 additional inputs and two relay outputs. Product Description: Alarm.com’s Smarter Access Control is a powerful, easy-to-use solution for commercial properties that seamlessly integrates with the Alarm.com for Business platform. This platform enables intelligent automation and features, such as disarming when badging in, locking doors when arming, and tagging access events on the video timeline. The X200 Input Monitor Expansion Module adds support for sixteen additional general purpose supervised or unsupervised inputs and two additional relay outputs to an Alarm.com X1100 Door Controller. Product Features: Technical Specification: Input power 12 to 24 VDC ±10%,30 mA max Communication Shielded 2-wire RS-485 Inputs 16 unsupervised/supervised programmable inputs, standard EOL: 1k/1kΩ, 1%, 1⁄4 watt, one dedicated input for each ofthe following: Tamper, AC Fail, Battery Fail Outputs Two Form-C relay outputs: 2 A @ 30 VDC resistive Certifications UL 294 and UL1076 recognizedCE compliant, FCC Class A, ICES-003 Dimensions 6.46 × 5.51 × 1.02″(16.4 × 14.0 × 2.6 cm) Temperature 32°F — 158°F (0°C — 70°C) operational, -67°F — 185°F (-55°C — 85°C) storage Operating humidity 5% – 85%(non-condensing) RH
ADC-AC-X100 Two Reader Expansion Module
Designed to work with X1100 Door Controllers, this expansion module adds support for two additional readers and four programmable inputs. Product Description: Alarm.com’s Smarter Access Control is a powerful, easy-to-use solution for commercial properties that seamlessly integrates with the Alarm.com for Business platform. This platform enables intelligent automation and features, such as disarming when badging in, locking doors when arming, and tagging access events on the video timeline. The X100 Two Reader ExpansionModule adds support for two additional readers with four relay outputs and four programmable inputs to an Alarm.com X1100 Door Controller. For larger commercial installations, up to 31 X100 expansion modules can be connected together to manage up to 64 doors using a single X1100 Door Controller. Product Features: Technical Specification: Input power 12 to 24 VDC ±10%, 1.5 A max input current,450 mA nominal @ 12 V,270 mA nominal @ 24 V, 340 mA max input current, excluding readers Output power 12 VDC, ±10%, 500 mA max each reader Communication Shielded 2-Wire RS-485 Inputs Two dedicated reader inputs,four programmable inputs, one dedicated input for each of the following: Tamper,AC Fail, Battery Fail Outputs Four relay outputs: 5 A @ 30 VDC resistive (NO), 3 A @ 30 VDC resistive (NC),two-wire LED control, single-wire buzzer output Certifications UL 294 recognized,CE compliant,FCC Class A, ICES-003 Dimensions (W x L x H) 6.46 × 5.51 × 1.02″(16.4 × 14 × 2.6 cm) Temperature 32°F to 158°F (0°C to 70°C) operational,-67°F to 185°F (-55°C to 85°C) storage Operating humidity 5% – 85%(non-condensing) RH
iKLAS Software CCMS
A management platform and access control for keys management. Product Description: The CCMS HUB provides a single management platform and access control for keys’ management, planning, intelligent monitoring, efficient operation and maintenance. The solution provides simplicity to managing multiple keys to various locations/rooms and enhances the accountability and transparency on the access rights. iKLAS iHUB includes both Client Based and Web Based application platforms. Both platforms offer clear-cut rules, procedures, guidelines and plans that are relatable to different managerial requirements. Leveraging on powerful Structure Query Language (SQL), the system is able to generate comprehensive and analytical reports that allows organizations to achieve their business objectives. Product Features:

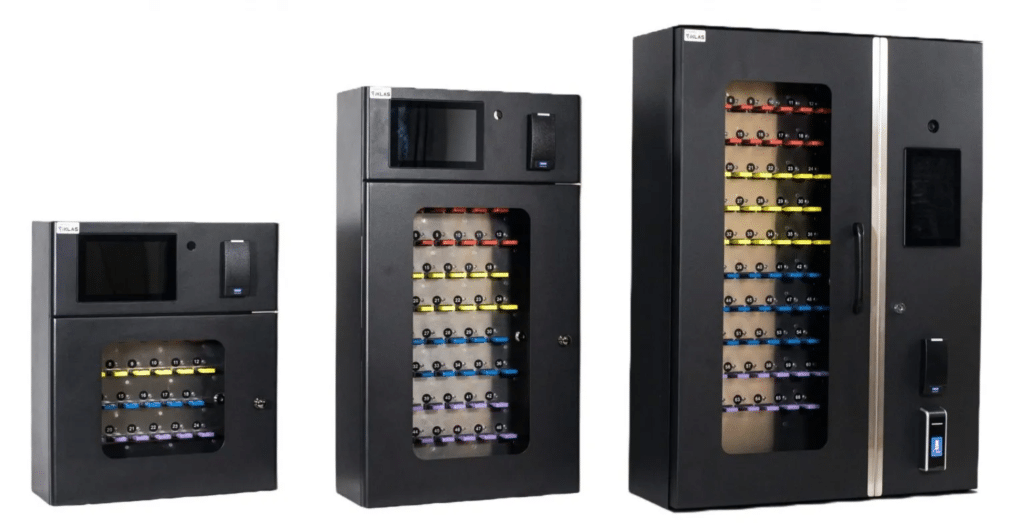

iKLAS Keys Management System
A key management system that protects the keys and tracks them to ensure it is properly returned. Product Description: Intelligent Key Lock Application System (iKLAS), is a solution that helps businesses manage and monitor keys within their organizations. It offers extensive key management capabilities, accommodating storage capacities of 12 to 252 keys within a single AIO (All-in-One) cabinet. Access is securely controlled, allowing only authorized individuals to use keys through card access or biometric authentication. Available sizes: 24 / 48 / 66 / 96 / 132 / 192 / 252 key slots Product Features: Technical Specification: iKLAS EKMS Model Number of Keys Width Height Depth Weight iKLAS-G3-24 12, 18, 24, 30 430 mm 510 mm 180 mm 12 kg iKLAS-G3-48 36, 42, 48, 54 430 mm 750 mm 180 mm 16 kg iKLAS-G3-66 60, 66, 72 630 mm 855 mm 220 mm 53 kg iKLAS-G3-96 84, 96, 108 880 mm 685 mm 220 mm 60 kg iKLAS-G3-132 120, 132, 144 900 mm 855 mm 220 mm 65 kg iKLAS-G3-192 156, 168, 180, 192G3 Key Master 710 mm165 mm 1300 mm375 mm 280 mm 92 kg iKLAS-G3-252 204, 216, 228, 252 G3 Key Master 710 mm 165 mm 1600 mm375 mm 280 mm120 mm 115 kg iKLAS-G5-24 12,18,24,30 440 mm 540 mm 180 mm 23 kg iKLAS-G5-48 36, 42, 48, 54 440 mm 784 mm 180 mm 31 kg iKLAS-G5-66 60, 66, 72 630 mm 855 mm 220 mm 53 kg iKLAS-G5-96 84, 96, 108 880 mm 685 mm 220 mm 60 kg iKLAS-G5-132 120, 132, 144 900 mm 855 mm 220 mm 65 kg iKLAS-G5-192 156, 168, 180, 192 G5 Key Master 710 mm200 mm 1300 mm270 mm 280 mm70 mm 92 kg iKLAS-G5-252 204, 216, 228, 252 G5 Key Master 710 mm200 mm 1600 mm 270 mm 280 mm70 mm 115 kg
iKLAS Gen 5 Touchscreen
A contactless card reader and RFID key-tag reader designed to complement the iKLAS Key Management System. Product Description: The 7″ Colour Touchscreen of the latest iKLAS GEN-5 incorporates a colour camera, card reader, key-tag reader, and (optional) QR code reader, providing all-encompassing access control solutions within a single panel. Product Features:
TBS 3D AIR 22
A touchless biometric scanner with 3D finger-scanning. It also supports Power-over-Ethernet. Product Description: 3D AIR is a unique touchless biometric terminal and was the world’s first to introduce 3D finger-scanning. Touchless fingerprint yielding the highest security level! Product Features: Technical Specification: APPLICATIONS Access Control Yes Time & Attendance, Workforce Management Yes SENSORS Touchless Hand Scanner Touchless 3D Finger Scanner Yes Touchless Face Scanner Touchless Iris Scanner Finger optical multispectral Finger optical (ot, optional) / capacitive (ct) Thermal camera IDENTIFICATION FACTORS PIN Yes RFID Optional, accessory or license needed TBS MobileID (Bluetooth) QR Code USER INTERFACE Touchscreen size in inch 5.0 Loudspeaker Yes Beeper BIOMETRICS Identification (1:N) database limit, default 10’000 Identification (1:N) database limit, PREMIUM 100’000 FRR at FAR 1:100’000 <0.5% COMMUNICATION LAN Yes Wifi Optional, accessory or license needed Mobile 4G INTERFACES RS-232 and RS-485 Yes Wiegand Out Yes Relay Extendable by license. Figure indicatessingle fingerprints, iris pairs or hands GPIN/GPOUT 2/2 SECURITY Liveness Detections Optional, accessory or license needed Multi-Level Data Encryption Yes Template on Card Optional, accessory or license needed Anti-Tampering Yes INSTALLATION Input supply voltage DC 12-24 Max. power rating in W 11 Power over Ethernet (PoE+) Operating temperature in °C 6 -20 to 60 MOUNTING Wall mount WM Box Yes Wall mount WM Box IP 54 Flush mount Yes Outdoor protection kit Required if not sheltered CERTIFICATIONS CE Yes FCC/IC Yes
TBS AIR 12
A touchless biometric scanner with 3D finger-scanning. Product Description: 3D AIR is a unique touchless biometric terminal and was the world’s first to introduce 3D finger-scanning. Touchless fingerprint yielding the highest security level! Product Features: Technical Specification: APPLICATIONS Access Control Yes Time & Attendance, Workforce Management Yes SENSORS Touchless Hand Scanner Touchless 3D Finger Scanner Yes Touchless Face Scanner Touchless Iris Scanner Finger optical multispectral Finger optical (ot, optional) / capacitive (ct) Thermal camera IDENTIFICATION FACTORS PIN Yes RFID Optional, accessory or license needed TBS MobileID (Bluetooth) QR Code USER INTERFACE Touchscreen size in inch 5.0 Loudspeaker Yes Beeper Yes BIOMETRICS Identification (1:N) database limit, default 10’000 Identification (1:N) database limit, PREMIUM 100’000 FRR at FAR 1:100’000 <0.5% COMMUNICATION LAN Yes Wifi Optional, accessory or license needed Mobile 4G INTERFACES RS-232 and RS-485 Yes Wiegand Out Yes Number of RElais (NO/NC.COM) Requires internal RelayBoard GPIN/GPOUT Extendable by license. Figure indicatessingle fingerprints, iris pairs or hands SECURITY Liveness Detections Optional, accessory or license needed Multi-Level Data Encryption Yes Template on Card Optional, accessory or license needed Tamper Switch Optional, accessory or license needed INSTALLATION Input supply voltage DC 12-24 Max. power rating in W 18 Power over Ethernet (PoE+) Operating temperature in °C 6 -20 to 60 MOUNTING Wall mount Indoor use only Flush mount Optional, accessory or license needed Outdoor protection kit Required if not sheltered CERTIFICATIONS CE Yes FCC/IC UL 294
TBS 3D FLY
A touchless hand scanner that captures fingerprints quickly and effectively. Product Description: A true on-the-fly experience. 3D FLY delivers high-speed identification for fast-throughput environments. A smooth and seamless user experience makes its 3D+ trailblazing technology ideal for speed-lanes where pace and security are paramount. This touchless hand scanner captures fingerprints quickly and effectively, delivering unparalleled speed and identification accuracy. Offering a contactless user experience, 3D FLY eliminates bottlenecks in high-throughput zones. Product Features: Technical Specification: APPLICATIONS Access Control Yes Time & Attendance, Workforce Management Yes SENSORS Touchless Hand Scanner Yes Touchless 3D Finger Scanner Touchless Face Scanner Touchless Iris Scanner Finger optical multispectral Finger optical (ot, optional) / capacitive (ct) Thermal camera IDENTIFICATION FACTORS PIN Yes RFID TBS MobileID (Bluetooth) QR Code USER INTERFACE Touchscreen size in inch 7.0 Loudspeaker Yes Beeper BIOMETRICS Identification (1:N) database limit, default 10’000 Identification (1:N) database limit, PREMIUM 20’000 FRR at FAR 1:100’000 <0.5% COMMUNICATION LAN Yes Wifi Mobile 4G INTERFACES RS-232 and RS-485 Yes Wiegand Out Yes Number of RElais (NO/NC.COM) 2 GPIN/GPOUT 2/2 SECURITY Presentation Attack Detection Multi-Level Data Encryption Template on Card Tamper Switch INSTALLATION Input supply voltage DC 24 Max. power rating in W 100 Power over Ethernet Operating temperature in °C 6 0 to 45 MOUNTING Wall mount WM-Box 7 Wall mount HD-Box Flush mount FM-Box Outdoor protection kit CERTIFICATIONS CE Yes FCC/IC Yes UL 294
