uTrust TS Contact Smart Card Readers
Deliver unparalleled security and flexibility for government PACS, combining high-assurance smart card technology with FICAM compliance and versatile authentication options Product Description: Designed specifically with high-security government applications in mind, Identiv’s uTrust TS Contact Smart Card (SC) Readers offer an excellent balance of compliance, interoperability, and security for federal agencies, government contractors, and other mission- critical facilities. In addition to proximity and smart cards, uTrust TS Readers support TS Cards, highly secure standards-based credentials. Strong authentication ensures that information is transferred only after the system has determined that both parties in the system are trustworthy and has validated that the data can be transferred securely. Product Features: Technical Specification: TS Wall Mount SC TS Wall Mount Keypad SC Part Numbers 8106ABP00008106ABPF0008106ABPR0008106ABT00008106ABTF0008106ABTR0008116ABP00008116ABPF0008116ABPR0008116ABT00008116ABTF0008116ABTR000 8206ABP00008206ABPF0008206ABPR0008206ABT00008206ABTF0008206ABTR0008216ABP00008216ABPF0008216ABPR0008216ABT00008216ABTF0008216ABTR000 Description TS Wall Mount with Contact Smart Card Reader TS Wall Mount Keypadwith Contact Smart Card Reader Carrier Frequencies 13.56 MHz only or 13.56 MHz and 125 kHz Data Protocol Wiegand, RS-485/OSDP (2 Wire – Half Duplex) Current Consumption(@ 12V) 95mA Average125mA Peak 110mA Average150mA Peak Power Supply 12 VDC Dimensions 5.0 x 3.4 x 1.3 in(12.7 x 8.6 x 3.3 cm) Product Weight 9.6 oz (272g) Housing Material UL94 Polycarbonate Operating Temperature 32 to 120°F (0 to 49°C) Storage Temperature 32 to 140°F (0 to 60°C) Operating Humidity 5% to 85% relative humidity (non-condensing) Connection Pigtail or Terminal Status Indicator RGB LED, Buzzer Cable Distance Wiegand 500 ft/152 m (18 AWG wire), RS-485 4000 ft/1200 m (18 AWG shielded twisted pair) Low Frequency (125 kHz) Compatibility HID® Prox, Indala®, Casi Rusco®, AWID, and others High Frequency (13.56 MHz) Compatibility PIV, PIV-I, CIV, CAC, TWIC, uTrust TS, MIFARE Classic, MIFARE DESFire EVx, ISO15693 UID, ISO14443A UID Certifications FCC, UL 294, UL1076, CE, IC, RoHS2, REACH, GSA Warranty Two (2) Years
uTrust TS Government Readers: Mullion, Wall Mount, and Wall Mount Keypad
Provides cost-effective, highly secure, and compliant FICAM-certified solutions for federal agencies and contractors, Product Description: Identiv’s uTrust TS Government Readers offer an extensive product line that encompasses both single and dual-factor authentication configurations. uTrust TS Government Readers are the industry’s most flexible and highly secure intelligent door reader endpoint. They enable agencies to deploy a highly secure U.S. government FICAM card authentication key (CAK) at a fraction of the cost of competing solutions. Product Features: Technical Specification: uTrust TS Mullion Government Reader Specifications TS Mullion HF TS Mullion HF/LF TS Mullion HF/LF PoE TTS Mullion HF PoE Part Numbers 8002ABP00008002ABT00008002ABPF0008002ABTF0008002ABPR0008002ABTR000 8012ABP00008012ABT00008012ABPF0008012ABTF0008012ABPR0008012ABTR000 8032ABP00008032ABT00008032ABPF0008032ABTF0008032ABPR0008032ABTR000 8052ABP00008052ABT00008052ABPF0008052ABTF0008052ABPR0008052ABTR000 Current Consumption (@12V) 100 mA Average 133 mA Peak 167 mA Average; 211 mA Peak; PoE: @48V Dimensions Body: 4.6 in (11.7 cm) H x 1.7 in (4.3 cm) W x 1.1 in (2.8 cm) D Product Weight 5 oz. (142 g) Connection Pigtail or Terminal Strip uTrust TS Wall Mount Government Reader Specifications TS Wall Mount HF TS Wall Mount HF/LF TS Wall Mount HF/LF PoE TS Wall Mount HF PoE Part Numbers 8102ABP00008102ABT00008102ABPF0008102ABTF0008102ABPR0008102ABTR000 8112ABP00008112ABT00008112ABPF0008112ABTF0008112ABPR0008112ABTR000 8132ABP00008132ABT00008132ABPF0008132ABTF0008132ABPR0008132ABTR000 8152ABP00008152ABT00008152ABPF0008152ABTF0008152ABPR0008152ABTR000 Current Consumption (@12V) 97 mA Average 114 mA Peak 172 mA Average; 202 mA Peak; PoE: @48V 50 Dimensions Body: 4.6 in (11.7 cm) H x 3.1 in (7.8 cm) W x 1.1 in (2.8 cm) D Product Weight 10.25 oz (290 g) Connection Pigtail or Terminal Strip uTrust TS Wall Mount Keypad Government Reader Specifications TS Wall MountKeypad HF TS Wall MountKeypad HF/LF TS Wall MountKeypad HF/LF PoE TS Wall MountKeypad HF PoE Part Numbers 8202ABP00008202ABT00008202ABPF0008202ABTF0008202ABPR0008202ABTR000 8212ABP00008212ABT00008212ABPF0008212ABTF0008212ABPR0008212ABTR000 8232ABT00008232ABTF0008232ABTR000 8252ABT00008252ABTF0008252ABTR000 Current Consumption (@12V) 110 mA Average 155 mA Peak 180 mA Average; 255 mA Peak; PoE: @48V 80 mAPeak Dimensions Body: 4.6 in (11.7 cm) H x 3.1 in (7.8 cm) W x 1.1 in (2.8 cm) D Product Weight 10.93 oz (310 g) Connection Pigtail or Terminal Strip Common Specifications HF HF/LF HF/LF PoE HF PoE Carrier Frequencies 13.56 MHz 13.56 MHz and 125 kHz13.56 MHz and 125 kHz 13.56 MHz Low Frequency(125kHz) Compatibility N/A HID ® Prox, Indala ®, CASI-RUSCO®, AWID and others N/A High Frequency(13.56MHz)Compatibility uTrust TS, MIFARE Classic, MIFARE DESFireEVx, ISO15693 UID, ISO14443A UID Data Protocol Wiegand or RS-485/OSDP (2 Wire – Half Duplex) FICAM Ready Power Supply 12 VDC or PoE (802.3af) Housing Material UL 94 Polycarbonate, Black OperatingTemperature -31 to 151° F (-35 to 66° C) 32 to 120° F (0 to 49° C) Storage Temperature -31 to 185° F (-35 to 85° C) Operating Humidity 5% to 95% relative humidity (non-condensing) Status Indicator RGB LED, Buzzer Cable Distance Wiegand 500 ft (152 m) 18 AWG wire, RS-485 4000 ft (1200 m) 18 AWG shielded twisted pair Certifications FCC, UL 294, CE, IC, RCM, RoHS2, REACH Environmental Rating Pigtail versions: IP67; Terminal versions IP65; PoE versions: IP55 Warranty Limited Lifetime
uTrust TS Readers: Mullion, Wall Mount, and Wall Mount Keypad
Delivers robust performance and maximum flexibility for diverse access control needs. Product Description: uTrust TS Readers work with system changes and alterations, such as expansion, corporate mergers, or simply the desire to expand and increase a facility’s security. From corporate campuses or universities to complex environments, they fully support entire populations of access control users. In addition to proximity and smart cards, uTrust TS Readers support TS Cards, highly secure standards-based credentials. Strong authentication ensures that information is transferred only after the system has determined that both parties in the system are trustworthy and has validated that the data can be transferred securely. Product Features: Technical Specification: uTrust TS Mullion Reader Specifications TS Mullion HF TS Mullion HF/LF TS Mullion LF TS Mullion HF/LF PoE TS Mullion HF PoE Part Numbers 8000ABP00008000ABT00008000ABPR0008000ABTR000 8010ABP00008010ABT00008010ABPR0008010ABTR000 8020ABP00008020ABT00008020ABPR0008020ABTR000 8030ABP00008030ABT00008030ABPR0008030ABTR000 8050ABP00008050ABT00008050ABPR0008050ABTR000 Current Consumption (@12V) 100 mA Average 133 mA Peak 167 mA Average; 211 mA Peak; PoE: @48V50 mA Average; 55 mA Peak Dimensions Body: 4.6 in (11.7 cm) H x 1.7 in (4.3 cm) W x 1.1 in (2.8 cm) D Product Weight 5 oz. (142 g) Connection Pigtail or Terminal Strip uTrust TS Wall Mount Reader Specifications TS Wall Mount HF TS Wall Mount HF/LF TS Wall Mount LF TS Wall Mount HF/LF PoE TS Wall Mount HF PoE Part Numbers 8100ABP00008100ABT00008100ABPR0008100ABTR000 8110ABP00008110ABT00008110ABPR0008110ABTR000 8120ABP00008120ABT00008120ABPR0008120ABTR000 8130ABP00008130ABT00008130ABPR0008130ABTR000 8150ABP00008150ABT00008150ABPR0008150ABTR000 Current Consumption (@12V) 97 mA Average 114 mA Peak 172 mA Average; 202 mA Peak; PoE: @48V 50mA Average; 55 mA Peak Dimensions Body: 4.6 in (11.7 cm) H x 3.1 in (7.8 cm) W x 1.1 in (2.8 cm) D Product Weight 10.25 oz (290 g) Connection Pigtail or Terminal Strip uTrust TS Wall Mount Keypad Reader Specifications TS Wall Mount HF TS Wall Mount HF/LF TS Wall Mount LF TS Wall Mount HF/LF PoE TS Wall Mount HF PoE Part Numbers 8200ABP00008200ABPR0008200ABT00008200ABTR000 8210ABP00008210ABPR0008210ABT00008210ABTR000 8220ABT00008220ABTR000 8230ABT00008230ABTR000 8250ABT00008250ABTR000 Current Consumption (@12V) 97 mA Average 114 mA Peak 172 mA Average; 202 mA Peak; PoE: @48V 50mA Average; 55 mA Peak Dimensions Body: 4.6 in (11.7 cm) H x 3.1 in (7.8 cm) W x 1.1 in (2.8 cm) D Product Weight 10.25 oz (290 g) Connection Pigtail or Terminal Strip Common Specifications HF HF/LF LF HF/LF PoE HF PoE Carrier Frequencies 13.56 MHz 13.56 MHz and 125 kHz 125 kHz 13.56 MHz and 125 kHz 13.56 MHz Low Frequency(125kHz) Compatibility N/A HID ® Prox, Indala ®, CASI-RUSCO®, AWID and others N/A High Frequency(13.56MHz)Compatibility uTrust TS, MIFARE Classic, MIFARE DESFireEVx, ISO15693 UID, ISO14443A UID N/A uTrust TS, MIFARE Classic, MIFARE DESFire EVx,ISO15693 UID, ISO14443A UID Data Protocol Wiegand or RS-485/OSDP (2 Wire – Half Duplex) FICAM Ready Power Supply 12 VDC or PoE (802.3af) Housing Material UL 94 Polycarbonate, Black OperatingTemperature -31 to 151° F (-35 to 66° C) 32 to 120° F (0 to 49° C) Storage Temperature -31 to 185° F (-35 to 85° C) Operating Humidity 5% to 95% relative humidity (non-condensing) Status Indicator RGB LED, Buzzer Cable Distance Wiegand 500 ft (152 m) 18 AWG wire, RS-485 4000 ft (1200 m) 18 AWG shielded twisted pair Certifications FCC, UL 294, CE, IC, RCM, RoHS2, REACH Environmental Rating Pigtail versions: IP67; Terminal versions IP65; PoE versions: IP55 Warranty Limited Lifetime

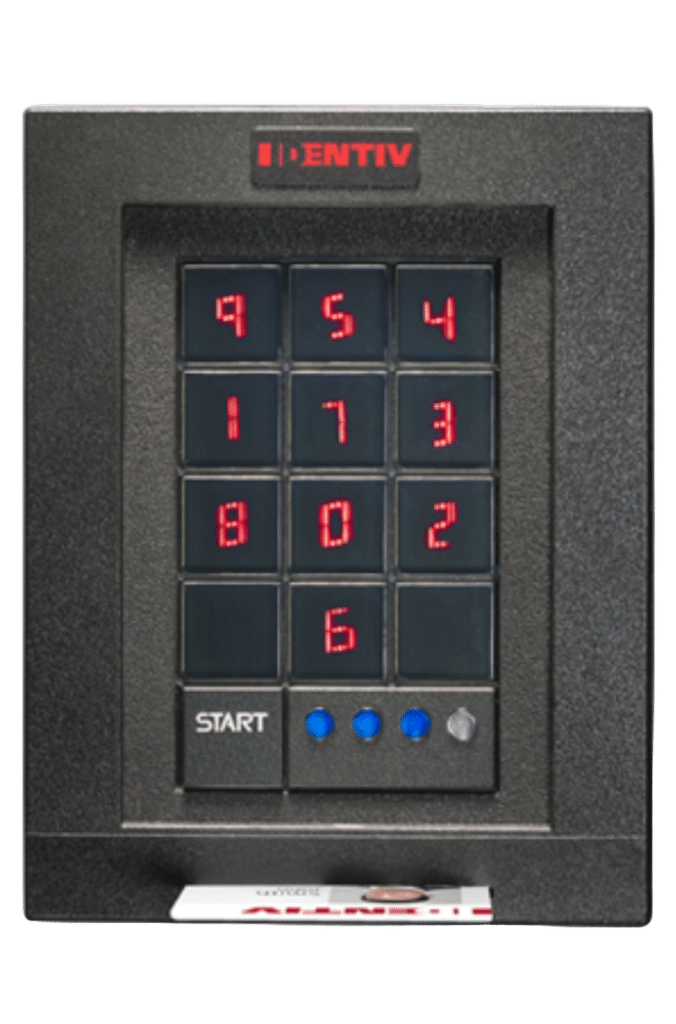

Hirsch TS ScramblePad SC: FICAM-Capable TS ScramblePad with Contact Smart Card Reader
A high-security keypad that features a patented scrambling function. It can also be used for contactless and contact smart card. Product Description: Hirsch TS ScramblePad SC provides high-security keypad functionality, a contactless interface, and a contact reader for two-factor authentication. The ScramblePad design is specified in many of the world’s most secure locations due to its high-security scramble feature that randomly orders the digits each time the “START” button is pressed or a card requiring a PIN is presented. The random scrambling prevents the acquisition of a user code via pattern recognition and also prevents keypad wear leaving a tell-tale impression of the numbers used in a valid PIN. This feature is further enhanced by the use of viewing restrictors narrowing the field of vision; only the person directly facing the ScramblePad can see the presented digits. Product Features: Technical Specification: TS ScramblePad SC Wiegand TS ScramblePad SC RS-485/OSDP TS ScramblePad SCFICAM TS ScramblePad SC FICAM-Strict Part Numbers 8336ABT0000 8336ABTR000 8336ABTF000 8336ABTFF00 Description ScramblePad with TSReader(Commercial and Government) ScramblePad with TSReader(Commercial and Government) ScramblePad with TS Reader (with FICAM Systems) ScramblePad with TS Reader (FICAM Systems – Strict) Carrier Frequencies 125 kHz/13.56 MHz 13.56MHz Reader Output Wiegand RS-485 (2 Wire) CurrentConsumption (@ 12 V) 270 mA typical 300 mA PeakPoE @48V 68 mA typical 82 mA Peak Power Supply 12 VDC or PoE (802.3af) Product Weight 445 g (15.69 oz) Dimensions Face: 5.75 (H) x 4.37 (W) in (14.6 x 11.1 cm)Body: 5.0 (H) x 3.5 (W) x 2.75 (D) in (12.7 cm x 8.89 cm x 7.0 cm) Color Black Operating Temperature 0° to 49° C (32° to 120° F) Storage Temperature -35 to 85° C (-31 to 185° F) High FrequencyCompatibility PIV, PIV-I, CAC, MIFARE, DESFire, PLAID, ISO15693, ISO14443A PIV, PIV-1, CAC, CAK & PAK Low FrequencyCompatibility HID Prox, Indala, Casi Rusco, AWID, Farpointe, and others None Operating Humidity 5% to 95% relative humidity (non-condensing) Connection Structure Cabling (RJ45) for Ethernet and Terminal Strip for Wiegand and RS485RGB LED, Ethernet link activity LED, Buzzer Certifications FCC, UL, CE, IC, RCM, RoHS2, REACH FICAM Certifications No Upgradable Yes Warranty Two (2) years Mounting Boxes Dimensions and mounting points are identical to other ScramblePads, enabling compatibility with a range of mounting boxes. The contact smart card reader occupies the volume below the reader. It fits in a standard MB2 or MB2/UMK as long as that volume is not obstructed. Other boxes may require an extender or an alternate faceplate

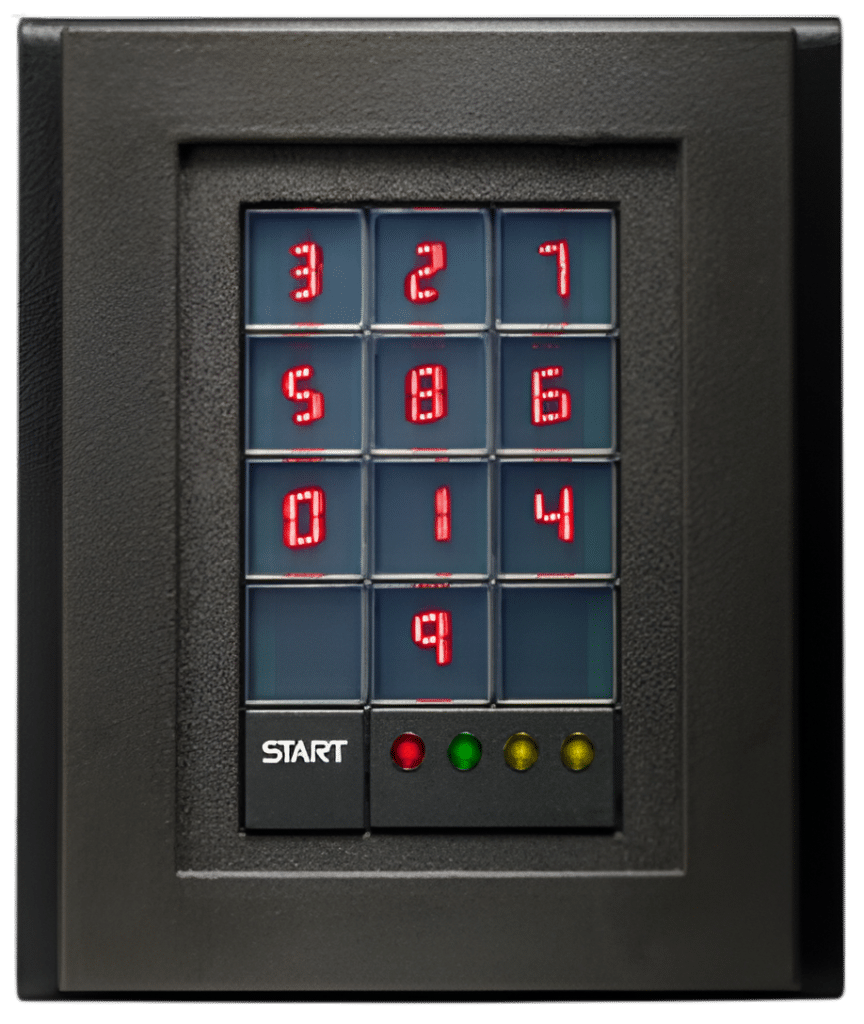

Hirsch Scramble Pad Readers
A high-security keypad with patented scrambling function to avoid pattern recognition. Product Description: Identiv’s ScramblePad design is specified in many of the world’s most secure locations due to its high-security scramble feature that randomly orders the digits each time the “START” button is pressed or a card requiring a PIN is presented. The random scrambling prevents the acquisition of a user code via pattern recognition and also prevents keypad wear that leaves a tell-tale impression of the numbers used in a valid PIN. This feature is further enhanced by the use of viewing restrictors that narrow the field of vision; only the person directly facing the ScramblePad can see the presented digits. Product Features: Technical Specification: TS ScramblePad HF/LF TS ScramblePad HF TS ScramblePad HF/LF Commercial (No FICAM TS ScramblePad HF Commercial (No FICAM) Part Numbers 8332ABT0000 8332ABTF000 8332ABTR000 8352ABT0000 8352ABTF000 8352ABTR00 8330ABT0000 8330ABTR000 8350ABT0000 8350ABTR000 Carrier Frequencies 13.56MHz and 125 kHz 13.56MHz 13.56MHz and 125 kHz 13.56MHz Low Frequency (125kHz) Compatibility HID® Prox, Indala®, CASI-RUSCO®, AWID, and others N/A HID® Prox, Indala®, CASI-RUSCO®, AWID, and others N/A High Frequency (13.56MHz) Compatibility PIV, PIV-I, CIV, CAC, TWIC, uTrust TS, MIFARE Classic, DESFire EVx, ISO15693 UID, ISO14443 UID Current Consumption (@12V) 335 mA Average 425 mA Peak; PoE @ 55V 80 mA Peak Power Supply 12 VDC or PoE (802.3af) Dimensions Face: 5.75 in (14.6 cm) H x 4.5 in (11.4 cm) W x .625 in (1.6 cm) DBody: 4.5 in (11.4 cm) H x 3.5 in (8.9 cm) W x 1.75 in (4.4 cm) Weight 2 lbs (907 g) Housing Material UL 94 Polycarbonate, Black Operating Temperature 32° to 120° F (0° to 49° C) Storage Temperature -31° to 185° F (-35° to 85° C) Operating Humidity 5% to 95% relative humidity (non-condensing) Connection Terminal Strip Status Indicator RGB LED, Buzzer Data Protocols Wiegand RS-485/OSDP (2 Wire – Half Duplex) OSDP Baud Rate/ Address 115,200 kbps; Address 0, Address 1 (P1.1 to P1.4 jumper) Mounting Accessories MB1, MB2, MB2S, MB2SL2, MB3, MB4, MB5, MB5-S, MB8, MB9, UMK, MBX Certifications FCC, UL 294, CE, IC, RCM, RoHS2, REACH, UKCA, GSA APL Warranty Two (2) years
Hirsch Scramble Factor: High-Assurance Biometrics and Multi-Factor Authentication Reader
An advanced fingerprint biometrics with LCD touchscreen keypad designed for high-security areas. Product Description: ScrambleFactor reimagines secure entry for the federal market with a fingerprint sensor, LCD touchscreen, virtual keypad, contact and contactless credential modes. The ScrambleFactor enables multiple authentication methods to deliver unparalleled security, speed, and functionality. ScrambleFactor offers federal users up to three-factor authentication suitable for the most secure areas. Product Features: Technical Specification: SF.3 HF SF.3 HF/LF Part Number 8403ABTM000 8413ABTM000 Description TS ScrambleFactor SF.3 HF, SC, Fingerprint RS485/OSDP Reader TS ScrambleFactor SF.3 HF/LF, SC, Fingerprint RS485/OSDP Reader Keypad 12-character Carrier Frequencies 13.56 MHz 13.56 MHz and 125 kHz 13.56 MHz Compatilbity PIV, PIV-I, CAC, TWIC, uTrust TS, MIFARE Classic, DESFire EVx, ISO15693 UID, ISO14443 UID 125 kHz Compatibility N/A HID® Prox, Indala®, CASI-RUSCO®, AWID and others Contact Smartcard Conforming to ISO-7816 in the ID-1 form factor Biometric Fingerprint: Optical, FBI certified (FIPS 201, PIV, and Mobile ID FAP 10 compliant) and STQC certified Multimodal Multimodal assurance level support in Velocity 3.8.6 Data Protocol RS-485/OSDP (2 wire – half duplex) Current @12V 260mA Average, 320mA Max Power Supply 12VDC Dimensions H 6.14 in. (15.6 cm) x W 4.45 in. (11.30 cm) x D 1.93 in. (4.90 cm) Screen ANSI INCITS 378-2004 and ISO/IEC 19794-2 Fingerprint Template Format 32 to 120F (0 to 49C) Operating Temperature -4 to 149 F (-20 to 65C) Operating Humidity 5% to 95% relative humidity (non-condensing) Environmental Rating IP55 Connection Terminal Strip Status Indicator Red/Green LED, Buzzer Data Cable Distance RS-485 4000 ft. (1200 m) minimum 22 AWG shielded twisted pair. Refer to Hirsch public documentation for wiring recommendations. Certifications FCC, UL 294, CE, IC, RCM, RoHS2, REACH, UKCA Warranty 2 year limited warranty Mounting Accessories MB2, MB2S, MB2SL, MB3, MB4, MB5, MB5-S
MEB/CB Memory Expansion Board/Code Buffering Board
Helps expand the memory capacity of controllers. Product Description: Identiv’s MEB/CB Boards bring an option for expanded memory to the Hirsch PACS offering. The MEB/CB64 supports up to 64,000 user records, expands the alarm and event buffers, or provides a combination of both records and buffers. Product Features: Technical Specification: PHYSICAL Alarm Physical tamper on panel enclosure Dimensions 6.00 x 4.05 x .38 in (15.24 x 10.3 x .95 cm) Shipping Weight 1 lb (0.45 kg) Operating Temperature Range 32° to 140°F (0° to 60°C) Relative Humidity 0 to 90%, non-condensing Listings and Approvals • UL-294, UL-1076• CE

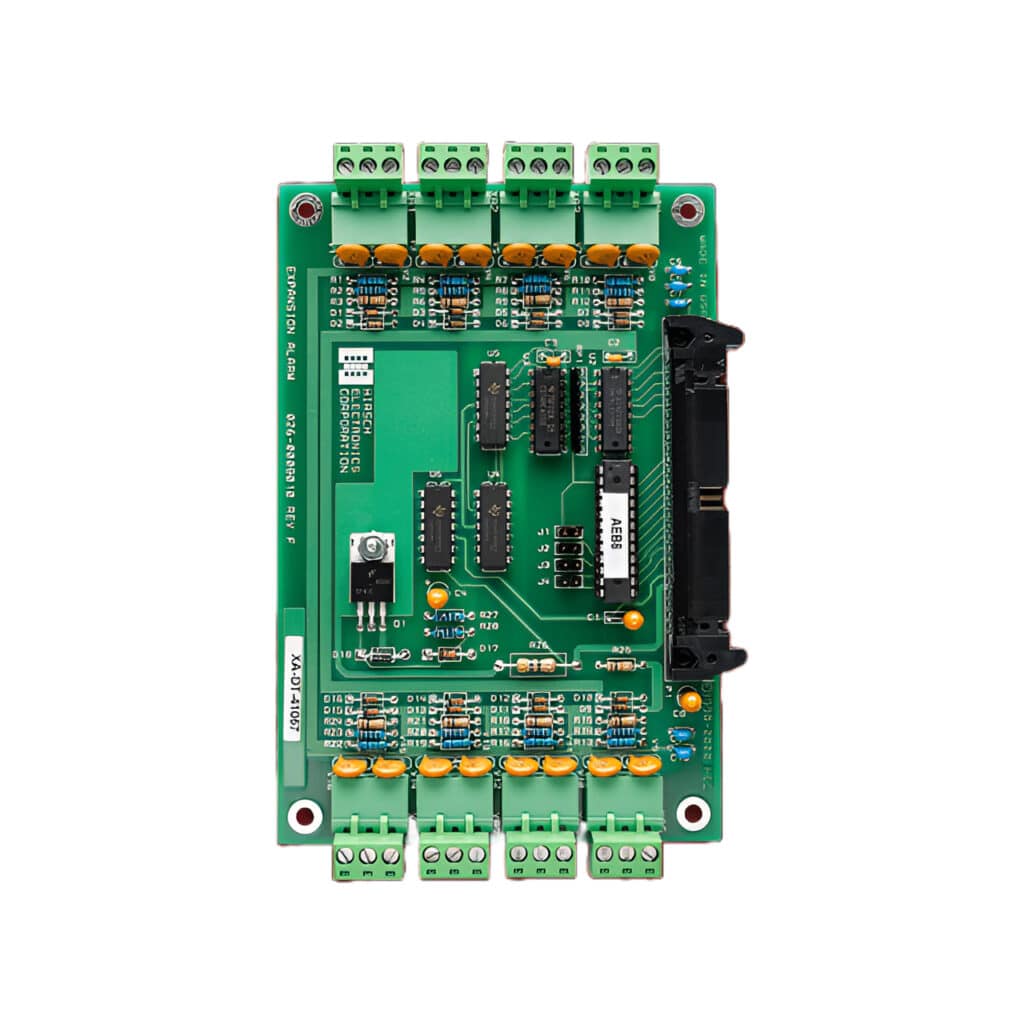

AEB8 Alarm Expansion Board with 8 Additional Line Model Inputs
Used for a variety of security monitoring, this device provides an additional 8 line module inputs per board. Product Description: The Alarm Expansion line module inputs are used for a variety of security monitoring functions in an access control application. The AEB8 has four (4) address jumpers, and a range of eight (8) addresses. This addressing scheme enables up to four (4) AEB8s to reside on one controller. Product Features: Technical Specification: COMMUNICATIONS Wiring from Controller EBIC5 Supervision ± 2% with MELM 3 PHYSICAL Alarm Physical tamper on panel enclosure Dimensions 6.85 x 4.05 x .52 in (17.4 x 10.3 x 1.32 cm) Shipping Weight 1 lb (0.45 kg) Operating Temperature Range 32° to 140°F (0° to 60°C) Relative Humidity 0 to 90%, non-condensing Listings and Approvals • UL-294, UL-1076• CE

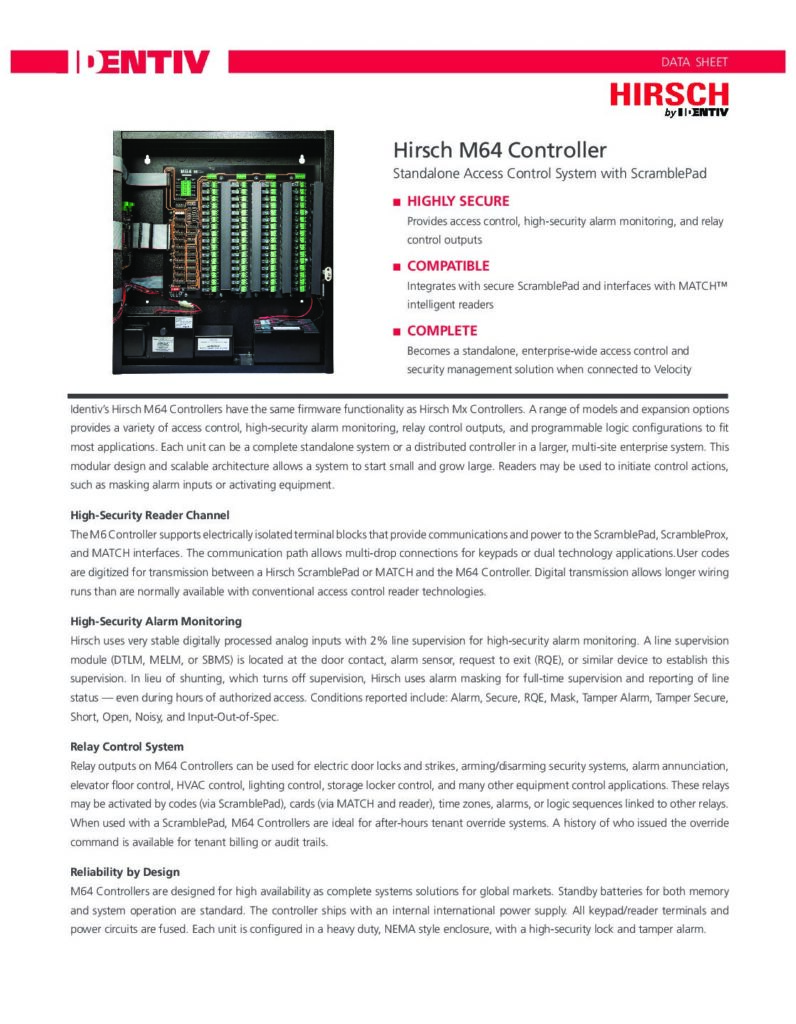

Hirsch M64 Controller: Standalone Access Control System with ScramblePad
Provide a variety of access control, high-security alarm monitoring, relay control outputs, and programmable logic configurations. Product Description: Identiv’s Hirsch M64 Controllers have the same firmware functionality as Hirsch Mx Controllers. A range of models and expansion options provides a variety of access control, high-security alarm monitoring, relay control outputs, and programmable logic configurations to fit most applications. Each unit can be a complete standalone system or a distributed controller in a larger, multi-site enterprise system. This modular design and scalable architecture allows a system to start small and grow large. Readers may be used to initiate control actions, such as masking alarm inputs or activating equipment. Product Features: Technical Specification: CONNECTIONS Parallel PrinterPort Standard Keypad/Reader Port 16 device addresses Command and Programming Any address Wiring 750 ft (160 m) with 22 gauge, 1800 ft (550 m) with 18 gauge. 2 pair, stranded, twisted, overall shield FIRMWARE Command and Control Module (CCM) • Removable and upgradable• Time zones: 150• Control zones: 256• Holidays: Four 366 Day x 2 years• Daylight Savings Time adjustment MEMORY Buffers • 1500 events, 1500 alarms standard• 20,000 events, 2,000 alarms with MEB/BE• 20,000 events, 2,000 alarms with MEB/CB (reduces users by 20%)• Oldest discarded first, if full Users • 4000 standard• 132,000 with MEB/CB128 Battery Backup 30 days for code, setups, clock, and buffer ELECTRICAL Keypad/ReaderPower • 1.0 Amp @24VDC each terminal, fused• MSP-64R: 2.15 Amp @24VDC, 6 terminals total• Powers ScramblePad and MATCH Primary and Standby Power • 90 – 130VAC, 50/60 Hz, fused• 180 – 260VAC, 50/60 Hz, fused Power Supply Uninterruptible Standby Batteries MSP-64R: 7 AH Included Control Relays 2 Amp, Form C (MSP-8R requires REB8)
Hirsch Mx-1-ME Controller: High-Security Access Control
A fully supervised one-door access control with integrated and secure network communication. Product Description: With firmware, functionality, and communication protocols compatible to the IdentivDIGI*TRAC and Mx Controllers, the Mx-1-ME seamlessly integrates with existing systems, retaining credentials, readers, and user databases. Designed for use with uTrust TS readers and secure keypads, Mx-1-ME adds network edge capability to the Identiv enterprise security management ecosystem. Product Features: Technical Specification: COMMUNICATIONS Serial Interface Ports Controller to controller:• RS-485 multi-drop protocol (X*NET2, X*NET3)• Up to 4,000 ft (1,200 m) with 22 gauge, 2 pair, stranded, twisted, and shielded OSDP Protocol Controller to reader:• Buzzer, LED, and optional secure OSDP• Single port for entry and exit readers• Up to 4,000 ft (1,200 m) with 18 gauge, 2 pair, stranded, twisted, and shielded Wiegand Protocol Onboard Wiegand:• Industry standard Wiegand• Reader ports: 2 (1 entry port and 1 exit port)• Maximum wiring run: 500 ft (150 m) with 18 gauge, 2 pair, stranded, twisted, overall shield FIRMWARE Command and Control Module (CCMx) • Flash upgradeable• Time zones: 150• Door groups: 128• Control zones: 256• Holiday schedules: 4 (366 days x 2 years)• Daylight savings time adjustment SNIB3 • Flash upgradeable with signed and encrypted firmware• FIPS AES 256 encryption• TLS 1.2 Encryption (Requires Velocity 3.7 SP2 or later)• 10/100/1000 Ethernet (TCP/IPv4 or v6) MEMORY Buffers Standard: 1,500 events and 1,500 alarms Credentials Up to 500,000 Memory ProtectionBattery 10 days for code, setups, clock, and buffers PHYSICAL Security Cover opening tamper switch Enclosure NEMA type with conduit knockouts and removable door Dimensions 14 x 14 x 5.5 in Weight 24 lbs (11 kg) w/ battery Expansion Boards (Max 5) 6 H x 4.25 W x .75 D in OperatingTemperature Range 32° to 140°F (0° to 60°C) Relative Humidity 0 to 90%, non-condensing ELECTRICAL OSDP Keypad/ReaderPower (1 Terminal) 750mA at 12V (up to 2 readers), fused and resettable WiegandKeypad/Reader (2Terminals) 500mA per port @12V, fused and resettable. Note: When the door and AUX relays are configured at 12V/500mA, the max current draw for the Wiegand reader ports combined is limited to 750mA Power Supply AC INPUT 110 -240V, 50-60 Hz, fused. Built-in PSU module generates 5A @ 30V DC for the controller and connected devices Standby Batteries 2 X 12V, 1.3 AH VRLA connected in series included as standard for 24V back up. Door Relay Dry 2A at 30V, Form CWet 250mA @ 24V / 500mA @ 12V Auxiliary Relay Dry 2A at 30V, Form CWet 250mA @ 24V / 500mA @ 12V Listings and Approvals UL 294: Access Control Systems UnitsUL 1076: Proprietary Burglar Alarm Systems
