DH-PFS3010-8GT-96 8-Port Gigabit PoE-Compliant Unmanaged Network Switch
A budget-friendly network switch that has a plug-and-play feature for easier use. Product Description:Quickly expand your business’s network capacity to support powered devices, such as IP security cameras and access points, with the 8-Port Gigabit PoE-Compliant Unmanaged Network Switch from Dahua Technology. This budget-friendly network switch features eight PoE-complaint Gigabit Ethernet ports, one of which can supply up to 90W of power to advanced devices while the rest support 30W. Additionally, this plug-and-play desktop switch integrates into your network through its two RJ45/SFP Gigabit combo uplink ports without requiring complex configuration. Its 20 Gb/s switching capacity, a 14.88 forwarding rate, and 1.5 Mb packet buffer help to provide smooth and reliable data transfers and high-definition video. Product Features: Technical Specification: Model DH-PFS3010-8GT-96 Description 8-port PoE 2.0 Gigabit Switch Port Configuration GbE PoE Ports + 2 GbE Combo(RJ45) Uplinks SFP Optical Ports – PoE Standard PoE (802.3af),PoE+ (802.3at), Hi-PoE,PoE++ (802.3bt) PoE Budget 96 W PoE Watchdog Supported Long Distance PoE Transmission Yes (820 ft) Intelligent PoE Management Supported Switching Capacity 20 Gbps Packet Forwarding Rate 14.88 Mpps Packet Buffer Memory 1.5 Mb Mac Table Size 4K VLAN – Link Aggregation – Spanning Tree – Management – Lightning Protection Common Mode 6 kVDifferential Mode 4 kV Working Temperature 14° F to 131° F(-10° C to 55° C) Dimensions 190 mm × 100 mm × 30 mm(7.5 in. × 3.9 in. × 1.2 in.)

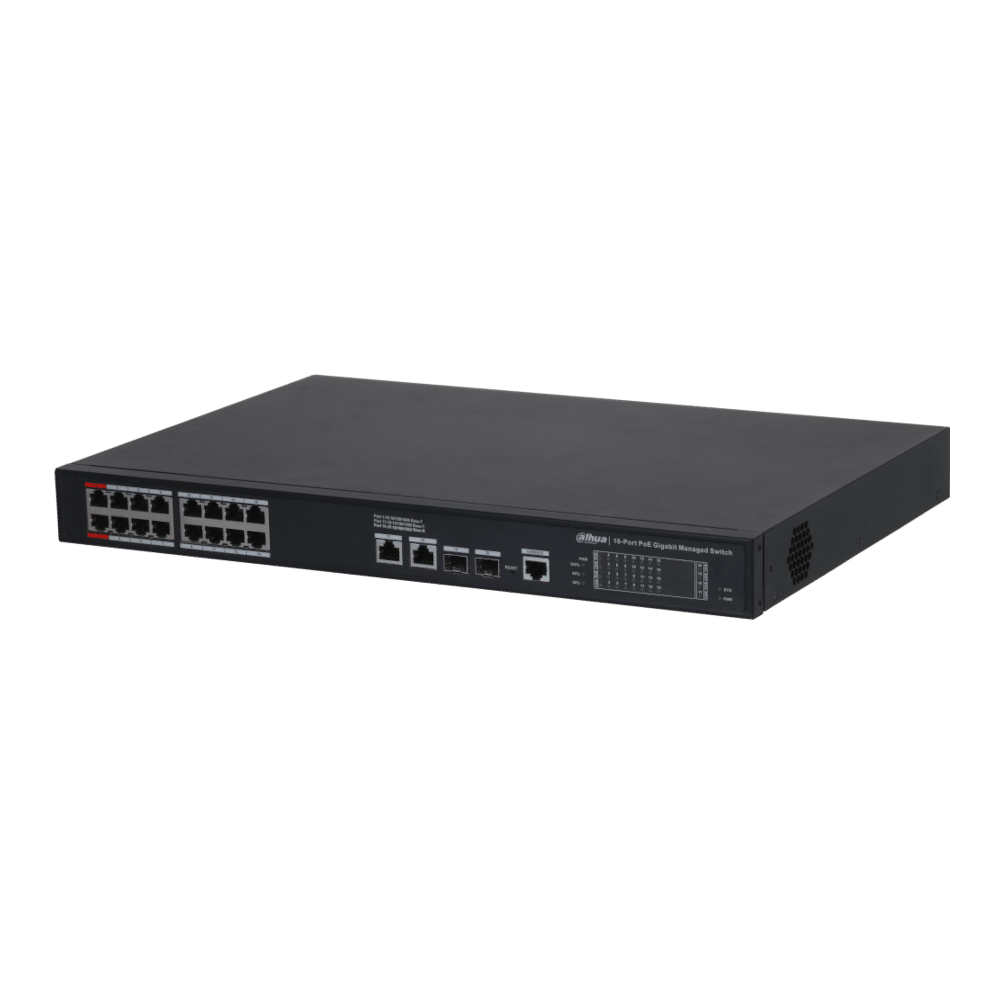

DH-S4220-16GT-240 16-Port Gigabit PoE++ Compliant Managed Network Switch
A high-performance network switch capable of supporting up to 16 devices with its ports. Product Description:Grow your business’s network capacity with the DH-S4220-16GT-240 16-Port Gigabit PoE++ Complaint Managed Network Switch from Dahua Technology. This managed Layer 2 switch features 16 Gigabit Ethernet ports, two of which support up to 90W PoE while the rest provide up to 30W each, delivering both power and data to IP cameras, access points, and other compatible devices over a single cable. Product Features: Technical Specification: Model DH-S4220-16GT-240 Description 16-port PoE 2.0 ManagedGigabit Switch Port Configuration 16 GbE PoE+2 GbE SFP Optical Ports 2 GbE SFP PoE Standard PoE (802.3af),PoE+ (802.3at), Hi-PoE,PoE++ (802.3bt) PoE Budget 240 W PoE Watchdog Supported Long Distance PoE Transmission Yes (820 ft) Intelligent PoE Management Supported Switching Capacity 56 Gbps Packet Forwarding Rate 29.76 Mpps Packet Buffer Memory 4.1 Mb Mac Table Size 8K VLAN Supported Link Aggregation Supported Spanning Tree Supported Management Web and SNMP Lightning Protection Common Mode 4 kVDifferential Mode 2 kV Working Temperature 14° F to 131° F(-10° C to 55° C) Dimensions 440 mm × 300 mm × 44 mm(17.32 in. × 11.81 in. × 1.73 in.)

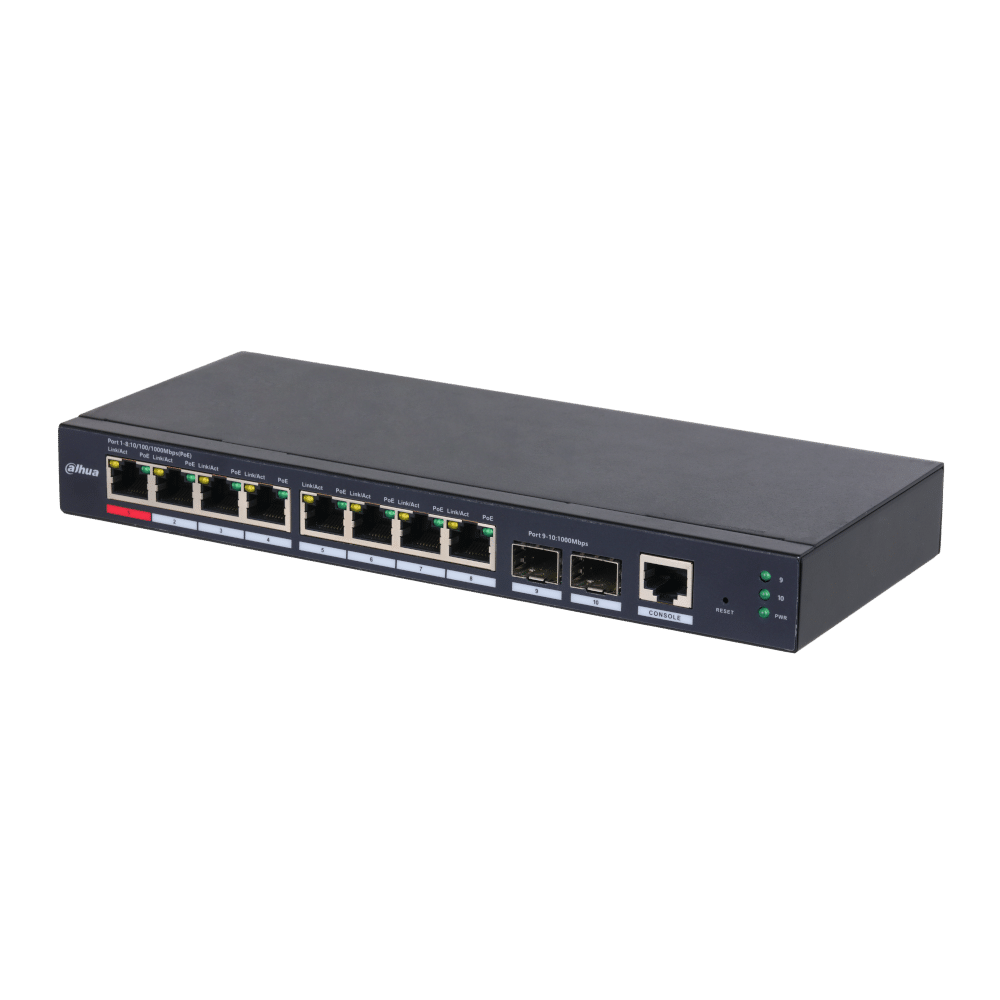

DH-S4210-8GT-110 8-Port Gigabit PoE Compliant Managed Network Switch
A budget-friendly network switch capable of supporting security devices and access points. It features 8 ports to support at least 8 devices. Product Description:Quickly expand your business’s network capacity to support powered devices, such as IP security cameras and access points, with the S4210-8GT-110 8-Port Gigabit PoE Compliant Managed Network Switch from Dahua Technology. This budget-friendly network switch features eight PoE-complaint Gigabit Ethernet ports, one of which can supply up to 90W of power to advanced devices while the rest support 30W with a total budget of 110W. Product Features: Technical Specification: Model DH-S4210-8GT-110 Description 8-port ePoE Fast EthernetSwitch Port Configuration 8 GbE PoE+2 GbE SFP Optical Ports 2 GbE SFP PoE Standard PoE (802.3af),PoE+ (802.3at), Hi-PoE,PoE++ (802.3bt) PoE Budget 110 W PoE Watchdog Supported Long Distance PoE Transmission Yes (820 ft) Intelligent PoE Management Supported Switching Capacity 20 Gbps Packet Forwarding Rate 14.88 Mpps Packet Buffer Memory 4.1 Mb Mac Table Size 8K VLAN Supported Link Aggregation Supported Spanning Tree Supported Management Web and SNMP Lightning Protection Common Mode 4 kVDifferential Mode 2 kV Working Temperature 14° F to 131° F(-10° C to 55° C) Dimensions 240 mm x 104 mm x 28 mm(9.45 in x 4.12 in x 1.10 in)

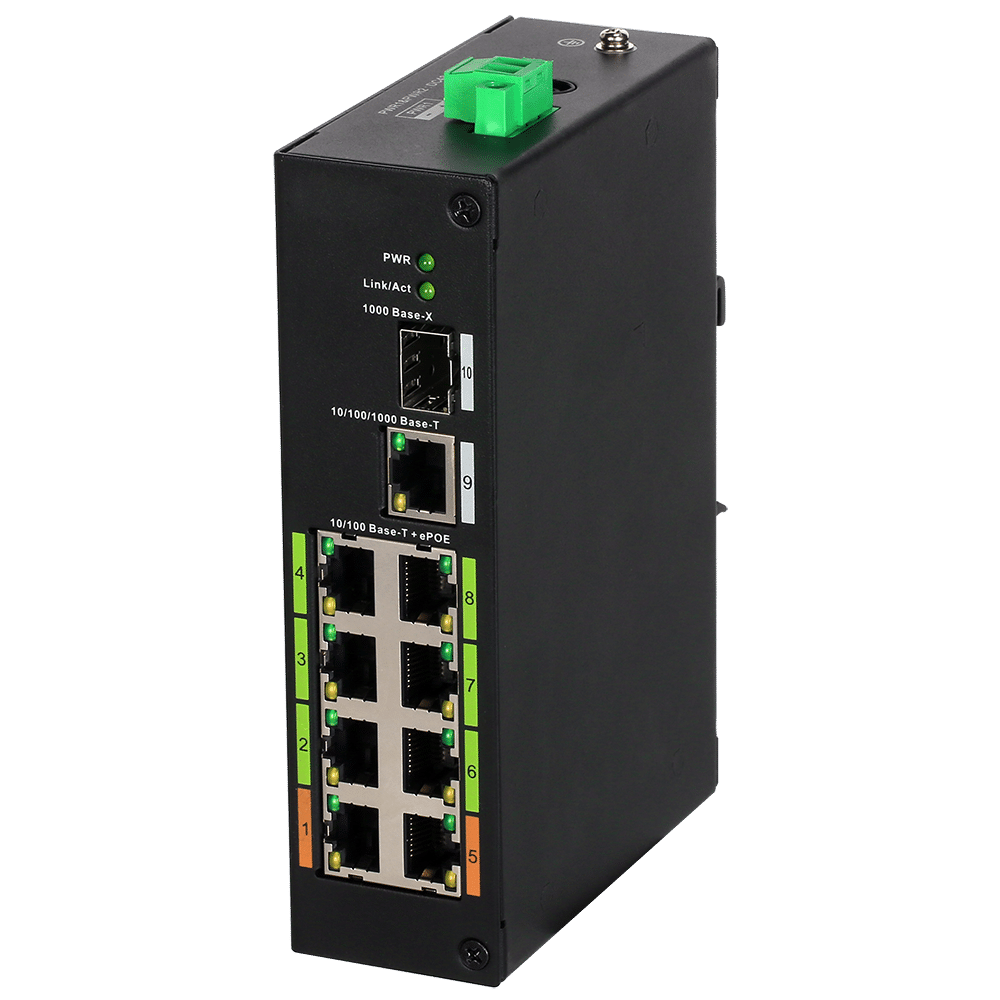

DH-LR2110-8ET-120 10-Port Unmanaged Switch with 8-Port ePoE
Designed for fast transmission of data, this network switch can accommodate up to 8 devices. Product Description:DH-LR2110-8ET-120 is a 8-Port ePoE switch, which is able to realize PoE transmission over 800 meters Ethernet cable at the speed of 10Mbps, or 300 meters at the speed of 100Mbps. Besides, it supports PoE and PoC power supply technology, which has greatly simplified construction and wiring. Dahua ePoE technology offer a new way to accomplish long distance transmission between IP camera and network switch. It allows more flexible surveillance system design, improves reliability and saves construction and wiring cost. Product Features: Technical Specification: Model DH-IS2110-8ET-120 Description 8-port ePoE Fast EthernetSwitch Port Configuration 8 FE PoE+1 GE SFP Optical Ports 1 GE SFP PoE Standard PoE (802.3af),PoE+ (802.3at), Hi-PoE PoE Budget 120 W PoE Watchdog – Long Distance PoE Transmission Yes (2625 ft) Intelligent PoE Management – Switching Capacity 8.8 Gbps Packet Forwarding Rate 4.17 Mpps Packet Buffer Memory 2.75 Mb Mac Table Size 4K VLAN – Link Aggregation – Spanning Tree – Management – Lightning Protection Common Mode 4 kVDifferential Mode 2 kV Working Temperature -22° F to 149° F(-30° C to 65° C ) Dimensions 150 mm × 100 mm × 42 mm(5.91 in. × 3.94 in. × 1.65 in.)

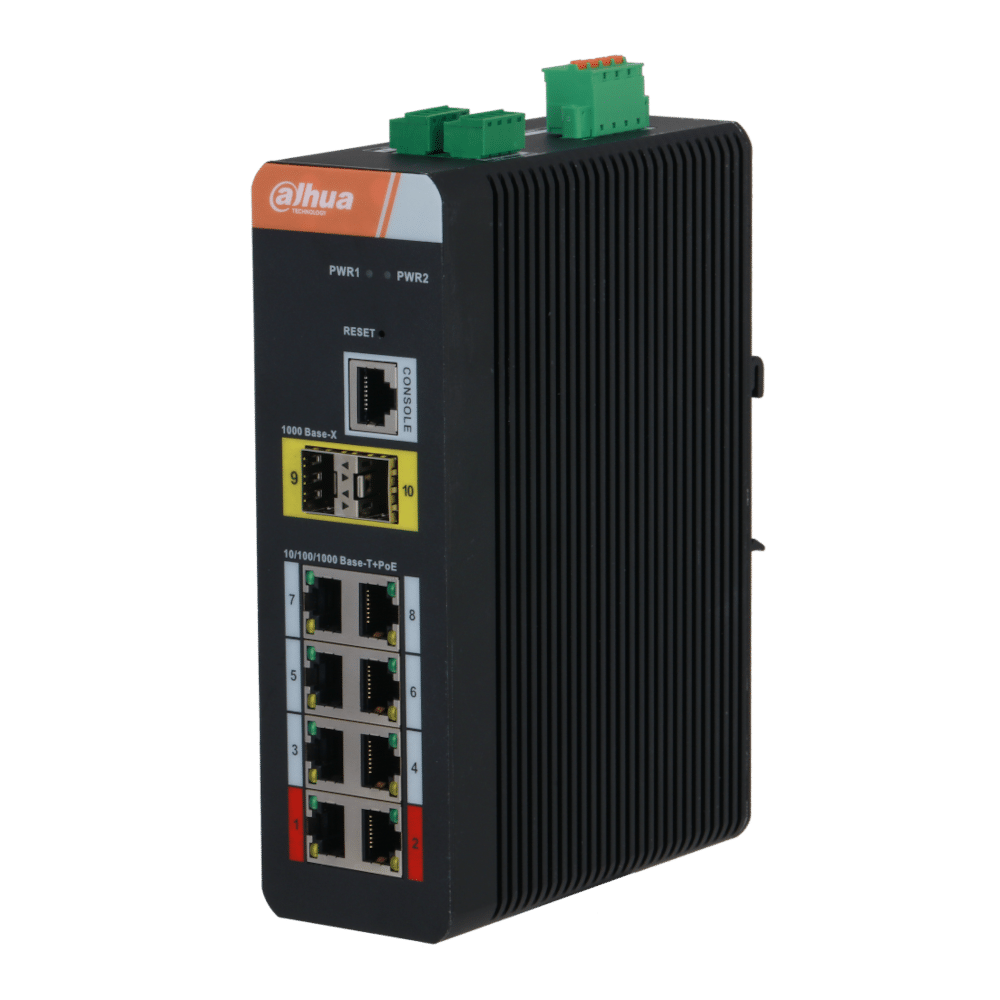

DH-IS4210-8GT-120 8-Port Gigabit PoE++ Compliant Managed industrial Switch
This industrial network switch is designed to withstand harsh environments to constantly power security cameras. Product Description:Capable of operating in -40 to 167°F temperatures, the DH-IS4210-8GT-120 8-Port Gigabit PoE++ Compliant Managed Industrial Switch from Dahua Technologycan power advanced security cameras, access points, and other PoE devices in harsh environments. Two of the eight Gigabit-speed PoE compliant ports can provide up to 90W with a total budget of 120W. Product Features: Technical Specification: Model DH-IS4210-8GT-120 Description 8-port PoE 2.0 Industrial GigabitManaged Ethernet Switch Port Configuration 8 GbE PoE SFP Optical Ports 2 GbE SFP PoE Standard PoE (802.3af),PoE+ (802.3at), Hi-PoE, PoE++(802.3bt) PoE Budget 120 W PoE Watchdog Supported Long Distance PoE Transmission Yes (820 ft) Intelligent PoE Management Supported Switching Capacity 20 Gbps Packet Forwarding Rate 14.88 Mpps Packet Buffer Memory 4 Mb Mac Table Size 8K VLAN Supported Link Aggregation Supported Spanning Tree Supported Management WEB, CLI, SNMP Lightning Protection Common Mode 6 kVDifferential Mode 4 kV Working Temperature -40° F to 167° F(-40° C to 75° C) Dimensions 175 mm × 134 mm × 53 mm(6.9 in. × 5.3 in. × 2.1 in.)

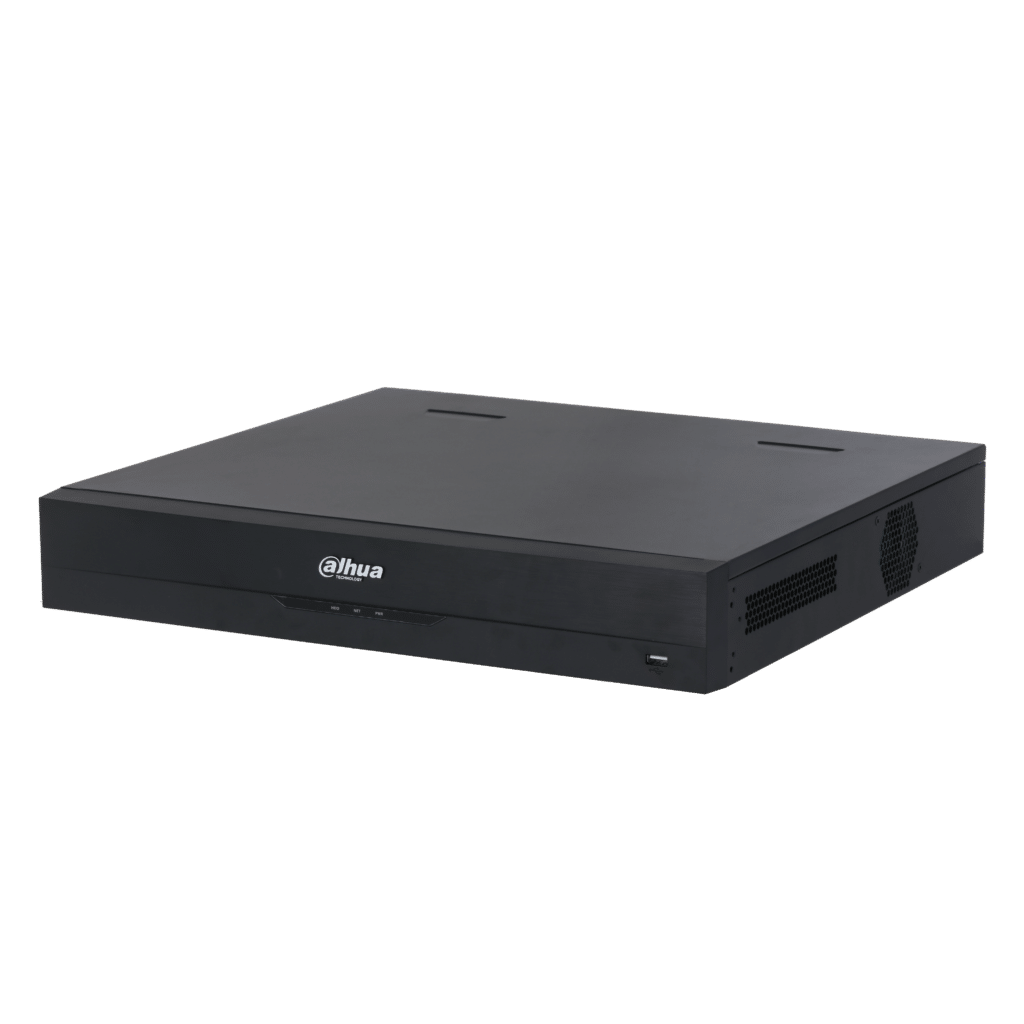

N84B5N 32-Channel AcuPick 8k PoE Network Video Recorder
Powered with a powerful processor and built-in analytics chip, this network video recorder can accommodate up to 32 channels. Product Description:The 32-Channel AcuPick 8K Network Video Recorder from Dahua Technology is designed with a powerful processor to support high access and forwarding bandwidth and strong decoding capabilities to produce unimpeded streams. Thanks to its built-in analytics chip and Dahua’s advanced deep learning algorithms, the NVR supports a variety of analytics functions, such as AcuPick, high-precision Face Detection+, and Perimeter Protection to shorten the response time to events and make videos more interactive. The NVR features four SATA ports supporting up to a 16TB HDD each. This model does not include an HDD, so that you can install your own as your needs require. The NVR also has one eSATA port. Product Features: Technical Specification: Model N84B5N Innovative Features ProSeries, AcuPick Key Features AcuPick, 4K ePoE/EoC NVR, IVS, Face Detection+**,People Counting, Heat Map, Fisheye Dewarp, ALPC Video Compression Smart H.265+, H265, Smart H.264+, H.264, MJPEG IP Video Inputs 16CH | 32CH Max Input/Record 384 Mbps Display 2 HDMI, 2 VGA Max HDD 4 SATA Ports,up to 16TB each disk 64TB max RAID – ESATA/Mini SAS 1/- Audio In/Out 1/2 Alarm In/Out 16/6 Ethernet 2 Gigabit Ports PoE – Dimension 1.5U17.32 in. × 16.34 in. × 2.76 in. Power 100–240 VAC, 50/60 Hz<18 W (without HDD)

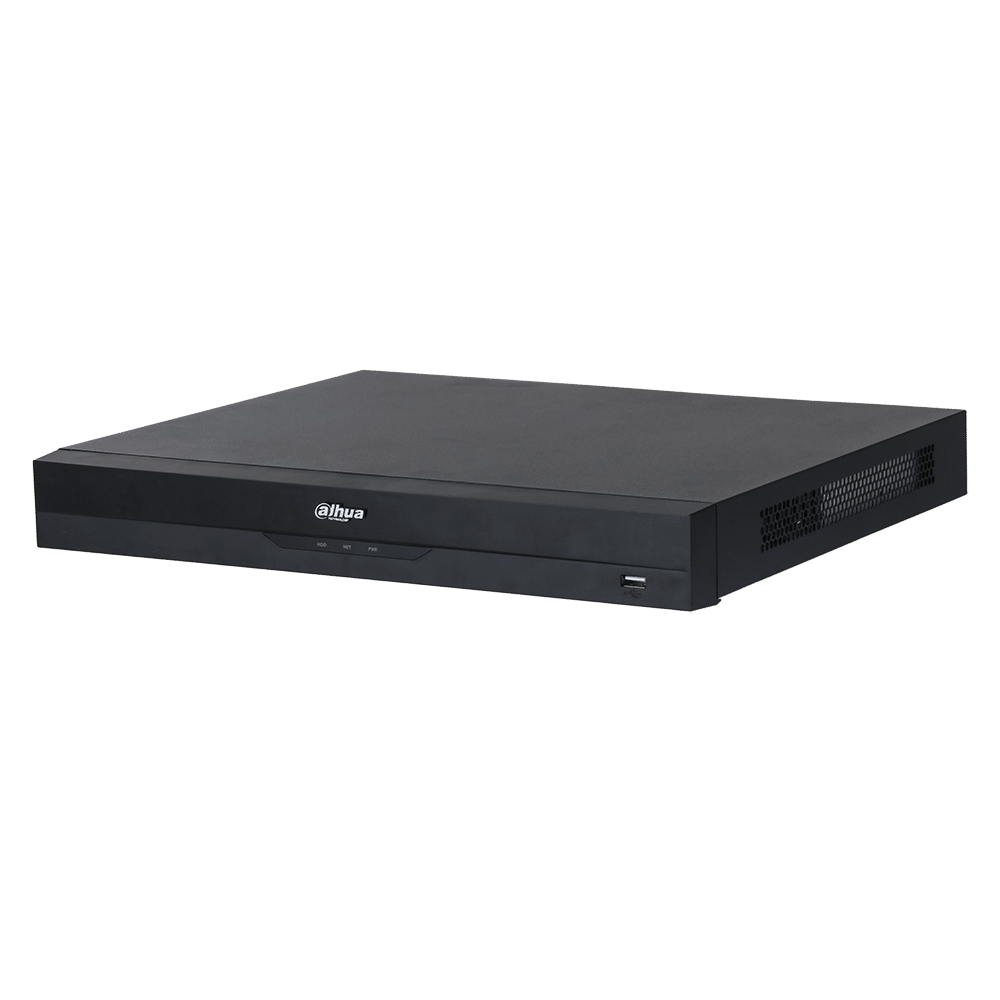

N82B2P 8-Channel AcuPick 8k PoE Network Video Recorder
Powered with a powerful processor and built-in analytics chip, this network video recorder can accommodate up to 8 channels. Product Description:The 8-Channel AcuPick 8K 8 PoE Network Video Recorder from Dahua Technology is designed with a powerful processor to support high access and forwarding bandwidth and strong decoding capabilities to produce unimpeded streams. Thanks to its built-in analytics chip and Dahua’s advanced deep learning algorithms, the NVR supports a variety of analytics functions, such as AcuPick, high-precision Face Detection+, and Perimeter Protection to shorten the response time to events and make videos more interactive. The NVR features two SATA ports supporting up to a 16TB HDD each. This model does not include an HDD, so that you can install your own as your needs require. Product Features: Technical Specification: Model N82B2P Innovative Features ProSeries, EPOE, AcuPick Key Features AcuPick, 4K ePoE/EoC NVR, IVS, Face Detection+**,People Counting, Heat Map, Fisheye Dewarp, ALPC, Plugand Play Video Compression Smart H.265+, H265, Smart H.264+, H.264, MJPEG IP Video Inputs 8CH | 16CH | 32CH Max Input/Record 384 Mbps Display 1 HDMI, 1 VGA Max HDD 2 SATA Ports,up to 16TB each disk 32TB max RAID – ESATA/Mini SAS – Audio In/Out 1/1 Alarm In/Out 4/2 Ethernet 1 Gigabit Port PoE 8 Ports | 16 Ports | 16 Ports(IEEE802.3af/at)(1-8 ports support ePoE) Dimension 1U14.76 in. × 12.97 in. × 2.09 in. Power 100-240 VAC, 46/63 Hz <10W (without HDD)
1A404DBNR 4MP Outdoor Network Mini Dome Camera with Night Visio
This high-performance surveillance camera has 2 IR LEds for night vision, two-way audio, and 4x optical zoom for better viewing. Product Description:Securely monitor your surroundings with the WizSense Series 1A404DBNR 4MP Outdoor Network PTZ Mini Dome Camera from Dahua Technology. This unit uses a 1/2.8″ progressive scan CMOS sensor to capture 2560 x 1440 resolution video at 30 fps. Two IR LEDs provide up to 66′ of night vision. A 2.8-12mm varifocal lens delivers a 96.9 to 31.6° horizontal field of view. This camera features a 0 to 355° pan range, a 5 to 90° tilt range, and 4x optical zoom. Two-way audio is possible thanks to an audio input and output. A memory card slot accepts microSD cards up to 512GB (available separately). Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable. Product Features: Technical Specification: Model 1A404DBNR Innovative Features WizSense Image Sensor 1/2.8-in. CMOS Lens 2.8 mm to 12 mm Minimum Illumination Color: 0.005 lux at F1.6 Maximum IR Distance 65.62 ft (20 m) Video Compression (Main Stream) “Smart H.265+, H.265, Smart H.264+,H.264, H.264H,H.264B, (MJPEG substream)” Maximum Resolution 4MP (2560 x 1440) Pant/Tilt/Zoom Pan: 0° to 355°Tilt: 5° to 90° Preset Speed Pan: 0.1°/s to 80°/sTilt: 0.1°/s to 40°/s Intelligent Video Premium IVS, Analytics+ Functions —Perimeter Protection, People Counting,Smart Motion Detection+, Face Detection Audio In/Out 1/1 Memory Slot Micro SD,Max 256GB Alarm In/Out – Environmental Protection IP67IK10 Working Temperature -22° F to 140° F(-30° C to 60° C) Power 12 VDC, 2 A ± 10%, PoE (802.3af)

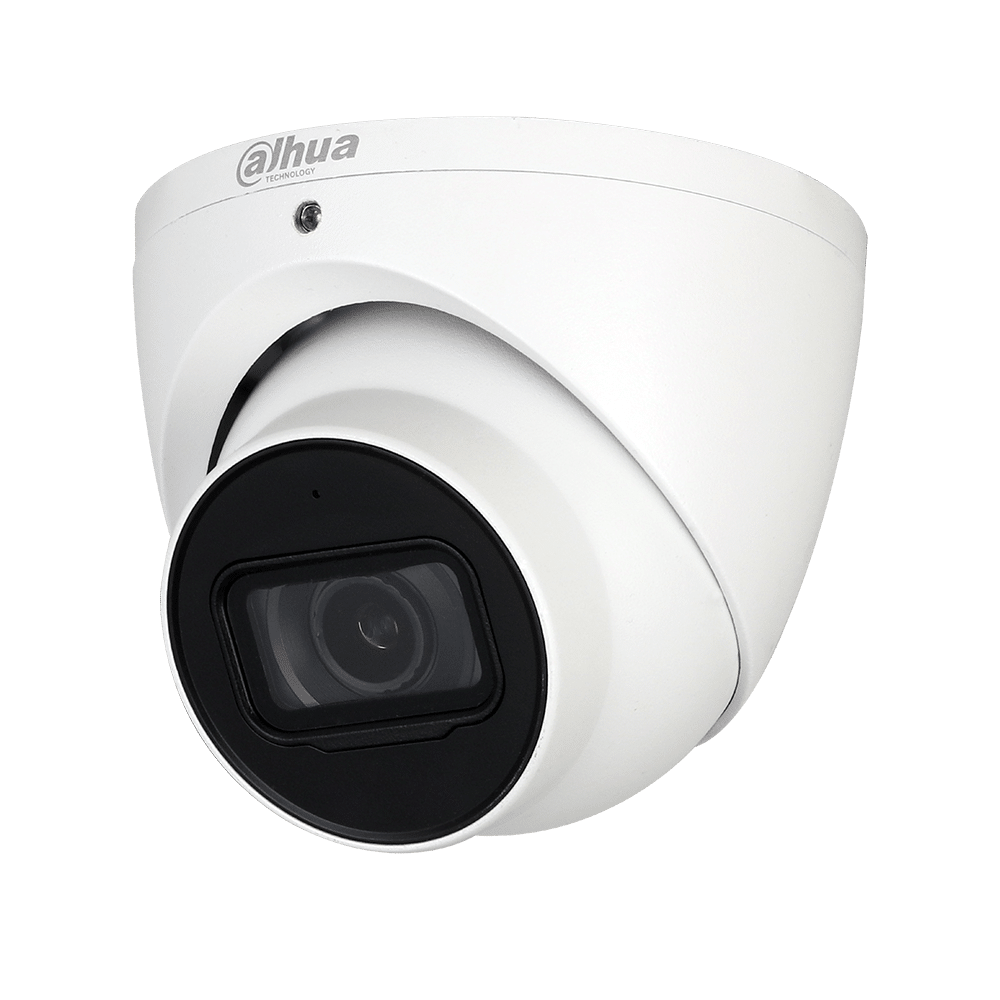

N43CJ6Z 4MP Enhanced Straight Network Eyeball Camera
Designed to operate in any lighting condition, this surveillance camera is ideal for various outdoor applications. Product Description:The Dahua 4MP Enhanced Starlight Network Vari-focal Eyeball Camera is ideal for a host of diverse applications. The camera has Enhanced Starlight, True Wide Dynamic Range, and IR illumination to allow the camera to operate in any lighting condition. Product Features: Technical Specification: Model N43CJ6Z Innovative Features LiteSeries, WizSense, TiOC Image Sensor 1/3 -in. 4MP CMOS Lens 2.7 mm to 13.5 mm, Motorized Minimum Illumination Enhanced StarlightColor: 0.005 lux at F1.5B/W: 0.0005 lux to F1.50 lux at F1.5 (IR on) Maximum IR Distance N43CM6Z, N43CJ6Z: 131 ft (40 m)N43CF6Z: 196 ft (60 m) Video Compression (Main Stream) AI Coding, Smart H.265+, H.265,Smart H.264+, H.264, H.264B, H.264H,(MJPEG substream) Maximum Resolution 4MP (2688 × 1520) Intelligent Video Premium IVS, Analytics+ Functions —Perimeter Protection andSmart Motion Detection+ Audio In/Out 1/1 Memory Slot Micro SD,Max 256GB Alarm In/Out 1/1 Environmental Protection IP67IK10 (N43CM6Z Only) Working Temperature -22° F to 140° F(-30° C to 60° C) Power 12 VDC or PoEN43CJ6Z: < 8.5 W,N43CF6Z, N43CM5Z: < 9.2 W

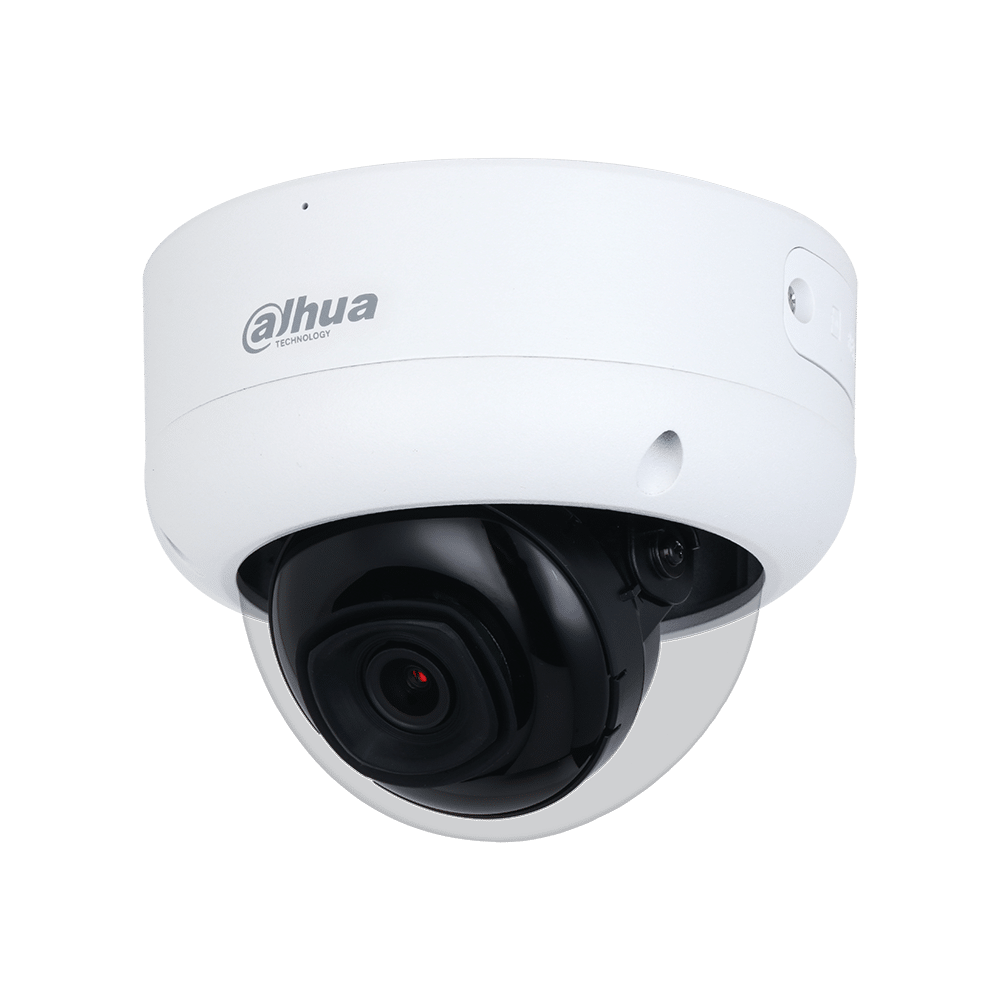

N43CL62 4MP Outdoor Network Dome Camera with Night Vision
This surveillance camera has 3 IR LEDs for night vision purposes and has two-way audio thanks to its built-in microphone. Product Description:Monitor your surroundings with the white WizSense Series N43CL62 4MP Outdoor Network Dome Camera from Dahua Technology. This unit uses a 1/3″ progressive scan CMOS sensor to capture 2688 x 1520 resolution video at 30 fps. Three IR LEDs provide up to 164′ of night vision. The camera’s 2.8mm fixed lens delivers a 107° horizontal field of view. Two-way audio is possible thanks to a built-in microphone, along with an audio input and output. A memory card slot supports SD cards up to 256GB (available separately). Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable. Product Features: Technical Specification: Model N43CL62 Innovative Features LiteSeries, WizSense, TiOC Image Sensor 1/3 -in. 4MP CMOS Lens 2.8 mm Minimum Illumination Enhanced StarlightColor: 0.005 lux at F1.5B/W: 0.0005 lux to F1.50 lux at F1.5 (IR on) Maximum IR Distance 164 ft (50 m)N43CN62: 98 ft (30 m) Video Compression (Main Stream) AI Coding, Smart H.265+, H.265,Smart H.264+, H.264, H.264B, H.264H,(MJPEG substream) Maximum Resolution 4MP (2688 × 1520) Intelligent Video Premium IVS, Analytics+ Functions —Perimeter Protection andSmart Motion Detection+ Audio In/Out N43CG62, N43CG62-B: Built-inMicrophone onlyN43CB62, N43CL62, N43CL62-B,N43CN62: 1/1 + Built-in Microphone Memory Slot Micro SD,Max 256GB Alarm In/Out N43CG62, N43CG62-B, N43CL62,N43CL62-B: 1/1 Environmental Protection IP67IK10 (N43CL62, N43CL62-B only) Working Temperature -40° F to 140° F(-40° C to 60° C) Power 12 VDC or PoE (IEEE 802.3af, Class 0):N43CN62, N43CB62: Max < 7.2 W PoEN43CG62(-B): Max < 7.9 W PoEN43CL62(-B): Max < 8.3 W
