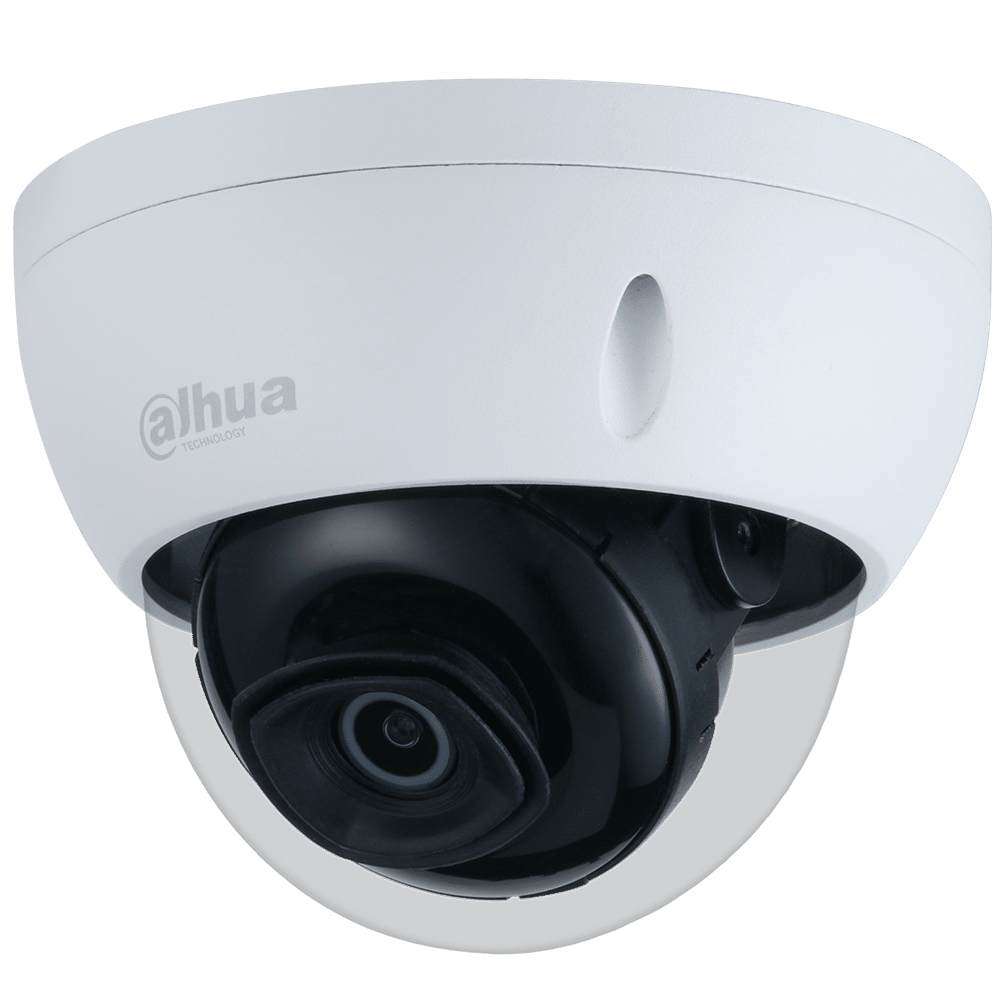

N22AL12 2 MP Outdoor Network Mini Dome Camera with Night Vision
A compact, surveillance camera can capture full HD security video and is designed for outdoor use. Product Description:Capture Full HD security video with the Lite Series N22AL12 2MP Outdoor Network Mini Dome Camera from Dahua Technology. Featuring a 1/2.7″ CMOS sensor and a 2.8mm fixed lens, this camera can record video at resolutions up to 1920 x 1080 at 30 fps in a 110 x 59° field of view. The camera has an IR cut filter and IR LEDs for night vision to a maximum effective range of 98′. Product Features: Technical Specification: Model N22AL12 Innovative Features LiteSeries Image Sensor 1/3 -in. 2MP CMOS Lens 2.8 mm Minimum Illumination Enhanced StarlightColor: 0.005 lux to F1.60 lux to F1.6 (IR on) Maximum IR Distance 98 ft (30 m) Video Compression (Main Stream) Smart H.265+, H.265,Smart H.264+, H.264, H.264B Maximum Resolution 1080p (1920 x 1080) Intelligent Video Tripwire, Intrusion Audio In/Out – Memory Slot Micro SD,Max 256GB Alarm In/Out – Environmental Protection IP67IK10 Working Temperature -40° F to 140° F(-40° C to 60° C) Power 12 VDC, PoE (802.3af, Class 0)<4.5W

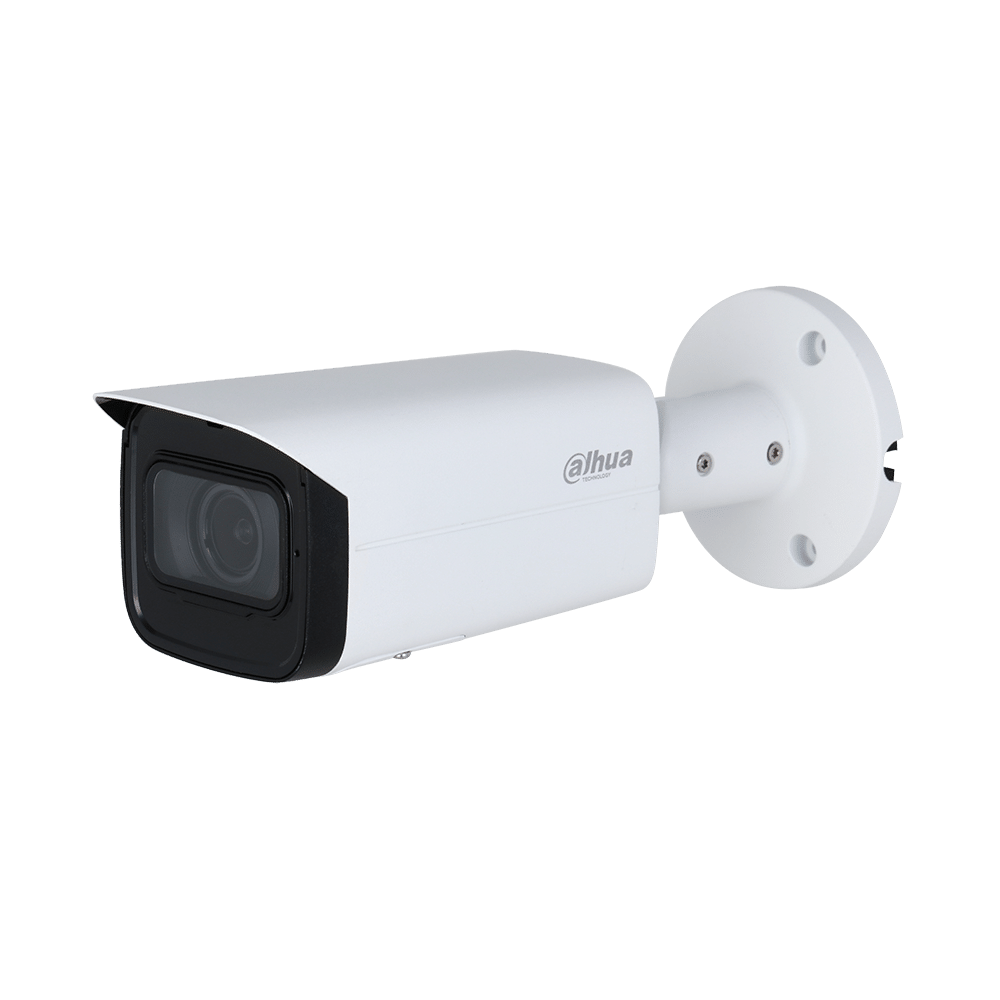

N43CF6Z WizSense 4MP Outdoor Network Bullet Camera with Night Vision
This cost-effective surveillance camera has 4 IR LEDs for night vision purposes and has two-way audio thanks to its built-in microphone. Product Description:Monitor an indoor or outdoor area with the WizSense Series N43CF6Z 4MP Network Bullet Camera from Dahua Technology. This unit uses a 1/3″ progressive scan CMOS sensor to capture 2688 x 1520 resolution video at 30 fps. Four IR LEDs provide up to 197′ of night vision. The camera’s 2.7-13.5mm motorized varifocal lens delivers a 104 to 29° horizontal field of view. Two-way audio is possible thanks to built-in microphone, along with an audio input and output. A memory card slot supports SD cards up to 256GB (available separately). Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable. Product Features: Technical Specification: Model N43CF6Z Innovative Features LiteSeries, WizSense, TiOC Image Sensor 1/3 -in. 4MP CMOS Lens 2.7 mm to 13.5 mm, Motorized Minimum Illumination Enhanced StarlightColor: 0.005 lux at F1.5B/W: 0.0005 lux to F1.50 lux at F1.5 (IR on) Maximum IR Distance N43CM6Z, N43CJ6Z: 131 ft (40 m)N43CF6Z: 196 ft (60 m) Video Compression (Main Stream) AI Coding, Smart H.265+, H.265,Smart H.264+, H.264, H.264B, H.264H,(MJPEG substream) Maximum Resolution 4MP (2688 × 1520) Intelligent Video Premium IVS, Analytics+ Functions —Perimeter Protection andSmart Motion Detection+ Audio In/Out 1/1 Memory Slot Micro SD,Max 256GB Alarm In/Out 1/1 Environmental Protection IP67IK10 (N43CM6Z Only) Working Temperature -22° F to 140° F(-30° C to 60° C) Power 12 VDC or PoEN43CJ6Z: < 8.5 W,N43CF6Z, N43CM5Z: < 9.2 W
N43BX8Z 4MP Outdoor TiOC Network Bullet Camera with Night Vision
A cost-effective surveillance camera with night vision range and 2 white LEDs for recording full color video. Product Description:Monitor an indoor or outdoor area with the N43BX8Z 4MP TiOC Network Bullet Camera from Dahua Technology. This unit uses a 1/2.7″ progressive scan CMOS sensor to capture 2688 x 1520 resolution video at 30 fps. Two IR LEDs deliver a 164′ night vision range, while two white LEDs provide up to 131′ of illumination for recording full color video. Additionally, an active alarm system features red and blue lights, voice prompt broadcasting, and a siren to deter intruders or to prevent an incident. Product Features: Technical Specification: Model N43BX8Z Innovative Features LiteSeries, WizSense, TiOC Image Sensor 1/2.8 -in. 4K (8MP) Lens 2.7 mm to 13.5 mm, Motorized Minimum Illumination Enhanced StarlightColor: 0.004 lux to F1.0 Maximum IR Distance Smart Dual Illumination IR: 164 ft (50 m) /White-light LED: 131 ft (40 m) Video Compression (Main Stream) AI Coding, Smart H.265+, H.265,Smart H.264+, H.264, H.264B, H.264H,(MJPEG substream) Maximum Resolution 4K (3840 x 2160) Intelligent Video Analytics+ Functions— Perimeter Protection andSmart Motion Detection+ Audio In/Out 1/1 + 2x Built-in Microphones + Built-in Speaker Memory Slot Micro SD,Max 256GB Alarm In/Out 1/1 Environmental Protection IP67 Working Temperature -22° F to 140° F(-30° C to 60° C) Power 12 VDC or PoE (802.3af, Class 0)Max <12 VDC: 7.9 W PoE: 9.8 W
DS-2CD2T43G2-2I/4I 4MP AcuSense Fixed Bullet Network Camera
A bullet-style, 4MP surveillance camera that can accurately detect human or vehicle motion/target. Product Description: Empowered by deep learning algorithms, Hikvision AcuSense technology brings human and vehicle targets classification alarms to front- and back-end devices. The system focuses on human and vehicle targets, vastly improving alarm efficiency and effectiveness. Product Features: Technical Specification: CAMERA Max Resolution 2688 × 1520 Image Sensor 1/3′′ Progressive Scan CMOS Min. Illumination Color: 0.005 Lux @ (F1.6, AGC ON), 0 Lux with IR on Shutter Time 1/3 s to 1/100, 000 s Day & Night IR cut filter Angle Adjustment Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360° LENS Lens Type Fixed focal lens, 2.8, 4, and 6 mm optional Focal Length & FOV 2.8 mm, horizontal FOV 103°, vertical FOV 55°, diagonal FOV 122°4 mm, horizontal FOV 84°, vertical FOV 45°, diagonal FOV 100°6 mm, horizontal FOV 52°, vertical FOV 28°, diagonal FOV 61° Lens Mount M12 Iris Type Fixed Aperture F1.6 ILLUMINATOR Supplement Light Range IR Distance: up to 200 m Supplement Light Range IR PTZ Movement Range (Pan) 360° Movement Range (Tilt) –15° to 90° (auto flip) Pan Speed Pan speed: configurable from 0.1° to 160°/s, preset speed: 240°/s Tilt Speed Tilt speed: configurable from 0.1° to 120°/s, preset speed 200°/s Proportional Pan Yes Presets 300 Patrol Scan 8 patrols, up to 32 presets for each patrol Pattern Scan 4 pattern scans Power-off Memory Yes Park Action Preset,pattern scan,patrol scan,auto scan,tilt scan,random scan,frame scan,panorama scan 3D Positioning Yes PTZ Status Display Yes Preset Freezing Yes DORI DORI 2.8 mm: D: 67 m, O: 26 m, R: 13 m, I: 6 m4 mm: D: 80 m, O: 31 m, R: 16 m, I: 8 m6 mm: D: 120 m, O: 47 m, R: 24 m, I: 12 m ILLUMINATOR Supplement Light Type IR Supplement Light Range -2I: up to 60 m-4I: up to 80 m Smart Supplement Light Yes IR Wavelength 850 nm VIDEO Main Stream 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720) Sub-Stream 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360) Third Stream 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) Video Compression Main stream: H.265/H.264/H.264+/H.265+Sub-stream: H.265/H.264/MJPEGThird stream: H.265/H.264 Video Bit Rate 32 Kbps to 8 Mbps H.264 Type Baseline Profile/Main Profile/High Profile H.265 Type Main Profile Bit Rate Control CBR/VBR Scalable Video Coding (SVC) Yes Region of Interest (ROI) 1 fixed region for main stream and sub-stream NETWORK Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, WebSocket, WebSockets Simultaneous Live View Up to 6 channels API Open Network Video Interface (Profile S, Profile G), ISAPI, SDK User/Host Up to 32 users. 3 user levels: administrator, operator and user Security Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSEand digest authentication for Open Network Video Interface Network Storage NAS (NFS, SMB/CIFS), auto network replenishment (ANR) Client iVMS-4200, Hik-Connect, Hik-Central Web Browser Plug-in required live view: IE 10, IE 11Plug-in free live view : Chrome 57.0+, Firefox 52.0+Local service: Chrome 57.0+, Firefox 52.0+ IMAGE Image Parameters Switch Yes Image Settings Rotate, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser Day/Night Switch Day, Night, Auto, Schedule Wide Dynamic Range (WDR) 120 dB SNR ≥ 52 dB Image Enhancement BLC, HLC, 3D DNR INTERFACE Ethernet Interface 1 RJ45 10M/100M self-adaptive Ethernet port On-Board Storage Built-in microSD, up to 512 GB Reset Key Yes EVENT Basic Event Motion detection (human and vehicle targets classification), video tampering alarm, exception Smart Event Line crossing detection, intrusion detectionSupports human and vehicle targets classificationFace detection Linkage Upload to FTP/memory card/NAS, notify surveillance center, trigger recording, trigger capture, send email GENERAL Power -2I:12 VDC ± 25%, 0.71 A, max. 8.5 W, Ø 5.5 mm coaxial power plug, reverse polarityprotectionPoE: 802.3af, 36 V to 57 V, 0.27 A to 0.17 A, max. 9.5 W-4I:12 VDC ± 25%, 1.0 A, amx. 11.5 W, Ø 5.5 mm coaxial power plug, reverse polarityprotectionPoE: 802.3af, Class 3, 36 V to 57 V, 0.35 A to 0.22 A, max. 12.5 W Material Aluminum alloy bodySun shield, IR cover: plastic Dimension Ø105 × 299.7 mm (Ø4.1′′ × 11.8′′) Package Dimension 386 × 156 × 155 mm (15.2″ × 6.2″ × 6.2″) Weight Approx. 1070 g (2.4 lb.) With Package Weight Approx. 1589 g (3.5 lb.) Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) Startup and OperatingConditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) Language 33 languagesEnglish, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak,French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian,Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai,Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian General Function Anti-flicker, heartbeat, password reset via e-mail, pixel counter APPROVAL EMC FCC (47 CFR Part 15, Subpart B);CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011+A1: 2014);RCM (AS/NZS CISPR 32: 2015);IC (ICES-003: Issue 6, 2016);KC (KN 32: 2015, KN 35: 2015) Safety UL (UL 60950-1);CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013);CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013);BIS (IS 13252(Part 1):2010+A1:2013+A2:2015);LOA (IEC/EN 60950-1) Environment CE-RoHS (2011/65/EU);WEEE (2012/19/EU);Reach (Regulation (EC) No 1907/2006) Protection IP67 (IEC 60529-2013)

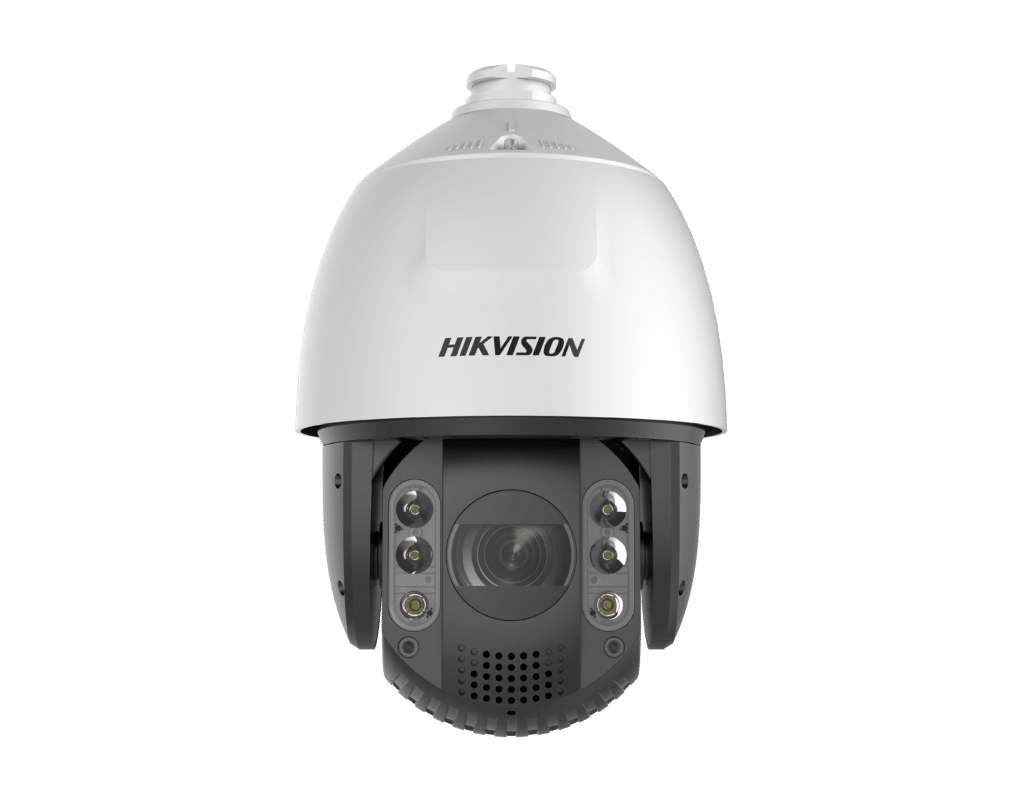

DS-2DE7A825IW-AEB(T5) 8MP 25 x IR Network Speed Dome Camera
Designed for outdoor use, this surveillance dome camera has 25x optical zoom lens and up to 200m IR distance. Product Description: Hikvision DS-2DE7A825IW-AEB(T5) 8 MP 25× IR Network Speed Dome adopts 1/1.8″ progressive scan CMOS chip. With the 25× optical zoom lens, the camera offers more details over expansive areas. This series of cameras can be widely used for wide ranges of high-definition, such as the rivers, roads, railways, airports, squares, parks, scenic spots, and venues, etc. Empowered by deep learning algorithms, Hikvision AcuSense technology brings human and vehicle targets classification alarms to front- and back-end devices. The system focuses on human and vehicle targets, vastly improving alarm efficiency and effectiveness. Product Features: Technical Specification: CAMERA Max Resolution 3840 × 2160 Image Sensor 1/1.8″ progressive scan CMOS Min. Illumination Color: 0.005 Lux @ (F1.5, AGC ON), B/W: 0.001 Lux@(F1.5, AGC ON), 0 Lux with IR Shutter Speed 1/1 s to 1/30000 s Slow Shutter Yes Day & Night IR cut filter Zoom 25x optical, 16x digital LENS Focal Length 5.9mm to 147.5 mm Zoom Speed Approx. 4.8 s FOV Horizontal field of view: 50.8° to 2.6° (wide-tele),Vertical field of view: 29.4° to 1.5° (wide tele)Diagonal field of view:57.4° to 3° (wide-tele) Aperture Max. F1.5 Focus Auto, semi-auto, manual, rapid focus ILLUMINATOR Supplement Light Range IR Distance: up to 200 m Supplement Light Range IR PTZ Movement Range (Pan) 360° Movement Range (Tilt) –15° to 90° (auto flip) Pan Speed Pan speed: configurable from 0.1° to 160°/s, preset speed: 240°/s Tilt Speed Tilt speed: configurable from 0.1° to 120°/s, preset speed 200°/s Proportional Pan Yes Presets 300 Patrol Scan 8 patrols, up to 32 presets for each patrol Pattern Scan 4 pattern scans Power-off Memory Yes Park Action Preset,pattern scan,patrol scan,auto scan,tilt scan,random scan,frame scan,panorama scan 3D Positioning Yes PTZ Status Display Yes Preset Freezing Yes Scheduled Task Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux output VIDEO Main Stream 50 Hz: 25 fps (3840 × 2160, 2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720);60 Hz: 24 fps (3840 × 2160, 2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) Sub-Stream 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288);60 Hz: 24 fps (704 × 480, 640 × 480, 352 × 240) Third Stream 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288);60 Hz: 24 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240) Video Compression Main stream: H.265+/H.265/H.264+/H.264,Sub-stream: H.265/H.264/MJPEG,Third stream: H.265/H.264/MJPEG Video Bitrate 32 Kbps to 16384 Mbps H.264 Type Baseline Profile/Main Profile/High Profile H.265 Type Main profile Scalable Video Coding (SVC) H.264 and H.265 encoding Region of Interest (ROI) 8 fixed regions for each stream AUDIO Audio Compression G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, AAC, PCM Audio Bit Rate 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32-192 Kbps (MP2L2)/16-64 Kbps (AAC) Audio Sampling Rate 8 kHz/16 kHz/32 kHz/48 kHz Environment Noise Filtering yes NETWORK Network Storage NAS (NFS, SMB/CIFS), auto network replenishment (ANR) Protocols IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour, Websocket, Websockets API Open Network Video Interface (Version 19.12, Profile S, Profile G, Profile T), ISAPI, SDK, ISUP Simultaneous Live View Up to 20 channels User/Host Up to 32 users, 3 user levels: administrator, operator, and user Security Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, TLS 1.3, host authentication (MAC address) Client iVMS-4200, Hik-Connect, Hik-Central Web Browser IE11, Chrome 57+, Firefox 52+, Safari 11+ IMAGE Wide Dynamic Range (WDR) 120 dB Day/Night Switch Day, Night, Auto, Schedule Image Enhancement BLC,HLC,3D DNR Defog Digital defog Image Stabilization EIS Regional Exposure yes Regional Focus yes Image Settings Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser Image Parameters Switch yes Privacy Mask 24 programmable polygon privacy masks, mask color or mosaic configurable SNR >52dB INTERFACE Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port On-board Storage Built-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB Alarm 2 input(s), 1 output(s) Reset Yes Audio 1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%,1 output (line out), line level, output impedance: 600 Ω Built-in-speaker built-in speaker with effective distance reaching max. 30 meters EVENT Basic Event Motion detection, video tampering alarm, exception, alarm input and output Smart Event Line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, audio exception detection Smart Tracking Manual tracking, auto-tracking Alarm Linkage Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, audible warning, white light flashing, and PTZ actions (such as preset, patrol scan, pattern scan) DEEP LEARNING FUNCTION Face Capture Detects up to 5 faces simultaneously.Supports detecting, capturing, grading, selecting of face in motion, and output the best face picture of the face Perimeter Protection Line crossing, intrusion, region entrance, region exitingSupport alarm triggering by specified target types (human and vehicle) GENERAL Power 24 VAC, max. 42 W (including max. 18 W for IR and max. 10 W for heater); Hi-PoE Operating Condition -30 °C to 65 °C (-22 °F to 149 °F). Humidity 90% or less (non-condensing) Demist Yes Material ADC12 Dimension Ø 220 mm × 363.3 mm (Ø 8.66″ × 13.91″) Weight Approx. 5 kg (11.03 lb.) APPROVAL Protection IP66 (IEC 60529-2013), IK10 (excluding glass window), TVS 6000V lightning protection, surge protection and voltage transient protection EMC FCC SDoC (47 CFR Part 15, Subpart B);CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013, EN 50130-4: 2011+A1: 2014);RCM (AS/NZS CISPR 32: 2015);IC VoC (ICES-003: Issue 6, 2019);KC (KN 32: 2015, KN

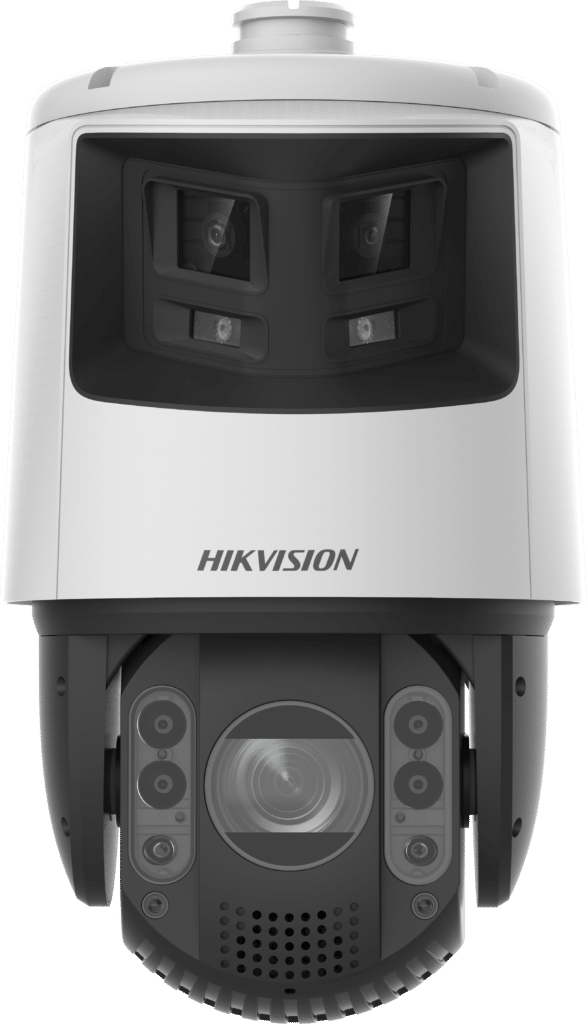

DS-2SE7C432MWG-EB/26(F0) TandemVu 4MP 32 x Network PTZ Camera
A panoramic surveillance camera with 32x optical zoom and AcuSense technology. Product Description: The TandemVu PTZ cameras feature Hikvision’s next-generation camera design, integrating multiple lenses in one security camera to provide big picture and small details in tandem. Equipped with this technology, Hikvision’s new TandemVu PTZ cameras display a broad view even when panning, tilting, or zooming. Users will see everything and miss nothing at any given moment, getting situational awareness from the moment they set up the camera. Product Features: Technical Specification: CAMERA Image Sensor [Panoramic channel] 1/2.5″ Progressive Scan CMOS[PTZ channel] 1/2.8″ Progressive Scan CMOS Min. Illumination [PTZ channel] Color: 0.005 Lux @ (F1.5, AGC ON), B/W: 0.001 Lux @ (F1.5, AGC ON), 0 lux with IR[Panoramic channel] Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with Light Shutter Speed 1 s to 1/30,000 s Slow Shutter Yes HLC yes 3D DNR yes Day & Night IR cut filter White Balance auto,ATW,sodium lamp,fluorescent lamp,indoor,outdoor,MWB,Locked WB Zoom 32 × optical,16 × digital Max. Resolution [Panoramic channel] 3632 × 1632[PTZ channel] 2560 × 1440 LENS FOV [Panoramic channel] horizontal field of view: 180°±10°, vertical field of view: 80°±5°[PTZ channel] horizontal field of view: 60.2° to 2.3° Focus Auto,semi-auto,manual Zoom Speed [Panoramic channel] No[PTZ channel] approx. 5.6 s Focal Length [Panoramic channel] 2.8 mm[PTZ channel] 5.9 to 188.8 mm Aperture [Panoramic channel] F1.0[PTZ channel] Max. F1.5 ILLUMINATOR White Light Distance Panoramic channel: 30 m Supplement Light Range IR distance: up to 200 m PTZ Movement Range (Pan) 360° Movement Range (Tilt) -15° to 90° Pan Speed Pan speed: configurable from 0.1° to 160°/s, preset speed: 240°/s Tilt Speed Tilt speed: configurable from 0.1° to 120°/s, preset speed 200°/s Proportional Pan Yes Presets 300 Patrol Scan 8 patrols, up to 32 presets for each patrol Pattern Scan 4 pattern scans, record time over minutes for each scan Power-off Memory Yes Park Action Preset,pattern scan,patrol scan,auto scan,tilt scan,random scan,frame scan,panorama scan 3D Positioning Yes PTZ Status Display Yes Preset Freezing Yes Scheduled Task Preset,pattern scan,patrol scan,auto scan,tilt scan,random scan,frame scan,panorama scan,dome reboot,aux output,dome adjust VIDEO Stream Type main stream,sub-stream,third stream Main Stream [PTZ channel] 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720), 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)[Panoramic channel] 50 Hz: 25 fps (3632 × 1632, 3680 × 1656), 60 Hz: 30 fps (3632 × 1632, 3680 × 1656) Sub-Stream [PTZ channel] 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288), 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)[Panoramic channel] 50 Hz: 25 fps (1200 × 536, 960 × 432), 60 Hz: 30 fps (1200 × 536, 960 × 432) Third Stream [PTZ channel] 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288), 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)[Panoramic channel] No Video Compression Main stream: H.265+/H.265/H.264+/H.264,Sub-stream: H.265/H.264/MJPEG,Third stream: H.265/H.264/MJPEG Video Bitrate 32 Kbps to 16384 Mbps H.264 Type Baseline Profile/Main Profile/High Profile H.265 Type Main profile Scalable Video Coding (SVC) Yes Region of Interest (ROI) fixed region AUDIO Audio Compression G.711,G.722.1,G.726,MP2L2,PCM,AAC-LC,MP3 Audio Bit Rate 32 to 192 Kbps (MP2L2),16 to 64Kbps (AAC-LC),8 to 320 Kbps (MP3) Audio Sampling Rate MP2L2: 16kHz, 32kHz, 48kHzAAC-LC: 16kHz, 32kHz, 48kHzPCM: 8kHz, 16kHz, 32kHz, 48kHzMP3: 8kHz, 16KHz, 32KHz, 48KHz Environment Noise Filtering yes SMART FEATURES Smart Record ANR (Automatic Network Replenishment), Dual-VCA NETWORK Network Storage NAS (NFS, SMB/CIFS), auto network replenishment (ANR) Protocols TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,PPPoE,NTP,UPnP,SMTP,SNMP,IGMP,802.1X,QoS,IPv4/IPv6,UDP,Bonjour,WebSocket,WebSockets,SRTP API ISUP,SDK,ISAPI,ONVIF (Profile S, Profile G, Profile T) Simultaneous Live View 20 User/Host 32 Security Password protection,HTTPS encryption,802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5),host authentication (MAC address),IP address filter Client iVMS-4200, Hik-Connect, Hik-Central Web Browser IE 11+, Chrome 57+, Firefox 52+, Safari 12+, Edge 79.0.309.65+ IMAGE Wide Dynamic Range (WDR) [Panoramic channel] Digital WDR[PTZ channel] 120 dB Day/Night Switch Day,night,auto,schedule Image Enhancement BLC,HLC,3D DNR Defog yes Image Stabilization yes Regional Exposure yes Regional Focus yes Image Settings saturation, brightness, contrast, sharpness Image Parameters Switch yes Privacy Mask 24 programmable polygon privacy masks, mask color or mosaic configurable SNR >52dB INTERFACE Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port On-board Storage Built-in memory card slot, support Micro SD/Micro SDHC/Micro SDXC, up to 512 GB Alarm 2 input(s), 1 output(s) Reset Yes Audio 1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%,1 output (line out), line level, output impedance: 600 Ω EVENT Basic Event Motion detection,video tampering alarm,alarm input and output,exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error, abnormal restart) Smart Event Line crossing detection,intrusion detection,region entrance detection,region exiting detection,audio exception detection Linkage Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,and PTZ actions (such as preset, patrol scan, pattern scan),audible warning,white light flashing Smart Linkage panorama linkage, tracking takeover, track in turn Smart Tracking Manual tracking,auto-tracking DEEP LEARNING FUNCTION Face Capture Support detecting up to 5 faces at the same time. Support detecting, capturing, grading, selecting of face in motion, and output the best face picture of the face GENERAL Power 24 VAC, Max. 60 W, Hi-PoE Material ADC12,Plastic,PC+10%GF General Function mirror,watermark,password protection,IP address filter Operating Condition -30 °C to 65 °C (-22 °F to 149 °F). Humidity 90% or less (non-condensing) Demist Yes Dimension Ø 222.3 mm × 387.2 mm (Ø 8.75″ × 15.2″) Weight Approx. 4.75 kg (10.47 lb.) APPROVAL Protection IIP66 (IEC 60529-2013)

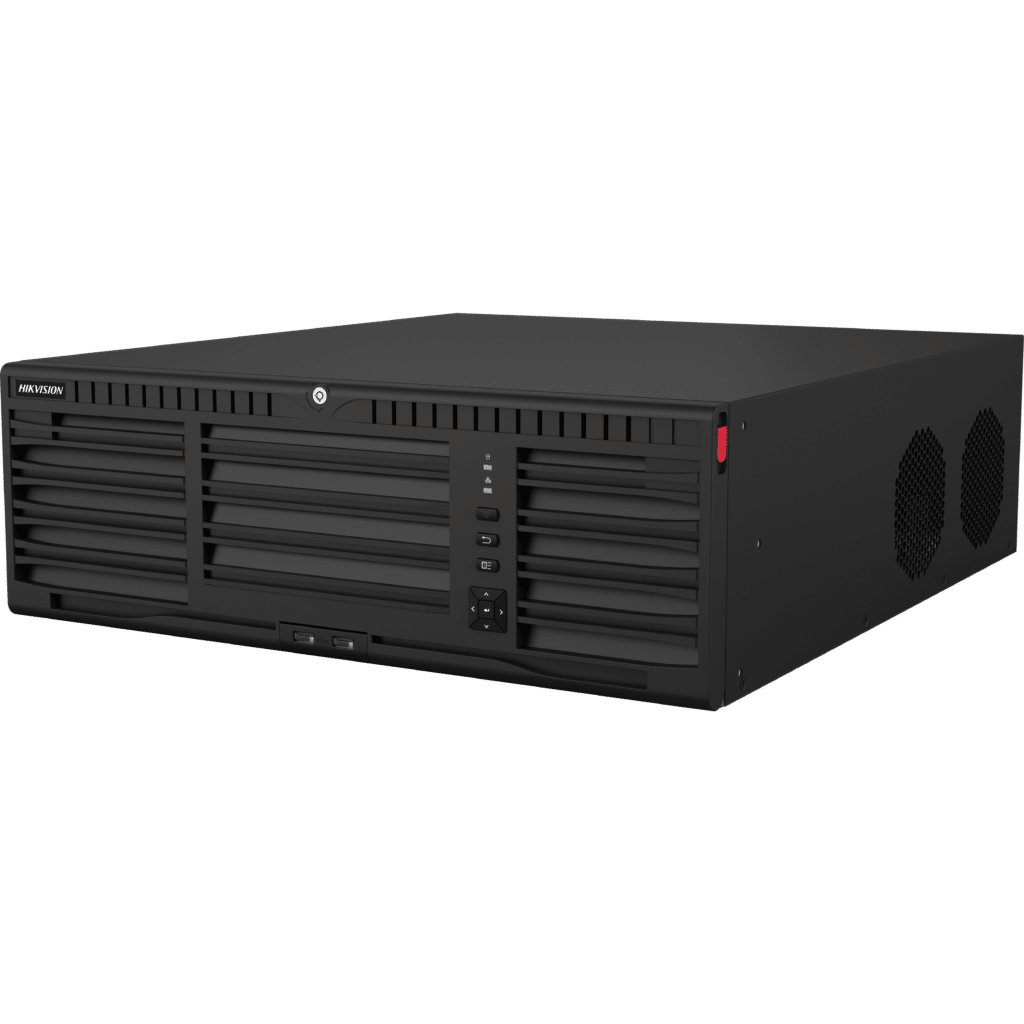

DS-7700NI-I4 (B) Series NVR
A network video-recorder with up to 32 channel input. Product Description: With built-in analytics, Hikvision’s Network Video Recorders (NVRs) provide advanced artificial intelligence capabilities for any connected data stream, even those from conventional security cameras. Empowered by AI chips and high-precision algorithms, Hikvision NVRs combine high-efficiency video recording with abundant options for data analytics. These advanced NVRs bring powerful applications to a variety of users with diverse requirements. Product Features: Technical Specification: Model DS-7716NI-I4(B) DS-7732NI-I4(B) VIDEO AND AUDIO IP video input 16-ch 32-ch Up to 32 MP resolution*: After ultra HD resolution mode is enabled, the NVR supports up to 4-ch 32 MP/24 MP IP video inputs. Incoming bandwidth 160 Mbps 256 Mbps Outgoing bandwidth 256 Mbps HDMI 1 output 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz HDMI 2 output 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz VGA output 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz Video output mode HDMI1/VGA simultaneous output, HDMI2/VGA independent output CVBS output 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480 Audio output 1-ch, RCA (Linear, 1 KΩ) Two-way audio input 1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input) DECODING Decoding format H.265+/H.265/H.264+/H.264/MPEG4 Recording resolution 32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP /1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF*: After ultra HD resolution mode is enabled, the NVR supports up to 4-ch 32 MP/24 MP IP video inputs. Synchronous playback 16-ch Capability 1-ch@32 MP (30 fps)/2-ch@12 MP (20 fps)/4-ch@8 MP (25 fps)/8-ch@4 MP (30 fps)/16-ch@1080p (30 fps) Dual stream recording Support Stream type Video, Video & Audio Audio compression G.711ulaw/G.711alaw/G.722/G.726 NETWORK Remote connections 128 Network protocol TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP, HTTP, HTTPS Network interface 2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface AUXILIARY INTERFACE Serial Port 1 RS-485 (half-duplex), 1 RS-232 SATA 4 SATA interfaces eSATA (optional) 1 eSATA interface Capacity Up to 10 TB capacity for each disk Alarm in/out 16/4 (16/8 optional) USB interface Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0 GENERAL Power supply 100 to 240 VAC, 50 to 60 Hz Consumption (without HDD) ≤ 20 W Working temperature -10 °C to 55 °C (14 °F to 131 °F) Working humidity 10% to 90% Chassis 19-inch rack-mounted 1.5U chassis Dimension (W × D × H) 445 × 400 × 75 mm ( 17.5″× 15.7″ × 3.0″) Weight (without HDD) ≤ 5 kg (11 lb) Certification FCC Part 15 Subpart B, ANSI C63.4-2014 CE EN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4

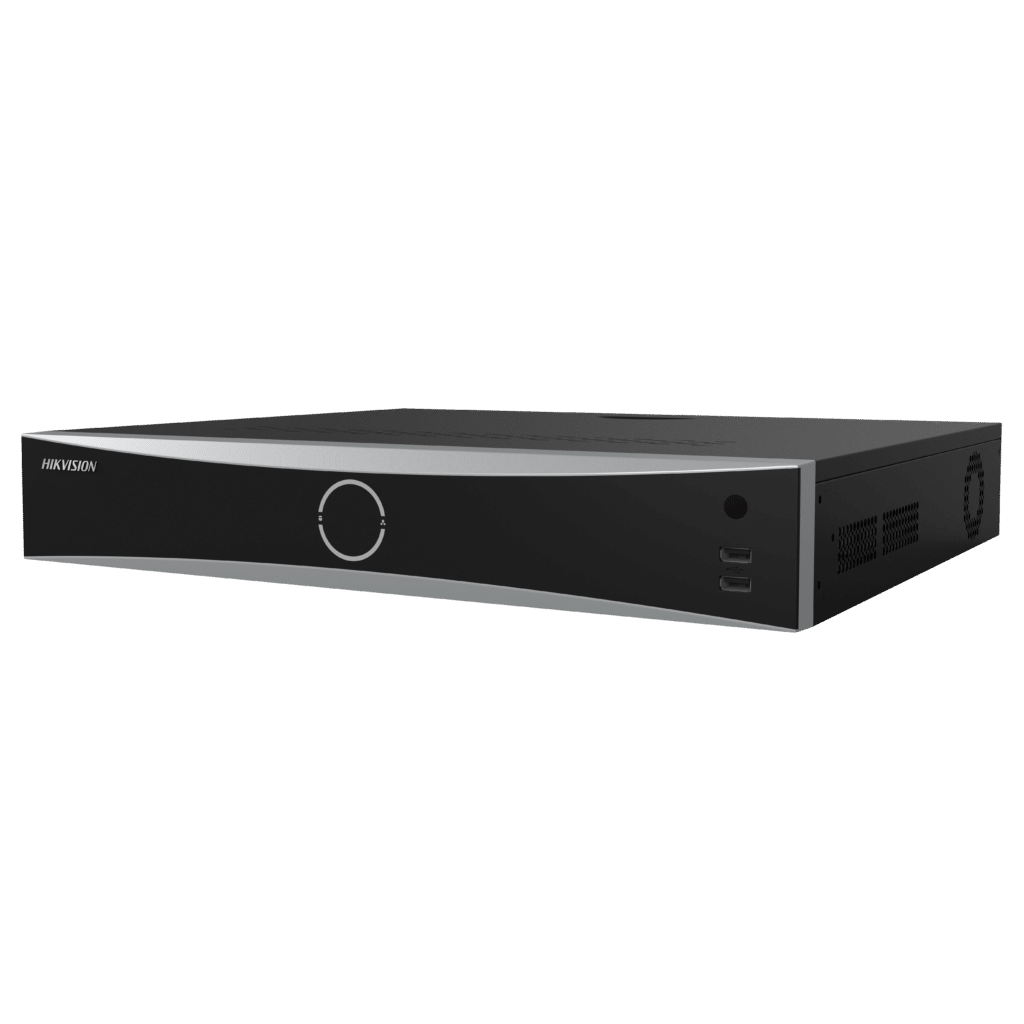

DS-7608NXI-I2/8P/S AcuSense Series NVR
A network video-recorder with AI functionality and can offer up to 8 channel input. Product Description: With built-in analytics, Hikvision’s Network Video Recorders (NVRs) provide advanced artificial intelligence capabilities for any connected data stream, even those from conventional security cameras. Empowered by AI chips and high-precision algorithms, Hikvision NVRs combine high-efficiency video recording with abundant options for data analytics. These advanced NVRs bring powerful applications to a variety of users with diverse requirements. Product Features: Technical Specification: FACIAL RECOGNITION Facial detection andanalytics Face picture comparison, human face capture, face picture search Face picture library Up to 16 face picture libraries, with up to 10,000 face pictures in total (each picture ≤ 512 KB, total capacity ≤ 150 MB) Face picture comparison 4-ch face picture comparison alarm Performance of facial detection and analytics 1-ch human face capture (HD network camera, up to 8 MP, H.264/H.265) MOTION DETECTION 2.0 Human/vehicle analysis 8-ch PERIMETER PROTECTION Human/Vehicle analysis Up to 4-ch 2 MP (H.264/H.265) video analysis for human and vehicle recognition to reduce false alarm; Up to 12 rules in total VIDEO AND AUDIO IP video input 8-ch Up to 12 MP resolution Incoming bandwidth 80 Mbps Outgoing bandwidth 256 Mbps HDMI output 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz VGA output 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz, Video output mode HDMI/VGA independent output CVBS output 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480 Audio output 1-ch, RCA (Linear, 1 KΩ) Two-way audio input 1-ch, RCA (2.0 Vp-p, 1 KΩ) DECODING Decoding format H.265+/H.265/H.264+/H.264/MPEG4 Recording resolution 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/2CIF/CIF/QCIF Synchronous playback 8-ch Capability 16-ch@1080p (30 fps) Dual stream recording Support Stream type Video, Video & Audio Audio compression G.711ulaw/G.711alaw/G.722/G.726/MP2L2 NETWORK Remote connections 128 Network protocol TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnPTM, HTTP, HTTPS Network interface 1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface PoE Interface 8, RJ-45 10/100 Mbps self-adaptive Ethernet interface Power ≤ 120 W Supported standard IEEE 802.3 af/at AUXILIARY INTERFACE SATA 2 SATA interfaces supporting hot-plug Capacity Up to 10 TB capacity for each disk Alarm in/out 4/1 USB interface Front panel: 1 × USB 2.0; Rear panel: 1 × USB 3.0 GENERAL Power supply 100 to 240 VAC, 50 to 60 Hz Consumption (without HDD) ≤ 15 W Working temperature -10 °C to 55 °C (14 °F to 131 °F) Working humidity 10% to 90% Chassis 1U chassis Dimension (W × D × H) 385 × 315 × 52 mm ( 15.2″× 12.4″ × 2.0″) Weight (without HDD) ≤ 2.7 kg (6.0 lb) Certification FCC Part 15 Subpart B, ANSI C63.4-2014 CE EN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4

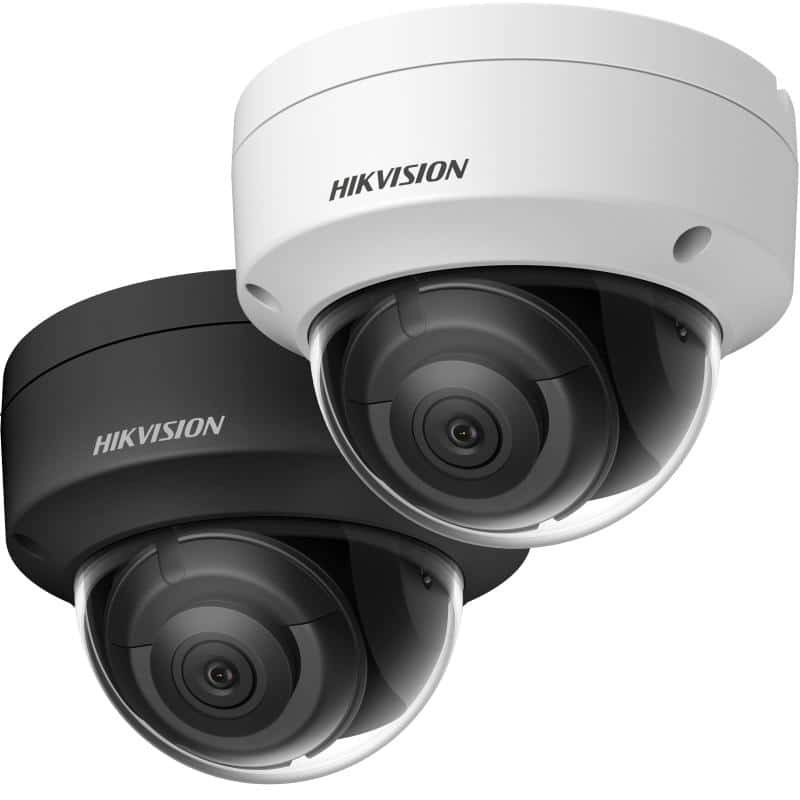

DS-2CD2143G2-I(S) 4MP AcuSense Fixed Dome Network Camera
A dome-shaped surveillance camera that can accurately detect human or vehicle motion/target. Product Description: Empowered by deep learning algorithms, Hikvision AcuSense technology brings human and vehicle targets classification alarms to front- and back-end devices. The system focuses on human and vehicle targets, vastly improving alarm efficiency and effectiveness. Product Features: Technical Specification: CAMERA Image Sensor 1/3″ Progressive Scan CMOS Min. Illumination Color: 0.005 Lux @ (F1.6, AGC ON), 0 Lux with IR on Shutter Speed 1/3 s to 1/100,000 s Slow Shutter Yes P/N P/N Wide Dynamic Range 120 dB Day & Night ICR Cut Angle Adjustment Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355° LENS Lens Type Fixed focal lens, 2.8, 4, and 6 mm optional Lens Type & FOV 2.8 mm, horizontal FOV 103°, vertical FOV 55°, diagonal FOV 122°4 mm, horizontal FOV 84°, vertical FOV 45°, diagonal FOV 100° Aperture F1.6 Lens Mount M12 DORI DORI 2.8 mm: D: 67 m, O: 26 m, R: 13 m, I: 6 m4 mm: D: 80 m, O: 31 m, R: 16 m, I: 8 m ILLUMINATOR IR Wavelength Up to 30 m IR Range 850 nm VIDEO Max. Resolution 2688 × 1520 Main Stream 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720) Sub-Stream 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360) Third Stream 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) Video Compression Main stream: H.265/H.264/H.264+/H.265+Sub-stream: H.265/H.264/MJPEGThird stream: H.265/H.264 Video Bitrate 32 Kbps to 8 Mbps H.264 Type Baseline Profile/Main Profile/High Profile H.265 Type Main profile H.264+ Main stream supports H.265+ Main stream supports Bit Rate Control CBR/VBR Scalable Video Coding (SVC) Yes Region of Interest (ROI) 1 fixed region for main stream and sub-stream AUDIO Audio Compression -S: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC Audio Bit Rate -S: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/16-64 Kbps (AAC-LC)/32-192 Kbps (MP2L2)/8-320 Kbps (MP3) Audio Sampling Rate -S: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz Environment Noise Filtering -S: Yes NETWORK Network Storage NAS (NFS, SMB/CIFS), auto network replenishment (ANR) Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, WebSocket, WebSockets API Open Network Video Interface (Profile S, Profile G), ISAPI, SDK Simultaneous Live View Up to 6 channels User/Host Up to 32 users, 3 user levels: administrator, operator, and user Security Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface Client iVMS-4200, Hik-Connect, Hik-Central Web Browser Plug-in required live view: IE 10, IE 11Plug-in free live view : Chrome 57.0+, Firefox 52.0+Local service: Chrome 57.0+, Firefox 52.0+ IMAGE Image Parameters Switch Yes Image Settings Rotate, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser Day/Night Switch Day, Night, Auto, Schedule Image Enhancement BLC, HLC, 3D DNR INTERFACE Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port On-board Storage Built-in microSD, up to 512 GB Alarm -S: 1 input, 1 output (max. 12 VDC, 30 mA) Reset Yes Audio -S: 1 input (line in), two-core terminal block , max. input amplitude: 3.3 vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium; 1 output (line out), two-core terminal block , max.output amplitude: 3.3 vpp, output impedance: 100 Ω, interface type: non-equilibrium, mono sound EVENT Basic Event Motion detection (human and vehicle targets classification), video tampering alarm, exception Face Detection Yes DEEP LEARNING FUNCTION Perimeter Protection Line crossing detection, intrusion detectionSupports human and vehicle targets classification GENERAL Linkage Method Upload to FTP/memory card/NAS, notify surveillance center, trigger record, trigger capture, Email Material Aluminum alloy bodyBubble: plastic Screw Material SUS304 Camera Dimension Ø110.8 × 84.7 mm (Ø4.4′′ × 3.3′′) Package Dimension 134 × 134 × 108 mm (5.3′′ × 5.3′′ × 4.3′′) Camera Weight Approx. 530 g (1.2 lb.) With Package Weight Approx. 720 g (1.6 lb.) Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) Startup and Operating Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) Web Client Language 33 languagesEnglish, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian General Function Anti-flicker, heartbeat, password reset via email, pixel counter Firmware Version V5.5.113 Software Reset Yes Power Consumption and Current 12 VDC, 0.5 A, max. 6 WPoE (802.3af, 36 V to 57 V), 0.2 A to 0.13 A, max. 7.2 W Power Supply 12 VDC ± 25%, reverse polarity protectionPoE: 802.3af, Class 3 Power Interface Ø 5.5 mm coaxial power plug APPROVAL EMC FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015) Safety UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015) Environment CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) Protection IP67 (IEC 60529-2013)

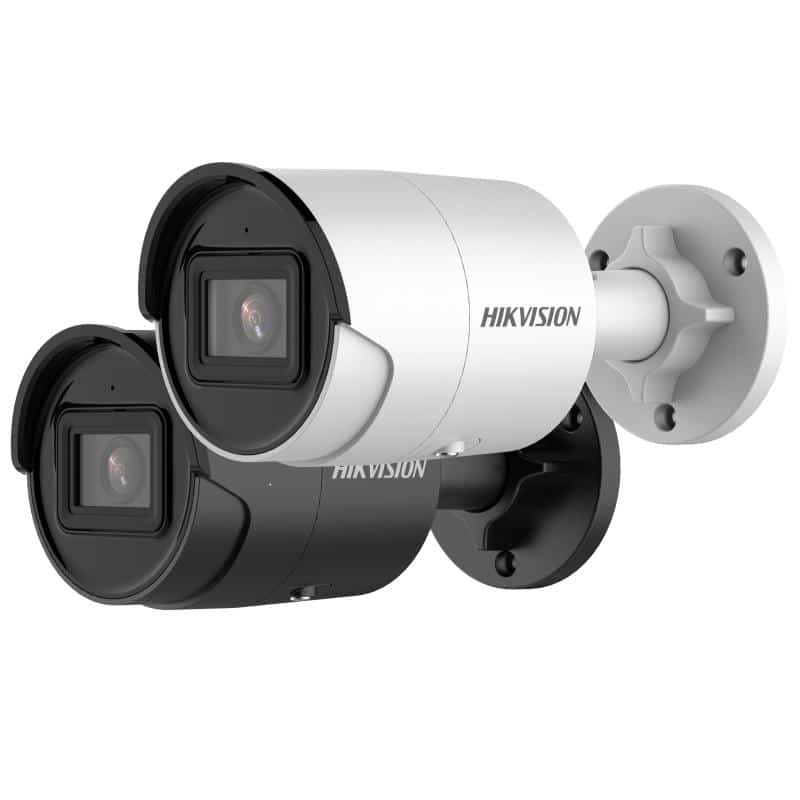

DS-2CD2083G2-I(U) 8MP AcuSense Fixed Bullet Network Camera
A bullet-style surveillance camera that can accurately detect human or vehicle motion/target. Product Description: Empowered by deep learning algorithms, Hikvision AcuSense technology brings human and vehicle targets classification alarms to front- and back-end devices. The system focuses on human and vehicle targets, vastly improving alarm efficiency and effectiveness. Product Features: Technical Specification: CAMERA Image Sensor 1/2.8″ progressive scan CMOS Min. Illumination Color: 0.005 Lux @ (F1.6, AGC ON); B/W: 0.001 Lux @ (F1.6, AGC ON), 0 Lux with IR Shutter Speed 1/3 s to 1/100,000 s Slow Shutter Yes P/N P/N Wide Dynamic Range 120 dB Day & Night IR cut filter Angle Adjustment Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360° LENS Lens Type Fixed focal lens, 2.8, 4, and 6 mm optional Focal Length & FOV 2.8 mm, horizontal FOV 107°, vertical FOV 57°, diagonal FOV 128°4 mm, horizontal FOV 87°, vertical FOV 46°, diagonal FOV 105°6 mm, horizontal FOV 54°, vertical FOV 29°, diagonal FOV 63° Lens Mount M12 Iris Type Fixed Aperture F1.6 DORI DORI 2.8 mm: D: 88 m, O: 35 m, R: 17 m, I: 9 m4 mm: D: 108 m, O: 43 m, R: 22 m, I: 11 m6 mm: D: 177 m, O: 70 m, R: 35 m, I: 18 m ILLUMINATOR Supplement Light Type IR Supplement Light Range Yes IR Wavelength 850 nm IR Range Up to 40 m VIDEO Max. Resolution 3840 × 2160 Main Stream 50 Hz: 20 fps (3840 × 2160) 25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)60 Hz: 20 fps (3840 × 2160) 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) Sub-Stream 50 Hz: 25 fps (640 × 480, 640 × 360)60 Hz: 30 fps (640 × 480, 640 × 360) Third Stream 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)*Third stream is supported under certain settings. Video Compression Main stream: H.265/H.264/H.264+/H.265+Sub-stream: H.265/H.264/MJPEGThird stream: H.265/H.264*Third stream is supported under certain settings. Video Bitrate 32 Kbps to 16 Mbps H.264 Type Baseline Profile/Main Profile/High Profile H.265 Type Main profile H.264+ Main stream supports H.265+ Main stream supports Bit Rate Control CBR/VBR Scalable Video Coding (SVC) H.264 and H.265 encoding Region of Interest (ROI) 1 fixed region for main stream and sub-stream AUDIO Audio Compression -U: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC Audio Bit Rate -U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/16 Kbps to 64 Kbps (AAC)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3) Audio Sampling Rate -U: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz Environment Noise Filtering -U: Yes NETWORK Network Storage NAS (NFS, SMB/CIFS), auto network replenishment (ANR) Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP API Open Network Video Interface (Profile S, Profile G), ISAPI, SDK Simultaneous Live View Up to 6 channels User/Host Up to 32 users, 3 user levels: administrator, operator, and user Security Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface Client iVMS-4200, Hik-Connect, Hik-Central Web Browser Plug-in required live view: IE 10, IE 11Plug-in free live view : Chrome 57.0+, Firefox 52.0+Local service: Chrome 57.0+, Firefox 52.0+ IMAGE Image Parameters Switch Yes Image Settings Rotate, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser Day/Night Switch Day, Night, Auto, Schedule Image Enhancement BLC, HLC, 3D DNR SNR > 52 dB INTERFACE Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port On-board Storage Built-in memory card slot, support microSD card, up to 256 GB Built-in Microphone -U: Yes Hardware Reset Yes EVENT Basic Event Motion detection (human and vehicle targets classification), video tampering alarm, exception Smart Event Line crossing detection, intrusion detection, human and vehicle targets classification Face Detection Yes GENERAL Linkage Method Upload to FTP/memory card/NAS, notify surveillance center, trigger recording, trigger capture, send email Camera Material Aluminum alloy bodyIR cover: plastic Camera Dimension Ø 70 mm × 161.7 mm (Ø 2.8″ × 6.4″) Package Dimension 216 mm × 121 mm × 118 mm (8.6″ × 4.8″ × 4.7″) Camera Weight Approx. 495 g (1.1 lb.) With Package Weight Approx. 759 g (1.7 lb.) Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) Startup and Operating Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) Web Client Language 33 languagesEnglish, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian General Function Anti-flicker, heartbeat, password reset via email, pixel counter Firmware Version V5.5.113 Software Reset Yes Power Consumption and Current 12 VDC, 0.5 A, max. 6 WPoE (802.3af, 36 V to 57 V), 0.2 A to 0.13 A, max. 7.2 W Power Supply 12 VDC ± 25%, reverse polarity protectionPoE: 802.3af, Class 3 Power Interface Ø 5.5 mm coaxial power plug APPROVAL EMC FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015) Safety UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015) Environment CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) Protection IP67 (IEC 60529-2013)
